RFID Electric Vehicle Management Solution

1、Brief description of the program

 2、Tag write password/mask & paste

Reads the tag number with a UHF reader writer and writes the required password/mask

The reader writer is connected to the computer with a USB cable and uses our demo software to write passwords or masks to the tags.

Attach the tag with the password/mask to the vehicle.

3、Vehicle access management

Installation of UHF integrated reader at the gate, set up the corresponding password / mask, through the relay connected to the road gate, when the vehicle passes through, UHF integrated reader reads the UHF electronic tag number on the vehicle, the electronic tag number in line with the set password / mask before opening the gate, the foreign did not write the password / mask tag does not open the gate.

This solution is suitable for electric vehicle management scenarios where you only need to control the opening of gates and do not need to do data management.

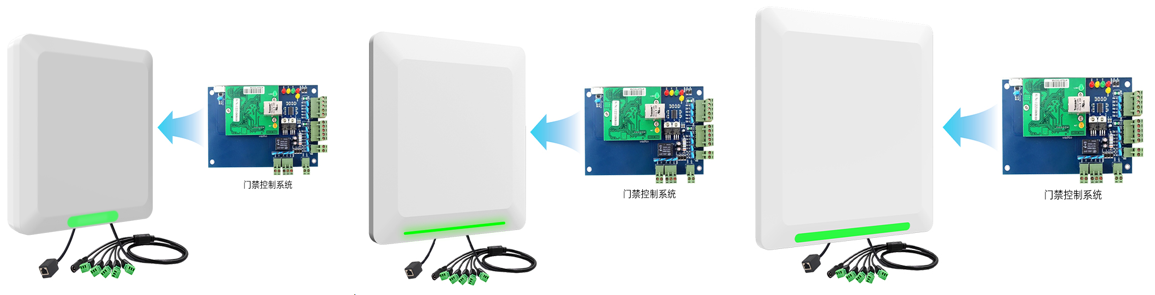

4、Vehicle access control related equipment

A100 & A200 & A300

 5、Applicable tags

There are three types of car tags to choose from, depending on where and how they are affixed: headlight tags, windshield tags, and UHF cards.

Lamp Tags G9304：Stick on the headlight to use, transparent waterproof material, anti-removal, tear off the tag damage, can not be reused. Windshield tags

G9305：Stick on the windshield of the car, with 3M strong adhesive, tamper-proof design, torn off and damaged UHF card

G9102：Optional transparent card holder, suction cups will be adsorbed to the card holder on the glass, the card is placed in the card holder, you can also give the card to the cardholder to keep the card, and then show it to the card reader to read when you pass through the gate, the card can be detached and can be used for many times, and can be printed with customized sizes.

G9304 & G9305 & G9102

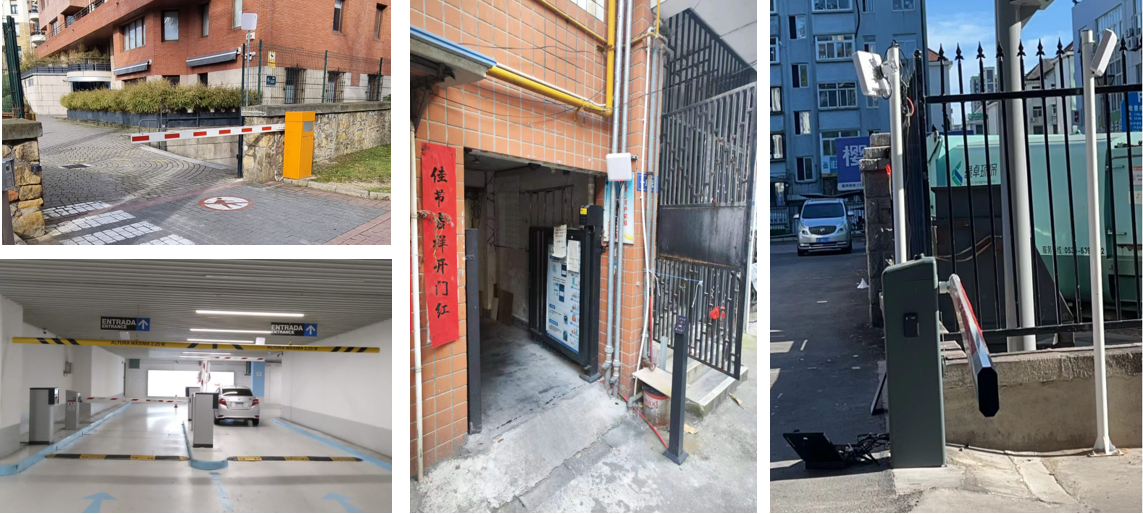

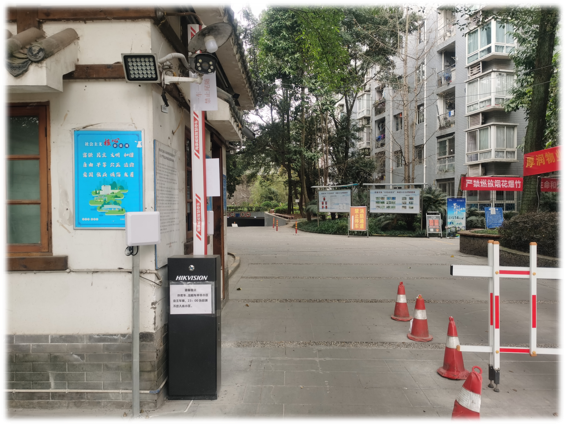

6、Application cases
