RFID Laundry Management Solution

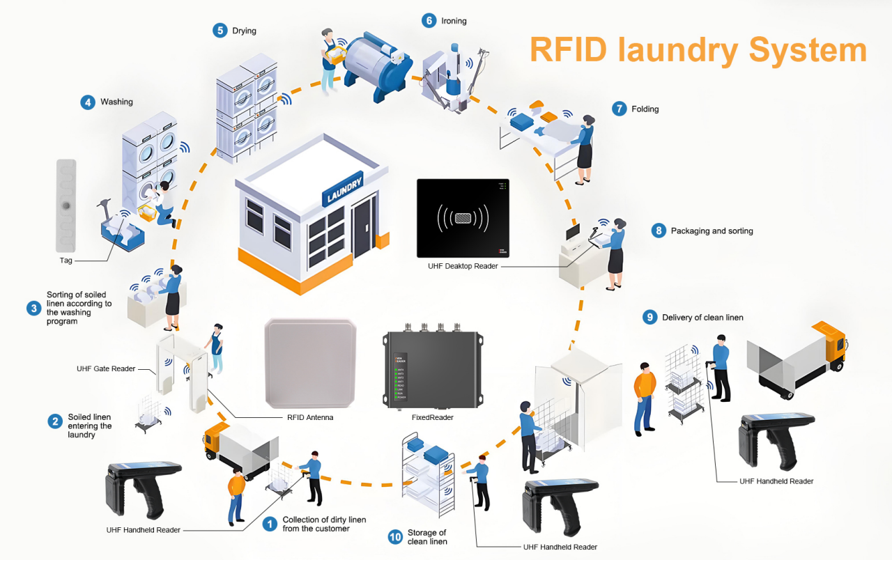

1、Brief description of the program

 2、Tag authorization and paste

With UHF reader writer will read the tag number into the software system, the tag number in the system and clothing information corresponding to the binding, such as the need to give the tag a special number, you can also use the reader writer to write first.

3、Laundry access control

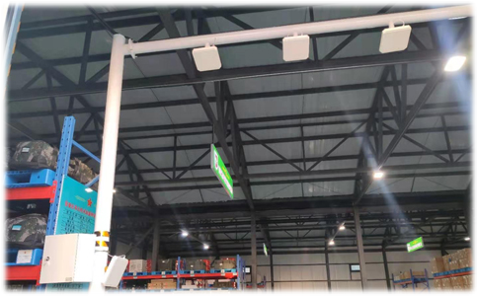

Use UHF multi-channel fixed reader with UHF antenna to install on both sides or on top of the entrance/exit door of the laundry room. When UHF tagged clothing passes through an entrance or exit, it is recognized and the data can be sent remotely to a server.

 4、Inventory management related equipment

Fixed Reader CF815 four-channel & CF816 eight-channel

• Communication interface RS232, USB, RJ45, customizable POE

Antenna CF-RA5001 & CF-RA9002 & CF-RA1201

5、Shelf stock inventory

Regular inventory of clothing on shelves and in storage areas requires the use of UHF handheld reader or UHF Bluetooth back clips with group read capability and fast tag recognition over long distances.

H105(Handheld Reader) & H103 Bluetooth Back Clip

6、Sorting and packaging management

The operating desk at the desktop reader writer, with group reading function, through the USB interface and computer communication, the customer selects the goods will be placed on the desktop reader writer, reader writer can be quickly multiple read, the tag data uploaded to the system, the system displays the relevant information, to help the sorting staff to quickly sort the door into different categories.

CF603 & CF605 & CF606

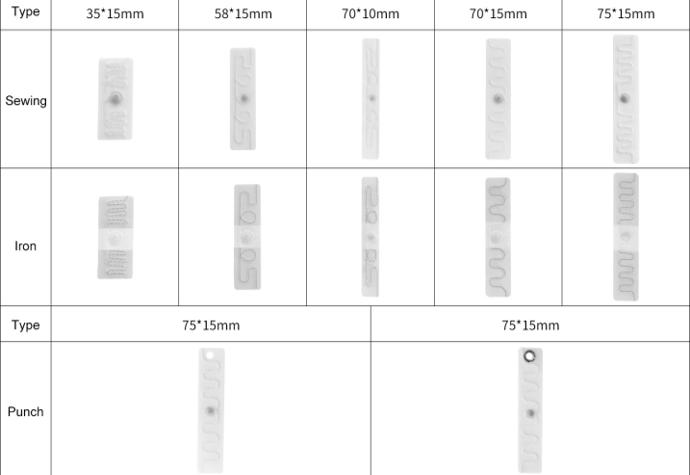

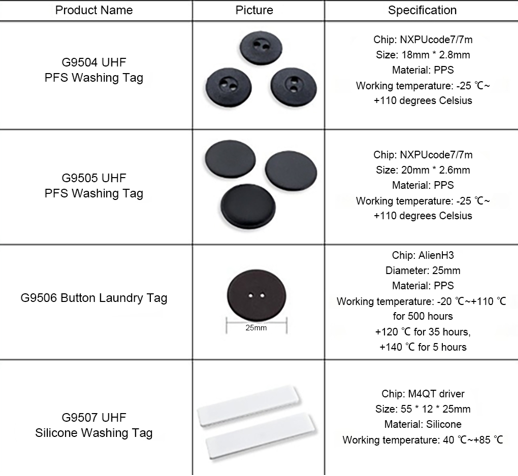

7、RFID Tags for laundry management
