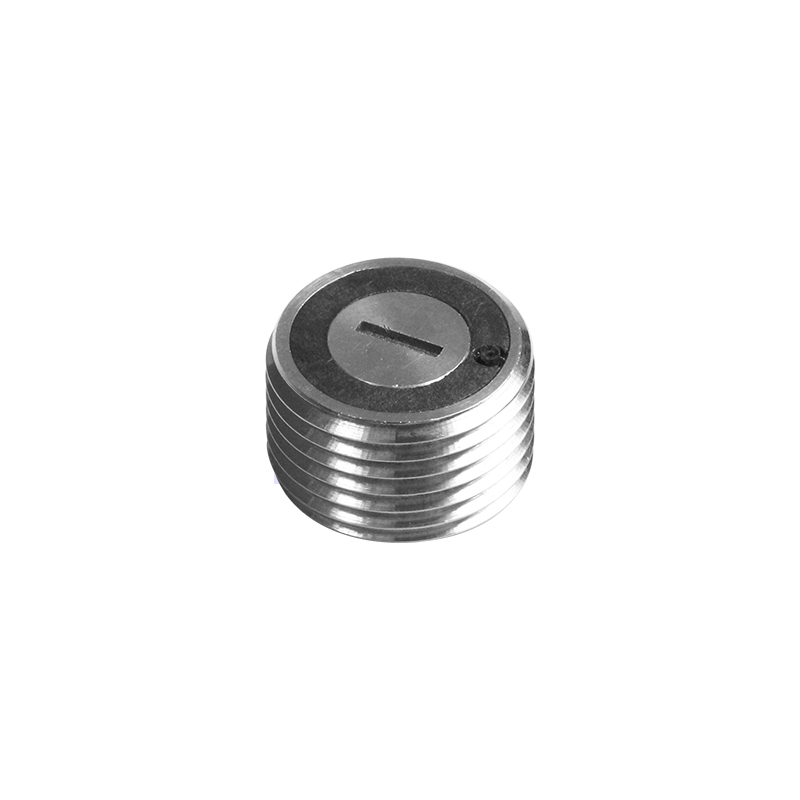

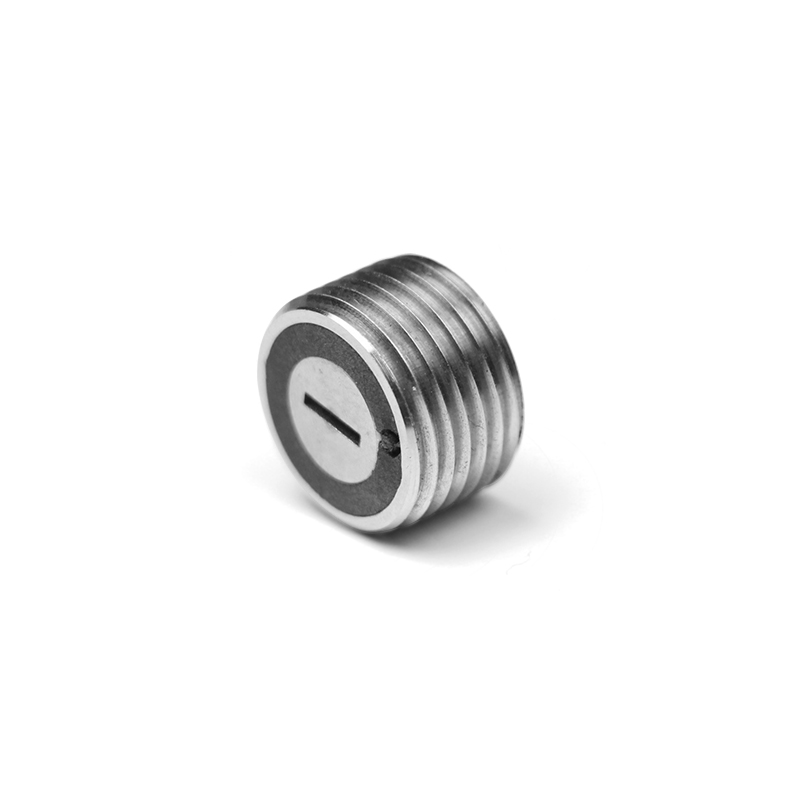

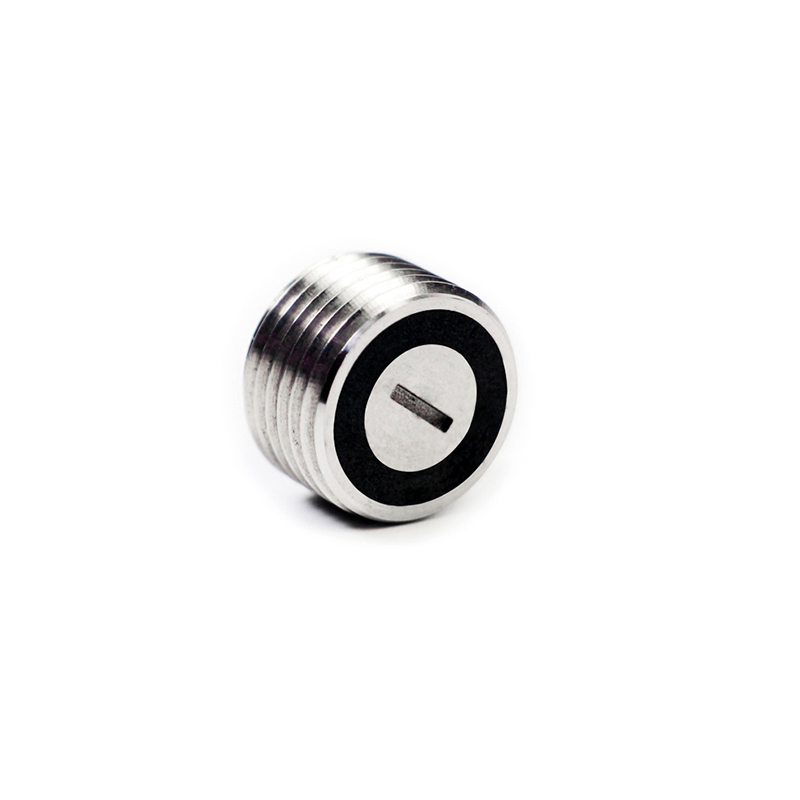

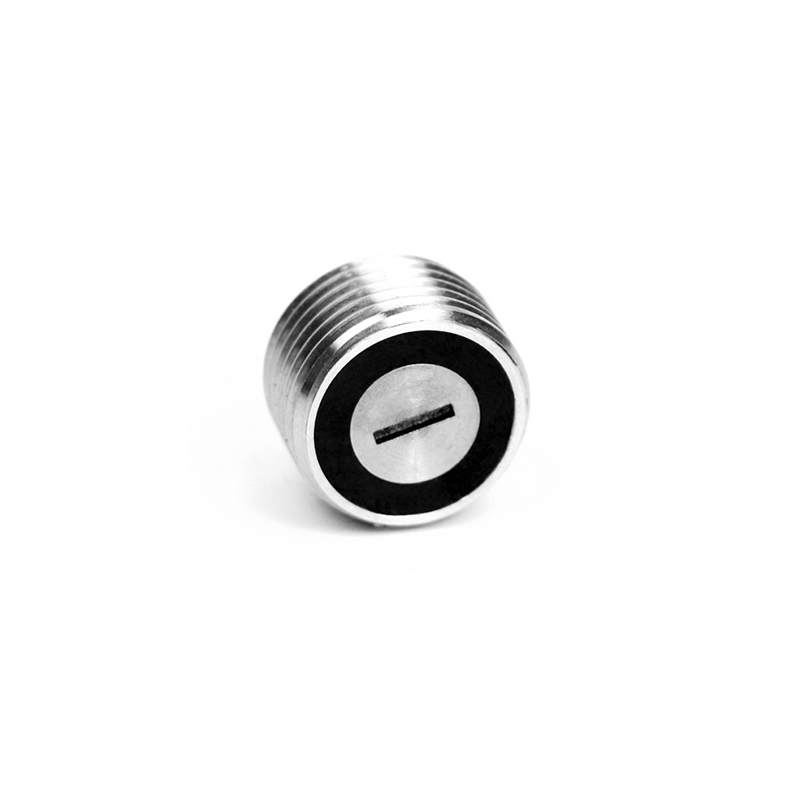

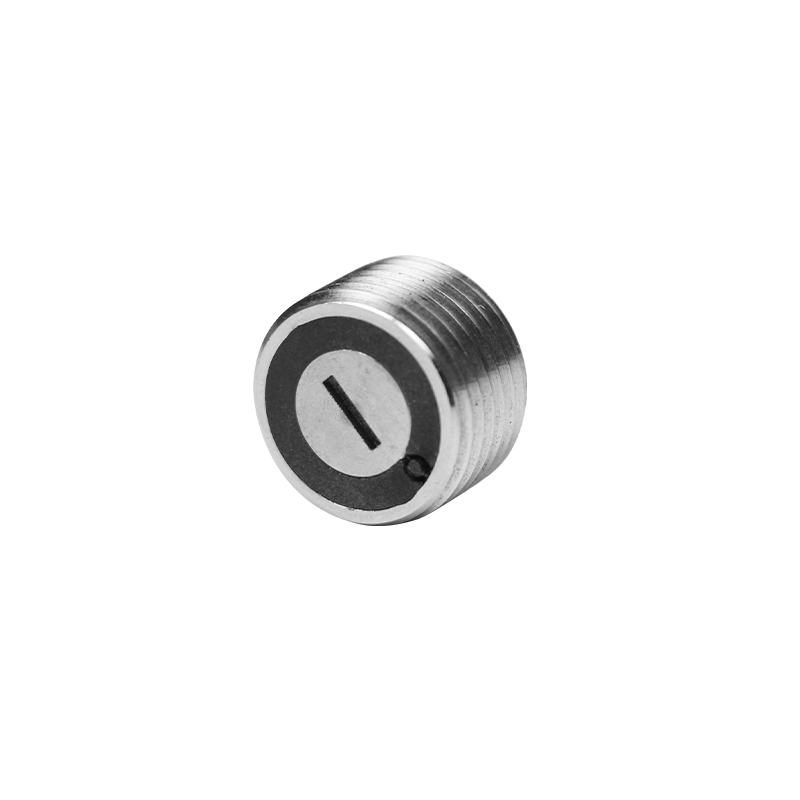

G9862 High Temperature Resistant Screw-type Anti-metal Tag
G9862 High Temperature Resistant Screw-type Anti-metal Tag
Features anti-metal properties, can be directly attached to metal surfaces, supports surface printing. Suitable for indoor and outdoor applications such as machinery asset management, power equipment inspection management, warehouse shelf management, etc.
|
Performance Specifications |
|
|
Protocol |
EPC Class1 Gen2, ISO18000-6C |
|
Frequency |
US(902-928MHZ), EU(865-868MHZ) |
|
Chip Type |
Alien Higgs-3,(NXP UCODE 8) |
|
Chip Memory |
EPC 96 bits (expandable to 480 bits), User 512 bits, TID 64 bits |
|
Write Cycles |
100,000 cycles |
|
Read/Write |
Readable and Writable |
|
Data Retention |
50 years |
|
Read Range |
Fixed Reader： US：0.90m EU：0.80m Handheld Reader： US：0.35m EU：0.35m |
|
Physical Characteristics |
|
|
Dimensions |
Dia18.0mm |
|
Thickness |
11.0mm |
|
Operating Temperature |
-40℃~ +150℃ |
|
Storage Temperature |
-50℃~ +260℃；+300℃100 hours |
|
Weight |
13.5g |
|
Certifications |
Reach, RoHS, CE |
|
Installation Method |
Screw |
|
IP Rating |
IP68 |
|
Warranty |
1 year |
|
Material |
304 Stainless Steel |
|
Color |
Gray |

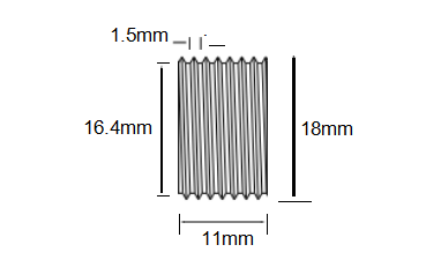

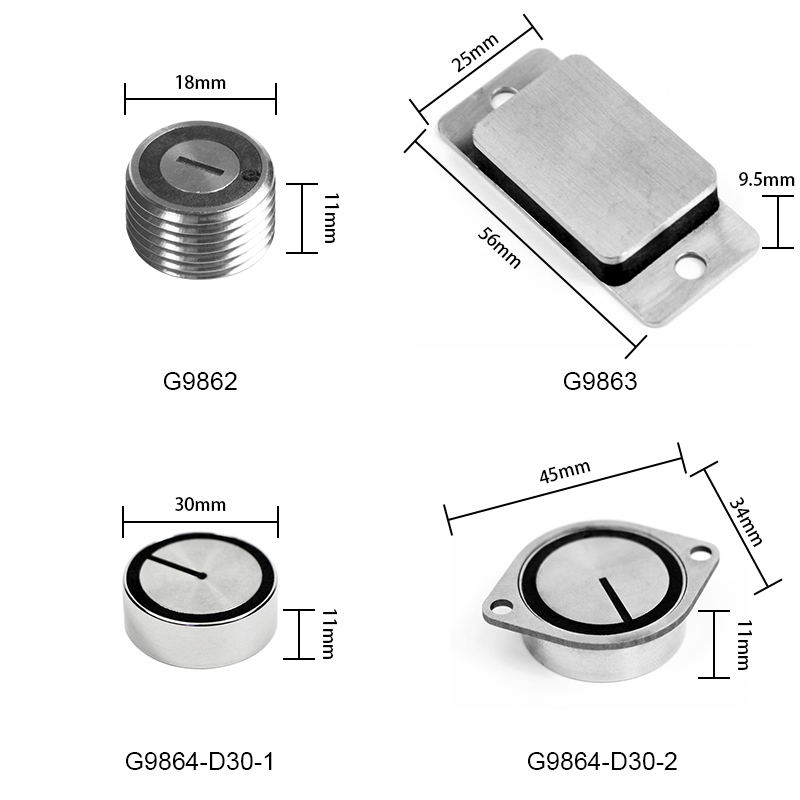

Product Dimensions:
