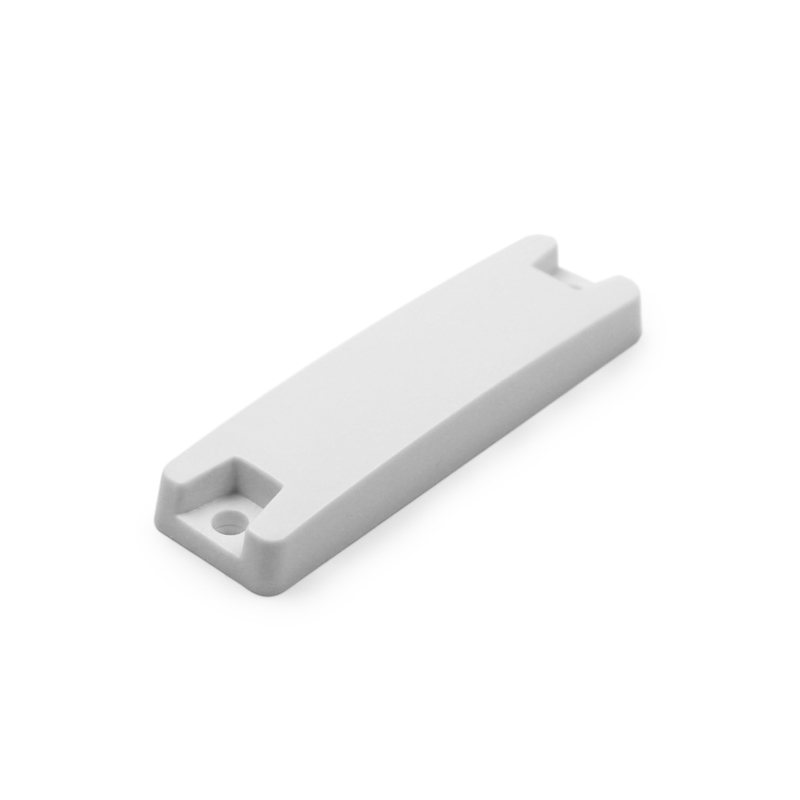

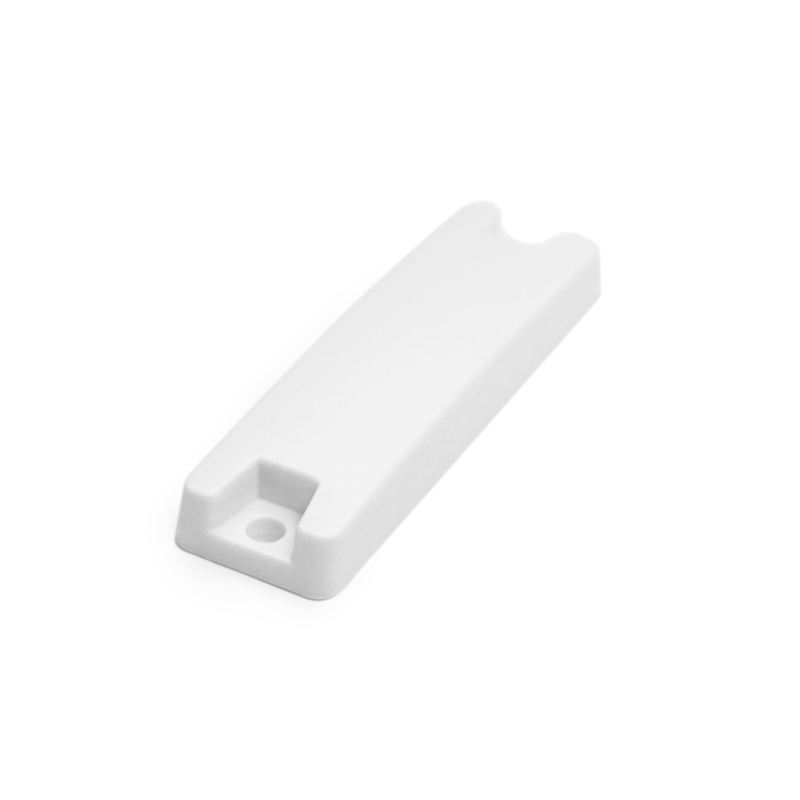

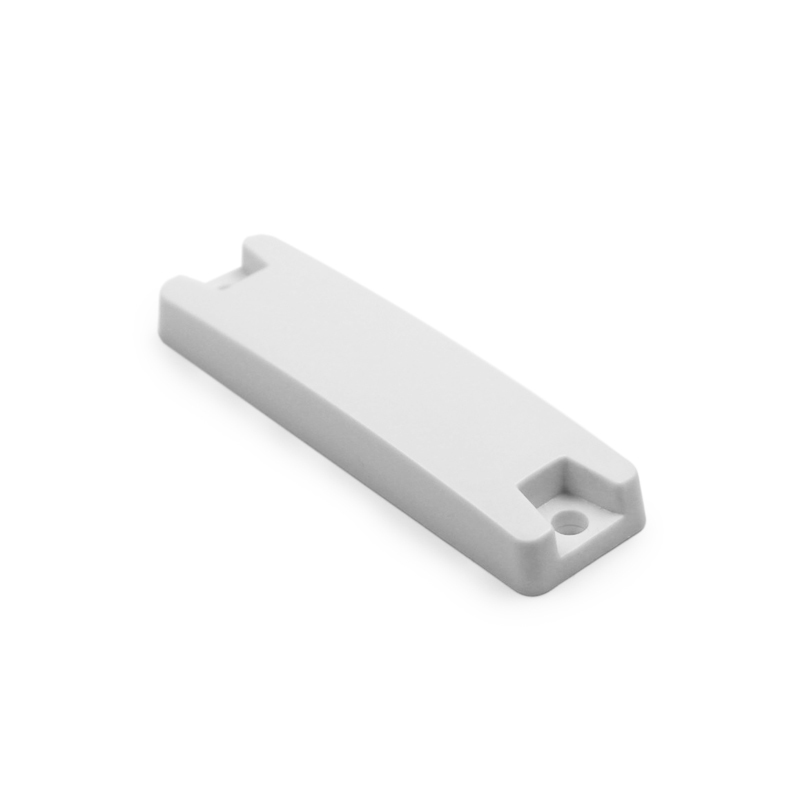

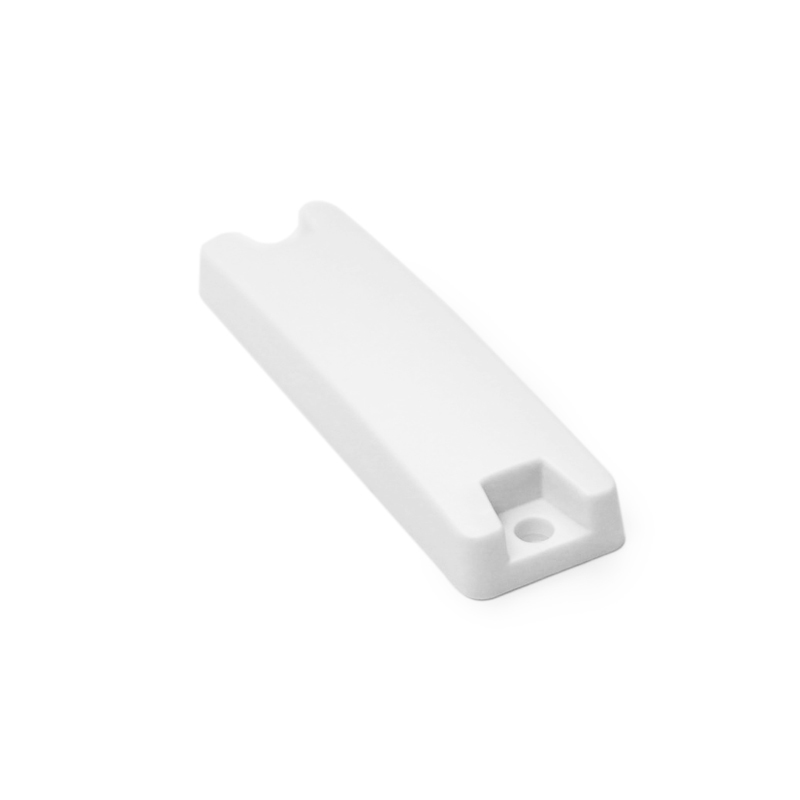

G9866 UHF Long Range Anti-metal Tag
Features anti-metal properties, can be directly attached to metal surfaces, supports surface printing. Suitable for indoor and outdoor applications such as machinery asset management, power equipment inspection management, warehouse shelf management, etc.
|
Performance Specifications |
|
|
Protocol |
EPC global and ISO 18000-63 compliant, Gen2v2 compliant |
|
Frequency |
840MHz~940MHz |
|
Chip Type |
Impinj Monza R6-P |
|
Chip Memory |
EPC128 bits , User 32 bits, TID 96 bits |
|
Write Cycles |
100,000 cycles |
|
Read/Write |
Readable and Writable |
|
Data Retention |
50 years |
|
Read Range |
Fixed Reader: 9.8 meters (4W, 36dBm), metal surface; 4.8 meters (4W, 36dBm), non-metal surface |
|
Physical Characteristics |
|
|
Dimensions |
87.0x24.0mm,（Hole：Dia5.0mmx2） |
|
Thickness |
11.0mm |
|
Operating Temperature |
-30℃~ +70℃ |
|
Storage Temperature |
-30℃~ +70℃ |
|
Weight |
19.0g |
|
Certifications |
Reach, RoHS, CE |
|
Installation Method |
Adhesive, Screw |
|
IP Rating |
IP67 |
|
Warranty |
1 year |
|
Material |
PC |
|
Color |
White |
Product Dimensions:
