G9869 UHF Tool Anti-metal Tag
|
Performance Specifications |
|
|
Protocol |
EPC Class1 Gen2, ISO18000-6C |
|
Frequency |
US(902-928MHZ), EU(865-868MHZ) |
|
Chip Type |
UCODE 8 |
|
Chip Memory |
EPC 128 bits , USER 0 bits, TID 96 bits |
|
Write Cycles |
100,000 cycles |
|
Read/Write |
Readable and Writable |
|
Data Retention |
50 years |
|
Read Range |
Fixed Reader： US：45cm(metal surface） EU：40cm(metal surface） Handheld Reader： US：25cm(metal surface） EU：40cm(metal surface） |
|
Physical Characteristics |
|
|
Dimensions（20 styles optional） |
6.0x3.0mm, 6.0x6.0mm, 8.0x6.0mm, 10.0x4.0mm, (Hole: Diameter 2mm), 13.0x7.0mm, (Holes: Diameter 2.0mmx2), 15x4mm, (Holes: Diameter 2mm2), 18x6mm, (Hole: Diameter 2mmx1), 22x8mm, (Holes: Diameter mm2), 25x10mm, (Holes: Diameter 2mmx2), 30x5mm, (Holes: Diameter 2mm*2), 33.0x10.0mm, (Hole: Diameter 2mm), 36x13mm, (Hole: Diameter 2mm), 40.0x10.0mm, (Holes: Diameter 3.0mmx2), 50x10mm, (Hole: Diameter 2mm), Diameter 5mm, Diameter 6mm, (Hole: Diameter 2mmx1), Diameter 10mm, (Hole: Diameter 2mm), Diameter 13.0mm, (Holes: Diameter 2.0mmx2), Diameter 16.0mm, (Holes: Diameter 2.0mmx2), Diameter 20.0mm, (Holes: Diameter 2.0mmx2) |
|
Operating Temperature |
-40℃~ +100℃ |
|
Storage Temperature |
-40℃~ +150℃ |
|
Weight |
0.5g |
|
Certifications |
Reach, RoHS, CE |
|
Installation Method |
adhesive backing |
|
IP Rating |
IP68 |
|
Warranty |
1 year |
|
Material |
Industrial High-Temperature Material |
|
Color |
Black (Optional Red, Blue, Green, White) |

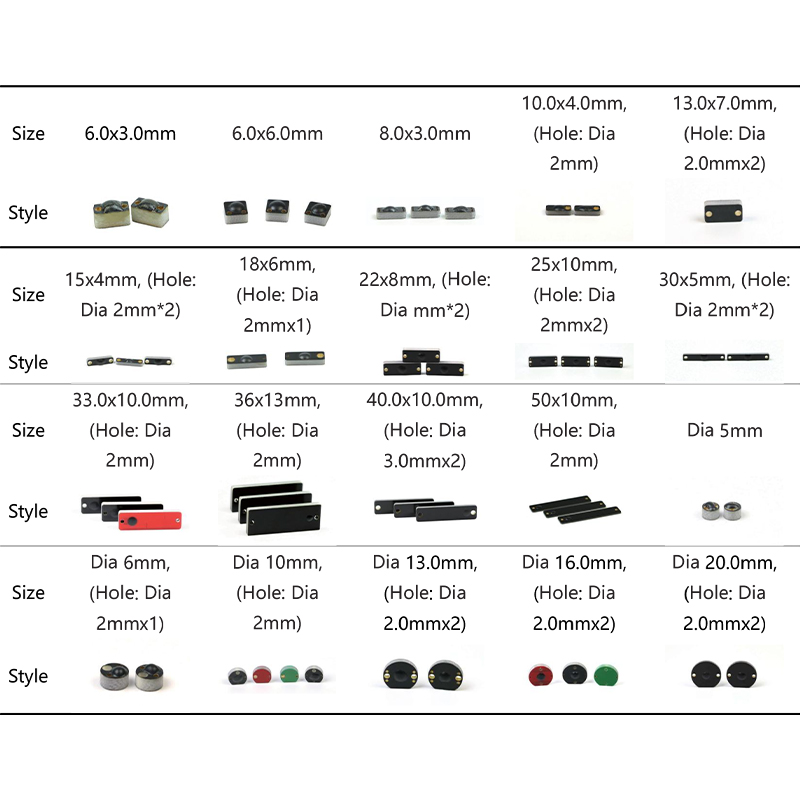

Compare different sizes and styles:
