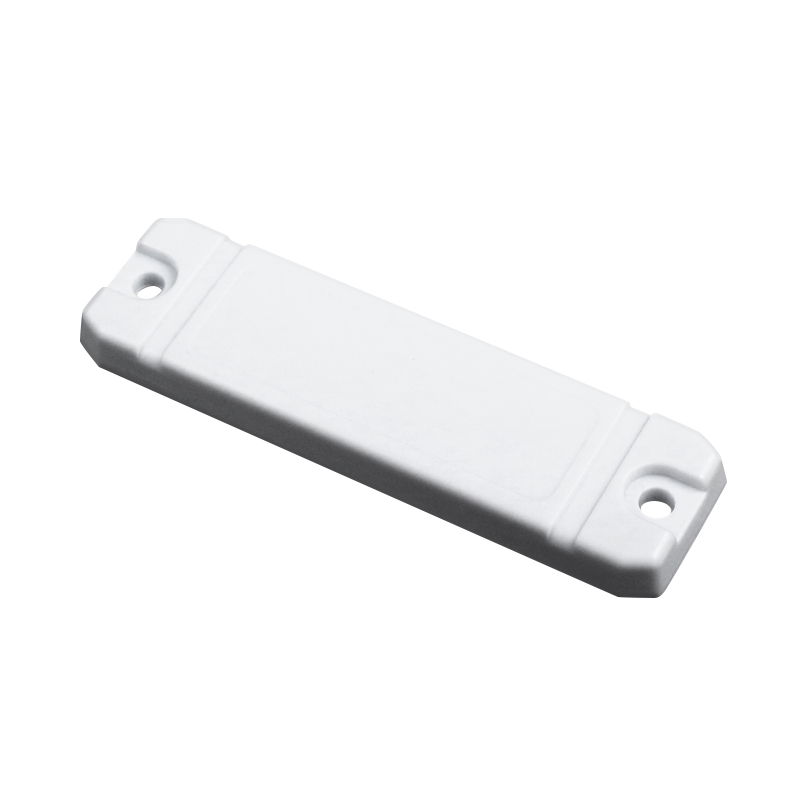

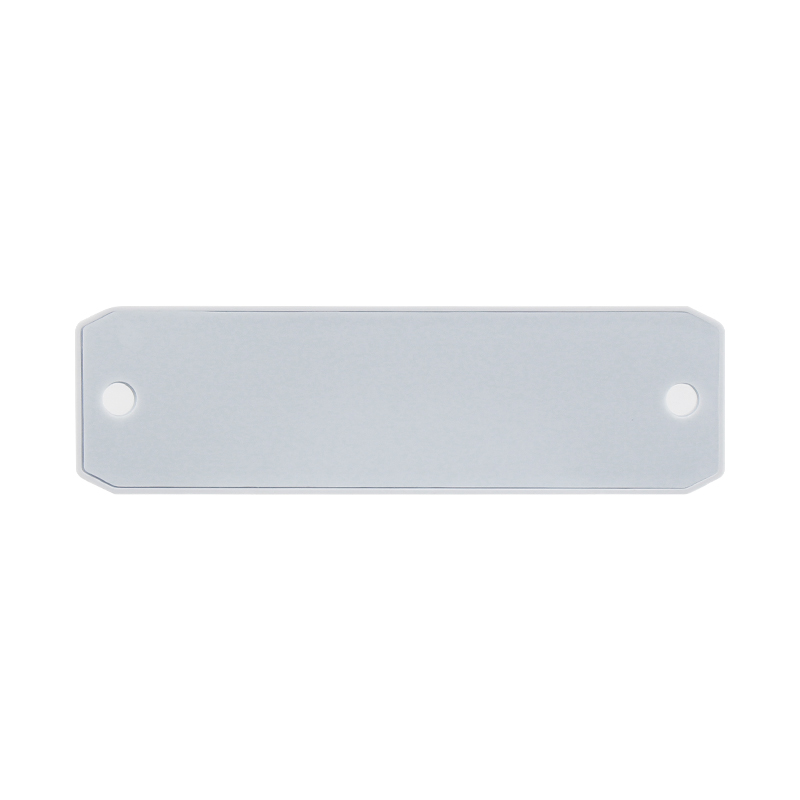

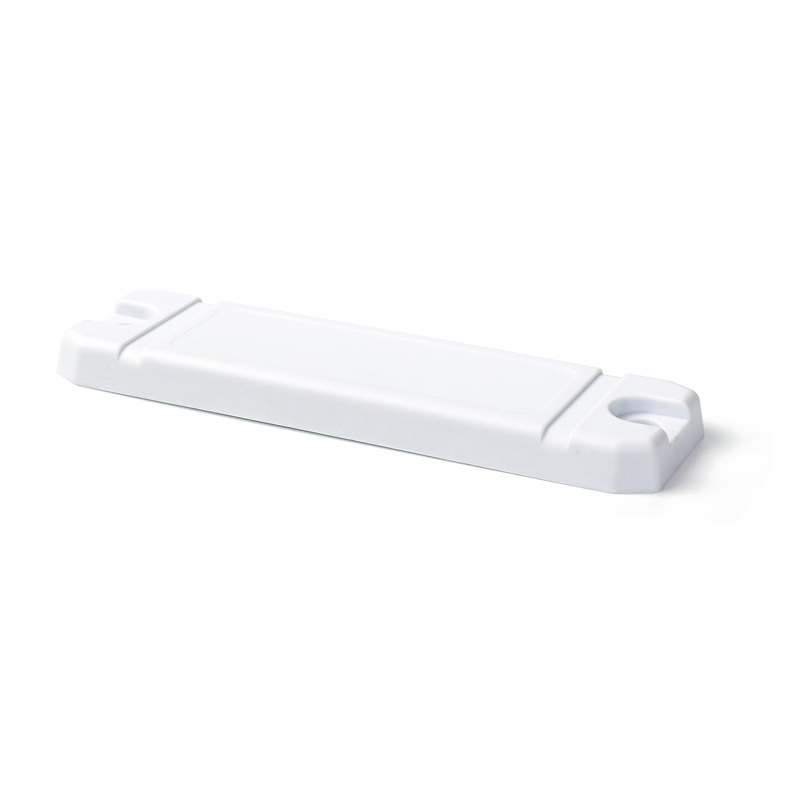

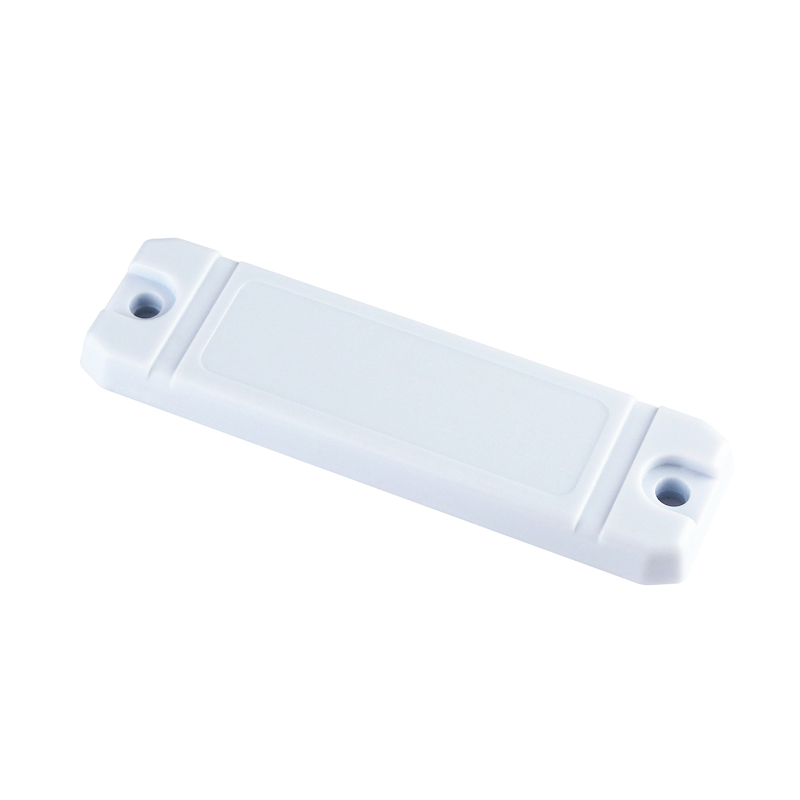

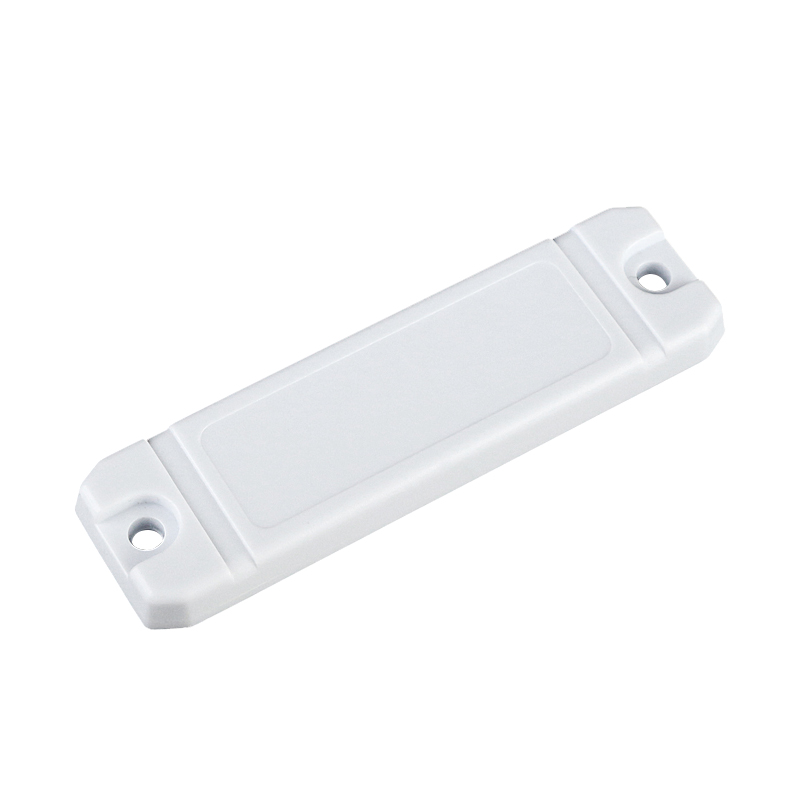

G9868 UHF Long Range Anti-metal Tag
G9868 UHF Long Range Anti-metal Tag
Features anti-metal properties, can be directly attached to metal surfaces, supports surface printing. Suitable for indoor and outdoor applications such as machinery asset management, power equipment inspection management, warehouse shelf management, etc.
|
Performance Specifications |
|
|
Protocol |
EPC Class1 Gen2, ISO18000-6C |
|
Frequency |
US(902-928MHZ), EU(865-868MHZ) |
|
Chip Type |
NXP UCODE 8 |
|
Chip Memory |
EPC 128 bits , USER 0 bits, TID 96 bits |
|
Write Cycles |
Min. 100,000 cycles |
|
Read/Write |
Readable and Writable |
|
Data Retention |
50 years |
|
Read Range |
Fixed Reader： US：up to19.0m EU：up to 20.0m Handheld Reader： US：up to 7.0m EU：up to 7.5m |
|
Physical Characteristics |
|
|
Dimensions |
105.0x30.0mm, Hole: Dia5.2mmx2 |
|
Thickness |
7.5mm |
|
Operating Temperature |
-25℃~ +85℃ |
|
Storage Temperature |
-40℃~ +85℃ |
|
Weight |
26.0g |
|
Certifications |
Reach, RoHS, CE |
|
Installation Method |
Screw, Adhesive, Cable Tie |
|
IP Rating |
IP67 |
|
Warranty |
1 year |
|
Material |
ABS+PC |
|
Color |
White (Others) |
Product Dimensions:

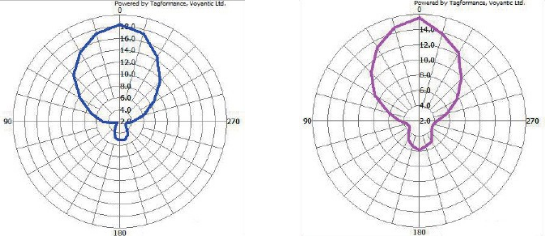

Radiation Pattern (Sensitivity Chart):
US(902-928MHZ) EU(865-868MHZ)
