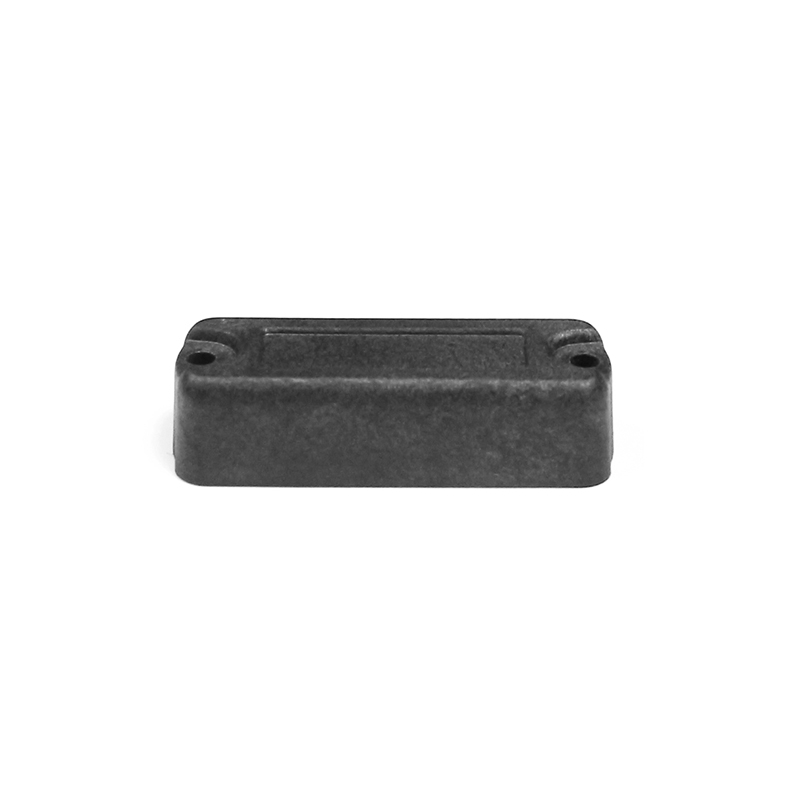

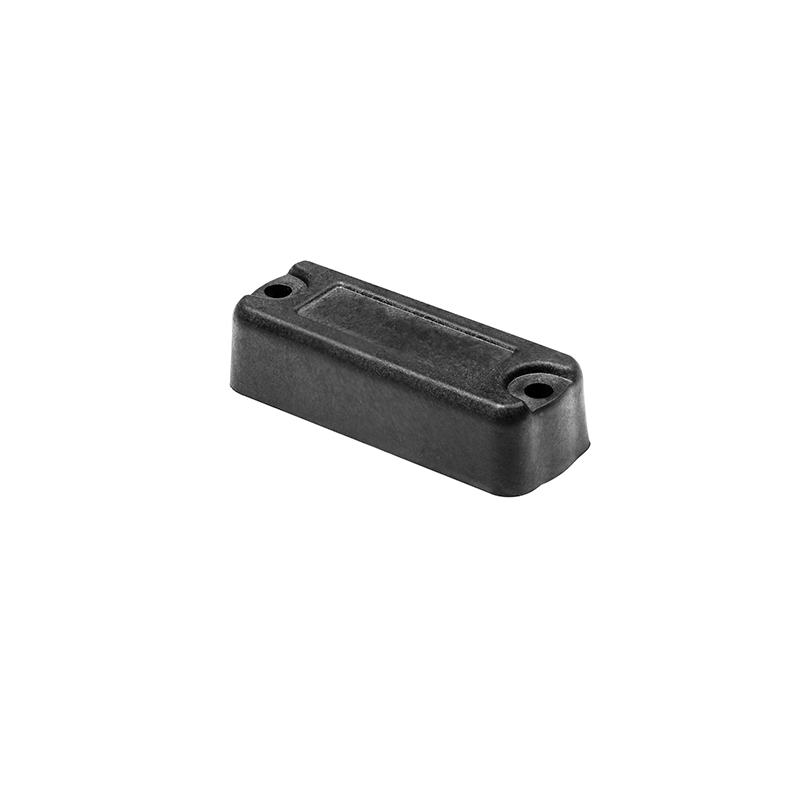

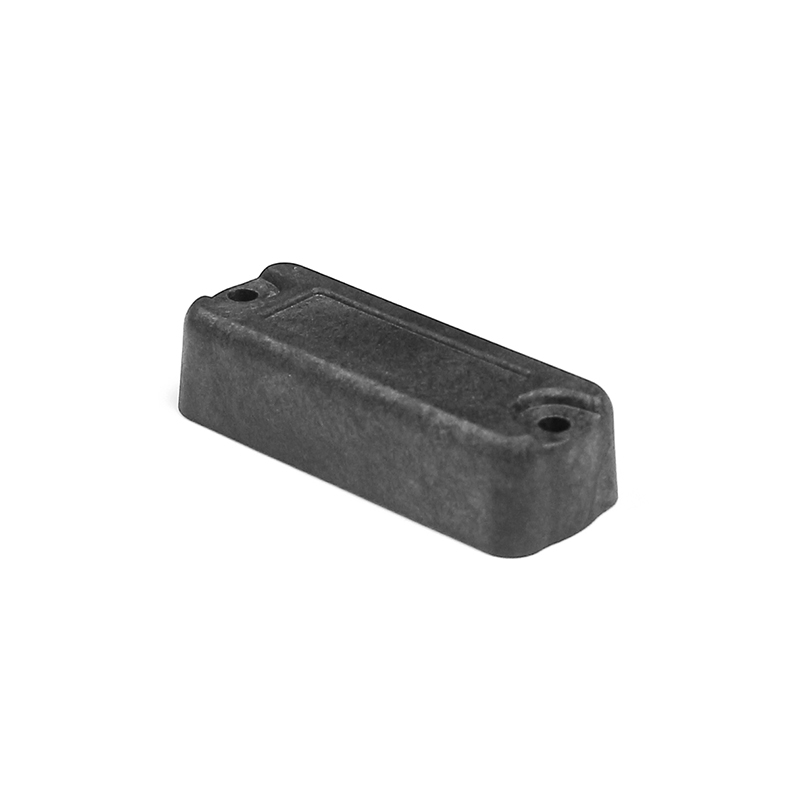

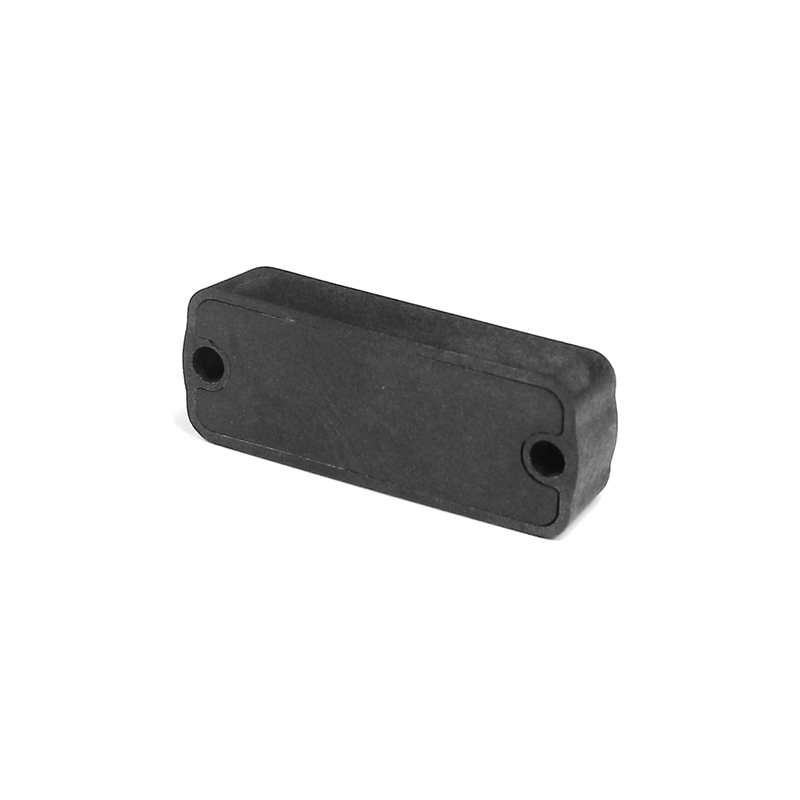

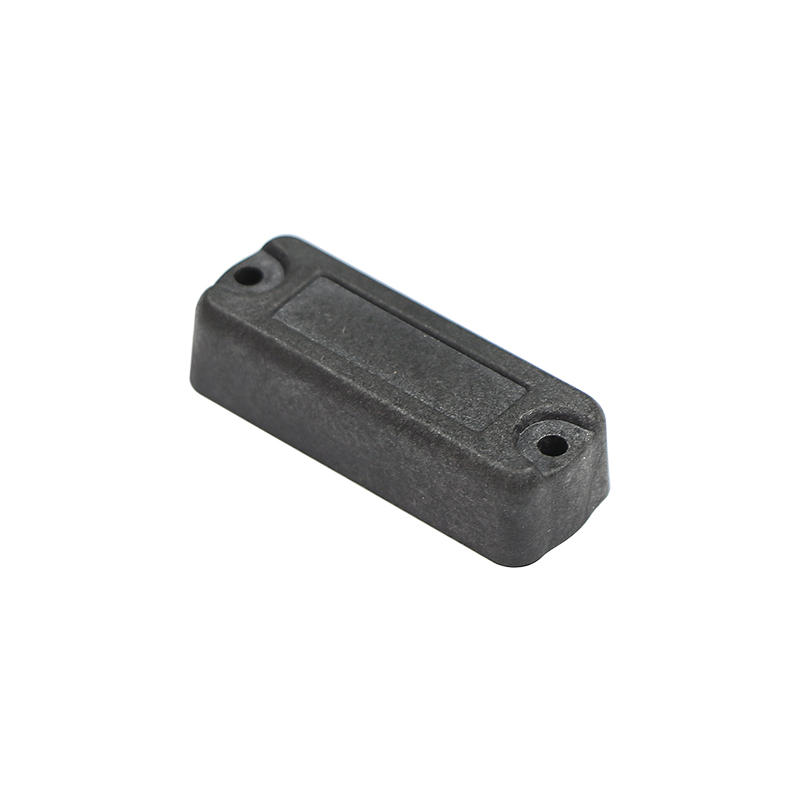

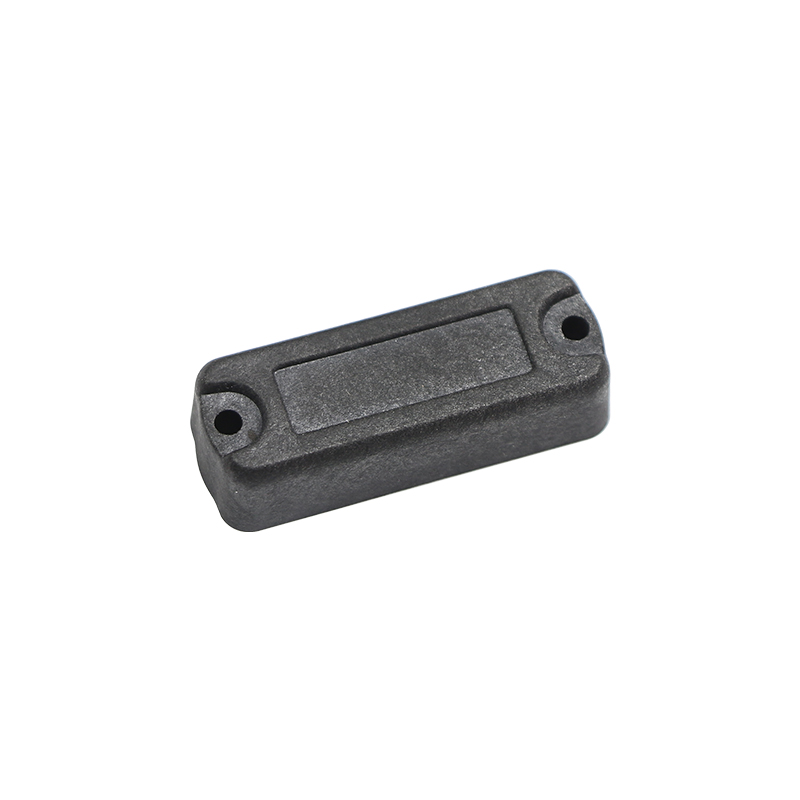

G9860 High Temperature Resistant Anti-metal Tag

Features anti-metal properties, can be directly attached to metal surfaces, supports surface printing. Suitable for indoor and outdoor applications such as machinery asset management, power equipment inspection management, warehouse shelf management, etc.

Performance Specifications



Protocol

EPC Class1 Gen2, ISO18000-6C

Frequency

US(902-928MHZ), EU(865-868MHZ)

Chip Type

NXP UCODE-8

Chip Memory

 EPC 128 bits, User 0 bits, TID 96 bits

Write Cycles

100,000 cycles

Read/Write

Readable and Writable

Data Retention

50 years

Read Range

Fixed Reader:
US: 6.0 meters, metal surface; 1.7 meters, non-metal surface
EU: 6.0 meters, metal surface; 1.7 meters, non-metal surface

Handheld Reader：

US: 3.0 meters, metal surface, 1.2 meters, non-metal surface
EU: 3.0 meters, metal surface; 1.2 meters, non-metal surface

Physical Characteristics



Dimensions

40.0*15.0mm，Hole: Dia2.5mmx2

Thickness

10.0mm

Operating Temperature

-40℃~ +150℃

Storage Temperature

-40℃~ +260℃; +300℃ for 100 hours

Weight

6.0g

Certifications

Reach, RoHS, CE

Installation Method

Screw

IP Rating

IP65

Warranty

250℃,1year

260℃,6months

Material

PEEK

Color

Black

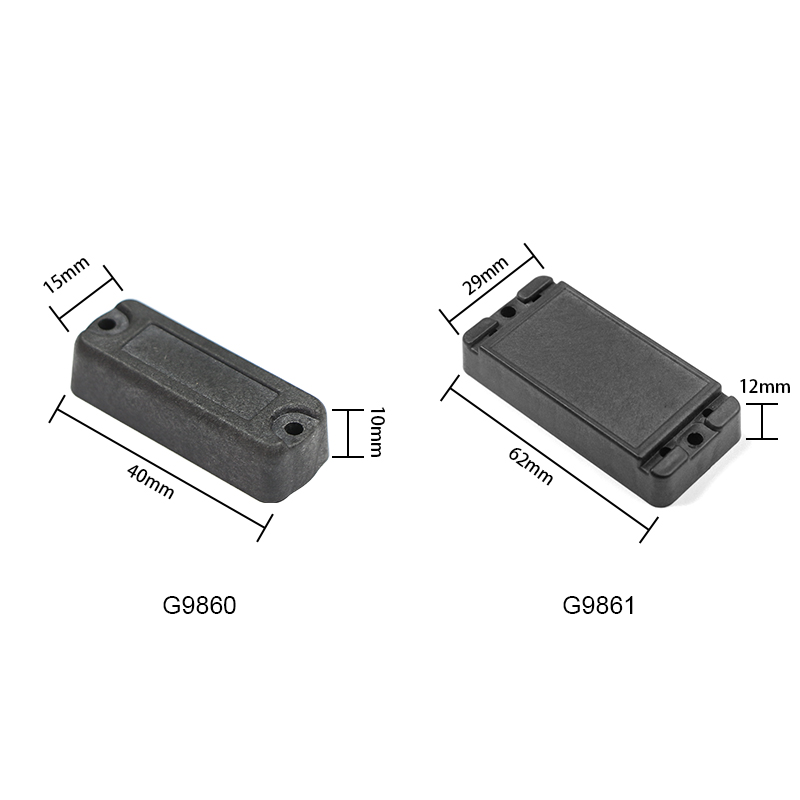

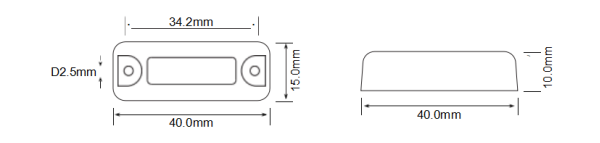

Product Dimensions:
