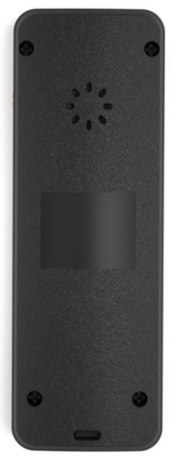

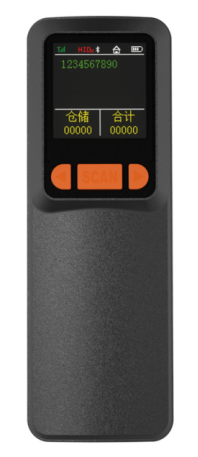

H203 2D wireless scanner with screen

Physical parameters

Physical parameters

Scan mode

Key trigger/auto-sensing/continuous scanning

Internal storage

512K (stores 36,000 common product codes)

Communication interface

USB-HID keyboard/USB-COM virtual serial port

Screen

1.44-inch TFT LCD (128×RGB×128)

Wireless communication distance

Wireless 2.4G: 0-80m (open environment)

Bluetooth: 0-20m (open environment)

Sensor

300,000 global CMOS

Prompt method

Buzzer, LED light, display, vibration motor

Resolution

640*480

Setting method

Menu settings

Light source

White light LED

Shell material

ABS+PC

Scanning angle

±60°,±60°,360° (elevation, deflection, rotation)

Cable standard

USB straight line 1m

Scanning rate

120 frames/second

Product size

119×41×22.5mm

Field of view

48° (H) x 30° (V)

Product weight

75.6g

Printing contrast

Minimum 15%

Packing size

150 ×100 ×35 mm（Package）

Decoding type

1D:EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey，etc

2D: QR Code，Data Matrix，PDF417，Micro QR， Aztec，etc，Support mobile phone screen code reading

Gross weight

135.6g

Minimum resolution

One-dimensional code 5MIL; Two-dimensional code 7MIL

Color

black

Depth of field

QR (20mil) ：10~130mm

Data Matrix (10mil)：20~100mm

PDF 417 (7mil)：25~105mm

EAN-13 (13mil) ：30~175mm

Code 39 (8mil)：25~145mm

Code 128 (7mil)：25~110mm

Electrical parameters

Environmental parameters

Input voltage

DC 5V±10%

Temperature

0°C-50°C (operating); -40°C~+60°C (storage)

Current

Working: 350 mAh; Standby: 130 mAh

Humidity

5%-95% non-condensing

Battery

2000 mAh lithium-ion battery

Ambient brightness

Max.5,000 Lux (fluorescent)

Charging time

About 4 hours

Vibration resistance

Can withstand 1.5m drop from the air

Battery life

10 days (standby), 72 hours (working: scanning every 5 seconds)
