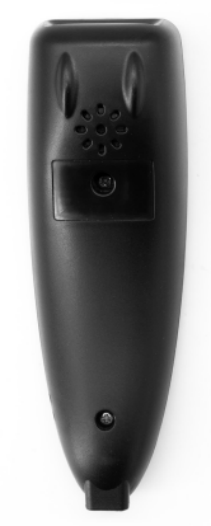

H202 2D wireless scanner with screen

- High-speed decoding, quick response
- OLED display
- Equipped with vibration feedback prompt
- Built-in storage function, supports inventory mode
- Support remote online upgrade
- Applied to payment scenarios such as store cashier, electronic payment, parking fee payment, etc.

Product Specifications

Physical parameters			Physical parameters
Scan mode	Key trigger/auto-sensing/continuous scanning		Internal storage	900K
Communication interface	USB-HID keyboard/USB-COM virtual serial port		Sensor	300,000 global CMOS
Wireless communication distance	Wireless 2.4G: 0-80m (open environment) Bluetooth: 0-20m (open environment)		Resolution	640*480
Prompt method	Buzzer, display, vibration motor		Light source	White LED
Setting method	Manually scan the setting code in sequence		Scanning angle	±60°,±60°,360° (elevation, deflection, rotation)
Shell material	ABS+PC		Scanning rate	30 frames/second
Cable standard	USB straight line 1m		Field of view	48° (H) x 30° (V)
Product size	122×42×30.5mm		Printing contrast	Minimum 15%
Product weight	60g		Decoding type	1D:EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey，etc 2D: QR Code，Data Matrix，PDF417，Micro QR， Aztec，etc，Support mobile phone screen code reading
Packaging size	150 × 100 × 35 mm (packaging)		Minimum resolution	One-dimensional code 5MIL; Two-dimensional code 7MIL
Gross weight	120g		Depth of field	QR (7mil): 70~115mm QR payment code (mobile code): 100~650mm Data Matrix (10mil): 50~110mm PDF 417 (7mil): 55~140mm EAN-13 (13mil): 70~310mm Code 39 (8mil): 65~205mm Code 128 (7mil): 75~230mm
Electrical parameters			Environmental parameters
Input voltage	DC 5V±10%		Temperature	0°C-50°C (operating); -40℃~+60℃ (storage)
Current	Working: 350 mAh; Standby: 130 mAh		Humidity	5%-95% non-condensing
Battery	1100 mAh lithium-ion battery		Ambient brightness	Max.5000 Lux (fluorescent)
Charging time	About 2 hours		Vibration resistance	Can withstand 1.5m drop from the air
Battery life	5 days (standby), 12 hours (working: scan every 5 seconds)

Details display

Related Products

Model	H201	H202	H203	H204
Scan rate	120 fps	30 fps	120 fps	120 fps
Size	122×42×30.5mm	122×42×30.5mm	119×41×22.5mm	157×70×112mm
