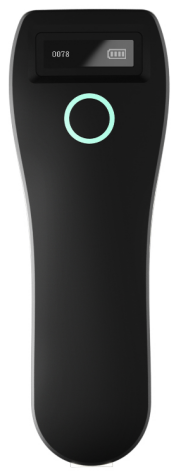

H201 2D Wireless Scanner

- High-speed decoding, quick response
- OLED display
- Equipped with vibration feedback prompt
- Built-in storage function, supports inventory mode
- Support remote online upgrade
- Applied to payment scenarios such as store cashier, electronic payment, parking fee payment, etc.

Product Specifications

Physical parameters			Physical parameters
Scan mode	Key trigger/auto-sensing/continuous scanning		Internal storage	900K
Communication interface	USB-HID keyboard/USB-COM virtual serial port		Sensor	300,000 global CMOS
Wireless communication distance	Wireless 2.4G: 0-80m (open environment); Bluetooth: 0-20m (open environment)		Resolution	640*480
Prompt method	Buzzer, display, vibration motor		Light source	White LED
Setting method	Manually scan the setting code in sequence		Scanning angle	±60°,±60°,360° (elevation, deflection, rotation)
Shell material	ABS+PC		Scanning rate	120 frames/second
Cable standard	USB straight line 1m		Field of view	48° (H) x 30° (V)
Product size	122×42×30.5mm		Printing contrast	Minimum 15%
product weight	60g		Decoding type	1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey, etc. 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc., support mobile phone screen code reading
Package Size	150 × 100 × 35 mm (packaging)		Minimum resolution	一Dimension code 5MIL; QR code 7MIL
Gross Weight	120g		Depth of Field	QR (20mil)：10~130mm Data Matrix (10mil)：20~100mm PDF 417 (7mil) ：25~105mm EAN-13 (13mil)：30~175mm Code 39 (8mil)：25~145mm Code 128 (7mil)：25~110mm
Electrical parameters			Environmental parameters
Input voltage	DC 5V±10%		Temperature	0°C-50°C (operating); -40°C~+60°C (storage)
Current	Working: 350 mAh; Standby: 130 mAh		Humidity	5%-95% non-condensing
Battery	900 mAh lithium-ion battery		Ambient brightness	Max.5,000 Lux (fluorescent)
Charging time	About 2 hours		Vibration resistance	Can withstand 1.5m drop from the air

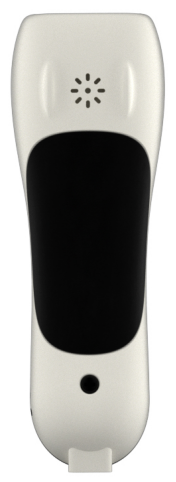

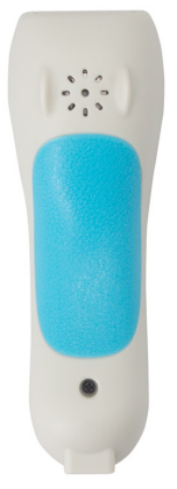

Details display

Packaging diagram

Related Products

Model	H201	H202	H203	H204
Scan rate	120 fps	30 fps	120 fps	120 fps
Size	122×42×30.5mm	122×42×30.5mm	119×41×22.5mm	157×70×112mm
