H204 UHF RFID 2D Wireless Scanner
- Support ISO18000-6C UHF card reading and barcode scanning functions

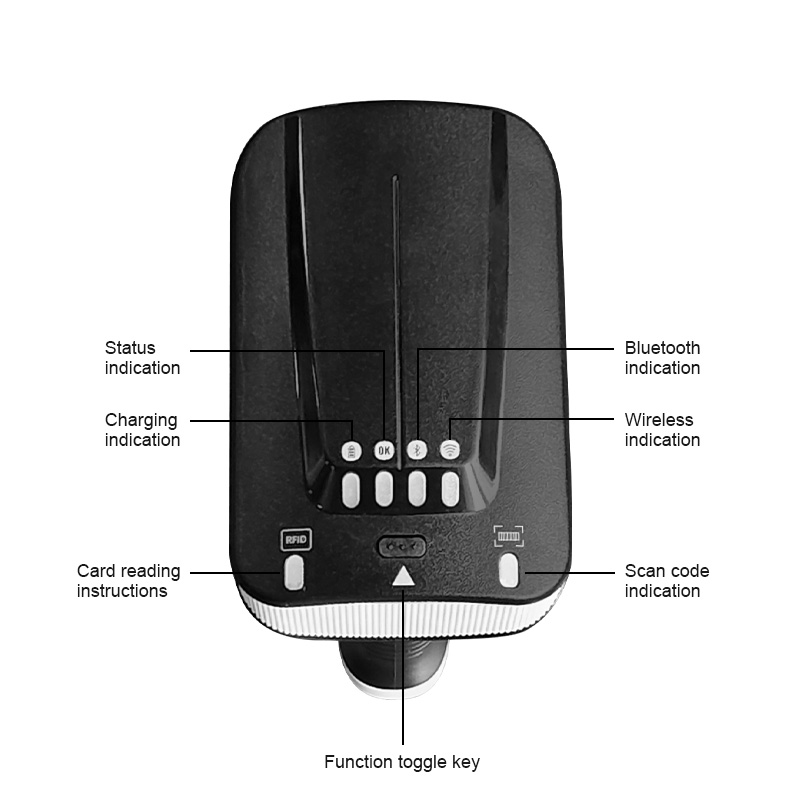

- Equipped with vibration feedback and four-color indicator light
- Built-in storage function, supports inventory mode
- Support remote online upgrade
- Excellent durability: IP54 dust and water resistance, and can withstand a 1.5-meter drop to a concrete floor
Product Specifications
|
Physical parameters |
|
Physical parameters |
||
|
Scan mode |
Key trigger/auto-sensing/continuous scanning |
Internal storage |
500K |
|
|
Communication interface |
USB-HID keyboard/USB-COM virtual serial port |
Working frequency band |
902~928MHz (can be adjusted according to the requirements of different countries or regions) |
|
|
Wireless communication distance |
Wireless 2.4G: 0-80m (open environment) Bluetooth: 0-20m (open environment) |
Card reading type |
ISO18000-6C (EPCC1G2) |
|
|
Prompt method |
Buzzer, LED light, vibration motor |
Card reading speed |
0.1S |
|
|
Setting method |
Manually scan the setting code in sequence |
Card reading time |
＜100mS |
|
|
Shell material |
ABS+PC |
Card reading distance |
0-50cm (6C white card) |
|
|
Cable standard |
USB straight line 1m |
Sensor |
300,000 global CMOS |
|
|

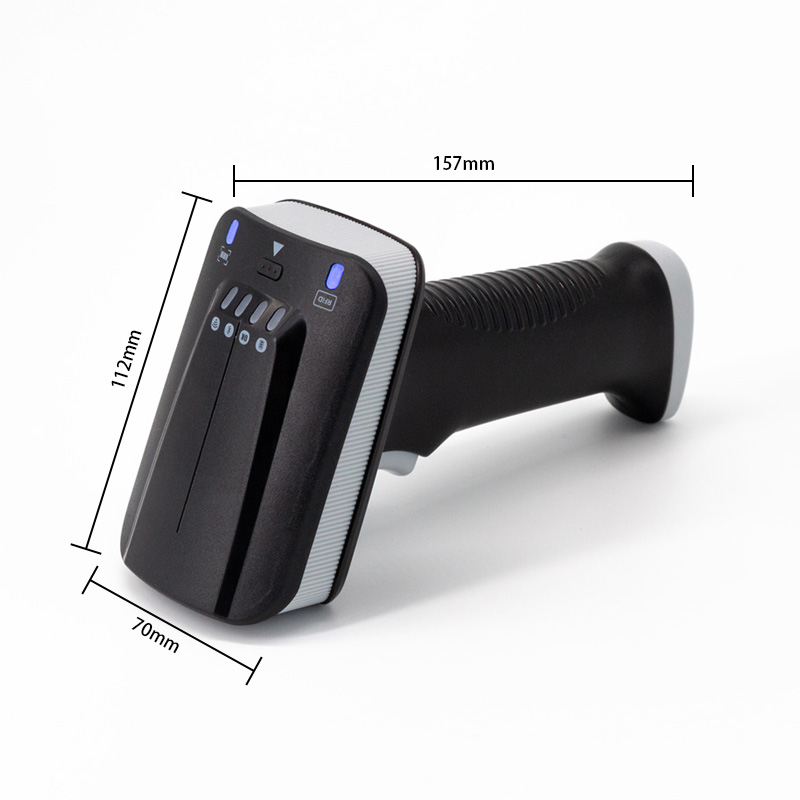

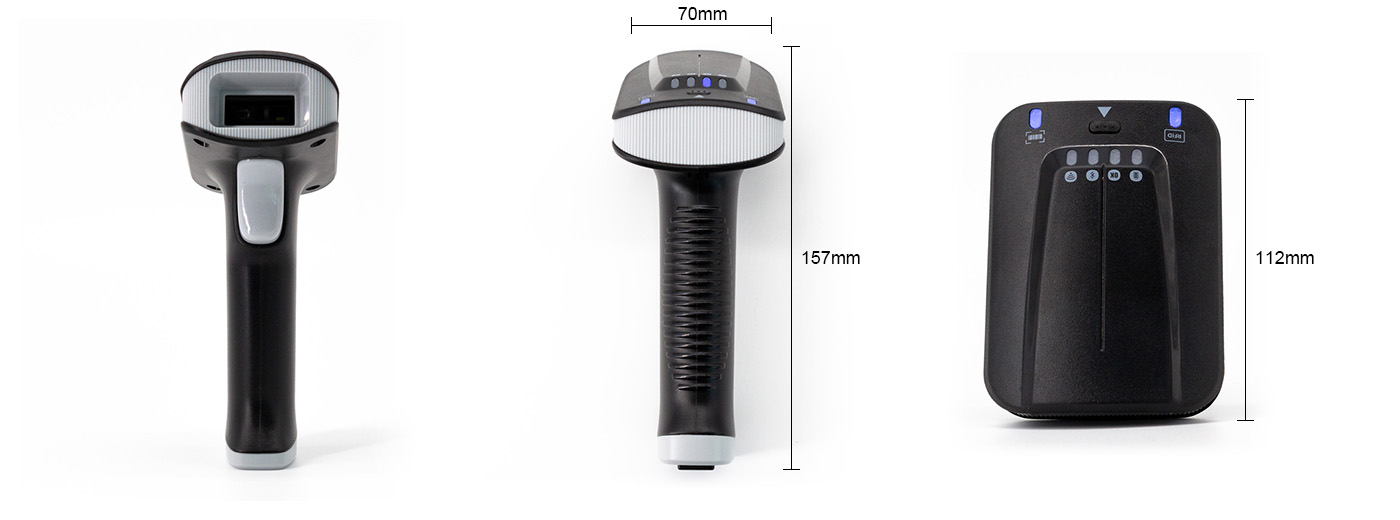

Product size |
157×70×112mm |
Resolution |
640*480 |
|
|
Product weight |
198g |
Light source |
White light LED |
|
|
Packaging size |
195×105×80mm |
Scanning angle |
±60°,±60°,360° (elevation, deflection, rotation) |
|
|
Gross weight |
315g |
Scan rate |
120 frames/second |
|
|
Electrical parameters |
Field of view |
48°(H)x30°(V) |
||
|
Input voltage |
DC5V±10% |
Printing contrast |
Minimum 15% |
|
|
Current |
Working: 350 mA; Standby: 130 mA |
Decoding Type |
1D:EAN-13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar，Code128，Code93，ITF-14，ITF-6，Interleaved2of5，Industrial2of5，Matrix2of5，GS1Databar(RSS)，Code39，Code11，MSI-Plessey，etc 2D:QRCode，DataMatrix，PDF417，MicroQR，Aztec，etc，Support mobile phone screen code reading |
|
|
Battery |
2000mAh Li-ion battery |
Depth of Field |
QR (20mil): 15~215mm QR payment code (mobile code): 50~620mm DataMatrix (10mil): 10~70mm PDF417 (7mil): 25~115mm EAN-13 (13mil): 25~270mm Code39 (7mil): 25~170mm Code128 (8.3mil): 30~180mm |
|
|
Charging time |
4 hours |
Environmental parameters |
||
|
Battery life |
10 days (standby), 24 hours (working: scan every 5 seconds) |
Temperature |
0°C-50°C (operating); -40°C~+60°C (storage) |
|
|
|
|
Humidity |
5%-95% non-condensing |
|
|
|
|
Ambient brightness |
Max.5,000Lux (fluorescent) |
|
|
|
|
Seismic resistance |
Can withstand 1.5m drop from the air |
|

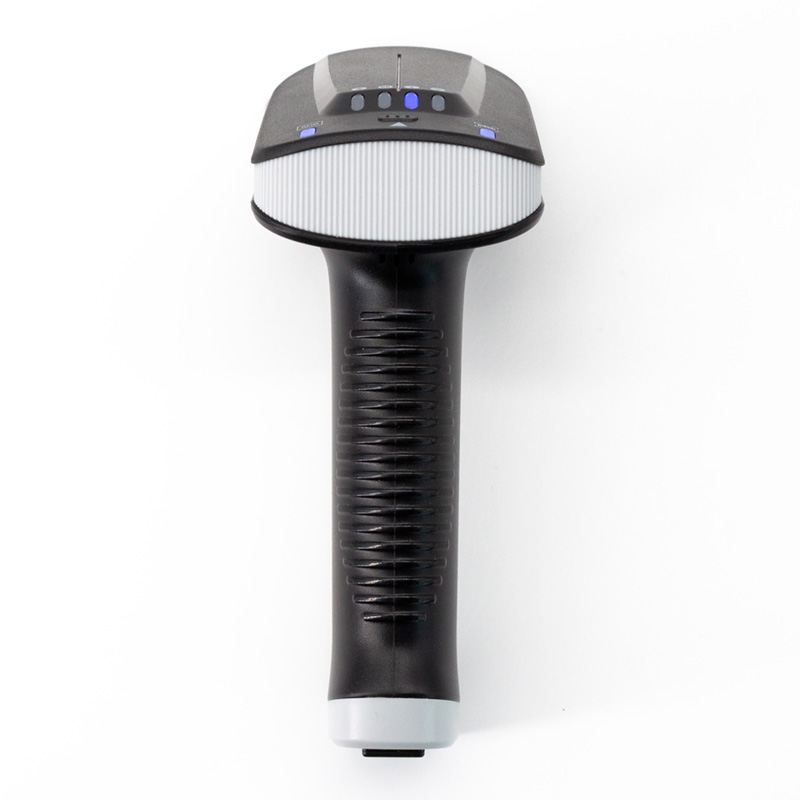

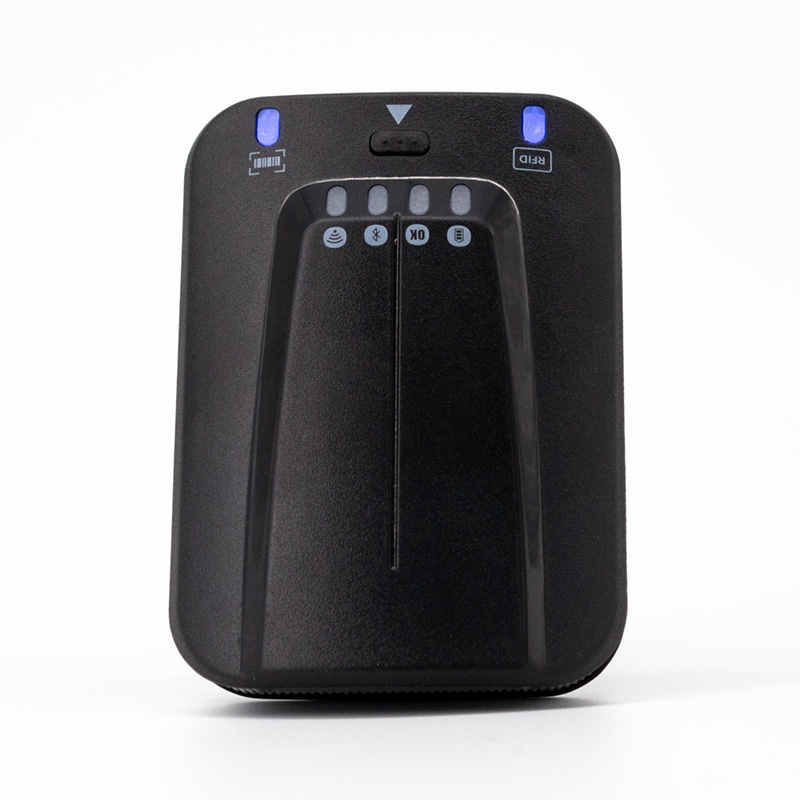

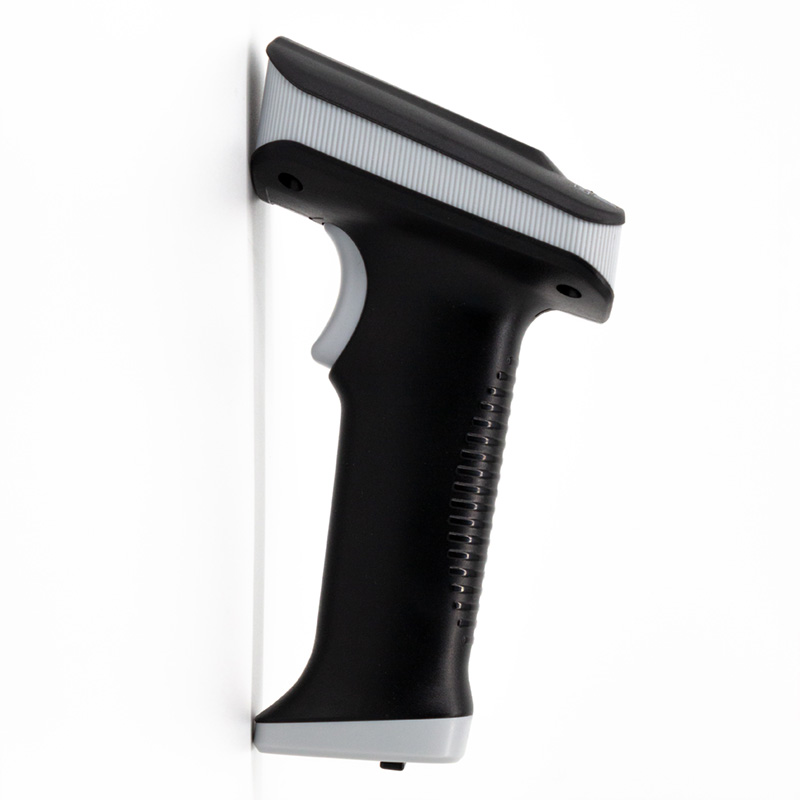

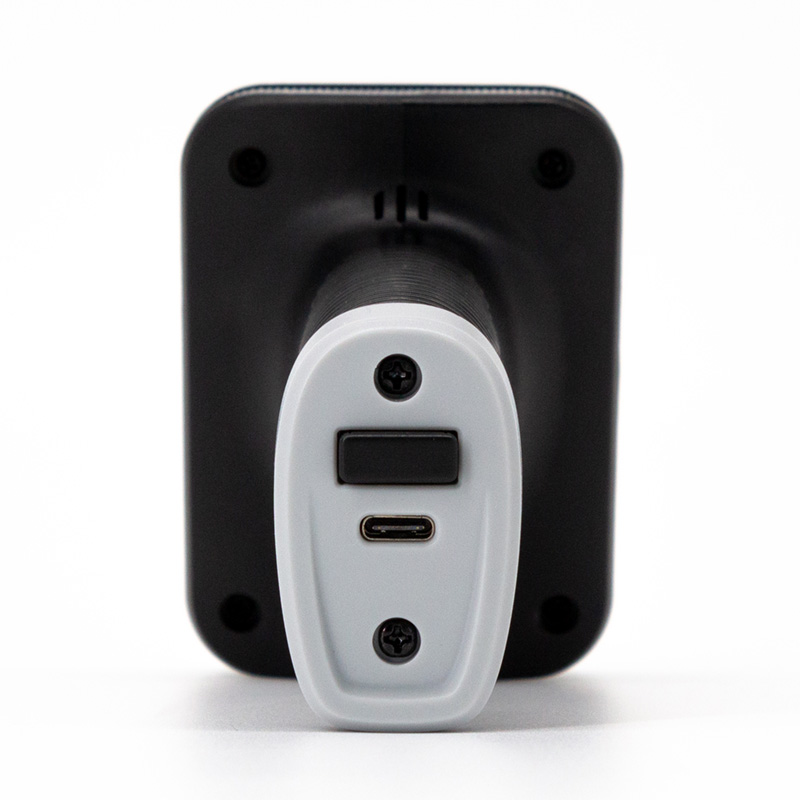

Details display
