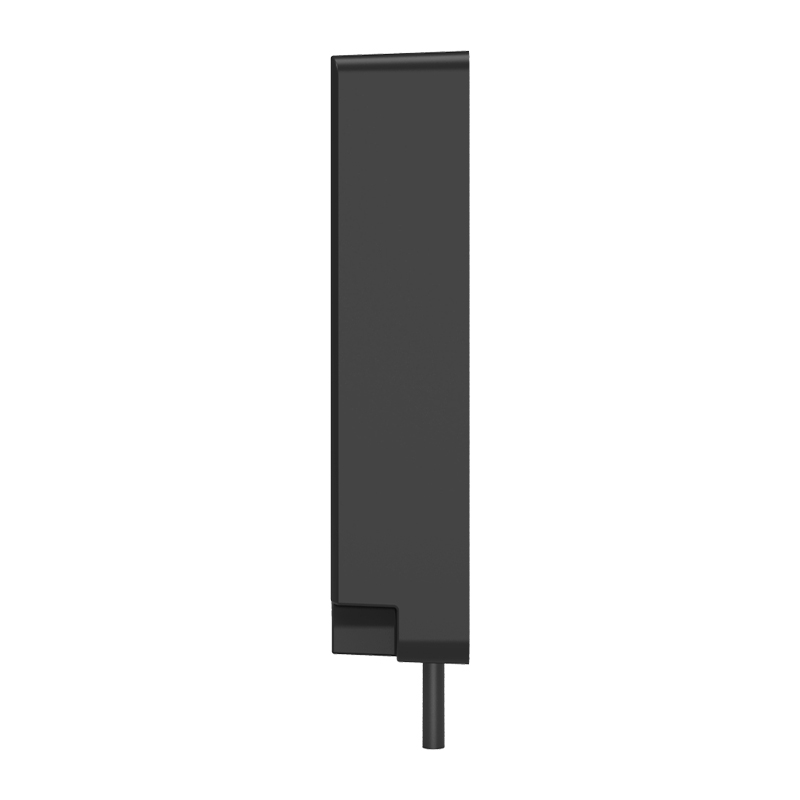

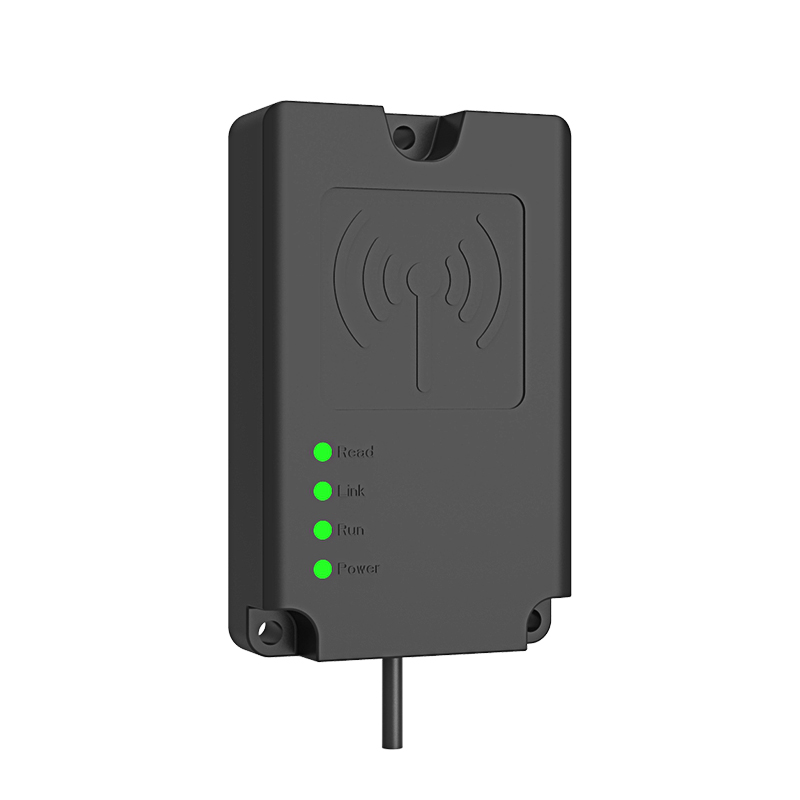

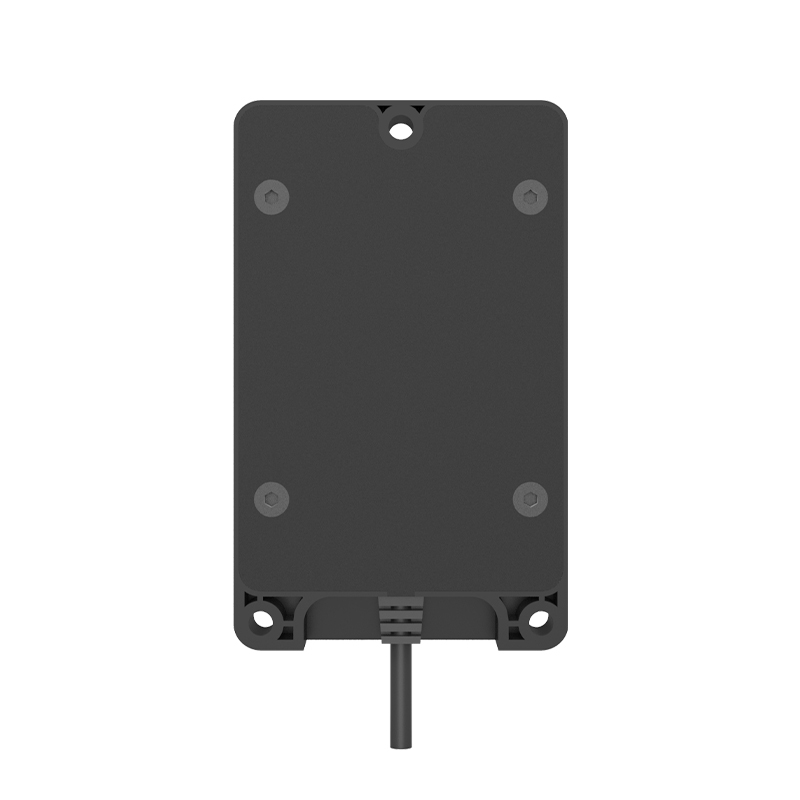

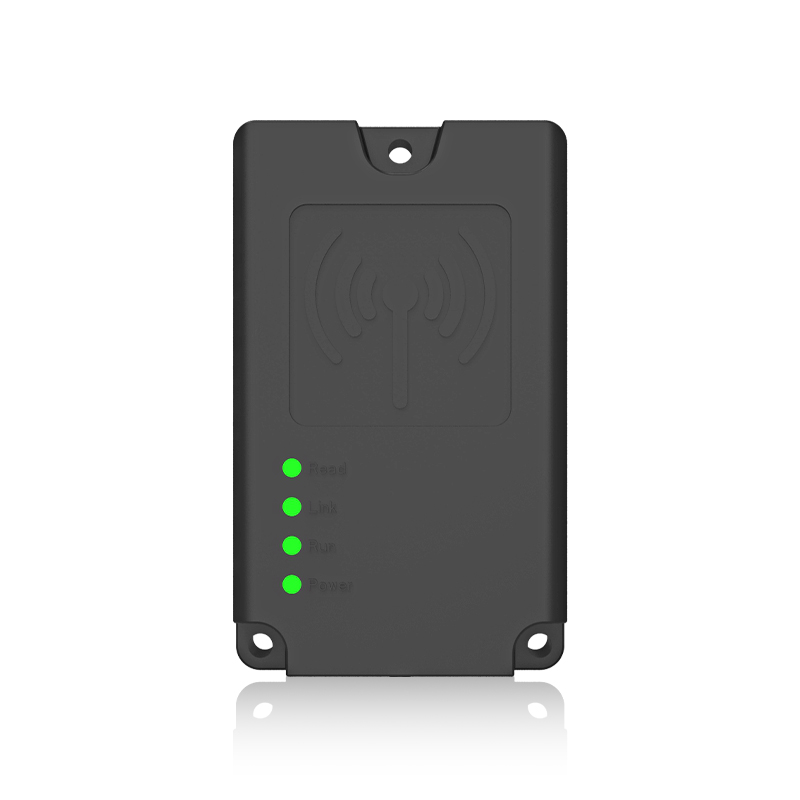

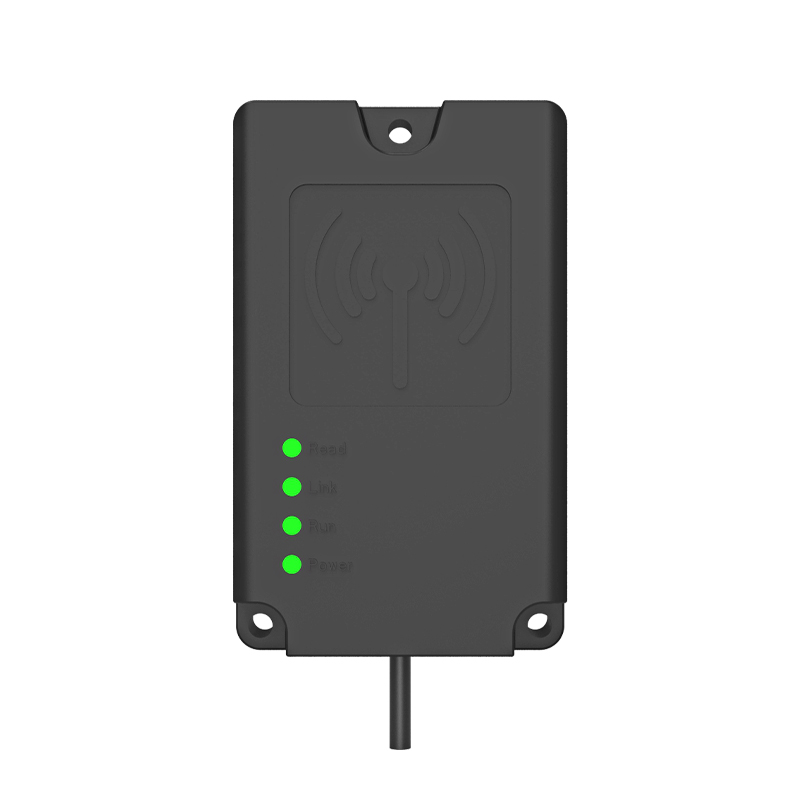

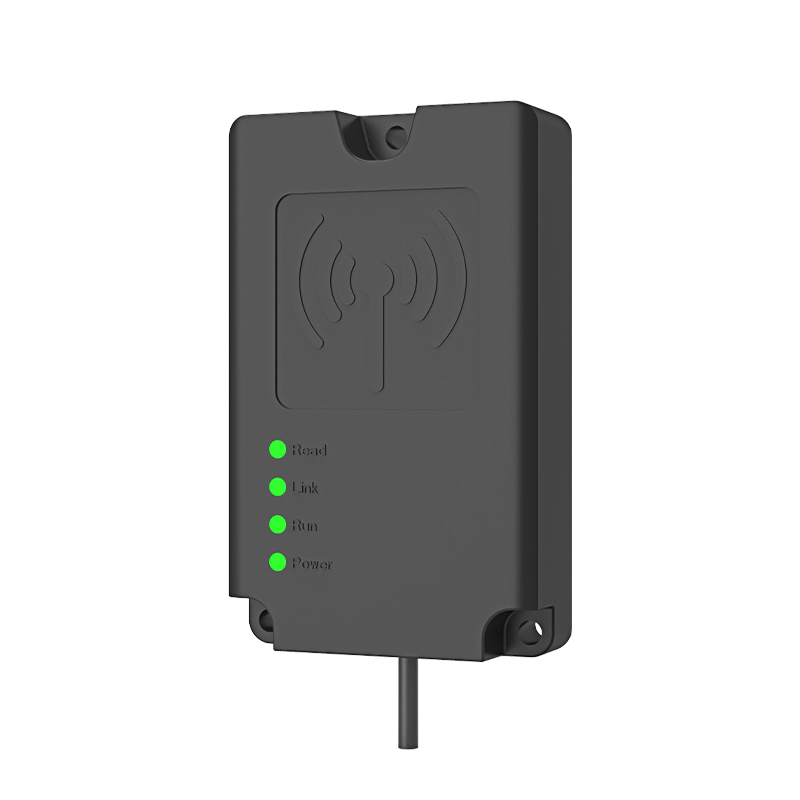

CF820 EVEN UHF Industrial Reader

- Built-in 1.5dbi linear polarized ceramic antenna
- Support RSSI to identify tag signal distance
- Support Modbus protocol, customizable Profinet protocol
- Support multiple language development, including VB, Python, Java, Delphi, C#, etc.
- Application: Power battery production line, automobile production line, home appliance/3C mixed production line, AGV, etc.

Product Specifications

RFID Technical Parameters			Data Communication
Frequency	902~928MHz (US）865~868MHz （EU）		Communication interface	RS232/RS485/RJ45/POE（Optional）
Protocol	ISO18000-6C (EPC GEN2)		Communication protocol	Modbus Rtu protocol
RF output power	0~33dbm(Adjustable)		Communication rate	9600 ~ 115200bit/s, RJ45 communication rate 10/100Mbps
Built-in antenna	1.5dbi linear antenna		GPIO interface	1 set of GPI, supports customized GPO
Card reading distance	0~80cm （Depends on label type and application environment）		Protocol customization	ASCII, HEX and other protocols optional and customizable
Reading speed	No less than 50 pcs/sec		Indicator light	4 LEDs (run light, link light, read light, power light)
Maximum receiving sensitivity	-75 dB Maximum return loss: 10 dBm		Working voltage	DC 9~24V
RSSI	support		Development Environment
Working mode	Active mode/command mode/trigger mode		SDK	Demo software, API, examples, user manuals
Authentication	FCC certification, CE certification		Development language	VB, Python, Java, Delphi, C#, etc.
Physical parameters			Firmware version	Support online upgrade
Shell color	Black		working environment
Material	ABS+aluminum alloy		IP protection level	IP67
Size	102mm62mm23.2mm		Operating temperature	-20℃~65℃
			Storage temperature	-40℃~85℃

Details display

Serial port definition
Power supply		Serial Port			Trigger
V+	GND	RX/A+	TX/B-	GND	Tr	GND
red	black	yellow	pink	green	blue	Purple

Network port definition
power supply		Network port				trigger
V+	GND	R-	R+	T-	T+	Tr	GND
red	black	green	yellow	pink	white	brown	blue

Related Products

Model	CF820	CF820-15693	CF821	CF821-15693
Frequency	902~928MHz (US） 865~868MHz （EU）	13.56MHZ	902~928MHz (US） 865~868MHz （EU）	13.56MHZ
Protocol	ISO18000-6C (EPC GEN2)	ISO15693	ISO18000-6C (EPC GEN2)	ISO15693
Reading distance	0-80cm	0-8cm	0-2m	0-8cm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
