CF821-15693 HF Industrial Reader

- Support Modbus protocol
- can write to lock AFI and query tags based on AFI
- Support RSSI identification tag signal distance
- Support multiple languages to develop VB, Python, Java, Delphi, c# and other languages
- Application: Power battery production line, automobile production line, home appliance/3C mixed flow production line, AGV, etc.

Product specifications

RFID technical parameters			Data communication
Frequency	13.56MHZ		Communication Interface	RS232/RS485（Optional）
protocol	ISO15693		Protocol	Modbus
Recognition speed	Not less than 10 pcs/s		Communication rate	9600 ~ 115200bit/s
Built-in antenna	PCB antenna		GPIO interface	1 set of GPI, supports customized GPO
Card reading distance	0~8cm		Interface Type	Round waterproof M12 female pin

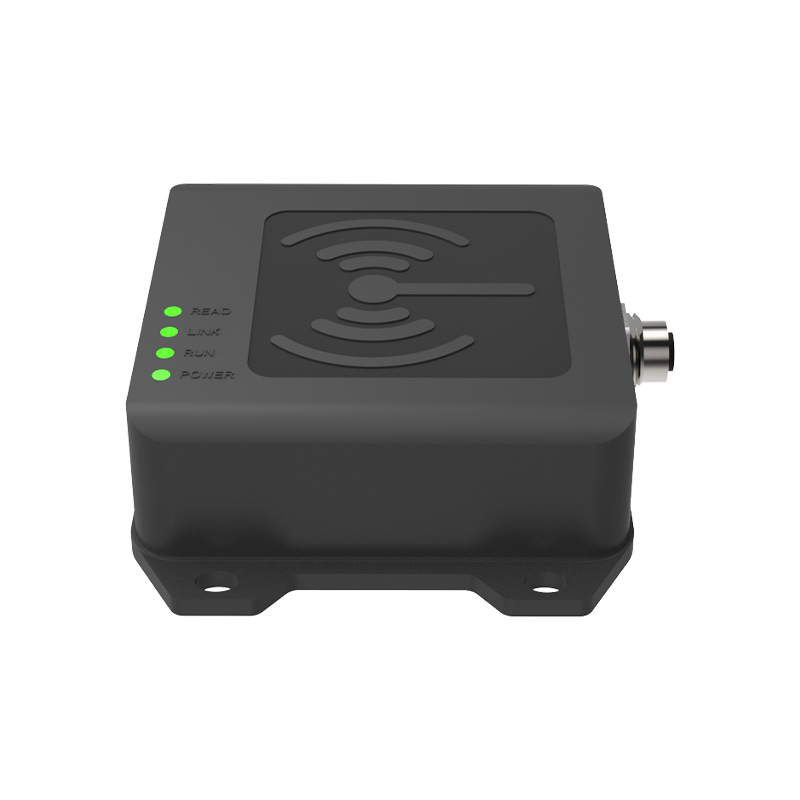

Support AFI	You can write to lock the AFI and query the tag based on the AFI.		indicator light	4 LEDs: run light, link light, read light, power light
Operating mode	Active mode/Answer mode		Operating Voltage	DC 9~24V
RSSI	support		Development environment
Certification	FCC certification, CE certification		SDK	Demo software, API, examples, user manual
Physical parameters			Development language	VB、Python、Java、Delphi、c#
Material	Fireproof ABS		Firmware version	Support online upgrade

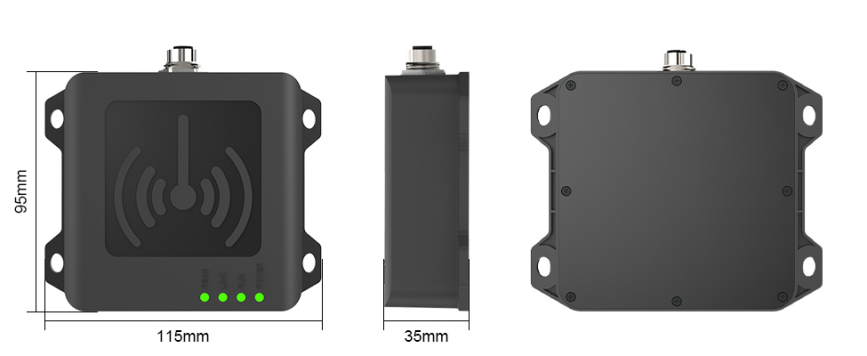

size	1159535 mm		Working environment
net weight	450g		IP protection level	IP67
Package Size	241713cm		Operating temperature	-20℃~65℃
Package weight	1.1kg		Storage temperature	-40℃~85℃
			humidity	5%-95%、non-condensing

Detailed display

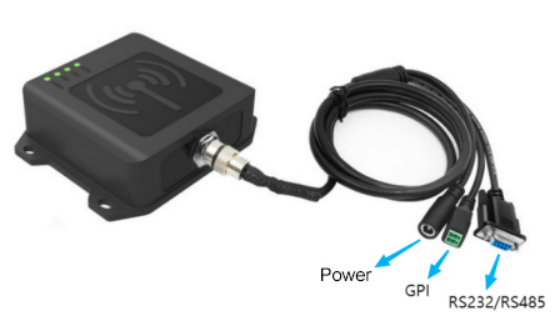

Serial port definition
Power supply		Serial port			Trigger
V+	GND	RX/A+	TX/B-	GND	Tr	GND
red	black	yellow	pink	green	blue	purple

Related Products

Model	CF821	CF821-15693
Frequency	902~928MHz (US） 865~868MHz （EU）	13.56MHZ
Protocol	ISO18000-6C (EPC GEN2)	ISO15693
Reading distance	0-2m	0-8cm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
