CF824 EVEN UHF Forklift Reader
- 4 Wiegand interfaces, each interface can be configured separately
- Support RSSI to identify tag signal distance

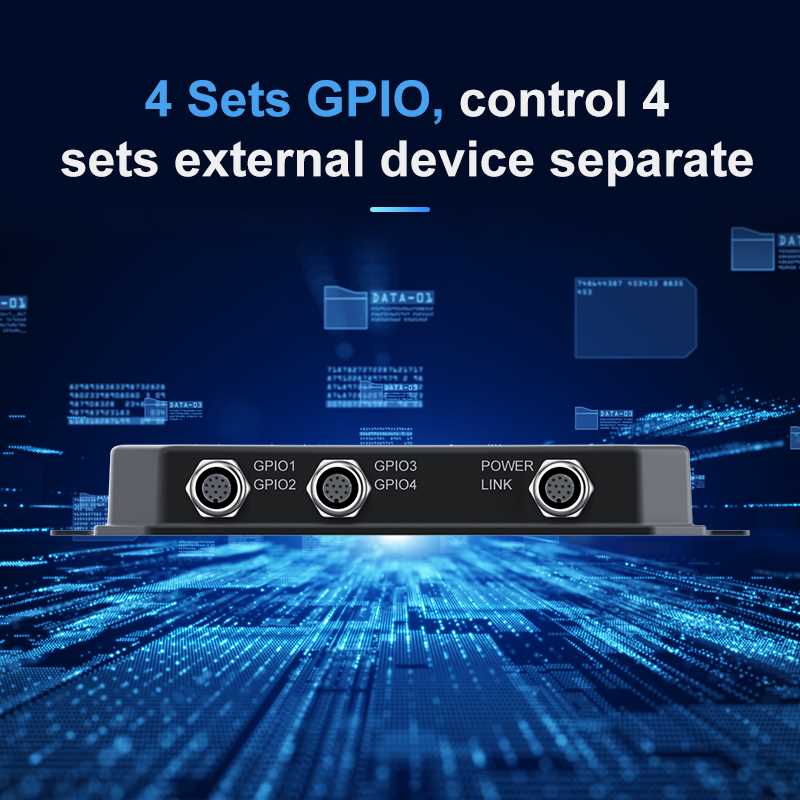

- GPI, relay, antenna, Wiegand, one-to-one correspondence, can support four channels at the same time

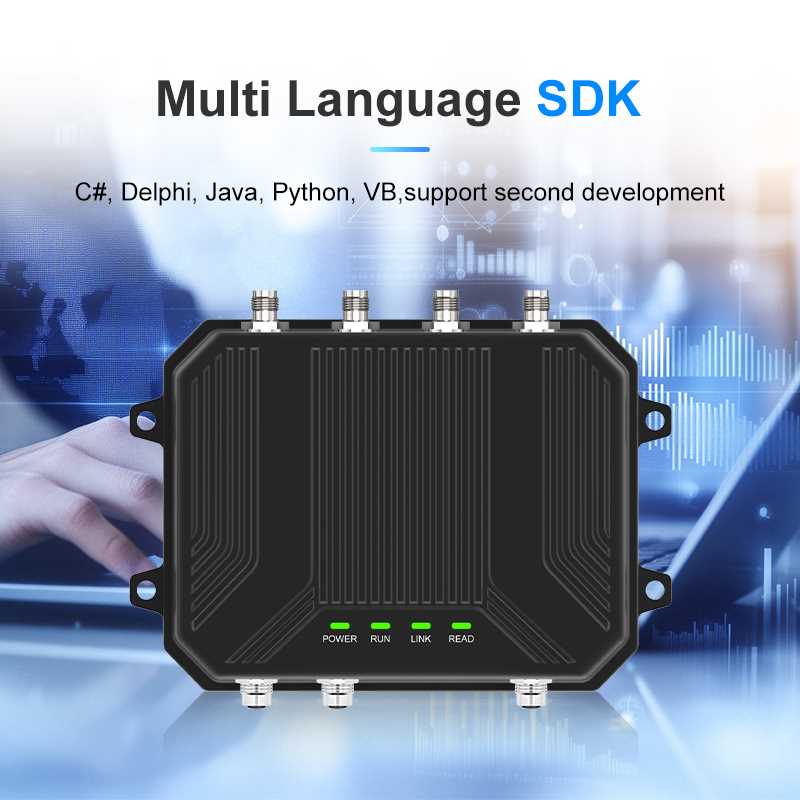

- Support multiple language development C#, Delphi, Java, Python, VB, etc.
- Applications: warehouse management, production control, asset tracking, forklift management, smart cabinets, garbage management, etc.
Product specifications
|
RFID Technical Parameters |
|
Data communication |
||
|
Read and write engine |

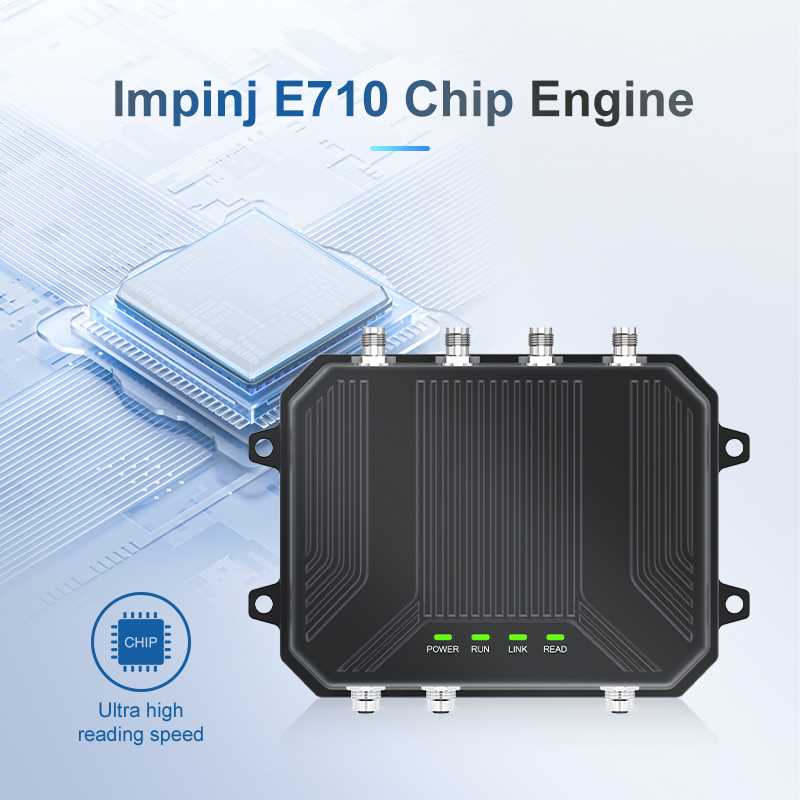

Impinj E710 |
Standard interface |
RS232/RS485/RJ45（for optional） |
|
|
frequency |
902~928MHz (US） 865~868MHz （EU） |
Relay |
4 relays |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Wiegand |
4 Wiegand outputs |
|
|
RF power |
Maximum 33dbm (adjustable) |
GPI |
4 isolated inputs |
|
|
Working power |
<12W |

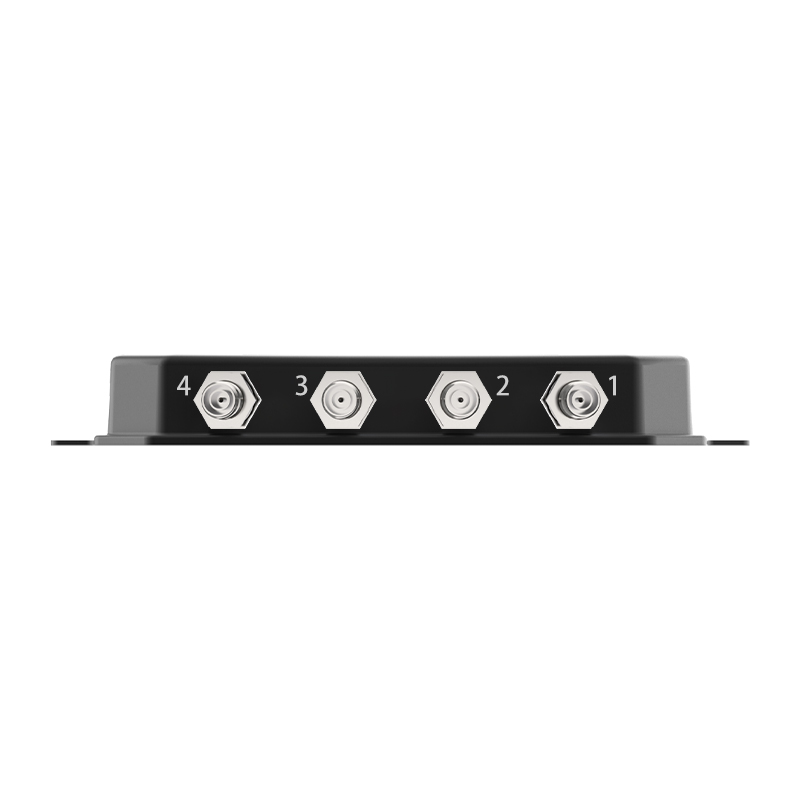

Antenna port |
4 RP TNC female connectors |
|
|
Card reading distance |
0~15M （Depends on label type and application environment） |
Sound and light |
Four-color LED light + buzzer |
|
|
Anti-theft function |
Does not support password/mask function |
Operating voltage |
9-24V (with 12V 2A power adapter) |
|
|

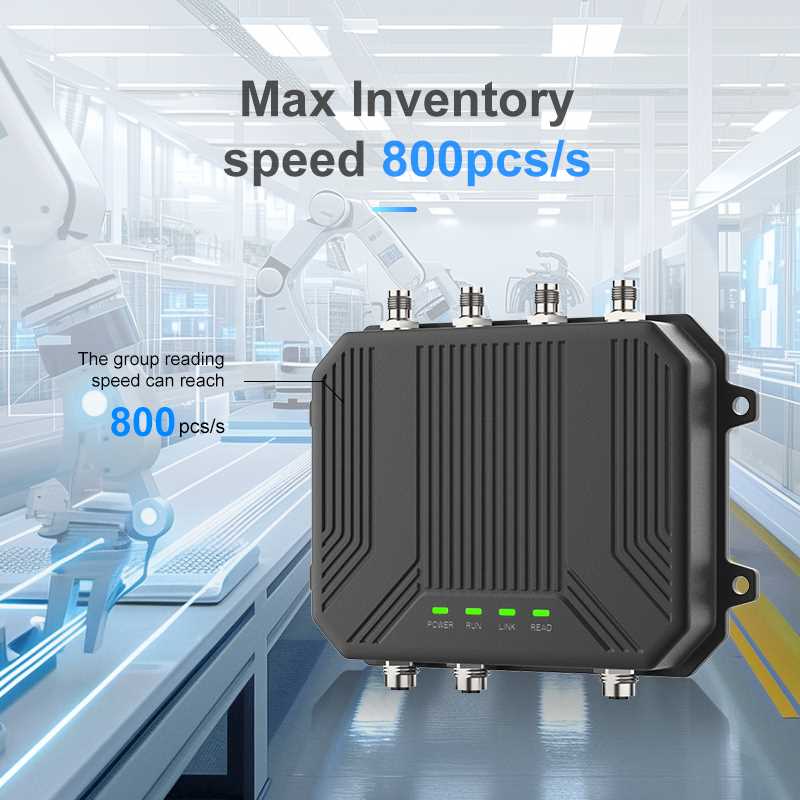

Anti-collision |
Multi-antenna port fast polling inventory |
Development environment |
||
|
Working mode |
Active mode/trigger mode/response mode |
SDK |
Demo software, API, examples, user manual |
|
|
RSSI |
Support |
Development language |
Support C#, Delphi, java, Python, VB, etc. |
|
|
Work Environment |
Firmware version |
Support online upgrade |
||
|

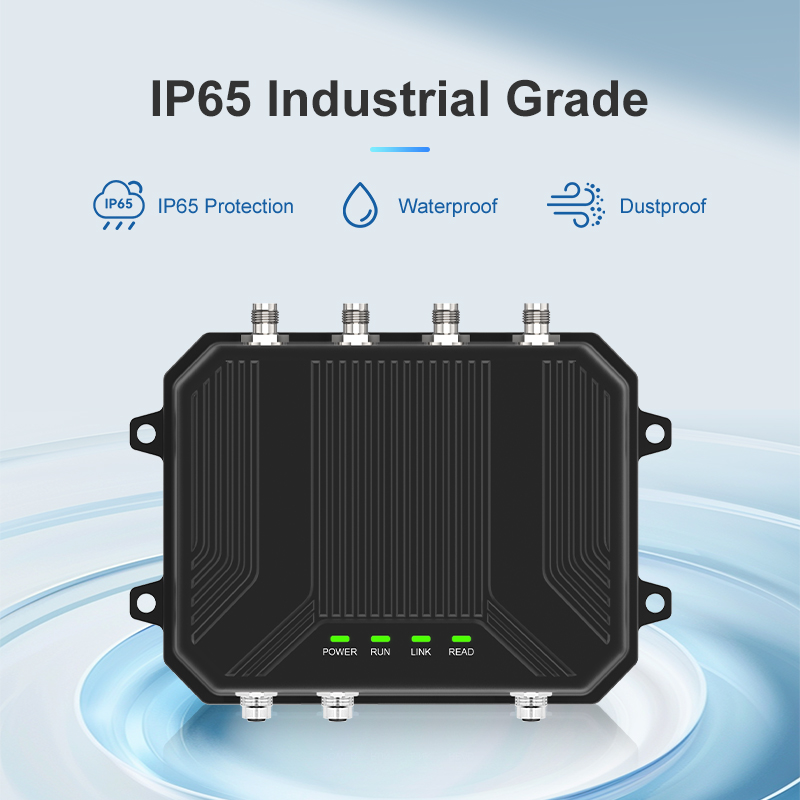

IP protection level |
IP65 |
Working environment |
||
|
Operating temperature |
-10~+55℃ |
Material |
Die-cast aluminum |
|
|
Storage temperature |
-20~+75℃ |
Protection level |
IP65 protection grade |
|
|
|
|
Dimensions |

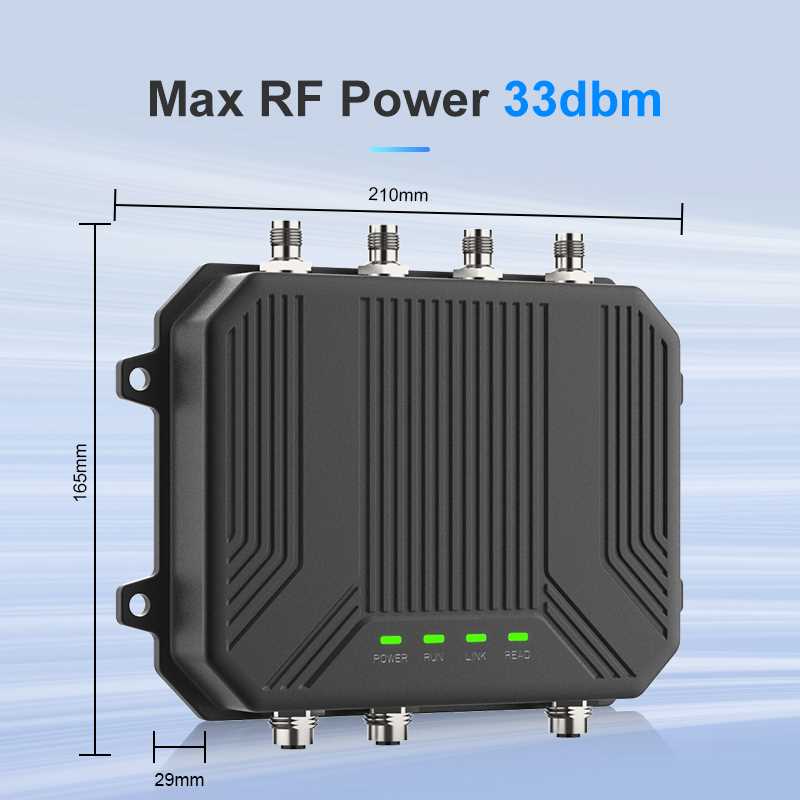

160.7*210*29mm |
|

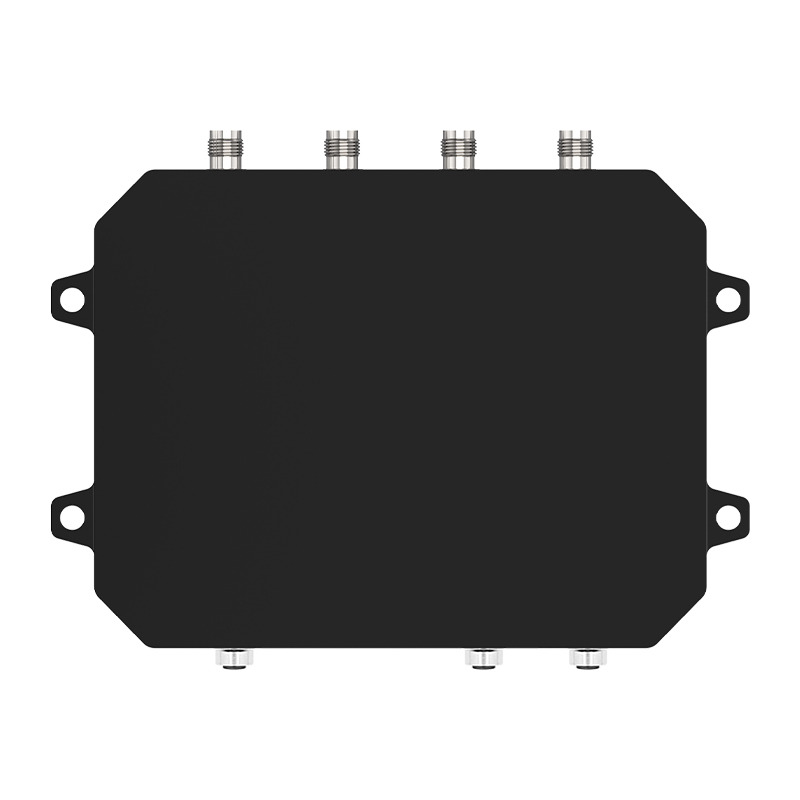

Detailed display
|

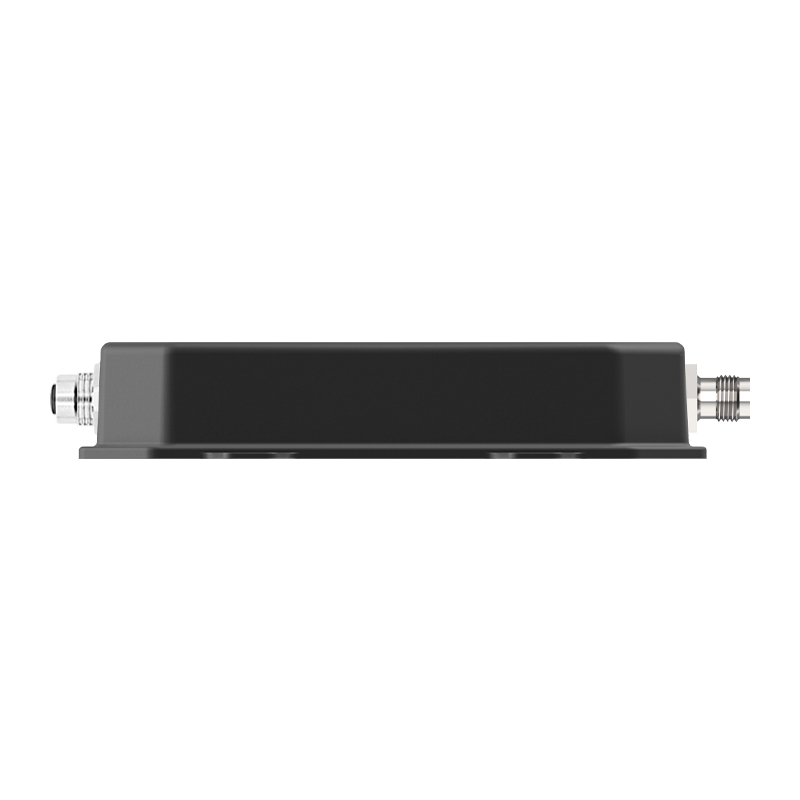

Power communication cable, M12-12 core waterproof connector: power & RS232 & RJ45 & RS485 |
||||||||||||
|
Connectors |
Power supply DC5525 input |
Communication interface DB9 |
Communication interface RJ45 |
Communication interface: 3.81mm-3P plug-in terminal |
||||||||
|
Standard Configuration |
VCC |
GND |
TX |
RX |
GND |
T+ |
T- |
R+ |
R- |
GND |
485+ |
485- |
|

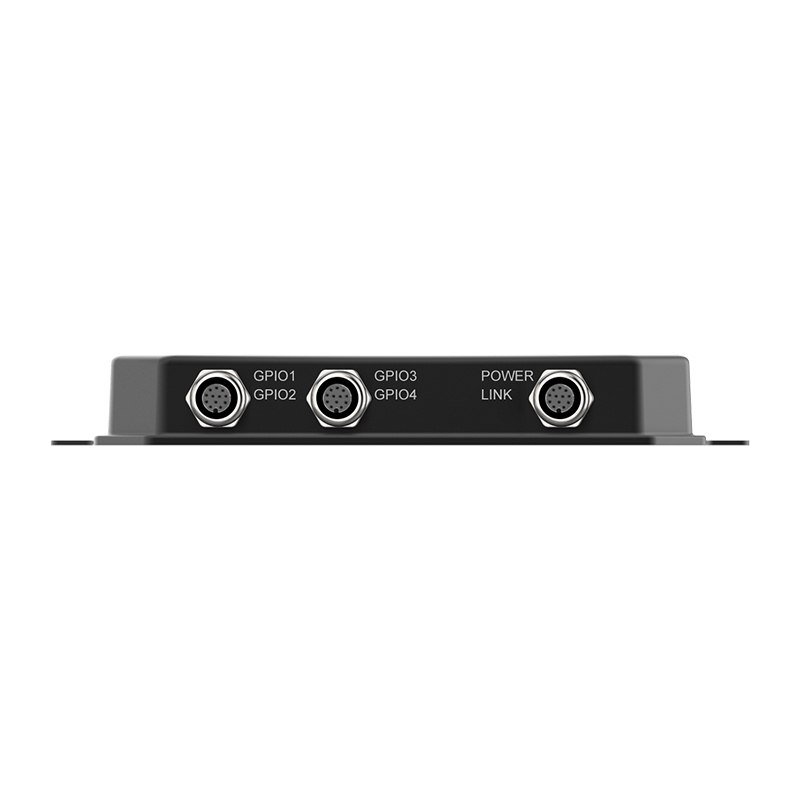

Signal line 2, M12-12 core waterproof connector: Wiegand & relay & GPI, 2-way |
||||||
|
|
3.81mm-6P pluggable terminal _Label 1# |
|||||
|
Standard configuration |
① |
② |
③ |
④ |
⑤ |
⑥ |
|
Signal |
GND |
WG0 |
WG1 |
COM |
NO |
GPI |
|
Description |
Signal ground, shared by GPI and Wiegand |
Wiegand bit0 signal, isolated output, withstand voltage 5V |
Wiegand bit1 signal, isolated output, withstand voltage 5V |
Relay common terminal, withstand voltage 30V |
Relay normally open, withstand voltage 30V |
Isolated input, 5V withstand voltage, low level valid. |
| 3.81mm-6P pluggable terminal _Label 2# | ||||||
|
Standard configuration |
① |
② |
③ |
④ |
⑤ |
⑥ |
|
Signal |
GND |
WG0 |
WG1 |
COM |
NO |
GPI |
|
Description |
Signal ground, shared by GPI and Wiegand |
Wiegand bit0 signal, isolated output, withstand voltage 5V |
Wiegand bit1 signal, isolated output, withstand voltage 5V |
Relay common terminal, withstand voltage 30V |
Relay normally open, withstand voltage 30V |
Isolated input, 5V withstand voltage, low level valid. |
|
Signal line 2, M12-12 core waterproof connector: Wiegand & relay & GPI, 2-way |
||||||
|
|
3.81mm-6P pluggable terminal _Label 3# |
|||||
|
Standard configuration |
① |
② |
③ |
④ |
⑤ |
⑥ |
|
Signal |
GND |
WG0 |
WG1 |
COM |
NO |
GPI |
|
Description |
Signal ground, shared by GPI and Wiegand |
Wiegand bit0 signal, isolated output, withstand voltage 5V |
Wiegand bit1 signal, isolated output, withstand voltage 5V |
Relay common terminal, withstand voltage 30V |
Relay normally open, withstand voltage 30V |
Isolated input, 5V withstand voltage, low level valid. |
| 3.81mm-6P pluggable terminal _Label 4# | ||||||
|
Standard configuration |
① |
② |
③ |
④ |
⑤ |
⑥ |
|
Signal |
GND |
WG0 |
WG1 |
COM |
NO |
GPI |
|
Description |
Signal ground, shared by GPI and Wiegand |
Wiegand bit0 signal, isolated output, withstand voltage 5V |
Wiegand bit1 signal, isolated output, withstand voltage 5V |
Relay common terminal, withstand voltage 30V |
Relay normally open, withstand voltage 30V |
Isolated input, 5V withstand voltage, low level effective |
