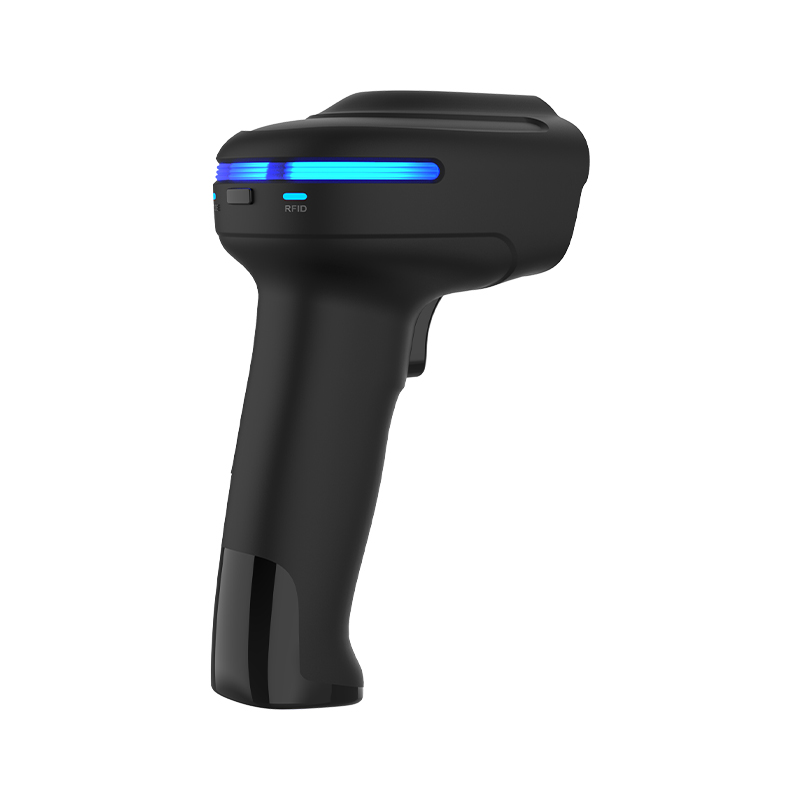

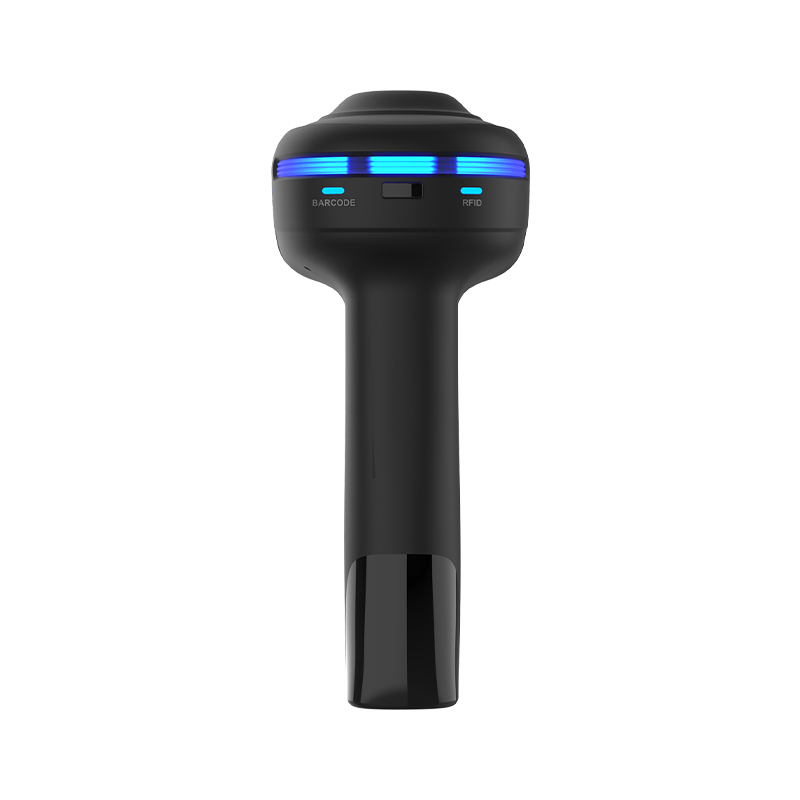

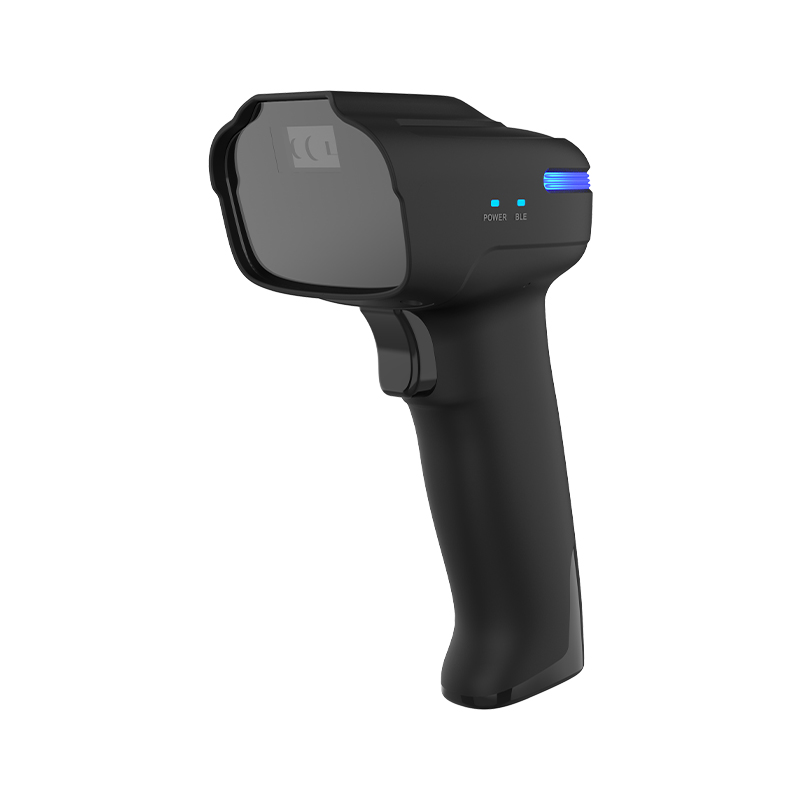

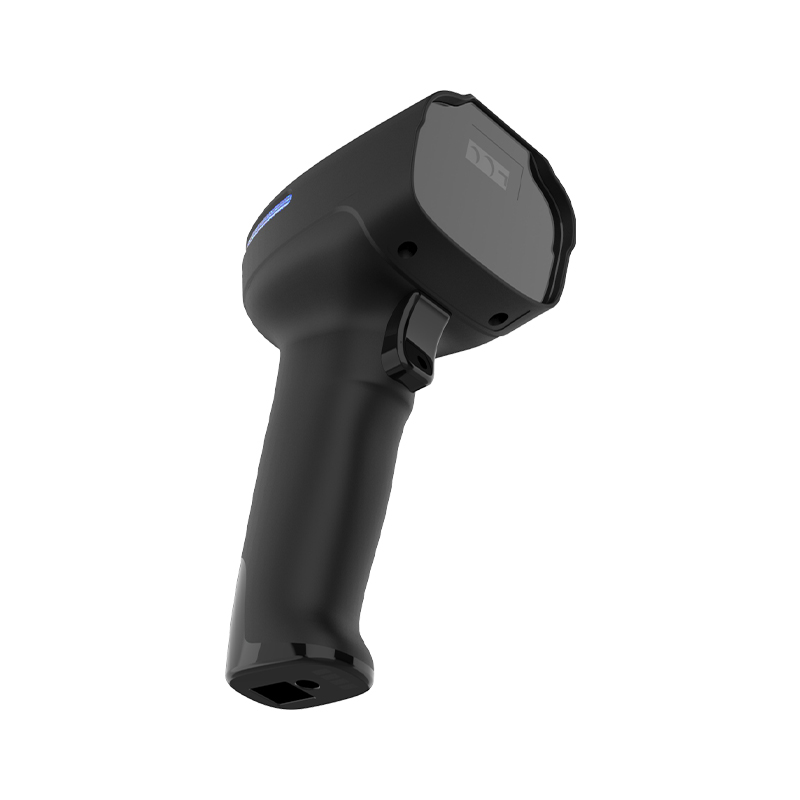

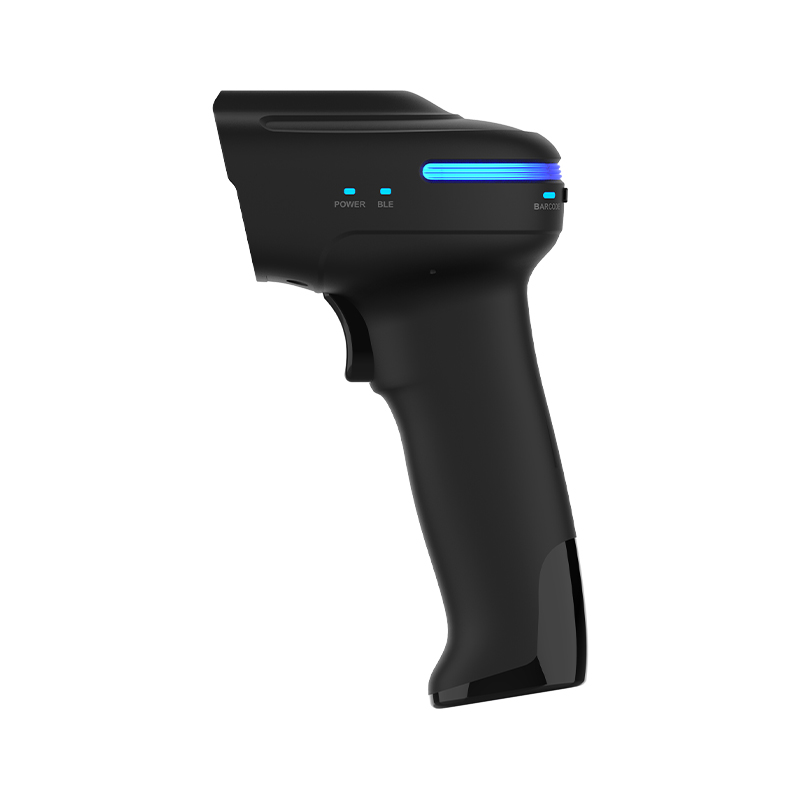

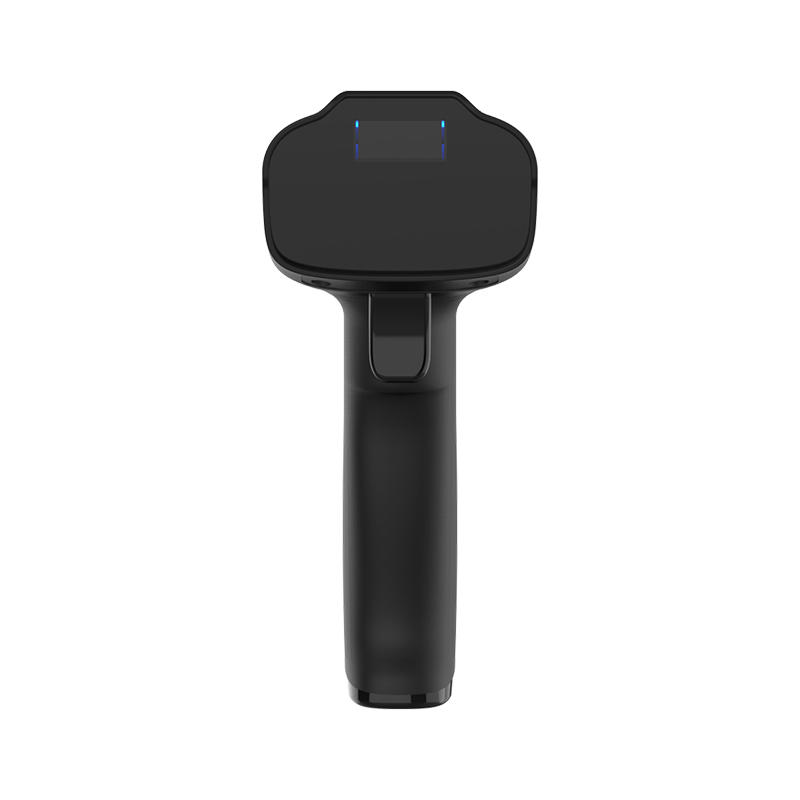

H104 UHF Bluetooth Scanner

- Support 1D & 2D scanning
- Continuous working time of more than 6 hours in wireless mode
- The host computer and the scanner can realize data transmission through Bluetooth/USB interface
- Provide dynamic link library (DLL) and demonstration software source code to support secondary development
- Applications: clothing inventory, warehouse inventory, asset management, cashier checkout, express delivery management, commodity inventory, etc.

Product Specification

RFID Technical Parameters



Data Communication

Frequency

902~928MHz（US）

865~868MHz（EU）

Communication interface

Standard interface: USB/Bluetooth

Protocol

ISO18000-6C (EPC GEN2)

Barcode

Support 1D&2D

Built-in antenna

1dbi ceramic antenna

Communication interface

USB

Working mode

Trigger mode

Status indication

Battery indicator, working status indicator, Bluetooth connection indicator, buzzer

Acousto-optical

Green and blue LED lights, active buzzer

Physical parameters

Working power

<1.5W

Material

Acrylic

RF power

Maximum 20dbm (adjustable)

Battery

3.7V-2000mAh 18650

Card reading distance

50cm (depending on tag type and application environment)

Charging voltage

5V

Environmental parameters

 Battery charging time

2.5 hours

Operating temperature

-20℃ to +50℃

Wireless working time

>6 hours

Storage temperature

-40℃ to +65℃

Wireless standby time

>3 months

Protection level

IP54

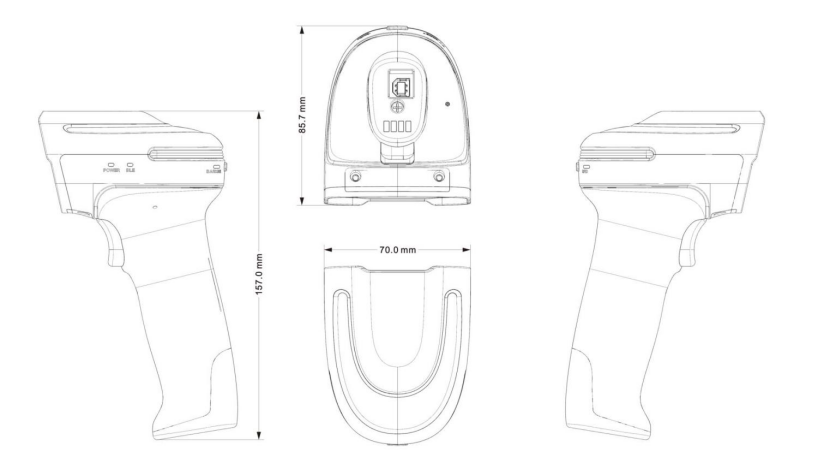

Dimensions

155(H)×78(W)×133(L)mm

Development Environment





SDK

Demo software, API, examples, user manual





Firmware version

Support online upgrade





Development language

C#, Delphi, Java, Python, VB and other languages







Function

1D/2D image scanning engine

Image sensor

CMOS

Resolution

300,000 pixels, 640*480

Resolution

≥3mil/0.076mm（PCS90%,CODE 39）

Reading angle

Test Conditions: CODE39, 10mil/0.25mm, PCS90%.

Roll: ±360°, Pitch: ±60°, Skew: ±55°.

Reading depth of field

40mm~500mm (different barcodes, different ranges)

Field of view

Horizontal 41°, vertical 31°

Decoding speed

35CM/S

Support code system

1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, ISSN, Code 128, GS1-128, ISBT, Code 39, Code 32, Code 93, Code 11, Codabar (NW-7), Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Standard 2 of 5 (IATA 2 of 5), NEC 2of 5, MSI, Telepen, Trioptic, BC412, Febraban, Coupon.

2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, Pharma Code (One-Track), Codablock A, Codablock F, Dot Code, Grid Matrix, etc.

Other composite codes: GS1 Databar (Omnidirectional, Limited, Expanded), GS1 Composite Code, TLC 39 Code. Chinese ID Card OCR, Passport OCR, etc.

Postal Code: HongKong 2 of 5 (China Post), Korea Post, Australian Post, British Post, USPS Intelligent Mail, Japanese Post, Planet Code, Postnet Code, UPU 4-State, KIX Code.

Lighting, aiming

White LED, Red LED

Minimum print contrast

≥20%

Note: For barcodes with different symbol systems, since some barcodes are wider or denser, the actual reading ability is subject to the actual results.



Typical depth of field

Barcode Type

Barcode Density

Nearest

Farthest

Code 39

0.1mm(4mil)

50mm

120mm

Code 39

0.25mm(10mil)

55mm

250mm

Code 39

1mm(40mil)

160mm

500mm

UPC/EAN

0.33mm(13mil)

60mm

270mm

QR Code

20.0mil

40mm

250mm

Data Matrix

10mil

50mm

110mm

PDF 417

6.8mil

50mm

150mm

Note: Depending on the size of the barcode, the actual reading distance may be farther.

Details display

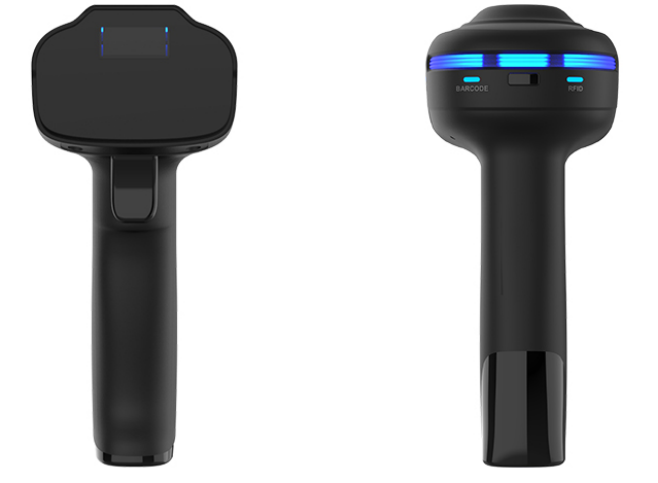

  • Buttons, indicator ights and buzzer

name

Function Description

Read button

Used to turn on, trigger scanning or query, and stop scanning or query.

Mode switch button

Used to switch the device to scanning mode or query mode.

Power indicator

Used to indicate the power on/off status, low battery (battery level < 10%) and charging status. The indicator light is always on when the device is turned on, and it goes out when the device is turned off. The indicator light flashes slowly when the device is low battery, flashes quickly when the device is charging, and the indicator light is always on when the device is finished charging.

Read indicator

Green, used to indicate that the device has successfully scanned or queried the code, and the indicator light flashes.

Bluetooth indicator

Used to indicate whether Bluetooth is connected. The indicator light flashes when Bluetooth is not connected, and the indicator light is always on when Bluetooth is connected.

Query mode indicator

Used to indicate that the device is in query mode, and the indicator light is on; otherwise, the indicator light is off.

Scan mode indicator

Used to indicate that the device is in scanning mode, and the indicator light is on; otherwise, the indicator light is off.

Buzzer

Used to indicate the device power on/off status and standby wake-up status. The device power on buzzer will emit a 1S power on reminder tone, and the device power off buzzer will emit a 1S shutdown reminder tone. The device standby buzzer will emit a 200mS standby reminder tone, and the device wake-up buzzer will emit a 1S power on reminder tone.
  • Power on and off

Power on:

In the off state, press the read button, the power indicator light comes on, wait for about 1S, the buzzer emits a power-on prompt tone, and the power-on is successful.

Shutdown:

In standby mode, if the device is not awakened for 28 minutes, it will enter shutdown mode, the buzzer will sound a shutdown prompt, and after waiting for about 1 second, all the indicator lights will go out, indicating that the shutdown is successful.

  • Standby and wake-up

Standby：

In the powered-on state, if the device is inactive for 2 minutes, it will enter the standby state, the buzzer will sound a standby prompt and the power of the UHF module and the code scanning module will be turned off to reduce the power consumption of the device.

wake：

In standby mode, press the read button, the device enters the wake-up state, powers on the UHF module and the code scanning module, and the buzzer emits a power-on prompt tone, indicating that the wake-up is successful.

  • Scanning mode and inquiry mode

When the device is powered on, you can use the APP software or the mode switch button to configure the device to scan code mode or query mode.

Scan mode:

  1. Press the read button or the APP sends a scan command, and the device performs the code scanning action, which lasts for 3 seconds.
  2. Once the code is scanned successfully, the device will immediately end the scanning action and the reading indicator will flash once.
  3. If the code is not scanned successfully within 3S, the current scan is terminated, and the scan is performed again after about 500ms.
  4. When the device is scanning a code, press the Read button to end the scan immediately.

Query mode:

  1. Press the read button or the APP sends a query command, and the device executes the query action, which lasts for 5 seconds.
  2. If the query is successful, the read indicator light flashes once.
  3. When a query is triggered by a button, the device will automatically end the query after 5 seconds; when a query command triggers the query, the device will not automatically end the query.
  4. When the device is querying, press the read button to end the query immediately.
  • Optiona devices

type

Barcode Density

Parameter Type

Specification

Scanning module

VM2250

Standard configuration

Code39（40mil）25~70cm；

QR Code（20mil）20~100cm；

VM3690

High configuration

Code39（40mil）25~70cm；

QR Code（20mil）3~40cm；





Related Products


Model

H100

H102

H103

H104

Reading distance

0~50cm

(depends on label & application environment)

0~1 meter

(depends on the tag & application environment)

0~12 meters

(depending on the tag & application environment)

0~50cm

(Depends on the label & application environment

1D&2D





Optional

Standard

Power

0-20dbm (adjustable)

0-26dbm (adjustable)

0-33dbm (adjustable)

0-20dbm (adjustable)

Dimension

76*37*39mm

53*138*40mm

155(H)*78(W)*133(L)mm

157*85.7*70mm
