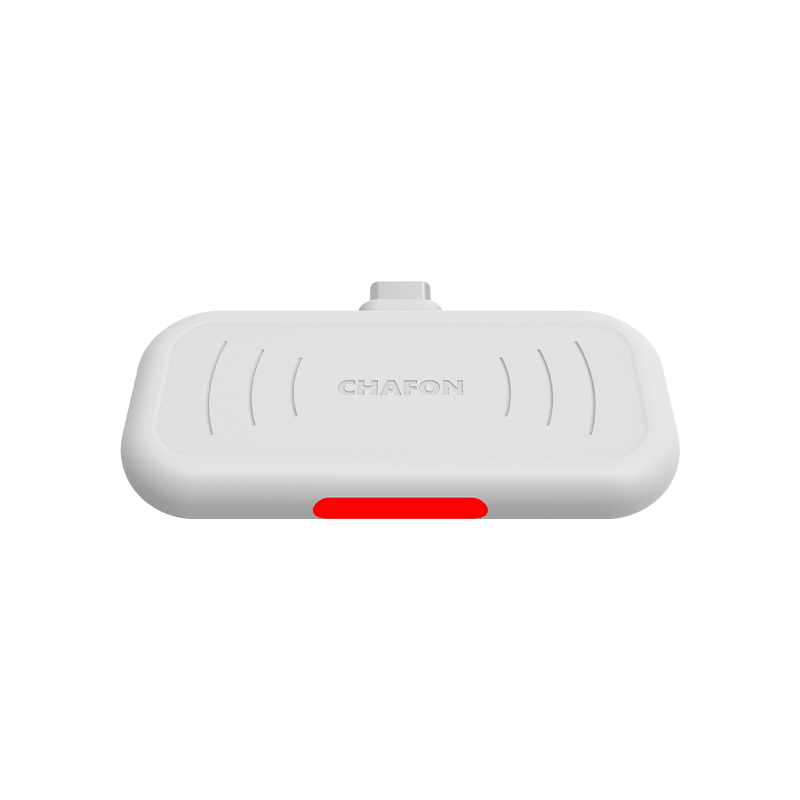

H101 UHF OTG Reader for Android

- Type-C interface
- Reading distance 0-10cm
- HID mode: data can be received at the cursor, such as notepad, input box, etc.
- Application: jewelry inventory, parts inventory, warehouse management, shelf management, etc.

Product Specifications

RFID Technical Parameters			Physical parameters
Frequency	860-960MHZ		Usage	Type-C is connected to the mobile phone, and the cursor flashes to indicate receiving data

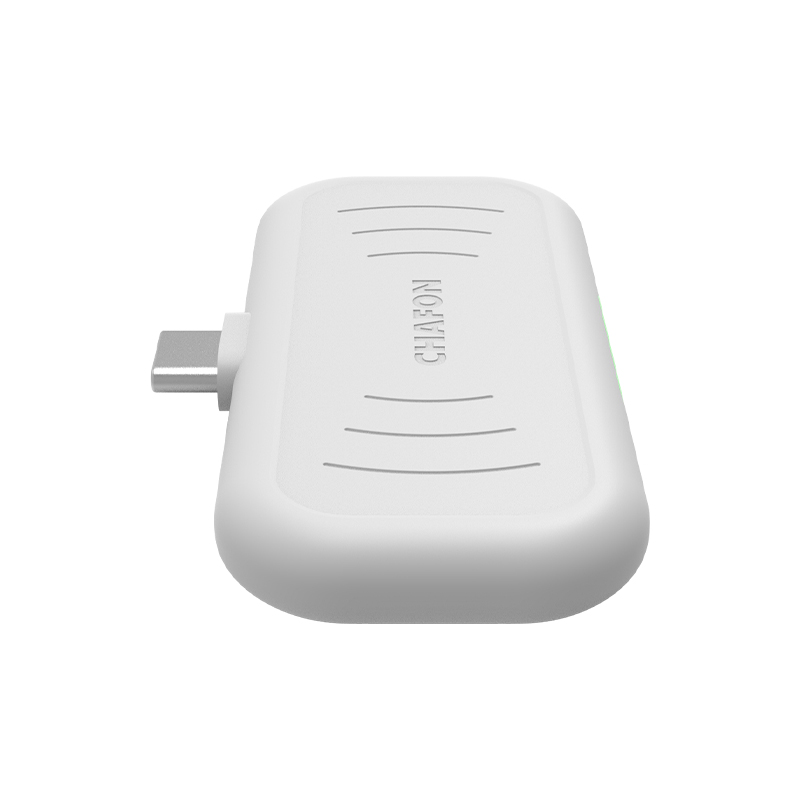

Protocol	ISO18000-6C(EPC GEN2)		Appearance color	White/Black available
Output power	0-20dbm (adjustable)		Shell material	ABS
Read speed	>30 tags/second		Operating temperature	-10℃~50℃
Read distance	0-10cm		Storage temperature	-30℃~70℃
Wired communication	Type-C enables charging and serial port online upgrade.		Operating current	100~150mA @5V

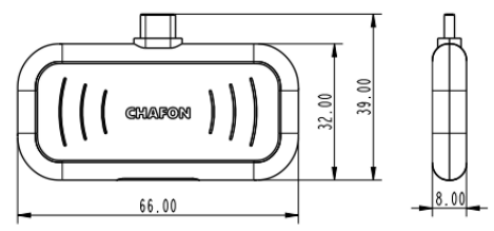

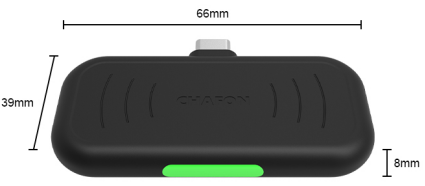

Data Communication			Dimensions	66 (length) * 39 (width) * 8 (height) mm
Power prompt	Connect to the phone, the LED light turns red		Weight	13g
Card reading prompt	LED light turns green

Details display

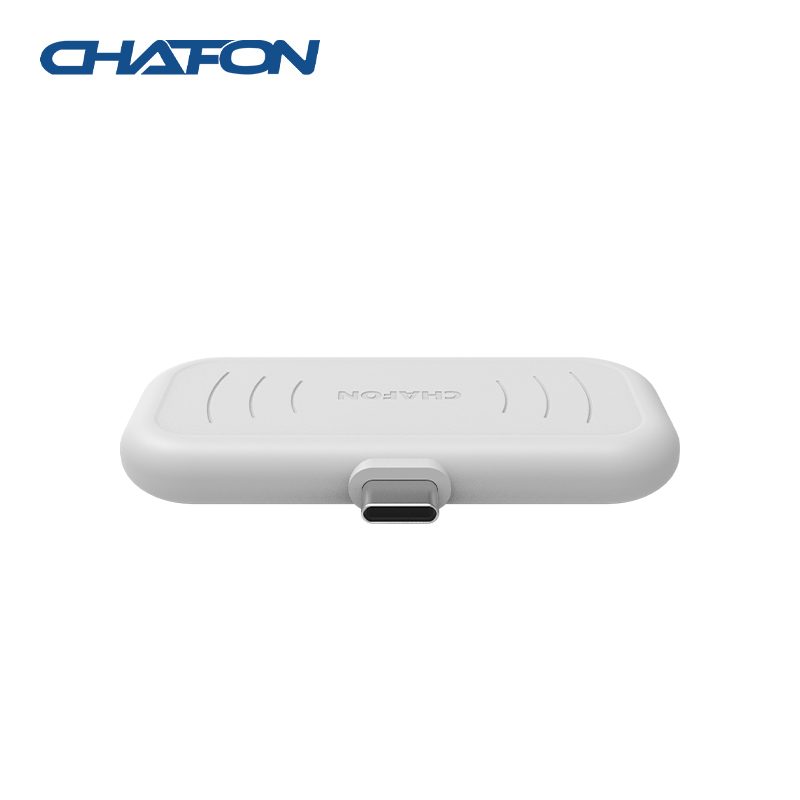

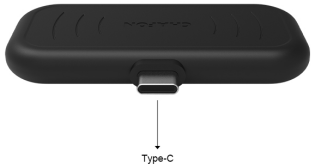

Interface：Type-C Realize power supply and serial port online upgrade

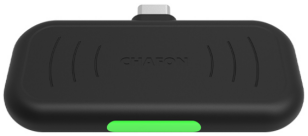

Indicator status：The red light turns on when connected to the phone and the green light turns on when reading the card

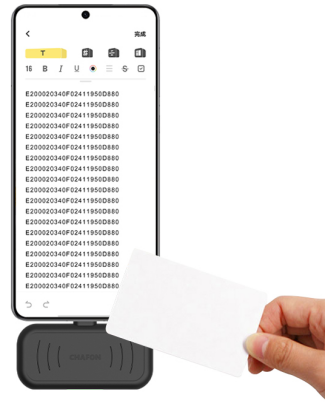

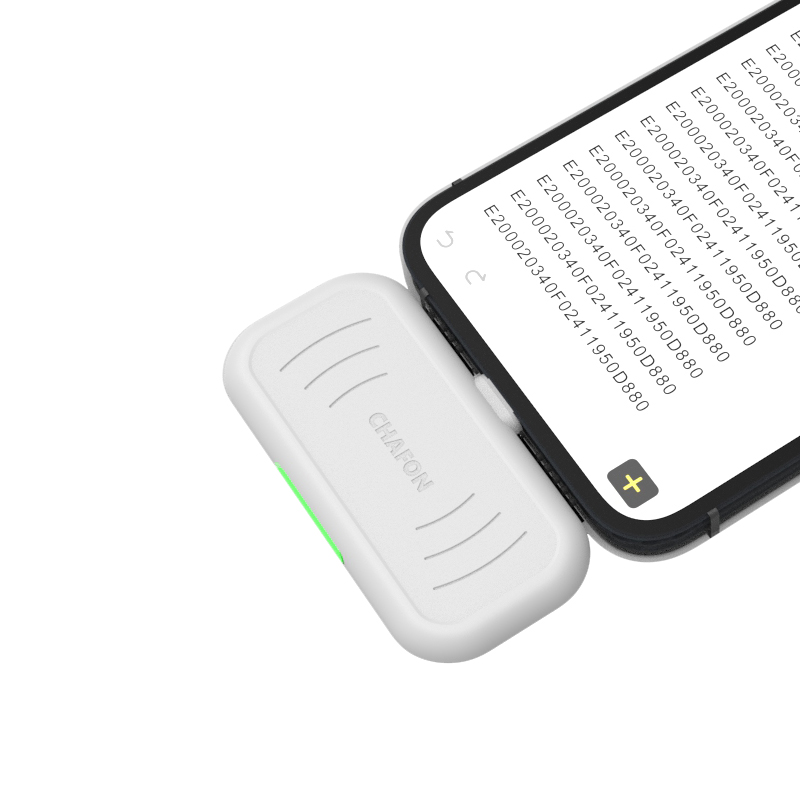

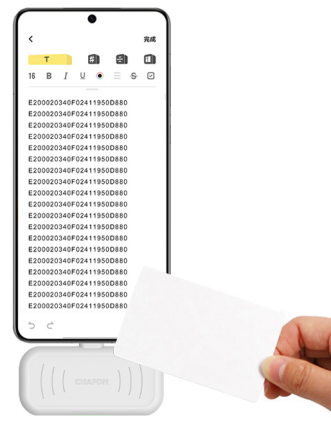

Operating mode：Type-C connects to the phone, receives data at the flashing cursor (notepad, memo, input box, etc.), and the output number is a 24-bit hexadecimal EPC number (supports customized output area and length)

Related Products

Model	H100	H102	H103	H104
Reading distance	0~50cm (depends on label & application environment)	0~1 meter (depends on the tag & application environment)	0~12 meters (depending on the tag & application environment)	0~50cm (Depends on the label & application environment
1D&2D			Optional	Standard
Power	0-20dbm (adjustable)	0-26dbm (adjustable)	0-33dbm (adjustable)	0-20dbm (adjustable)
Dimension	763739mm	5313840mm	155(H)78(W)133(L)mm	15785.770mm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
