H100 UHF portable bluetooth reader

- Support reading and writing UHF tags
- Can work continuously for more than 6 hours

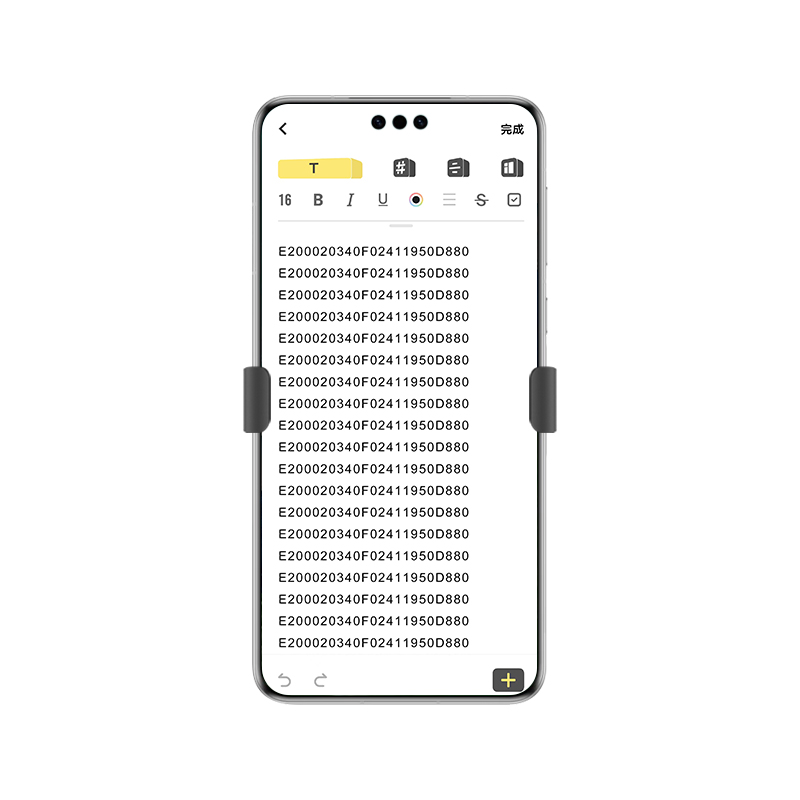

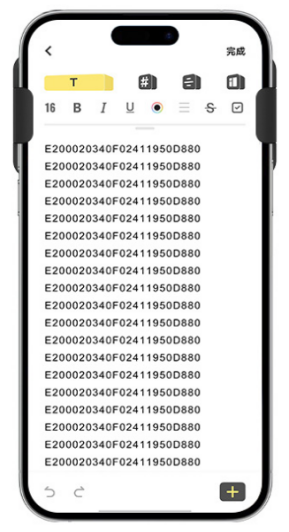

- HID mode: data can be received at the cursor, such as notepad, input box, etc.
- Application: jewelry inventory, parts inventory, warehouse management, shelf management, etc.

Product Specifications

RFID Technical Parameters			Physical parameters
Frequency	902~928MHz（US） 865~868MHz（EU）		Battery	Lithium battery (3.7V-1000mAh)
Protocol	ISO18000-6C (EPC GEN2)		Charging time	1 hour
RF output power	0 dbm--20 dbm (adjustable)		Case material	ABS+Silicone

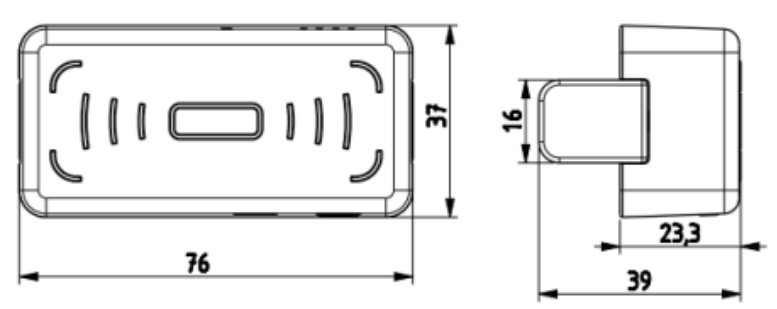

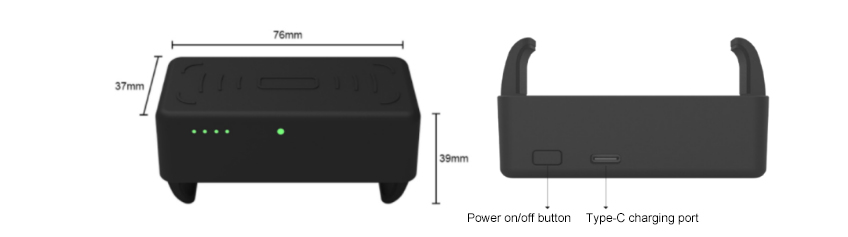

Reading speed	>30 tags/second		Dimensions	76 (length) * 37 (width) * 39 (height) mm
Reading distance	0-50cm		Weight	71g
Data Communication			working environment
Bluetooth protocol	BLE 5.3		Working current	<=145mA

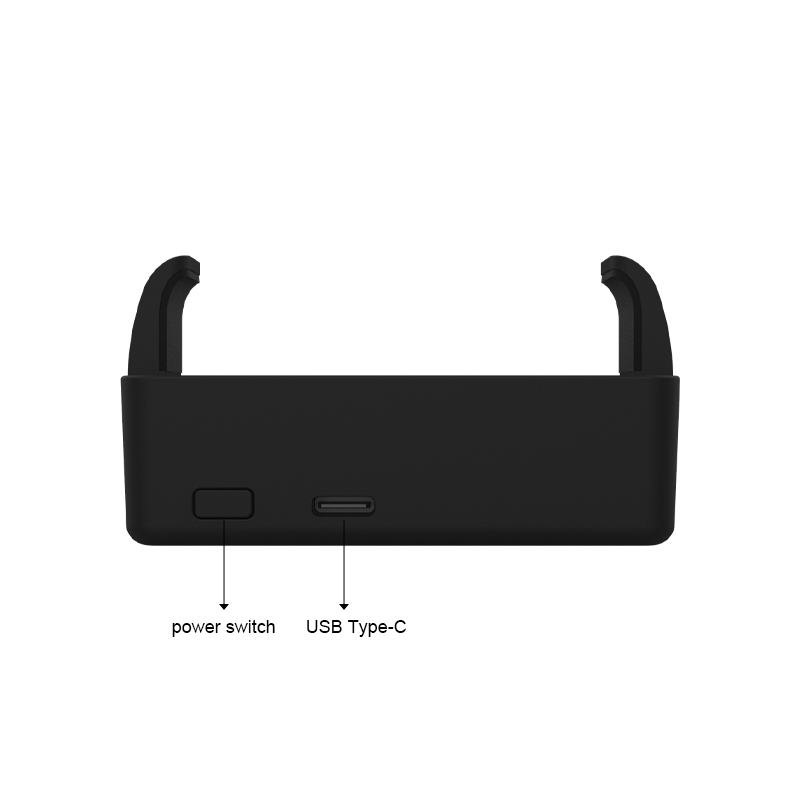

Wired communication	Type-C enables charging and serial port online upgrade		Standby current	<=100uA

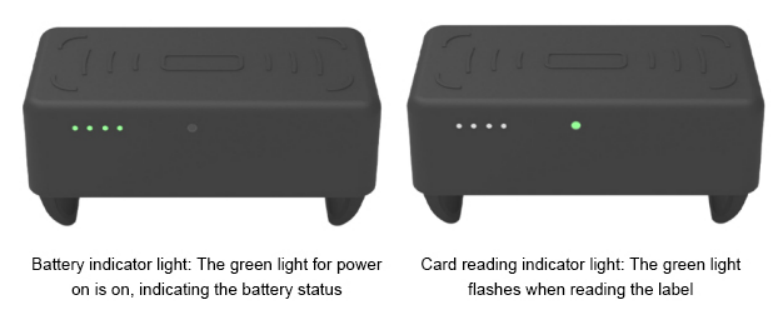

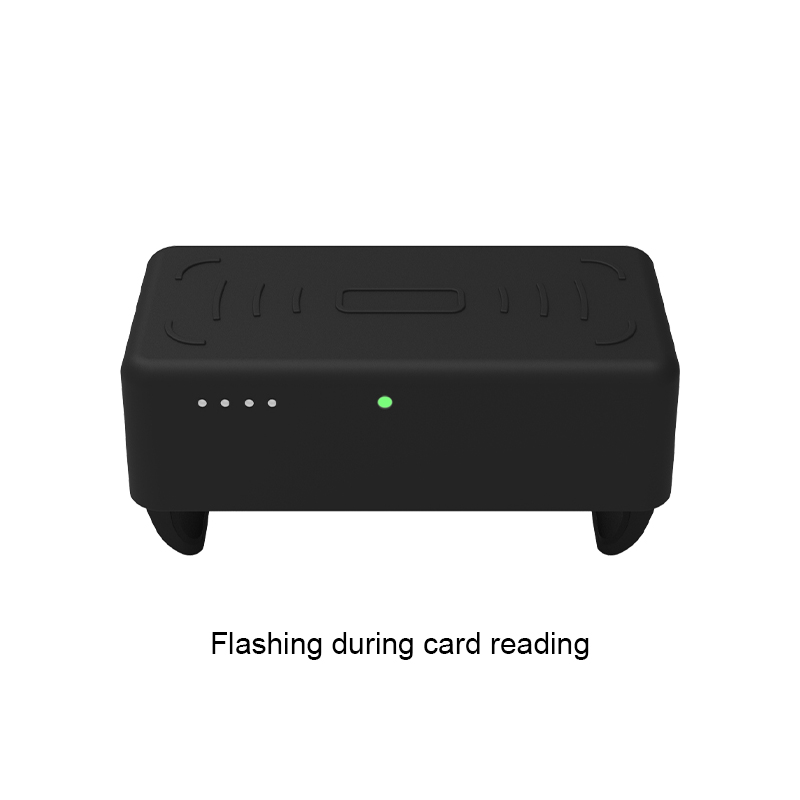

Card reading prompt	LED light flashes		Working time	Continuous work for more than 6 hours
Power on/off	By pressing buttons		Standby time	More than 1 year
Development Environment			Working temperature	-10℃~50℃
SDK	Demo software, API, examples, user manual		Storage temperature	-30℃~70℃
Development language	Android, C#
Firmware version	Support online upgrade

Details display

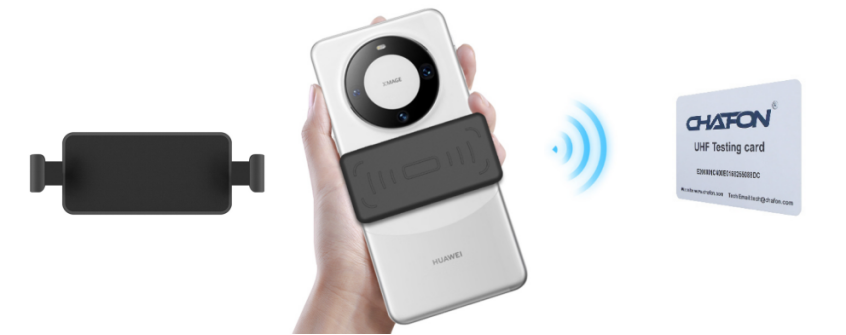

Serial mode & HID mode

Related Products

Model	H100	H102	H103	H104
Reading distance	0~50cm (depends on label & application environment)	0~1 meter (depends on the tag & application environment)	0~12 meters (depending on the tag & application environment)	0~50cm (Depends on the label & application environment
1D&2D			Optional	Standard
Power	0-20dbm (adjustable)	0-26dbm (adjustable)	0-33dbm (adjustable)	0-20dbm (adjustable)
Dimension	763739mm	5313840mm	155(H)78(W)133(L)mm	15785.770mm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
