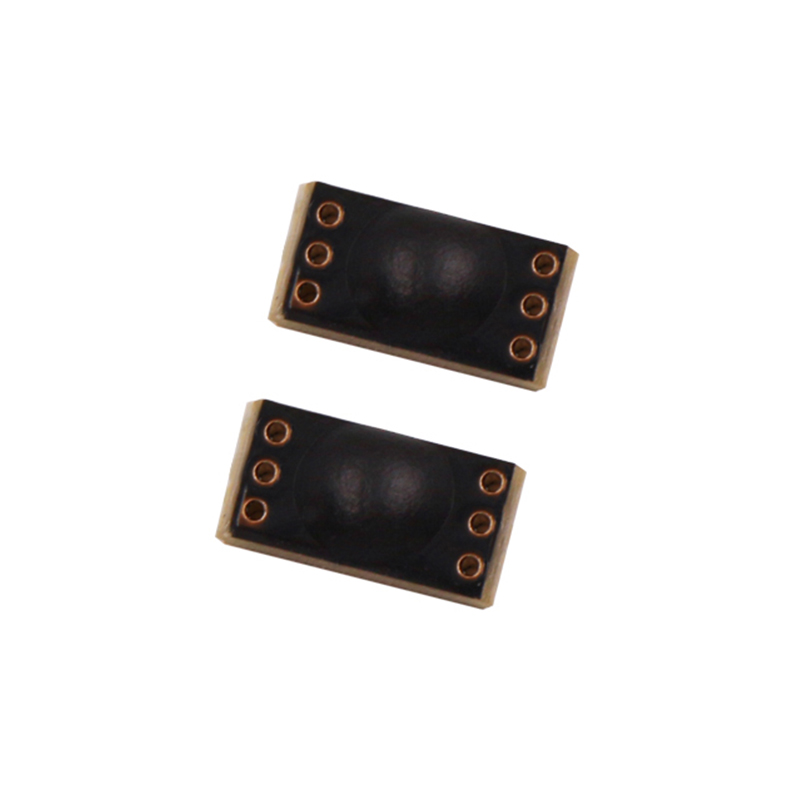

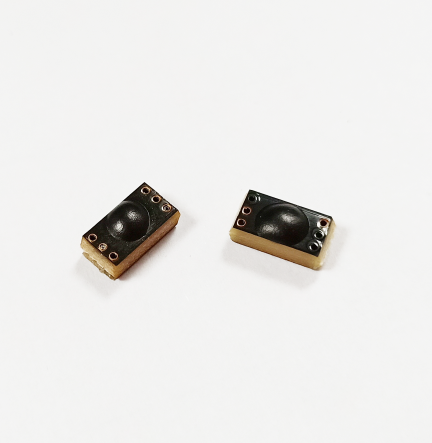

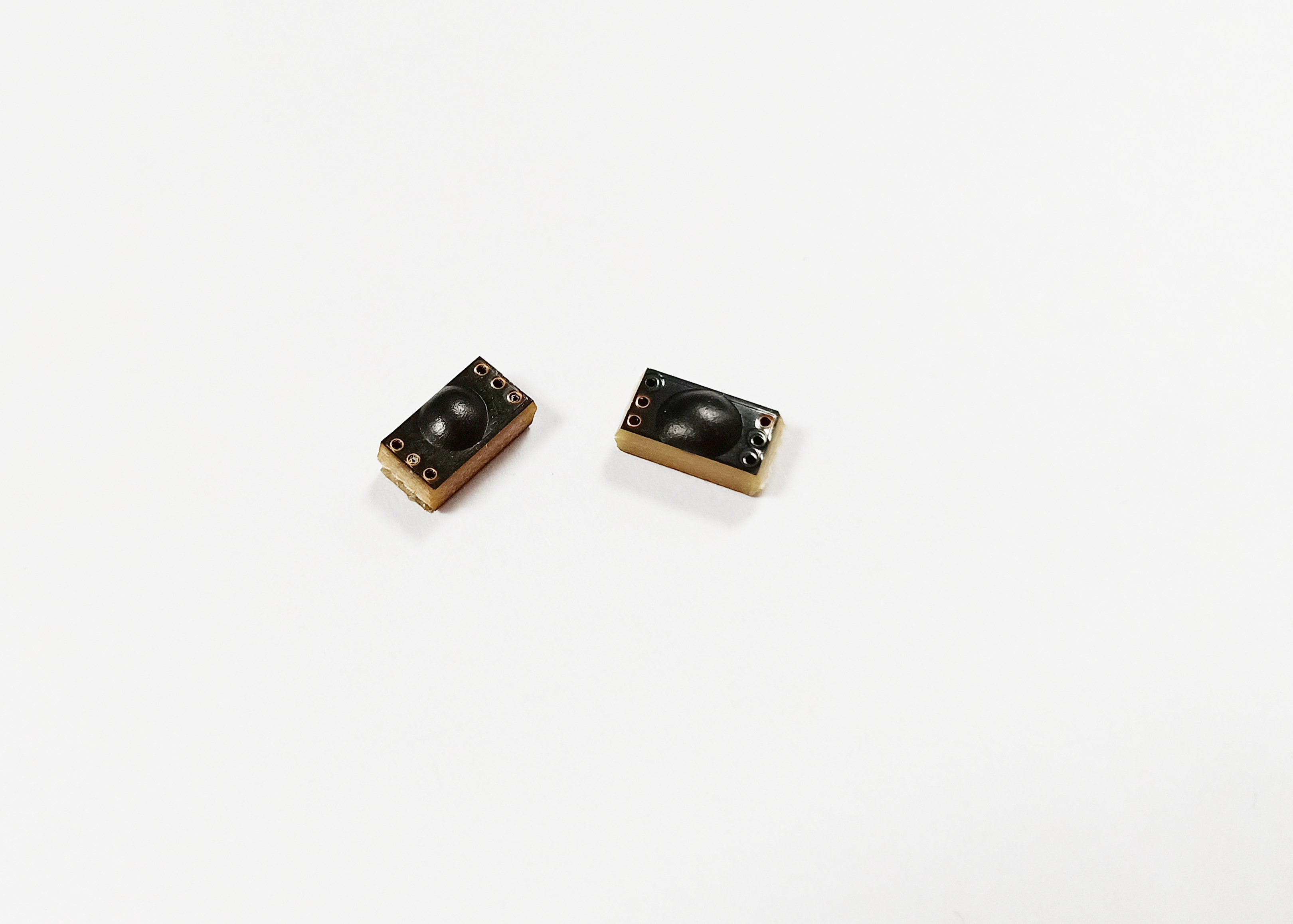

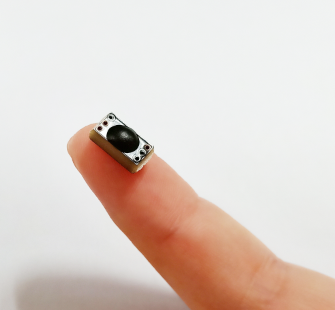

G9836 UHF Mini PCB tag
Chip:NXP UCODE 8
Material:FR4
UHF Mini PCB tag（G9836）
1.Product
2.Application
○ Fixed Asset Management ○ IT Facility Chassis Management
○ Metal container management ○ Indoor metal shell facility management
○ Personnel inspection management
|
Protocol |
EPC Class1 Gen2; ISO18000-6C |
|
Frequency |
902-928MHz |
|
Chip type |
NXP UCODE 8 |
|
Chip memory |
EPC:128bits,TID:48bits Access password:32bits |
|
Work mode |
Read and write |
|
Chip life time |
50 years |
|
Warranty |
1year |
|
Material |
FR4 PCB |
|
Color |
Black |
|

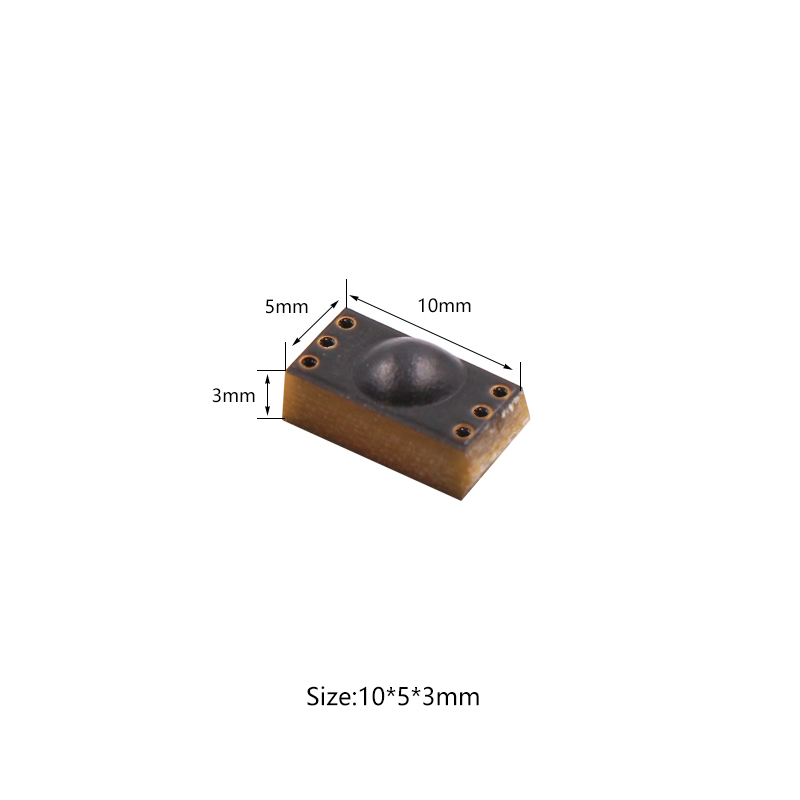

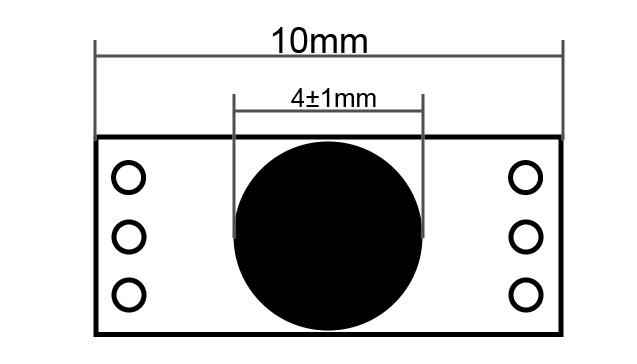

size |
10mm*5mm*3mm |
|
Packing |
carton |
|
Weight |
~1g/pc |
|
Operating Temperature |
-25℃~ +85℃ |
|
Storage temperature |
-30℃~ +110℃ |
|
Storage humidity |
5%～95% |
|

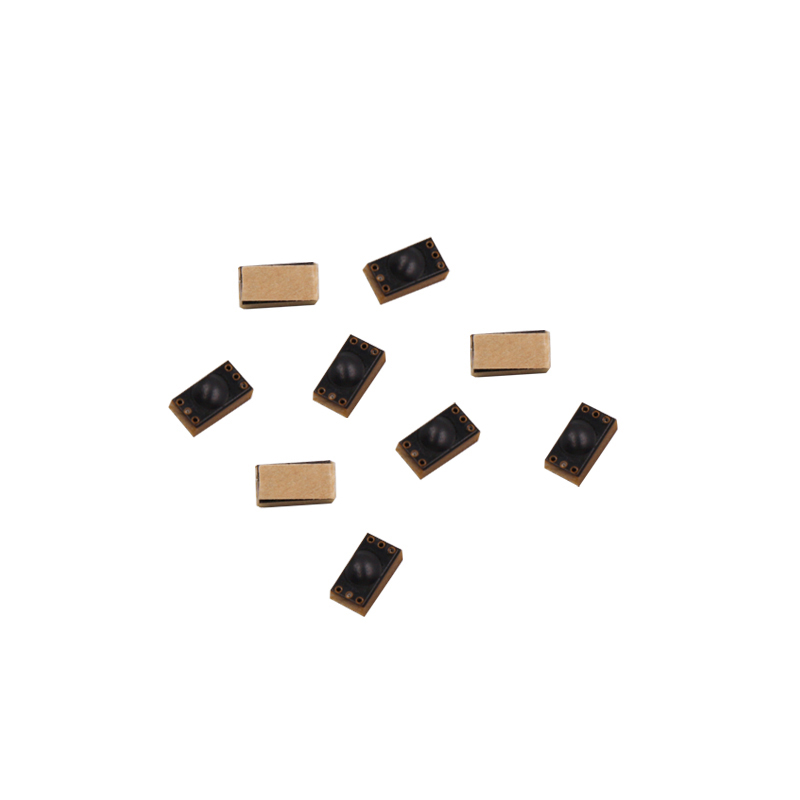

Installation method |
3M300LSE double-sided adhesive (standard） |
|
IP rating |
IP63 （When painted, it can be upgraded to IP65） |
|
Polarization mode |
Linear polarization |
|
Read distance |
40~100cm(depends on tag and work environment) |
|
Drop test |
1M 200 drops test passed |
|
Alcohol test |
95% concentration alcohol test passed |
|
Gasoline test |
No. 92 gasoline wiped through |
|
High and low temperature alternating test |
-40℃ to +150℃ 7 times high and low temperature alternating cycle, a total of 2 days of test pass |
|
RoHS |
Pass, the material passed SGS certification |
|
RF performance consistency test |
100% tested and passed (tested with the European Finnish Voyantic Tagformace tester) |
