G9839 UHF ABS anti-metal tag

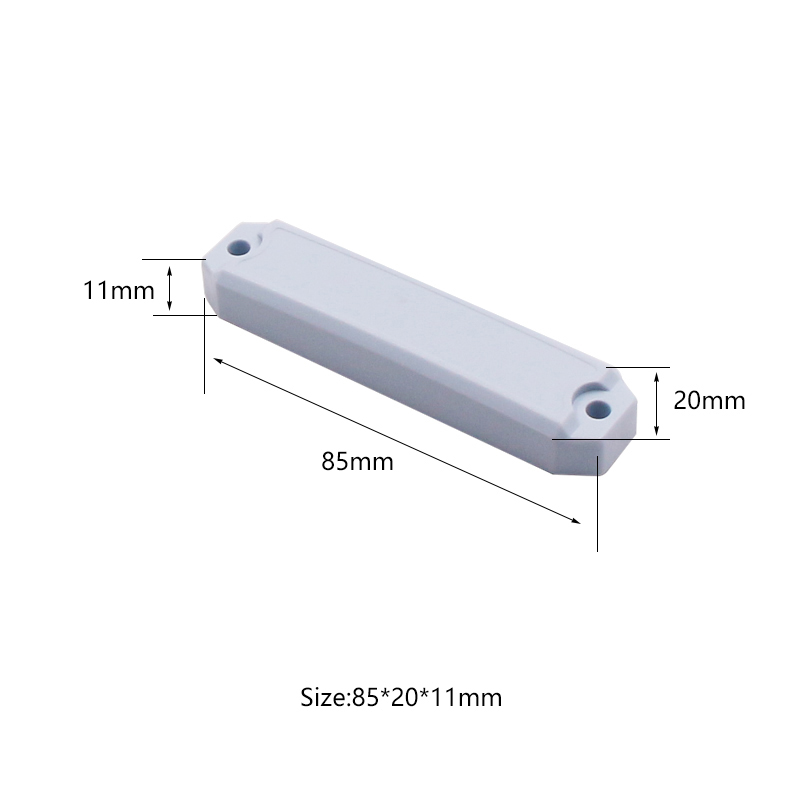

Size:85*20*11mm
Material:ABS/Polymer Materials
UHF ABS anti-metal tag（G9839）

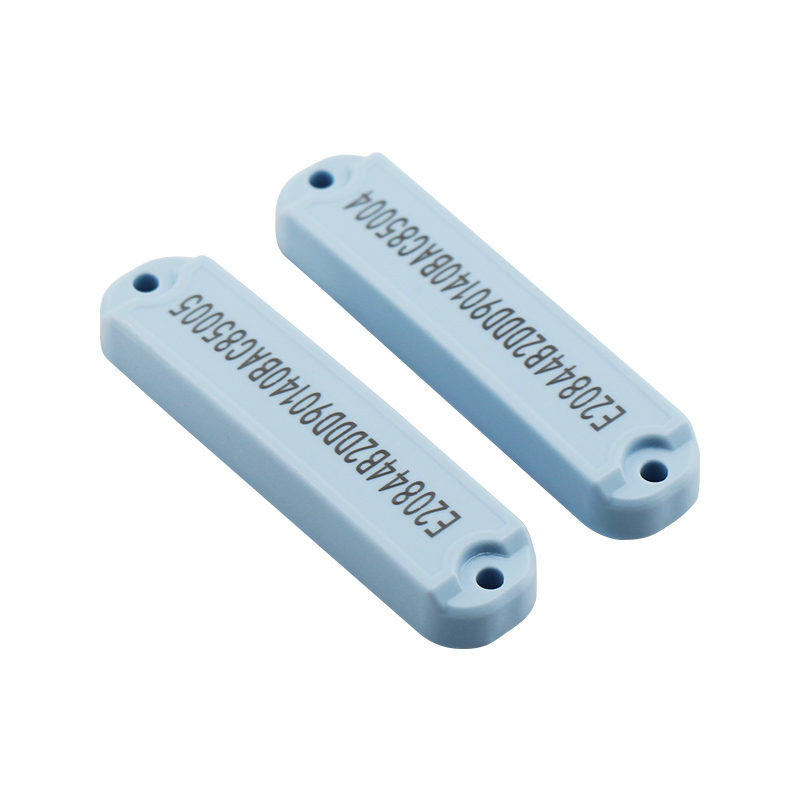

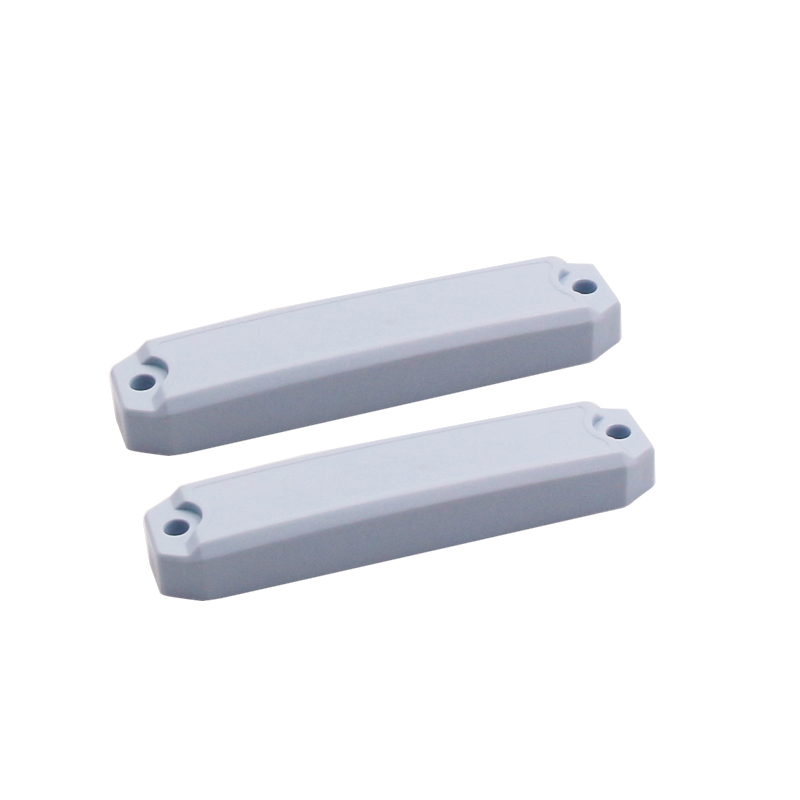

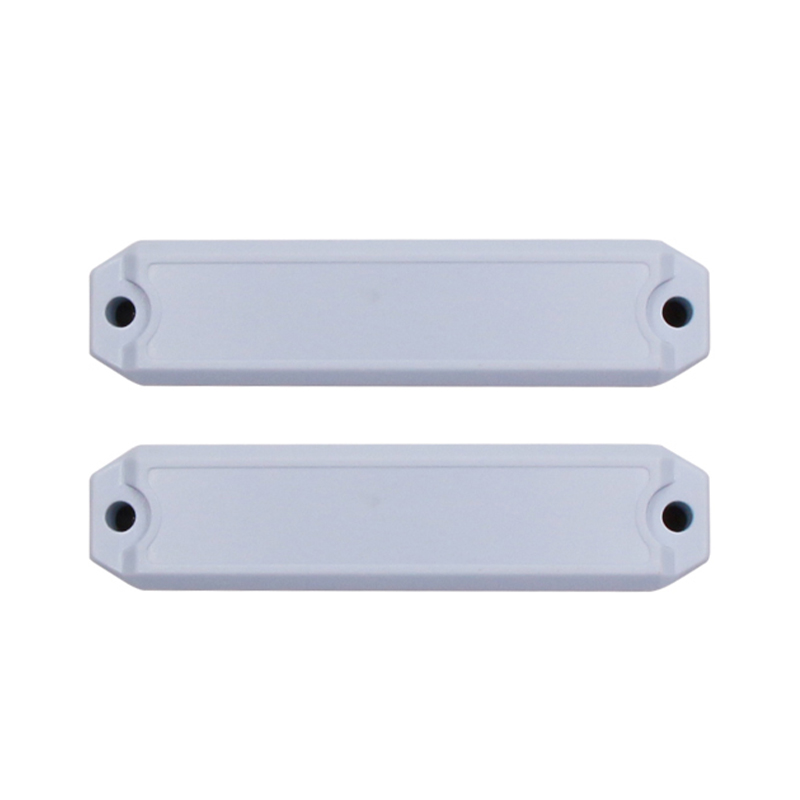

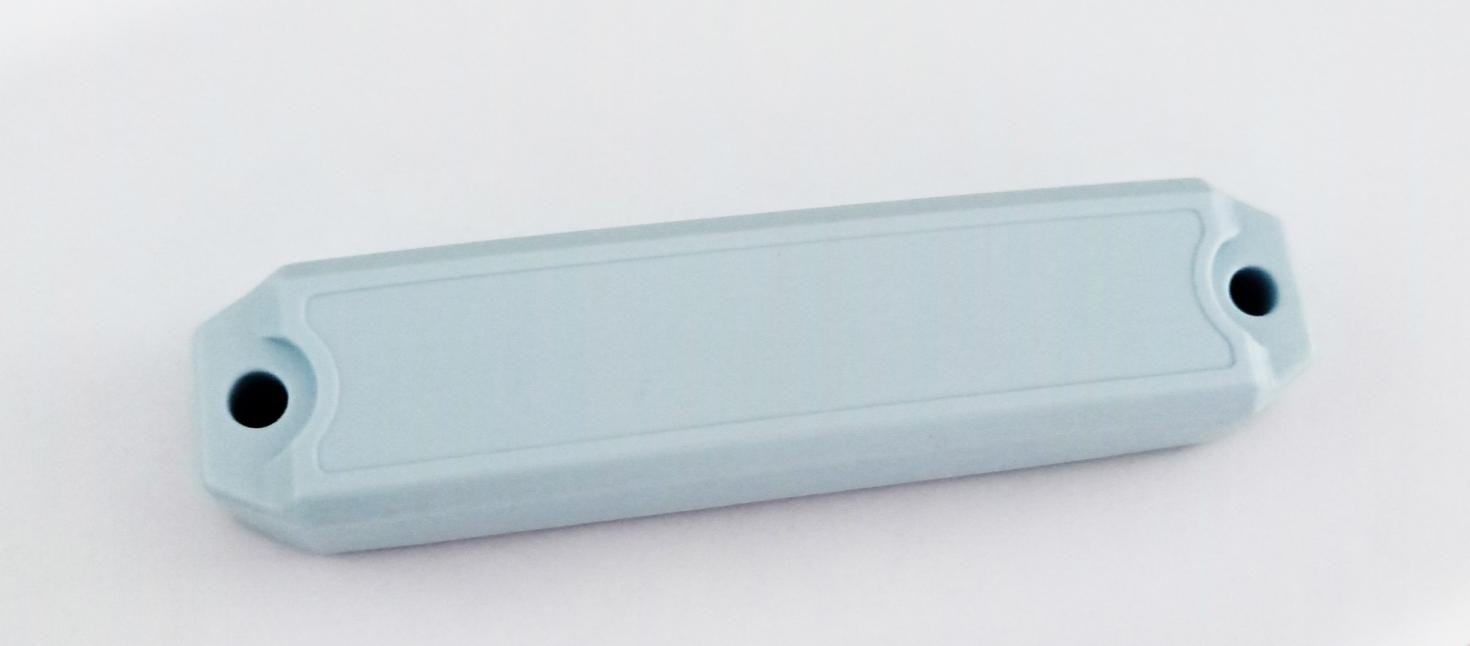

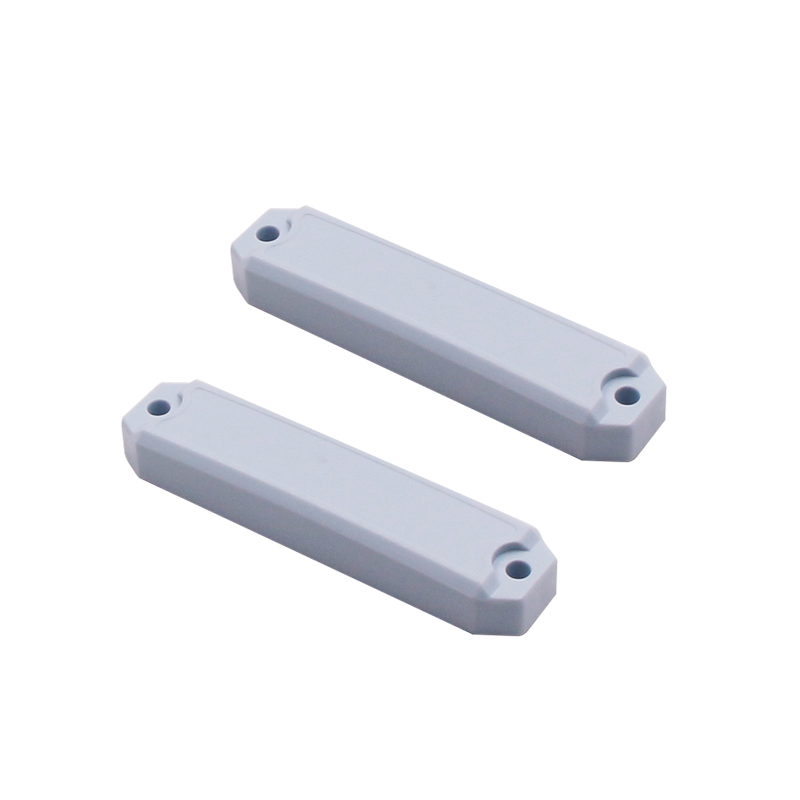

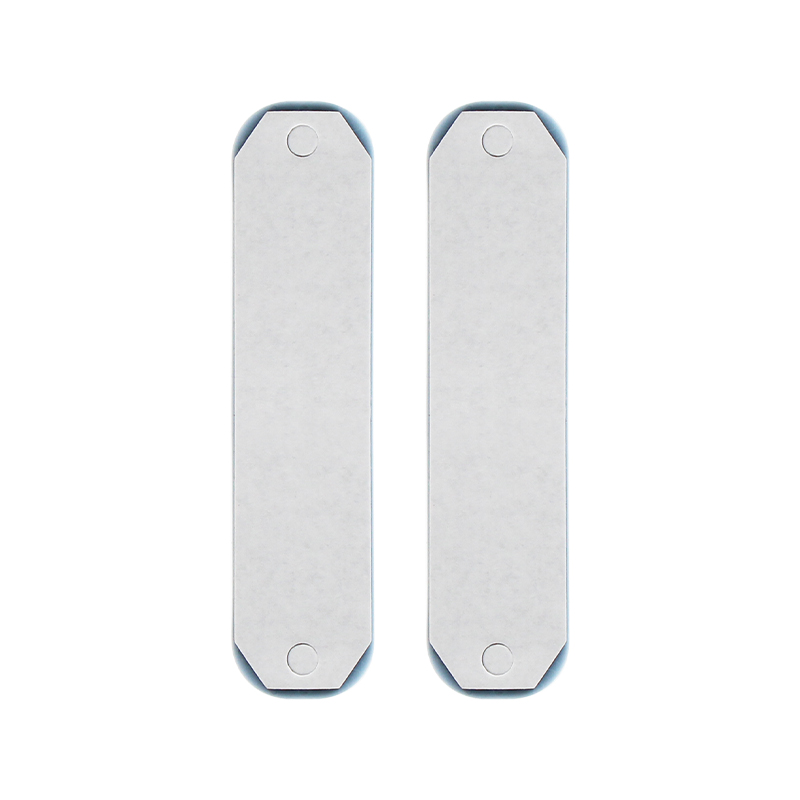

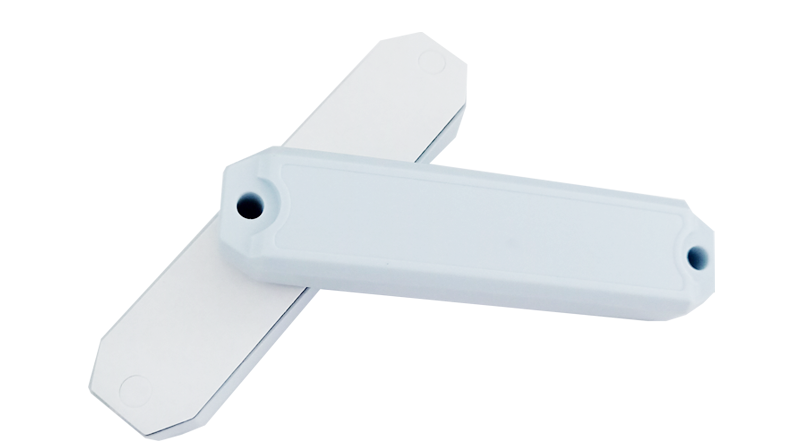

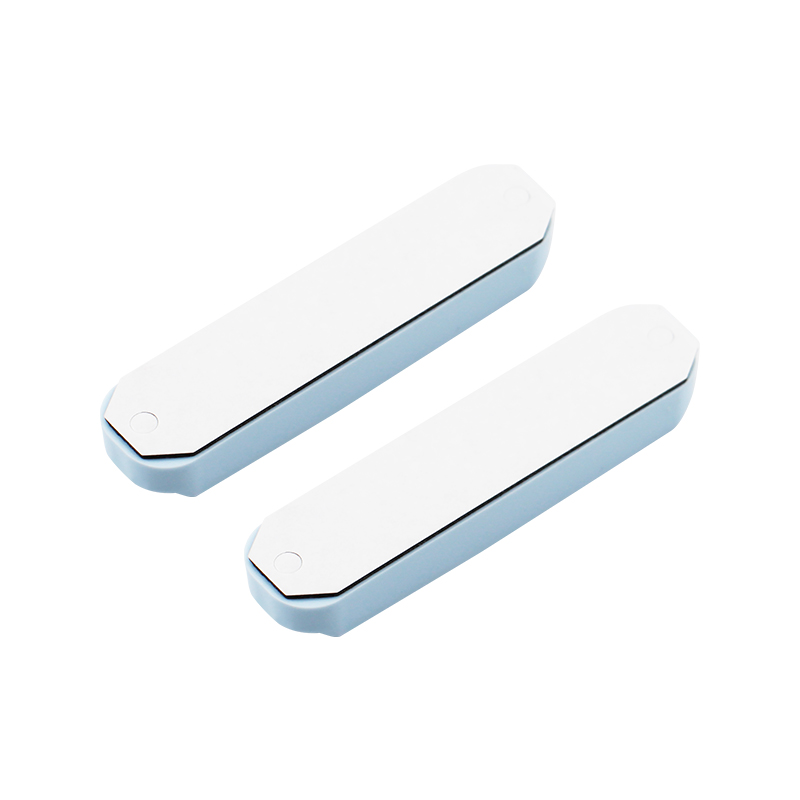

1.Picture
2.Application
○ Storage rack and locomotive management ○ IT facility chassis management
○ Medium and large metal container management ○ Indoor and outdoor metal shell facility management
○ Power box and power facility management ○ Cement building wall or column management
○ Management of public facilities such as street lamps and traffic light poles
○ Medium and large fluid valves or pipeline management
3.Product advantages
○ Tag surface with sticker or silk screen
○ Tag surface printing barcode

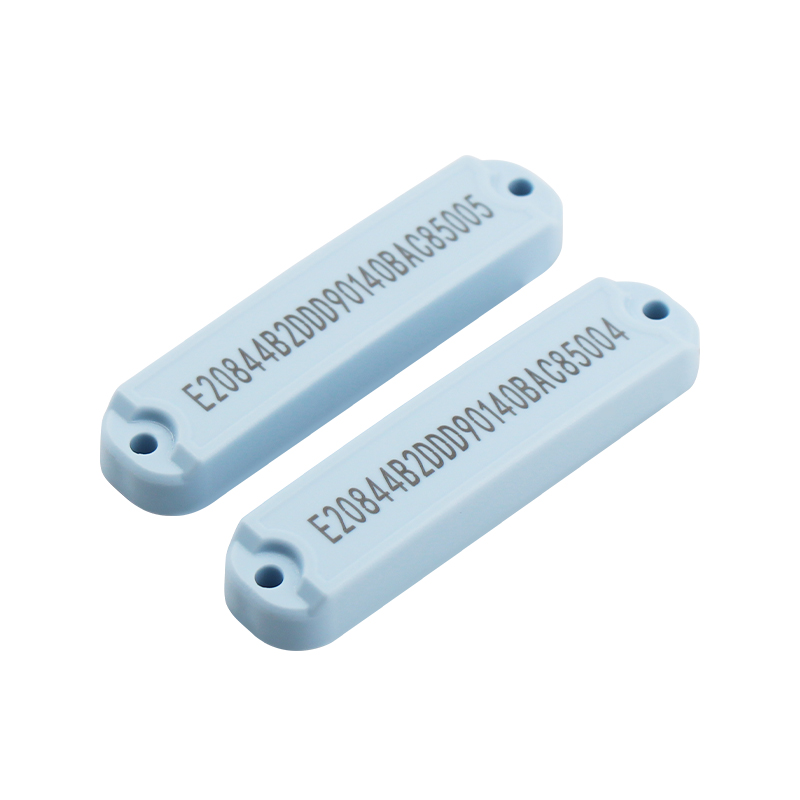

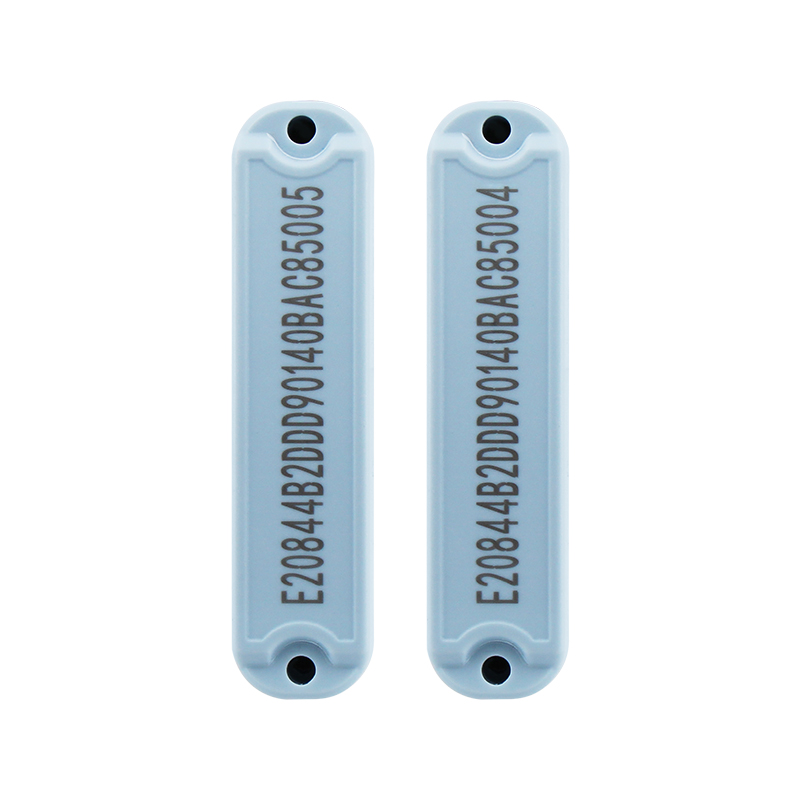

○ Tag surface can be laser coded
○ Tag resistant to weak acid and weak base, waterproof
○ Tag with adhesive / with holes at both ends for easy installation
4.Parameter
|
Protocol |
EPC Class1 Gen2; ISO18000-6C |
|
Chip type |
Impinj M4QT chip or R6 chip |
|
Chip memory |
Impinj M4QT chip EPC:128bits TID:48bits User:512bits Access password:32bits Impinj R6 chip EPC:96bits TID:48bits |
|
Work mode |
Read and write |
|
Chip life time |
50 years |
|
Material |
1year |
|
Main material |
ABS/Polymer Materials |
|
Color |
black |
|

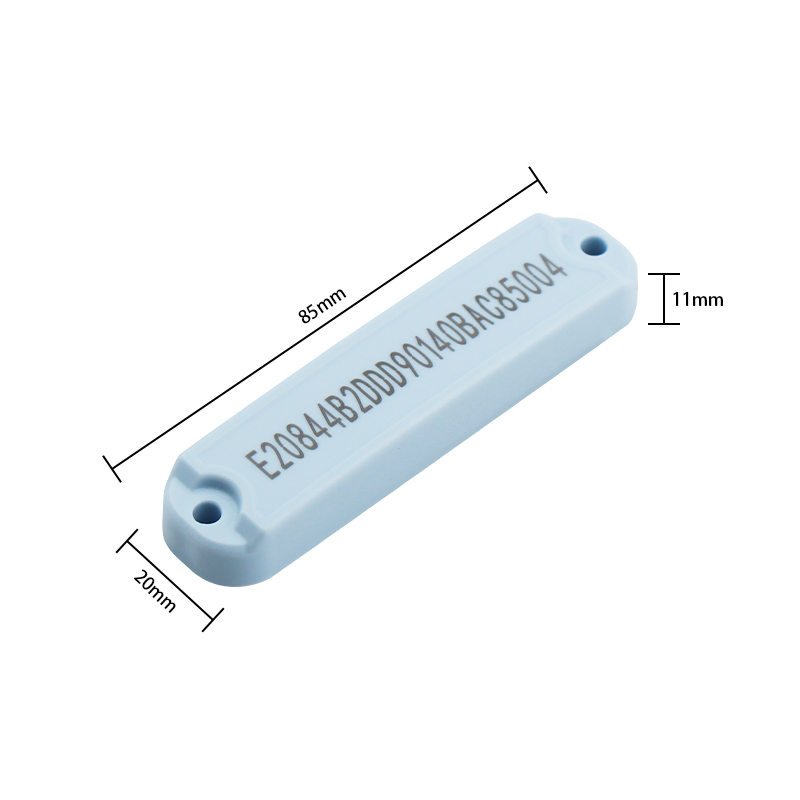

Size |
85mm *20mm* 11mm |
|
Weight |
10g/pc |
|

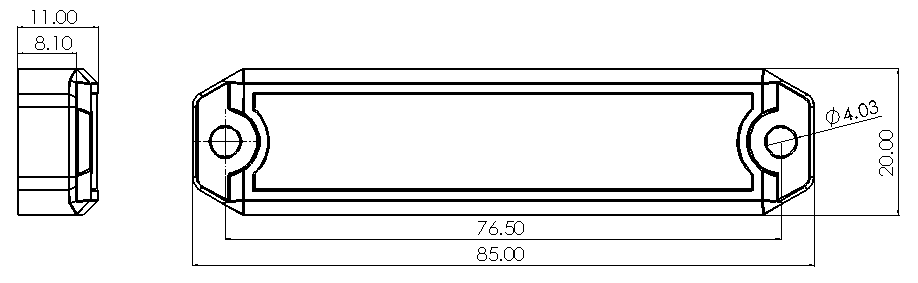

Positioning hole size |
The positioning hole for product fixing is 4.03mm, and the centering distance of positioning hole is 76.5mm. |
|
Operating Temperature |
-25℃~ +70℃ |
|
Storage temperature |
-40℃~ +70℃ |
|
Storage humidity |
5%～95% |
|
IP rating |
IP67 |
|
Polarization mode |
Linear polarization |
|
Read distance |
4~6M(depends on reader and work environment) |
|
Drop test |
1M 200 drops test passed |
|
Alcohol test |
95% concentration alcohol test passed |
|
Gasoline test |
No. 92 gasoline wiped through |
|
High and low temperature alternating test |
-40℃ to +150℃ 7 times high and low temperature alternating cycle, a total of 2 days of test pass |
|
RoHS |
Pass, the material passed SGS certification |
