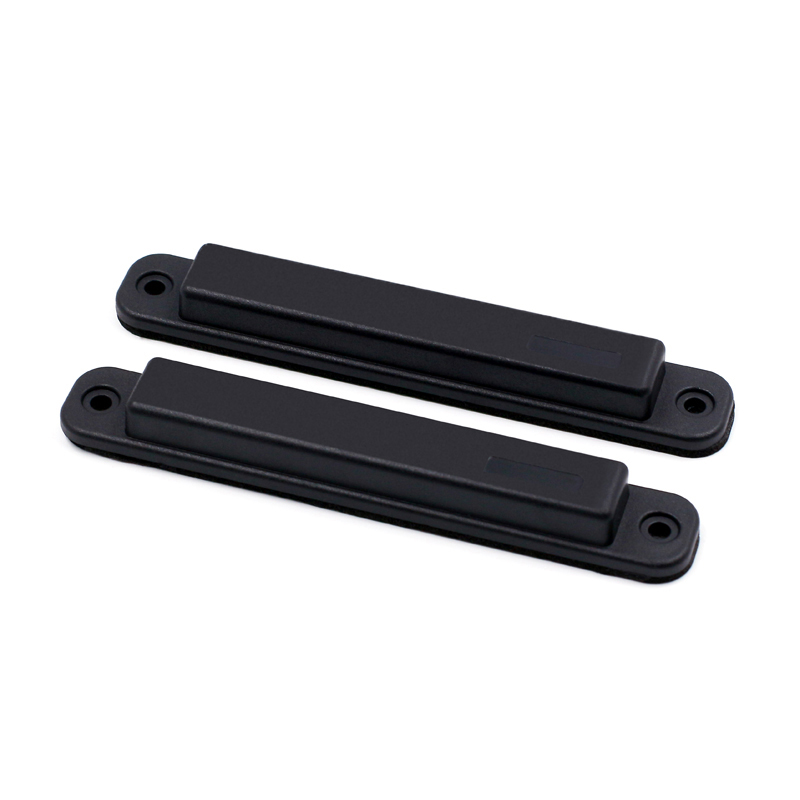

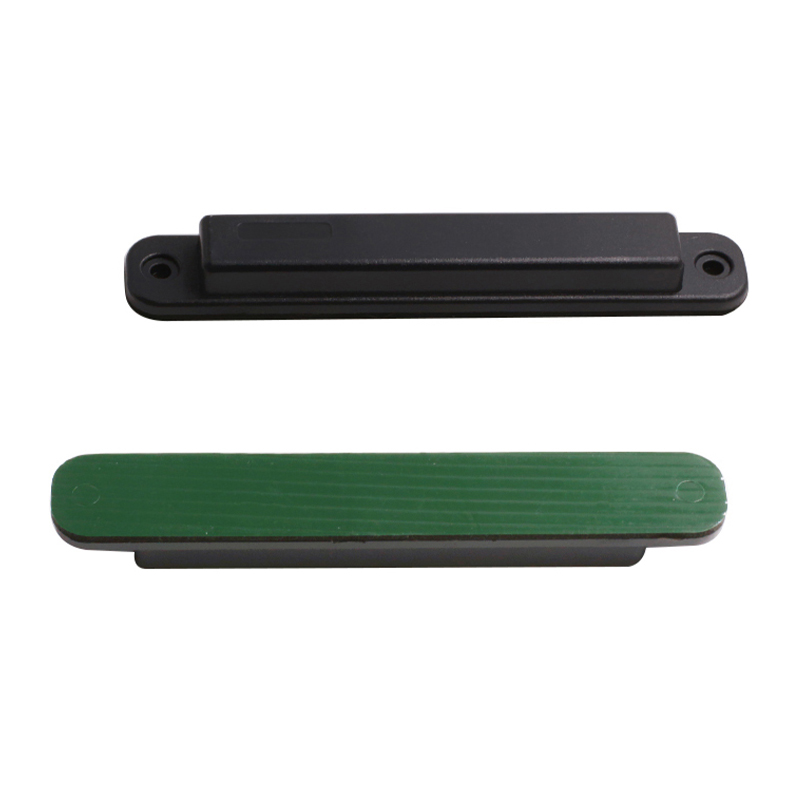

G9811 UHF Anti metal Tag
G9811 has metal resistance and can be directly attached to metal surfaces. It can be used in logistics, warehousing and asset management, supply chain, car license plates, metal equipment, etc.
|
Performance Specifications |
|
|
Model |
G9811 |
|
Frequency |
860～960MHz |
|
Protocol |
ISO18000-6C(EPC-Gen2) |
|
Chip Type |
Alien H3 |
|
Memory |
32bits @TID，96bits @EPC， 512bit@user |
|
Work Mode |
Read&Write |
|
Reading range |
(0~8 meters) depends on the reader |
|
Writing range |
(0~2 meters) depends on the reader |
|
Data Retention |
10 years |
|
Collision Avoidance |
Yes |
|
Physical properties |
|
|

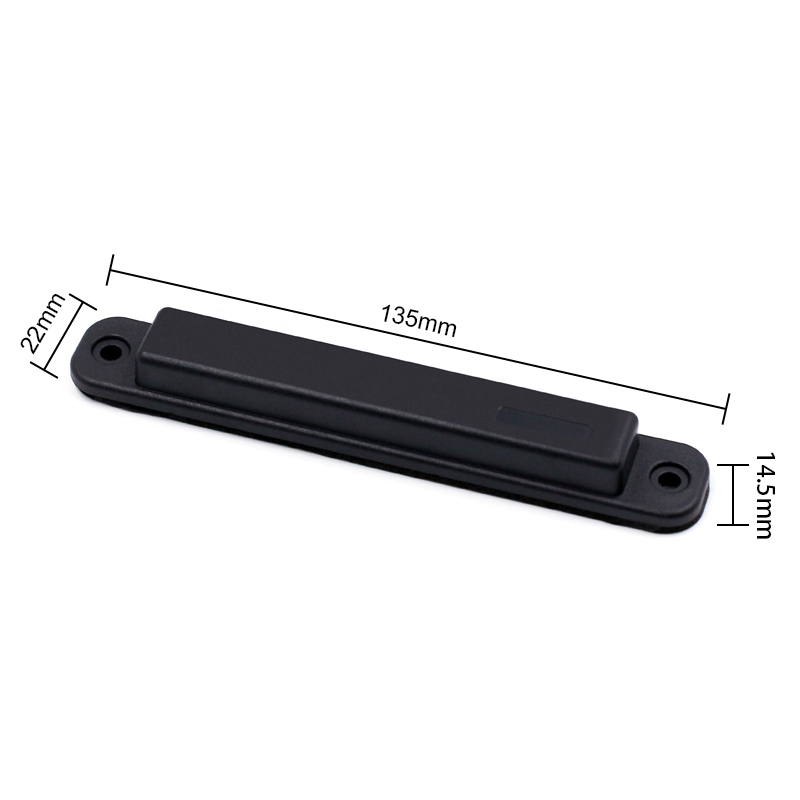

Size |
135*22*14.5mm |
|
Material |
ABS |
|
Operating temperature |
-20℃~+100℃ |
|
Storage temperature |
-10℃~+85℃ |
|
Operating humidity |
≤80% |
|

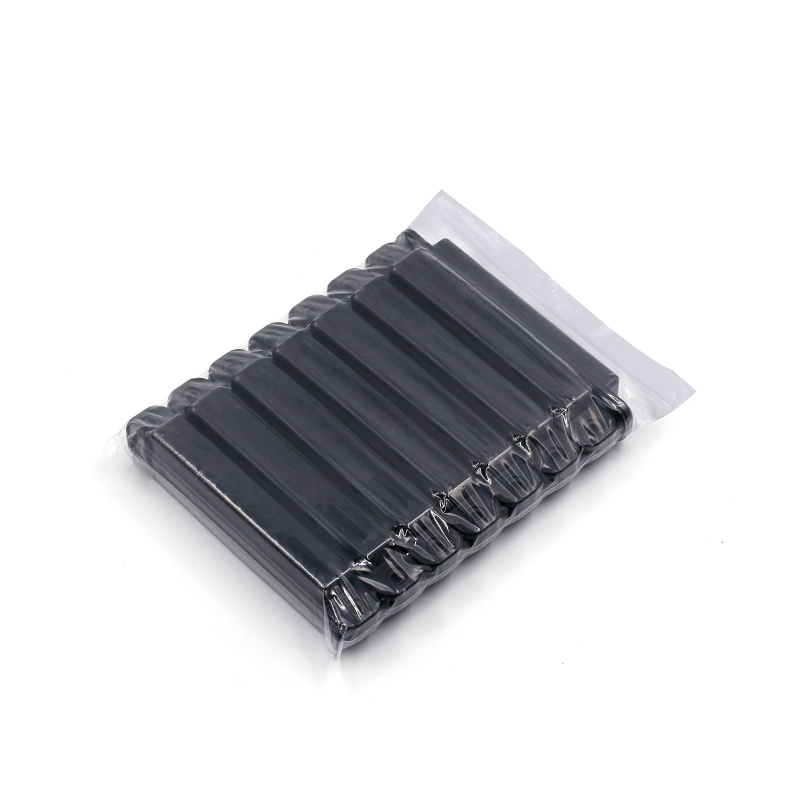

Packing Specifications |
100pcs/bag |
|
Packing weight |
1kg/bag |
