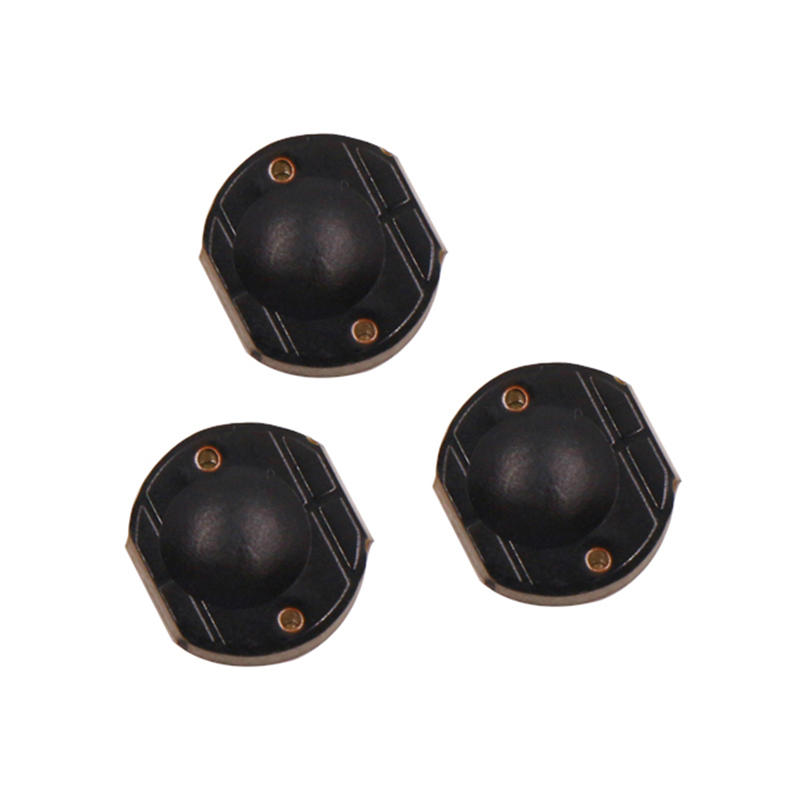

G9837 UHF Mini PCB tag

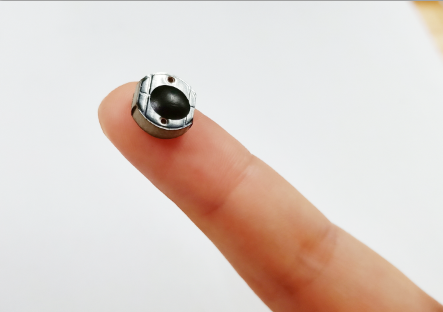

Size:10mm
Material:FR4
UHF Mini PCB tag（G9837）
1.Product

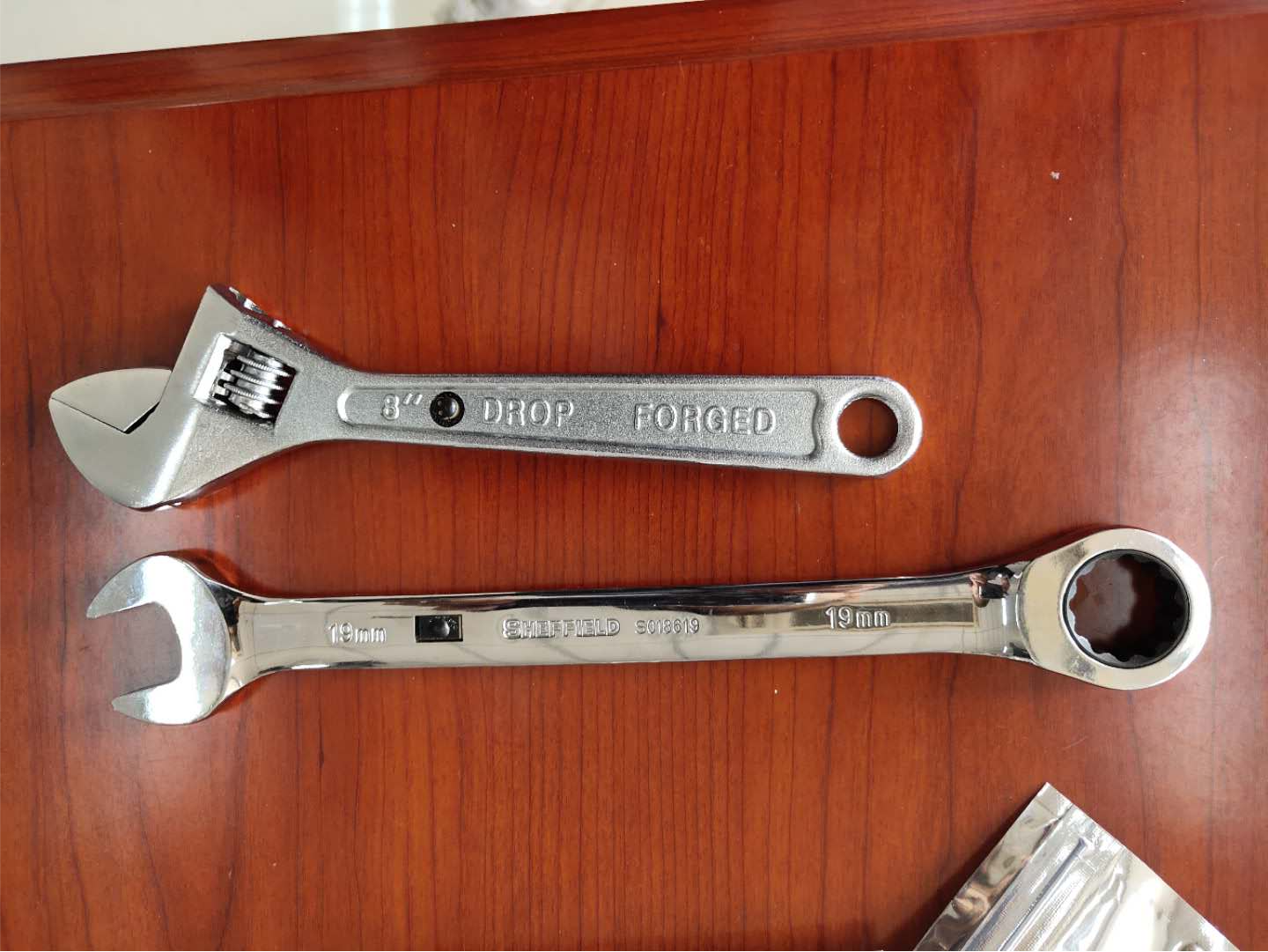

2.Application
○ Fixed Asset Management
○ Metal container management
○ Personnel inspection management
○ IT Facility Chassis Management
○ Indoor metal shell facility management
3.Parameter
|
Protocol |
EPC Class1 Gen2; ISO18000-6C |
|
Frequency |
860~960MHz |
|
Chip type |
NXP UCODE 8 |
|
Chip memory |
EPC:128bits,TID:48bits,Access password:32bits |
|
Work mode |
Read and write |
|
Chip life time |
50years |
|
warranty |
1year |
|
Material |
FR4 PCB |
|
Color |
black |
|

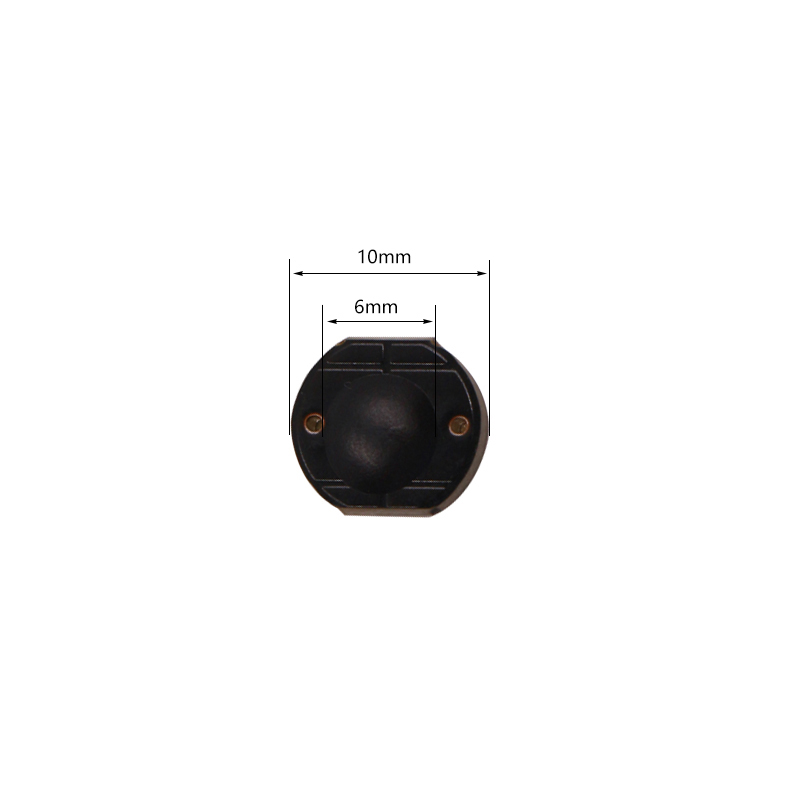

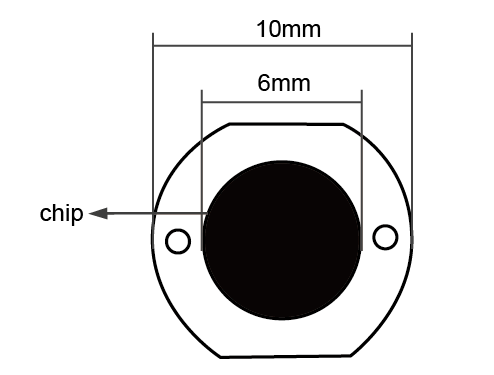

size |
10mm |
|
Weight |
1g/pc |
|
Operating Temperature |
-25℃~ +85℃ |
|
Storage temperature |
-30℃~ +110℃ |
|
Installation method |

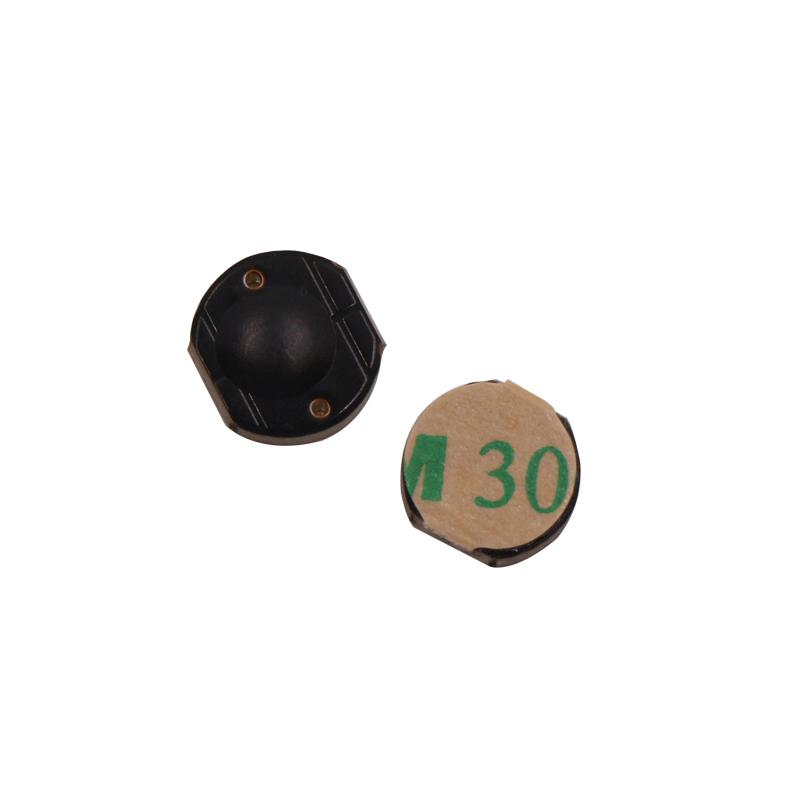

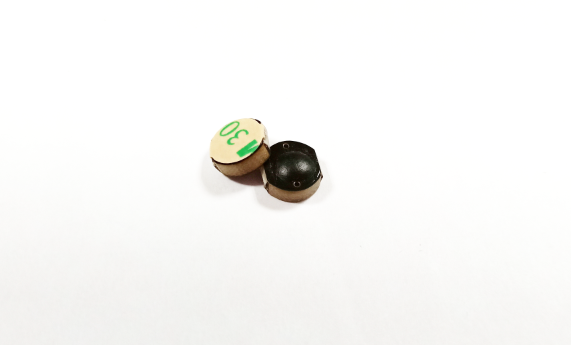

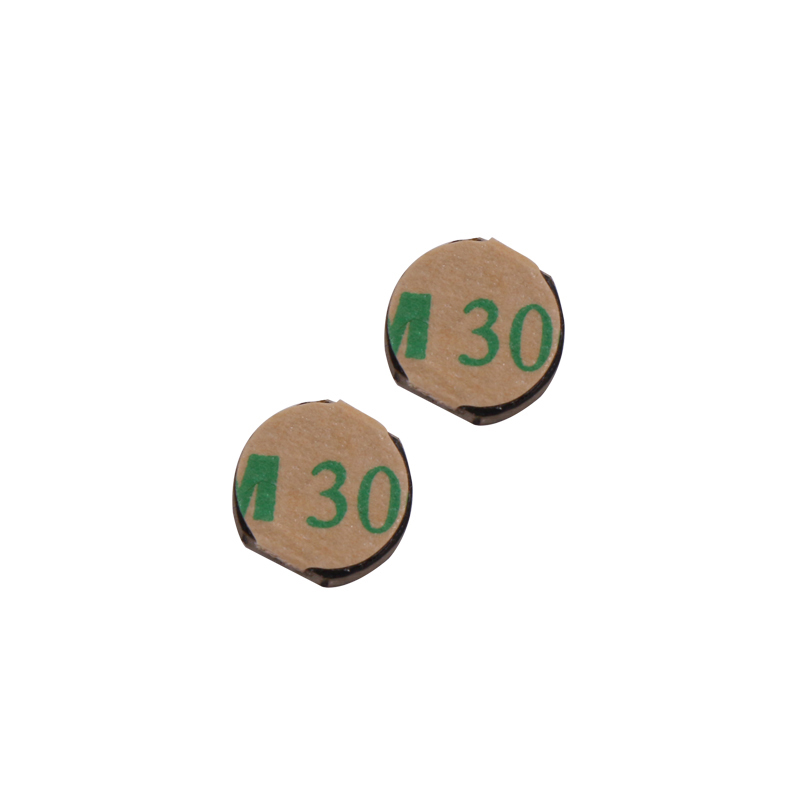

3M300LSE double-sided adhesive (standard） |
|
IP rating |
IP63 （When painted, it can be upgraded to IP65） |
|
Polarization mode |
Linear polarization |
|
Read distance |
10~80cm(depends on reader and work environment) |
|
Drop test |
1M 10 drops test pass (with ceramic inside, does not support more drops) |
|
Alcohol test |
95% concentration alcohol test passed |
|
Gasoline test |
No. 92 gasoline wiped through |
|
High and low temperature alternating test |
-40℃ to +150℃ 7 times high and low temperature alternating cycle, a total of 2 days of test pass |
|
RF performance consistency test |
100% tested and passed (tested with the European Finnish Voyantic Tagformace tester) |
