CF801 UHF Linux OS Eight Port Fixed Reader
- The maximum reading speed can reach 800 tags per second
- Support RSSI to identify tag signal distance
- Support multi-antenna anti-collision polling and inventory
- Support multiple language development, such as c#, java, etc.
- Applications: warehouse management, forklift management, asset tracking, laundry management, smart cabinets, garbage management, etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
|||
|
Chip solution |
MU914 |
Communications |
10/100 BaseT Ethernet (RJ45) USB host and client (Type A and Type B) Serial port (DB9) |
||
|
Frequency |
902~928MHz（US） 865~868MHz（EU） |
WIFI |
2.4G single mode 802.11b/g/n |
||
|
Protocol |
ISO18000-6C(EPCGEN2) |
Power |
POE(802.3af) POE+(802.3at) +24VDC |
||
|
RF output power |
0dbm—33dbm(Adjustable) |
General I/O |
4 inputs, 4 outputs, optocoupler isolation (terminal) |
||
|

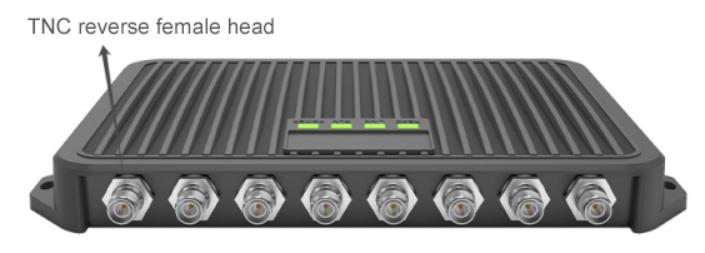

Antenna port |
8 RP TNC female |
Processor |
Nuc high-performance processor (300MHz) |
||
|
Read speed |
200 tags/s |
Memory |
Memory 256MB Flash 64MB (expandable) |
||
|
Read distance |
0-25M |
Operating system |
Linux 4.4 |
||
|
Receiver sensitivity limit |
-88dBm |
Firmware upgrade |
Web-based and remote firmware upgrade capabilities |
||
|
Physical parameters |
Internet service |
DHCP、HTTPS、FTPS、SFPT、SSH、HTTP、FTP、SNMP和NTP |
|||
|
Shell material |
Die-cast aluminum |
Network stack |
IPv4 and IPv6 |
||
|
Protection level |
IP53 |
Visual status indicators |
Multiple status indicator LED lights |
||
|

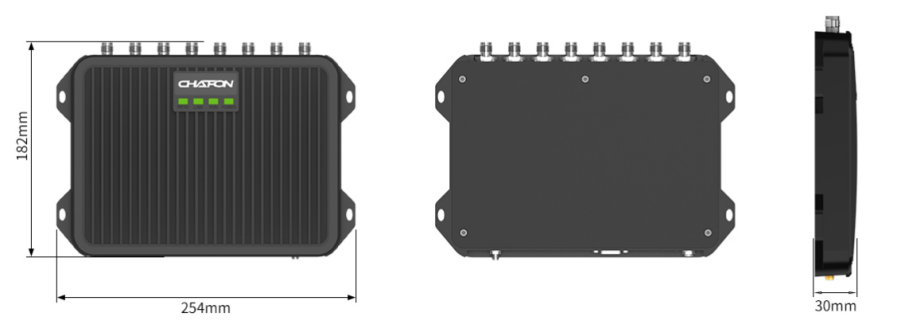

Dimensions |
254*182*30mm |
Development Environment |
|||
|
Working environment |
Firmware version |
Support online upgrade |
|||
|
Operating temperature |
-20℃～+65℃ |
SDK |
Demo software, API, examples, user manuals |
||
|
Storage temperature |
-40℃～80℃ |
Host applications |
.Net、C and Java EMDK |
||
|
Humidity |
5%～95%（No condensation） |
Embedded applications |
C and Java SDK |
||
Details display
|

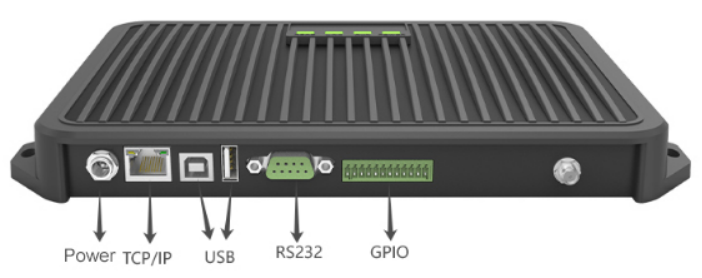

DC Power Supply Definition |
||
|
Serial number |
Signal |
Contents |
|
1 |
PWR |
+24V DC |
|
2 |
GND |
Ground |
|
GPIO Wiring Definition |
||
|
Serial number |
Signal |
Contents |
|
1 |
+24V DC |
Power output 24V |
|
2 |
GND |
Power ground |
|
3 |
GPO-1 |
GPIO output 1 |
|
4 |
GPO-2 |
GPIO output 2 |
|
5 |
GPO-3 |
GPIO output 3 |
|
6 |
GPO-4 |
GPIO output 4 |
|
7 |
GPIO GND |
Signal ground |
|
8 |
GPI-1 |
GPIO input 1 |
|
9 |
GPI-2 |
GPIO input 2 |
|
10 |
GPI-3 |
GPIO input 3 |
|
11 |
GPI-4 |
GPIO input 4 |
|
12 |
GPIO GND |
Signal ground |
Related Products
|
Image |
|
|
|
|
Model |
CF400 |
CF800 |
CF801 |
|
Chip solution |
Impinj E710 chip |
||
|
Output RF power |
0dbm~33dbm (adjustable) |
||
|
Reading speed |
800pcs/s |
||
|
Reading distance |
0~25 meters (depending on antenna & tag & application environment) |
||
|
Built-in system |
Android 12.0 |
Android 12.0 |
Linux 4.4 |
|
Antenna port |
4 SMA female |
8 SMA female |
8 RP TNC female |
