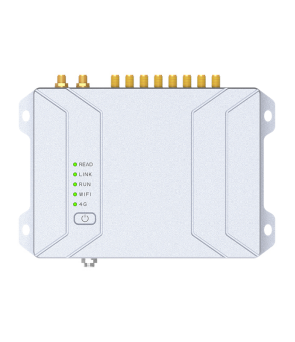

CF800 OS UHF 8 ports fixed reader

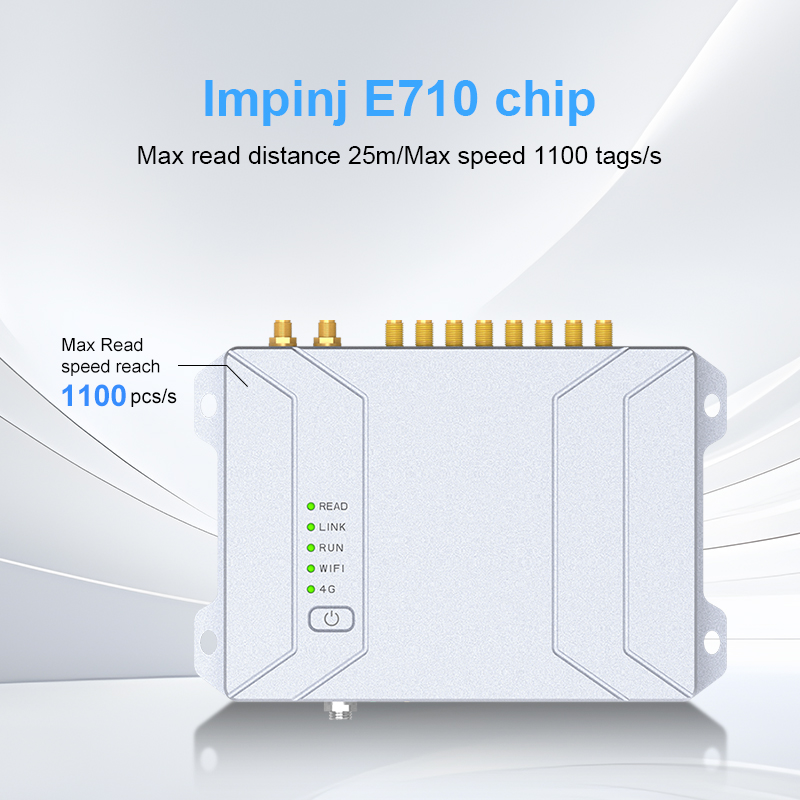

- The maximum reading speed can reach 1100 tags per second
- Support RSSI to identify tag signal distance
- Support multi-antenna anti-collision polling and inventory
- Support multiple language development, such as c#, java, etc.
- Applications: warehouse management, forklift management, asset tracking, laundry management, smart cabinets, garbage management, etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Engine |
E710 chip |
RJ45 Ethernet Port |
10/100 Base-T Ethernet |
|
|
Protocol Standard |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
WLAN |
802.11a/b/g/n/ac ，External antenna(SMA Connector) |
|
|
Frequency |
865-868 MHz / 920-925 MHz / 902-928 MHz |
WLAN |
2G：GPRS(900/1800MHz) |
|
|
Output Power |
2W（33 dBm） |
3G：WCDMA Band1 |
||
|
Output Power Accuracy |
+/- 1dB |
CDMA：EVDO Rev.A 800MHz |
||
|
Output Power Flatness |
+/- 0.2dB |
TD-SCDMA: Band34/39 |
||
|
Receiver Sensitivity |
< -84 dBm |
4G：TDD-LTE： Band38/39/40/41 |
||
|
Multi-read Rate |
Up to 1100 tags/s |
FDD-LTE：Band1/3 |
||
|
Tag RSSI |
Support |
External Antenna (SMA Connector) |
||
|
Module Temp. Detection |
Support |
Development Environment |
|
|
|
Antenna Connection Protection |
Support |
Operating System |
Android 12 |
|
|
Antenna |

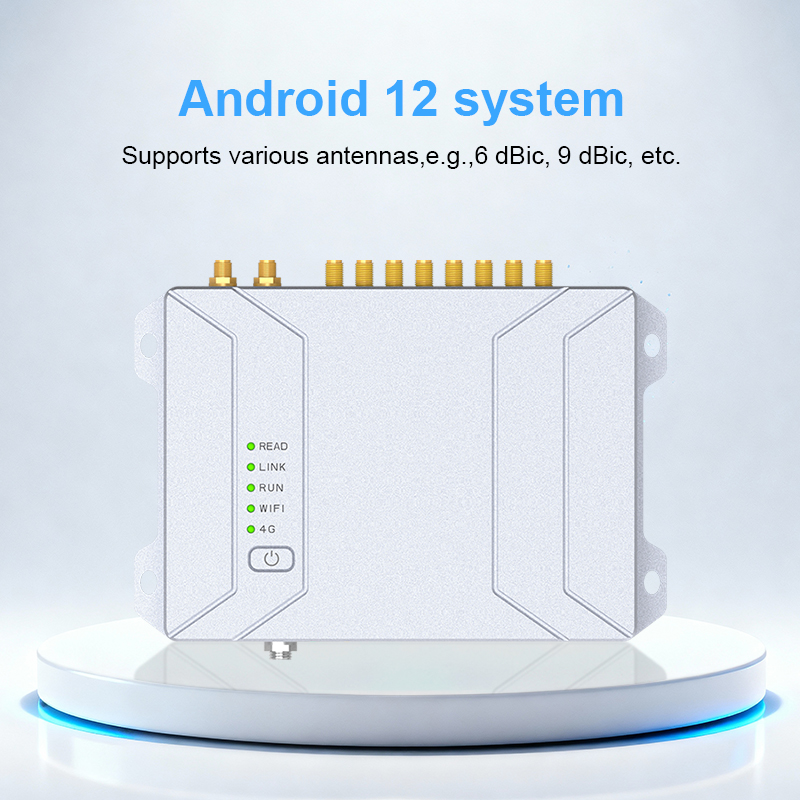

Supports various antennas, e.g., 6 dBic, 9 dBic, etc. |
SDK |
Terminal Software Development Kit |
|
|

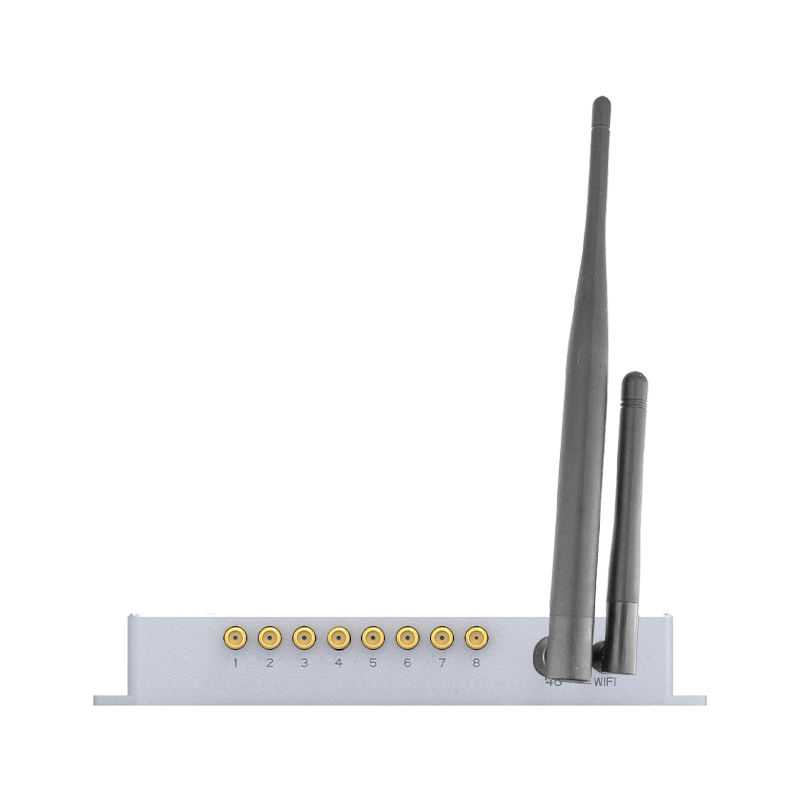

Antenna Interface |

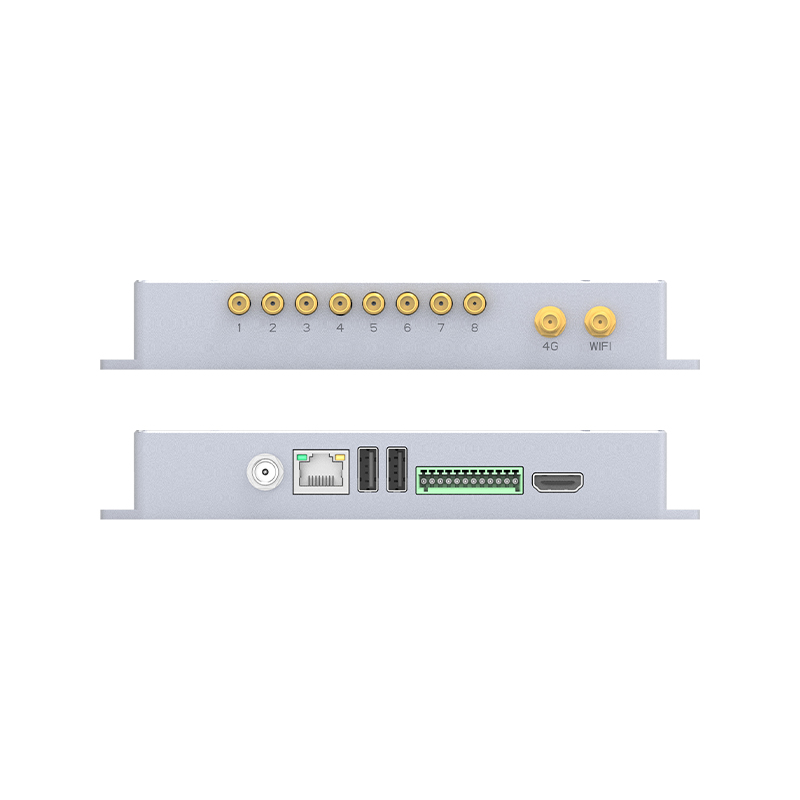

8-channel 50Ω RF Connector, SMA Female |
Development Language |
Java |
|
|
Physical Parameters |
|
Development Tools |
Eclipse / Android Studio |
|
|
Housing Material |
Aluminum Alloy |
Operating Environment |
|
|
|
Input Voltage |
DC12V-24V |
Operating Temperature |
-25 °C - +65 °C |
|
|
Dimensions |

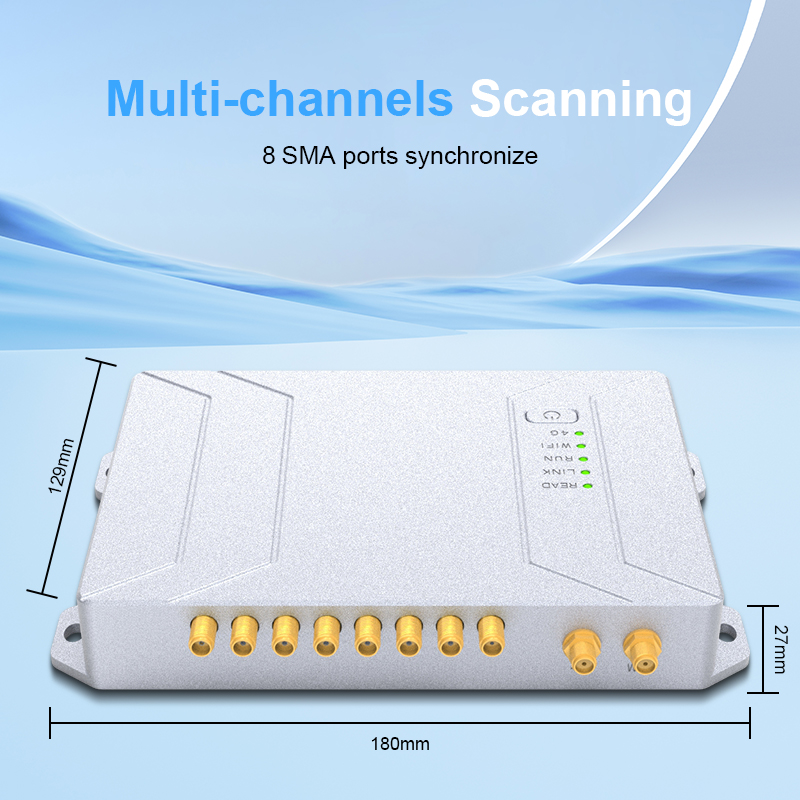

180*129*27mm |
Storage Temperature |
-40 °C - +85 °C |
|
|
Weight |
600g |
Operating Humidity |
10% - 95% |
|
|
Standby Current |
<55mA |
Performance Parameters |
|
|
|
Operating Current |
800 mA +/-5% @ DC 12 V Input |
CPU |
RK3586 2.0GHz Quad-core |
|
|

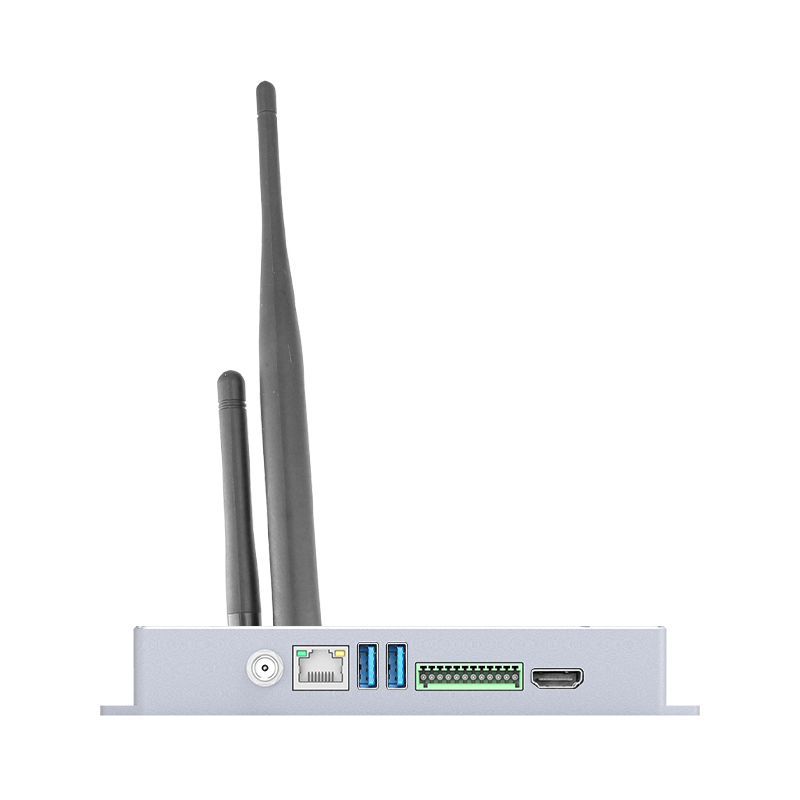

Communication Interfaces |
RS-232，RJ45，USB3.0 TypeA，USB3.0 Type A（OTG） |
RAM+ROM |
2GB+16GB (Optional 4+64) |
|
|

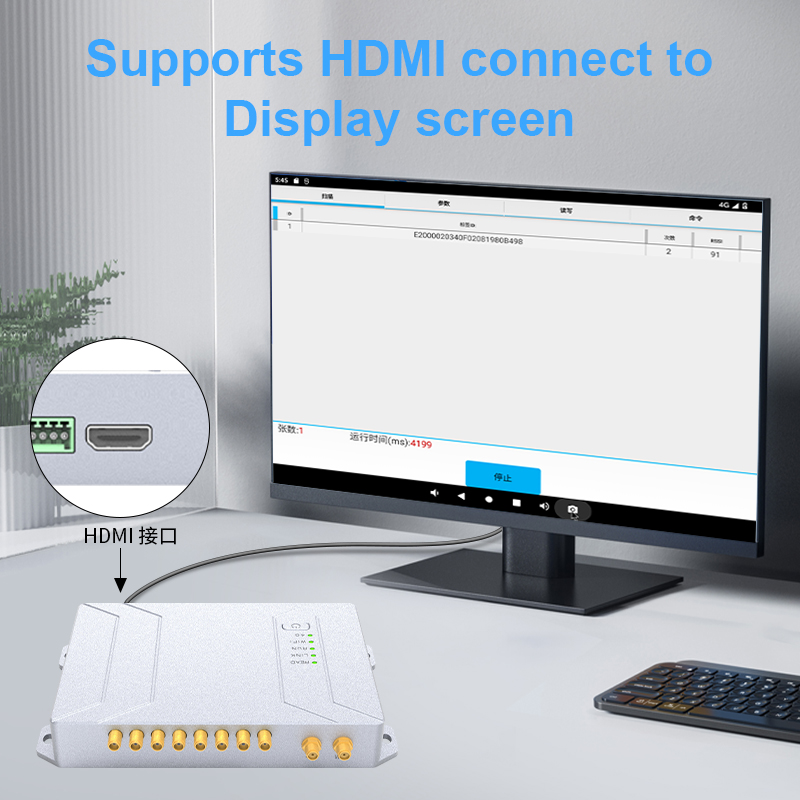

Video/Audio Interface |
HDMI TypeA, supports up to 4K HD video output |
|
|
|
|
GPIO |
2 inputs, 2 outputs, isolated |
|
|
|
|
Max. Communication Baud Rate |
115200 bps |
|
|
|
|
Cooling Method |
Air cooling |
|
|
|
|
Power Supply Method |
DC (12V)、POE (802.3af 13W)、POE+ (802.3at25.5W) |
|
|
|
Details display
Note:1.USB OTG mode can be switched via software in system properties.
2.Power button: Short press to sleep, short press for 3 seconds for shutdown prompt, long press for more than 8 seconds for direct shutdown. The device powers on automatically when connected to power.
|

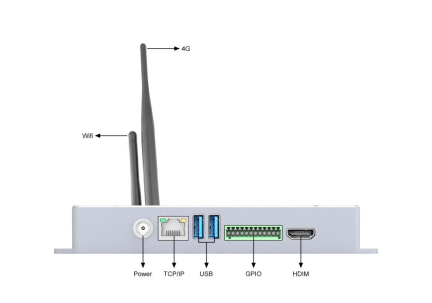

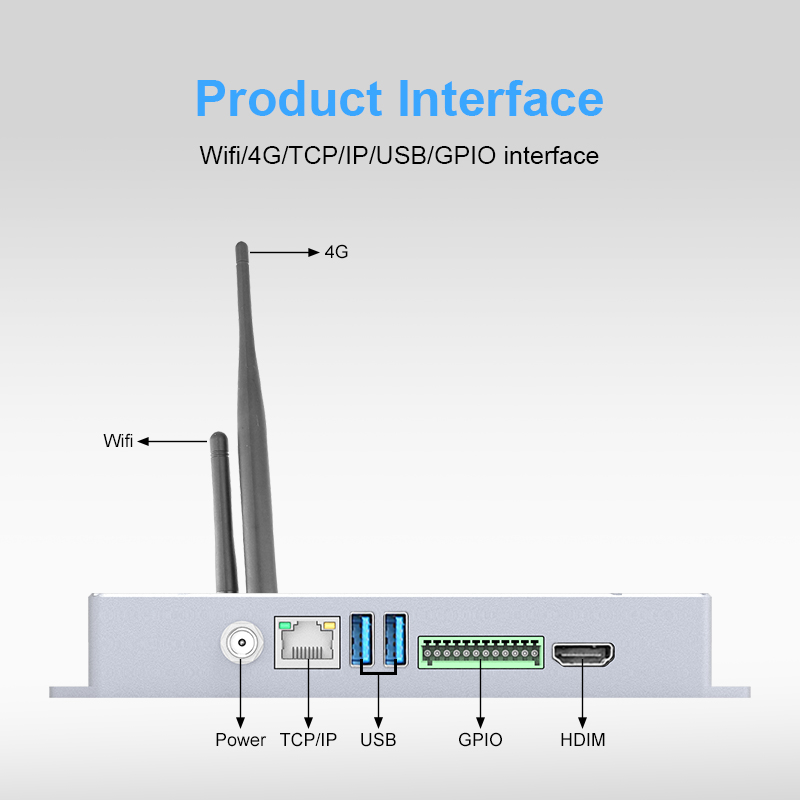

Pin Definitions |
|||
|
No. |
Pin |
Content |
Android System Address |
|
GPIO (View from left to right) |
|||
|
1 |
RS232-TXD |
Device RXD |
/dev/ttys3 |
|
2 |
GND |
GND |
|
|
3 |
RS232-RXD |
Device TXD |
|
|
4 |
GND |
GND |
GND |
|
5 |
DC+ |
Power Output |
Regulated DC output (Can also be used as input, but note: no protection measures) |
|
6 |
DC- |
Power Ground |
Power Ground |
|
7 |
GPO-1 |
GPIO Output 1 |
gpio-96 Active low, Inactive high, Output is Vcc |
|
8 |
GPO-2 |
GPIO Output 2 |
gpio-97 Active low, Inactive high, Output is Vcc |
|
9 |
GPIO GND |
Signal Ground |
Signal Ground |
|
10 |
GPI-1 |
GPIO Input 1 |
gpio-103 Default high level, becomes low when shorted |
|
11 |
GPI-2 |
GPIO Input 2 |
gpio-104 Default high level, becomes low when shorted |
|
12 |
GPIO GND |
Signal Ground |
Signal Ground |
|
Sound & Light Control |
|||
|
1 |
4G |
Indicator 1 |
4G Indicator, lights up when connected to the internet |
|
2 |
WIFI |
Indicator 2 |
WiFi Indicator, lights up when connected to the internet |
|
3 |
Run |
Indicator 3 |
System Running Indicator |
|
4 |
Link |
Indicator 4 |
gpio-19 Active low, Inactive high |
|
5 |
Read |
Indicator 5 |
gpio-20 Active low, Inactive high |
|
6 |
Beep |
Buzzer |
gpio-21 Active low, Inactive high |
Product Accessories

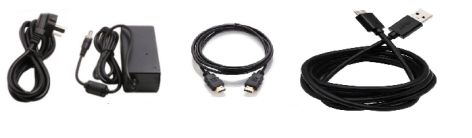

Reader *1, Power Adapter + Plug *1 set, HDMI Cable *1, Type-A USB3.0 Cable *1
Related Products
|
Image |
|
|
|
|
Model |
CF400 |
CF800 |
CF801 |
|
Chip Solution |
Impinj E710 chip |
MU914 |
|
|
Output RF Power |
0dbm~33dbm (Adjustable) |
||
|
Read Speed |
1100pcs/s |
200pcs/s |
|
|
Read Distance |
0~25 meters (Depends on antenna & tag & environment) |
||
|
Built-in OS |
Android 12.0 |
Android 12.0 |
Linux 4.4 |
|
Antenna Port |
4 x SMA Female |
8 x SMA Female |
8 x TNC Reverse Female |
