CF817 Even E710 UHF sixteen-channel Fixed Reader
- Reading speed up to 1100 tags per second
- Support RSSI identification tag signal distance
- Support multi-antenna anti-collision polling inventory
- Support multiple languages to develop C#, Delphi, java, Python, VB and other languages
- Applications: warehouse management, production control, asset tracking, laundry management, smart cabinets, waste management, etc.
Product specifications
|
RFID Technical Parameters |
|
Data communication |
||
|
Frequency |
902~928MHz (US）865~868MHz （EU） |
Standard interface |
USB、RS232、TCP/IP |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Optional interface |
POE (Mode A/B af) |
|
|
RF output power |
0dbm—33dbm(adjustable) |
GPIO interface |
2 sets of GPI & 2 sets of GPO |
|
|
Reading speed |
1100pcs/s |
Antenna port |
16 SMA female |
|
|
Data cache |
600pcs @ 128bits EPC |
power supply |
12V 2A |
|
|
Reading distance |
0-25M |
Current consumption |
0.5~1.2A |
|
|
Anti-collision |
Quick polling and inventory of multiple antenna ports |
Development environment |
||
|
Operating mode |
Active mode Answer mode |
SDK |
Demo software, API, examples, user manual |
|
|
RSSI |
Support |
Development language |
C#, Delphi, java, Python, VB and other languages |
|
|
Chip |
Impinj E710 chip |
Firmware version |
Support online upgrade |
|
|
Physical parameters |
Working environment |
|||
|
Material |
die cast aluminum |
IP protection level |
IP55 |
|
|

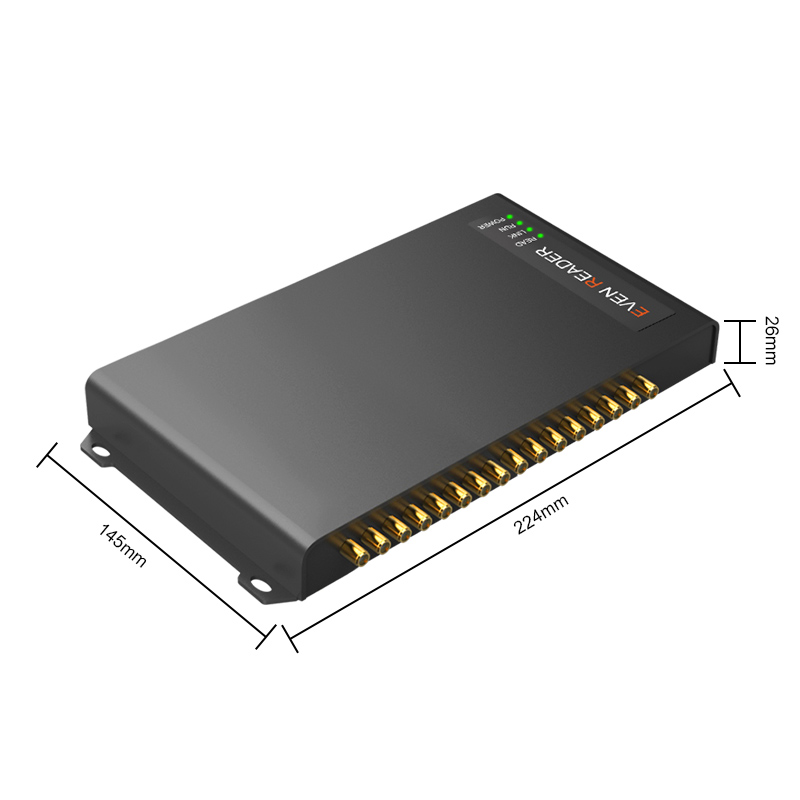

Size |
145*224*26mm |
Operating temperature |
-10-+60℃ |
|
|
Net weight |
1.3kg |
Storage temperature |
-20-+75℃ |
|
|
Package Size |
310*230*140mm |
|
||
|
Package weight |
2.5kg |
|
||
Detailed display
|
GPIO wiring definition |
|||
|
serial number |
Signal |
Content |
|
|
1 |
Output1R |
Universal optocoupler isolated output terminal 1+ |
|
|
2 |
Output1L |
Universal optocoupler isolation output terminal 1- |
|
|
3 |
Output2R |
Universal optocoupler isolated output terminal 2+ |
|
|
4 |
Output2L |
Universal optocoupler isolation output terminal 2- |
|
|
5 |
GND |
signal ground |
|
|
6 |
Input1＋ |
Universal optocoupler isolation input terminal 1+ |
|
|
7 |
Input1- |
Universal optocoupler isolation input terminal 1- |
|
|
8 |
Input2＋ |
Universal optocoupler isolation input terminal 2+ |
|
|
9 |
Input2- |
Universal optocoupler isolation input terminal 2- |
|
|
10 |
GND |
signal ground |
|
|
RS232 D89 pin definition |
||
|
Serial number |
Signal |
Content |
|
1 |
NC |
reserve |
|
2 |
RXD |
RS232 data input |
|
3 |
TXD |
RS232 data output |
|
4 |
NC |
reserve |
|
5 |
GND |
ground |
|
6 |
NC |
reserve |
|
7 |
NC |
reserve |
|
8 |
NC |
reserve |
|
9 |
NC |
reserve |
