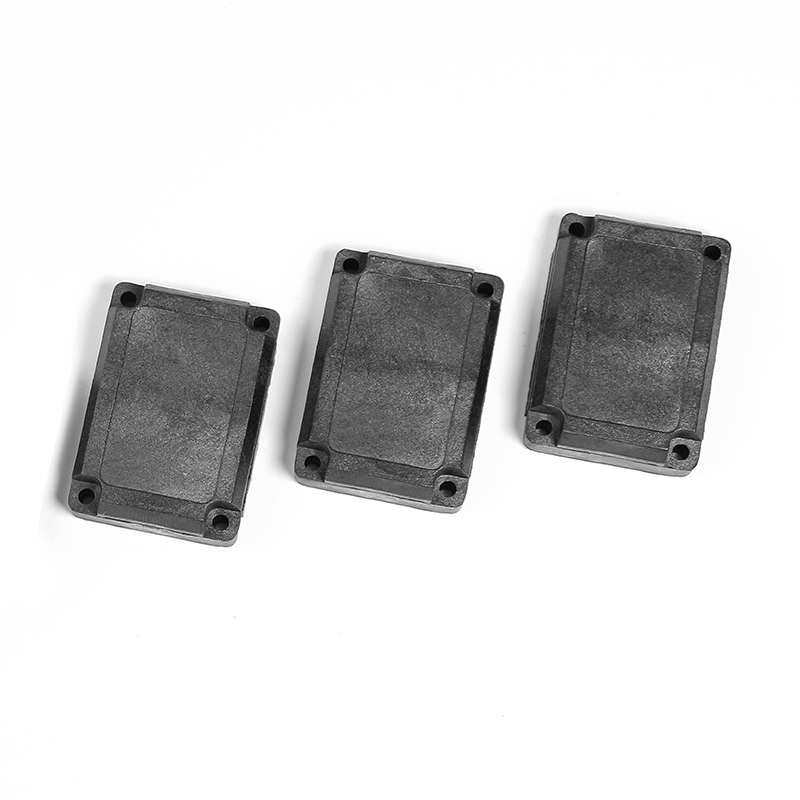

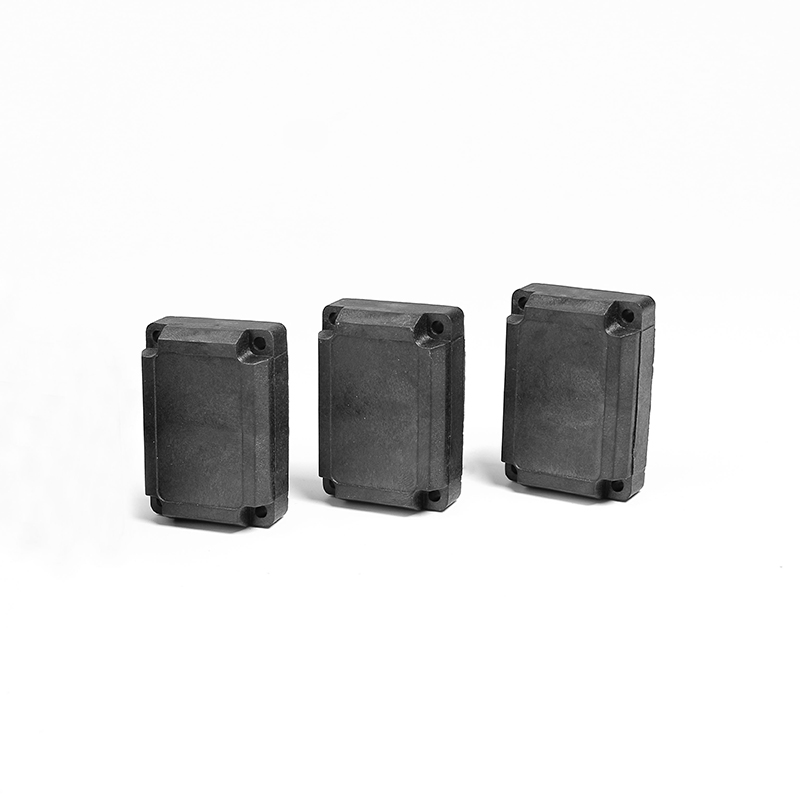

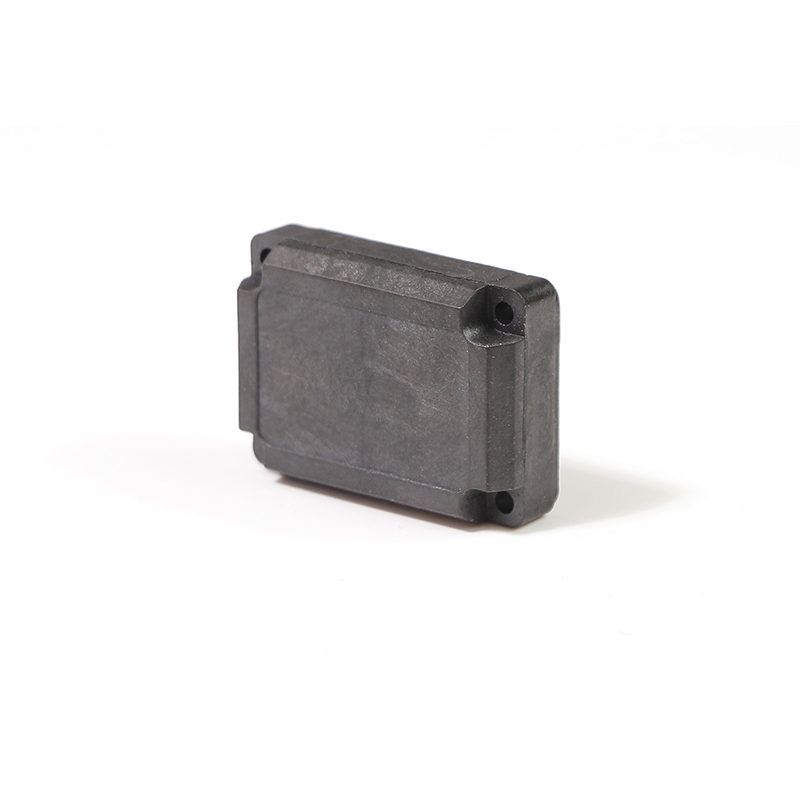

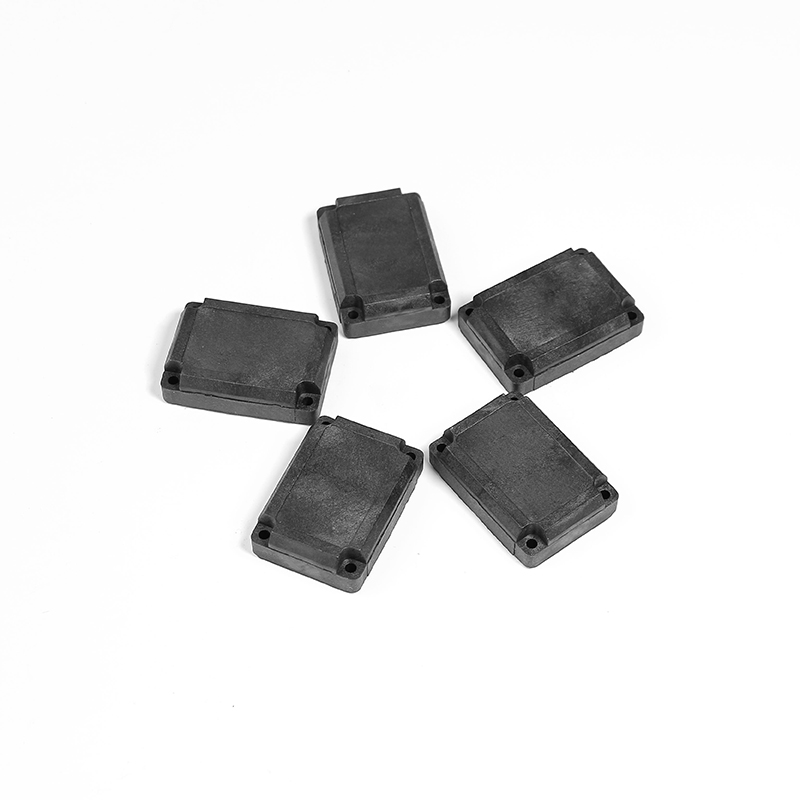

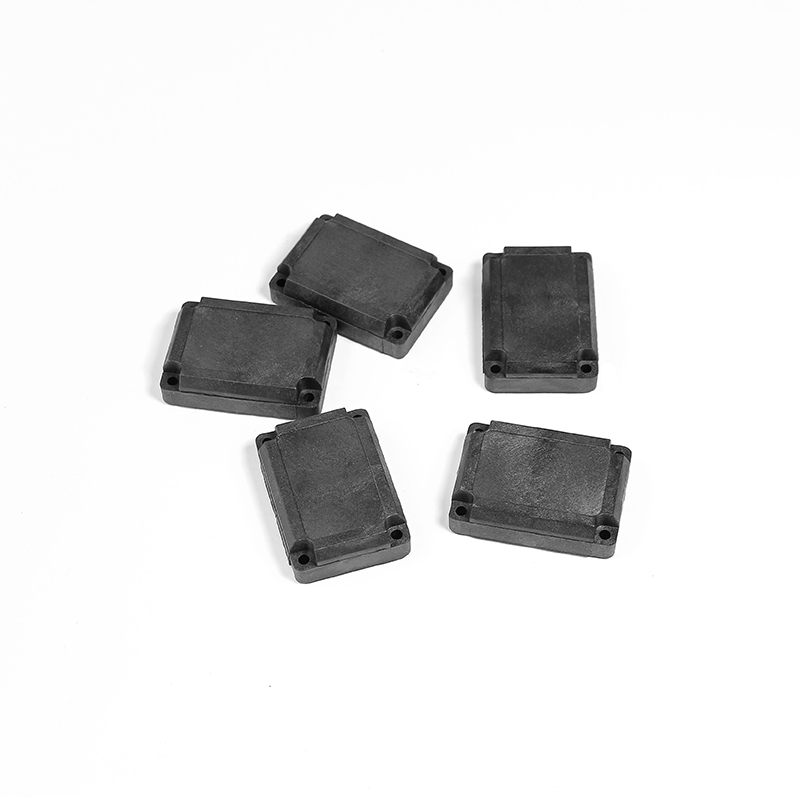

G9859 UHF Anti-metal Tag

Features anti-metal properties, can be directly attached to metal surfaces, supports surface printing. Suitable for indoor and outdoor applications such as machinery asset management, power equipment inspection management, warehouse shelf management, etc.

Performance Specifications
Protocol	EPC Class1 Gen2, ISO18000-6C
Frequency	US(902-928MHZ), EU(865-868MHZ)
Chip Type	NXP UCODE-8
Chip Memory	EPC 128 bits, User 0 bits, TID 96 bits
Write Cycles	100,000 cycles
Read/Write	Readable and Writable
Data Retention	50 years
Read Range	Fixed Reader: US: 6.6 meters, on metal surface EU: 6.8 meters, on metal surface Handheld Reader: US: 3.5 meters, on metal surface EU: 3.6 meters, on metal surface
Physical Characteristics

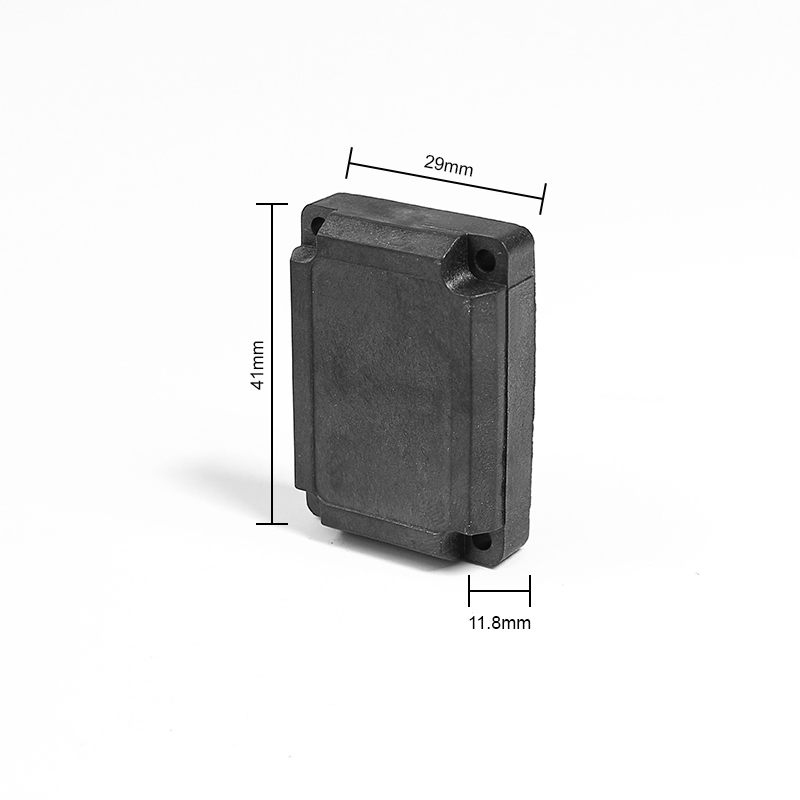

Dimensions	41.0x29.0mm, hole: Diameter2.6mmx4
Thickness	11.8mm
Operating Temperature	-40℃~ +150℃
Storage Temperature	-60℃~ +180℃
Weight	21.0g
Certifications	Reach, RoHS, CE
Installation Method	Screw - Hex socket screw (M2)
IP Rating	IP68, IP69K
Warranty	1 year
Material	PPS
Color	Black
Resistant to pH Range	pH0 to pH14, or other liquids that PPS material can withstand
Compressive Strength	150Mpa

Product Dimensions:
