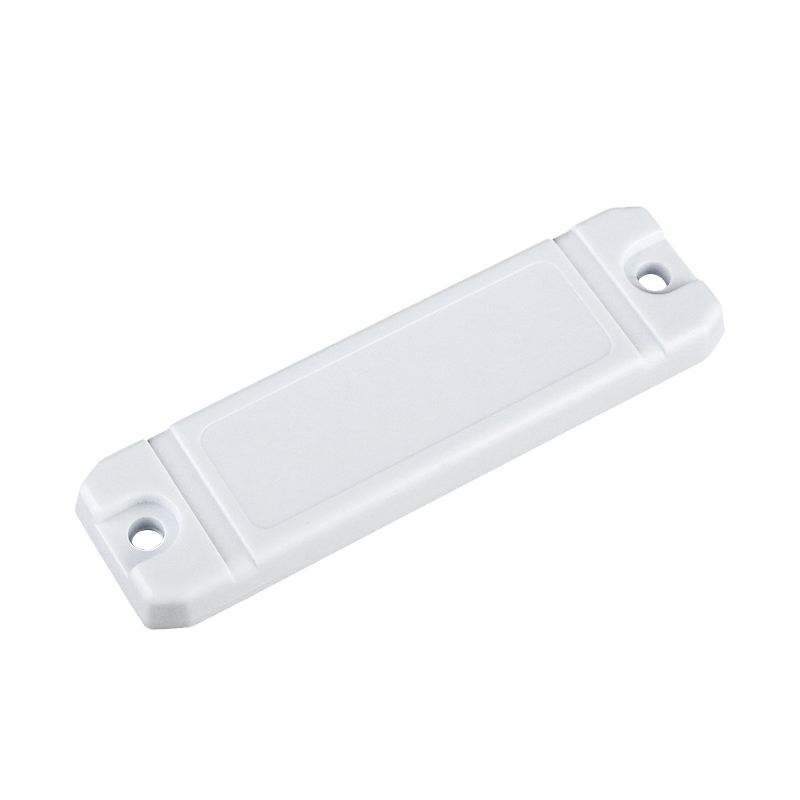

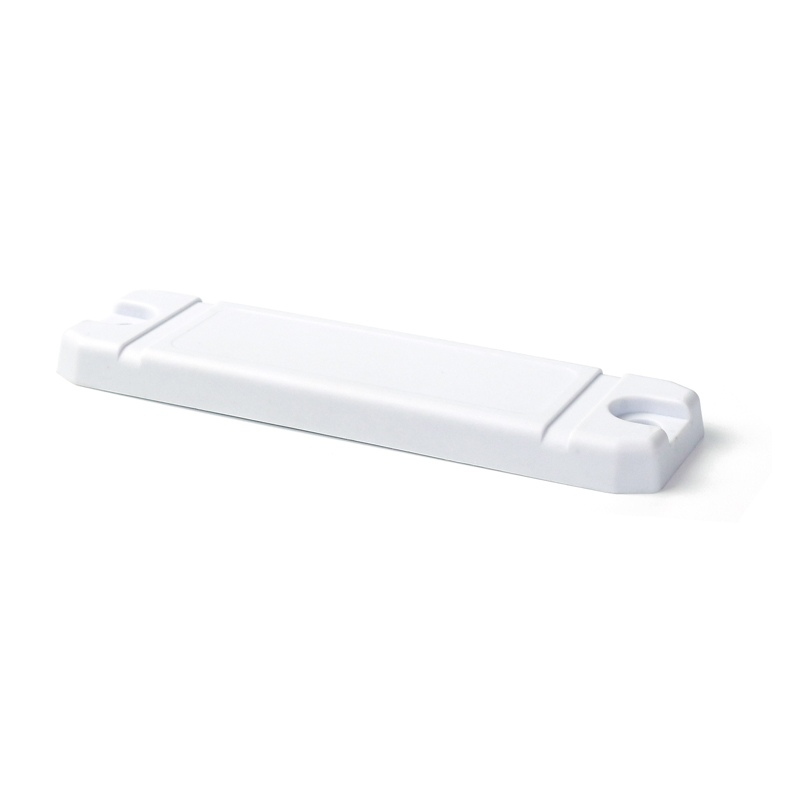

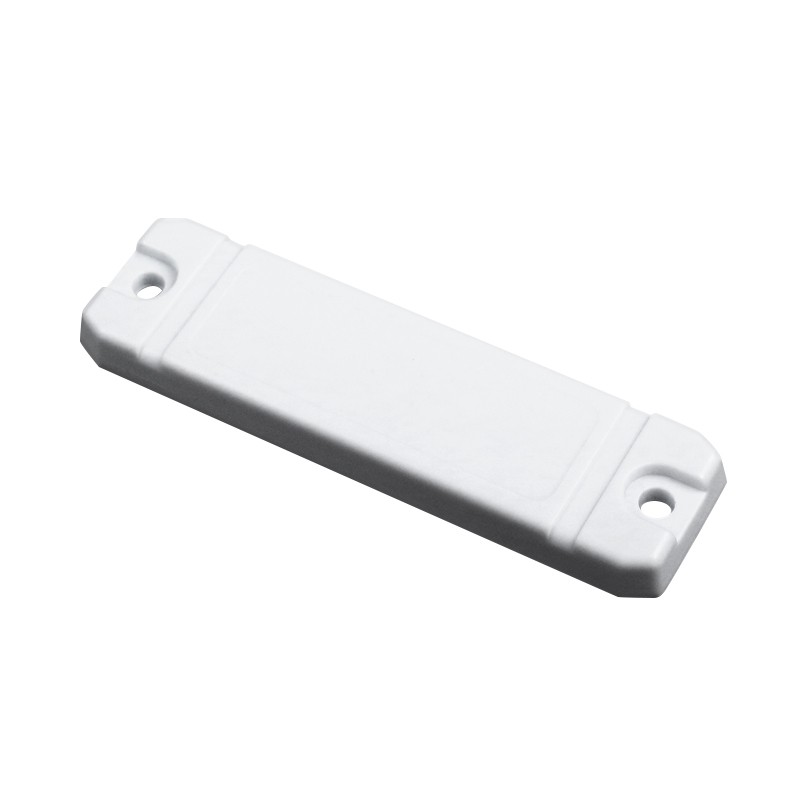

G9855 Strong Magnetic Anti-Metal Tag

Features anti-metal properties, can be directly attached to metal surfaces, supports surface printing, and can be used for applications such as machine asset management, power equipment inspection management, warehouse shelf management in both indoor and outdoor environments

Performance Specifications



Protocol

EPC Class1 Gen2; ISO18000-6C

Frequency

US（902-928MHZ）, EU（865-868MHZ）

Chip Type

NXP UCODE 8

Chip Memory

 EPC 128 bits, User 0 bits, TID 96 bits

Write Cycles

Min. 100,000 cycles

Read/Write

Readable and Writable

Data Retention

50 years

Read Range

Fixed Reader:
US: Up to 11.0 m EU: Up to 10.0 m
Handheld Reader:

US: Up to 5.5 m EU: Up to 5.0 m

Physical Characteristics



Dimensions

105.0x30.0mm, Hole: Dia5.2mmx2

Thickness

7.5mm

Operating Temperature

-25℃~ +70℃

Storage Temperature

-40℃~ +70℃

Weight

30.0g

Certifications

Reach, RoHS, CE

Mounting Method

Magnetic Attachment

Magnetic Force

3300 Gauss

Magnet Grade

N48

IP Rating

IP67

Warranty

1year

Material

ABS+PC

Color

White (Others)

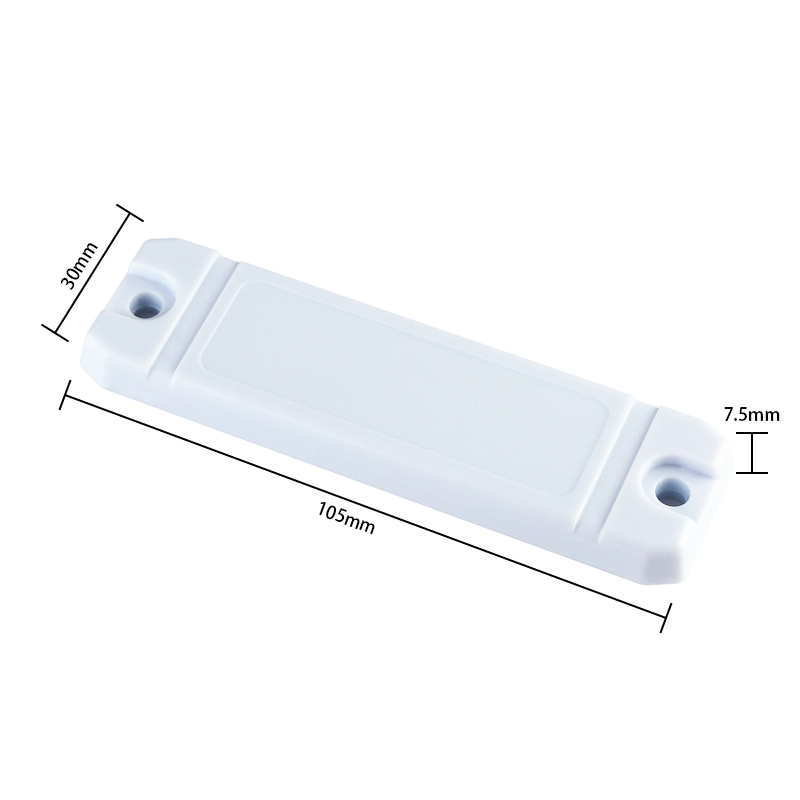

Product Dimensions:

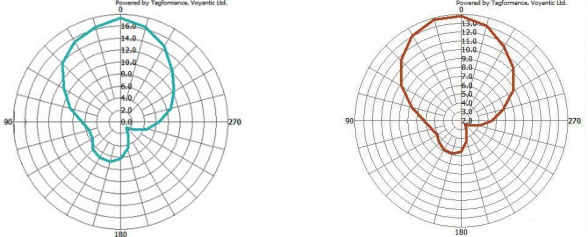

 Radiation Pattern (Sensitivity Plot):

US(902-928MHZ)                                        EU(865-868MHZ)
