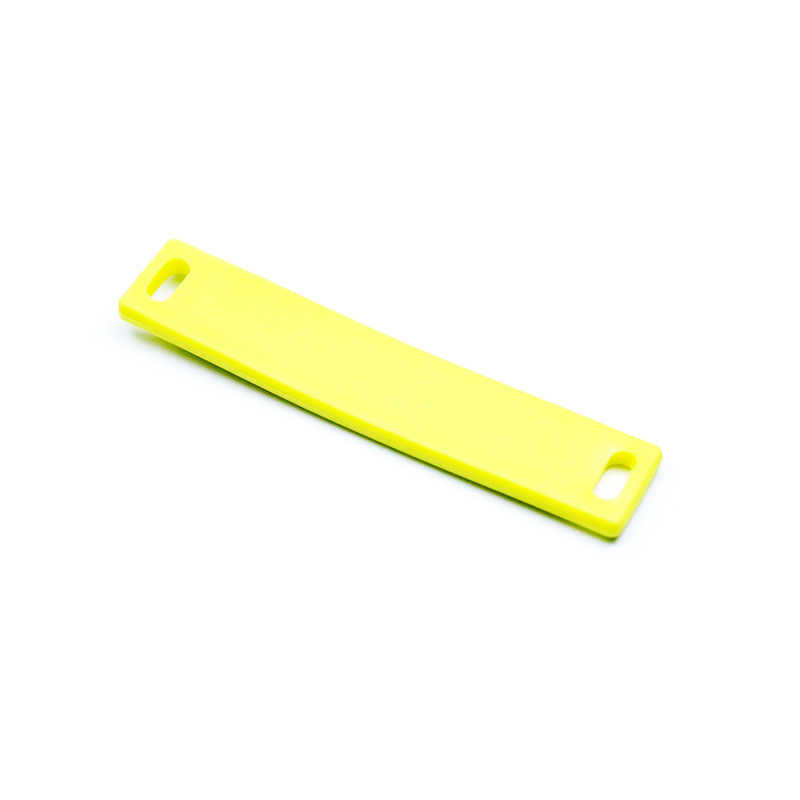

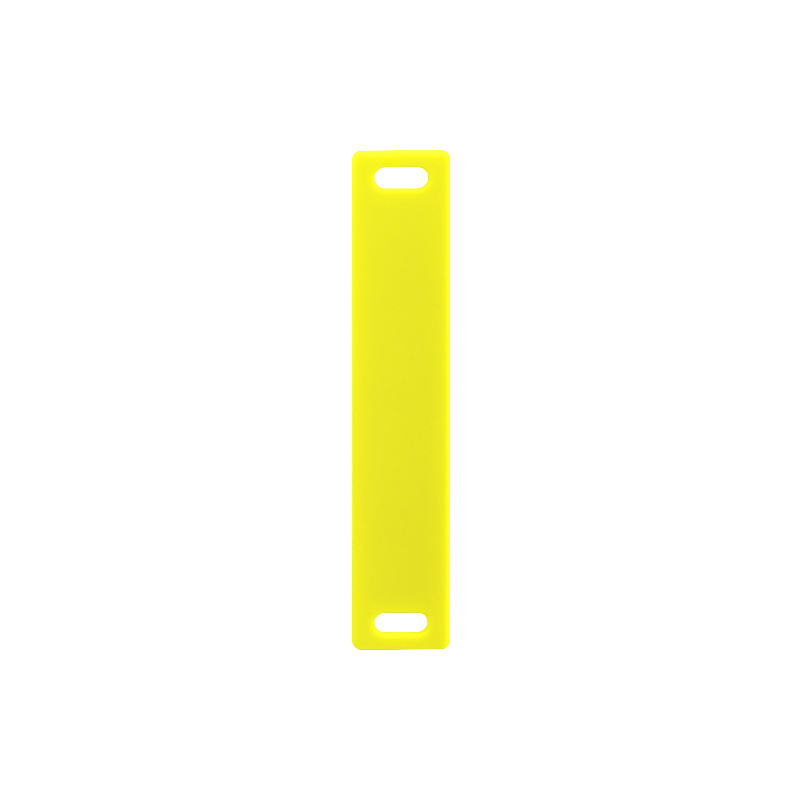

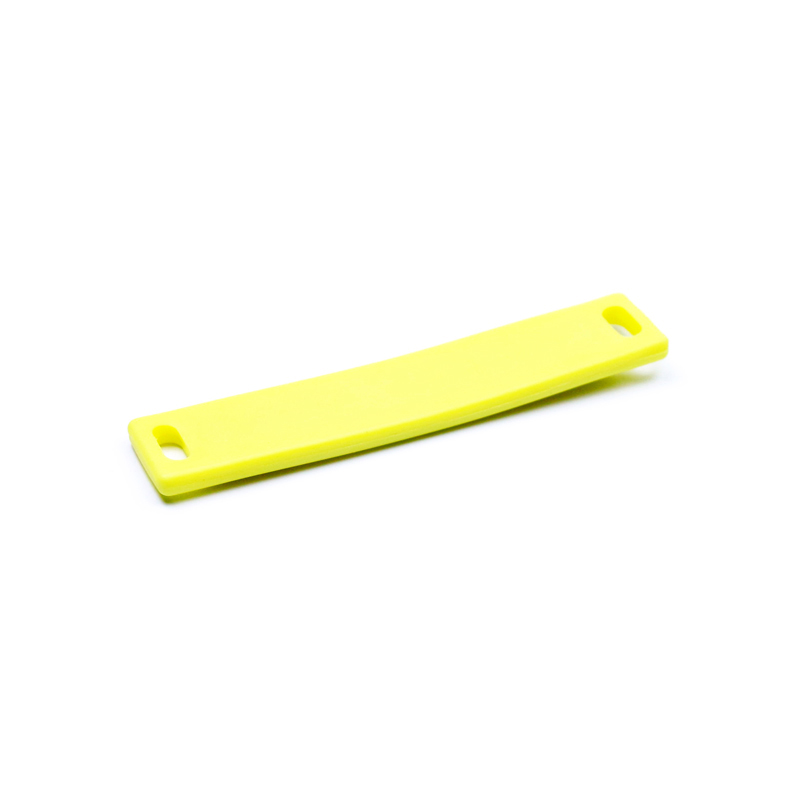

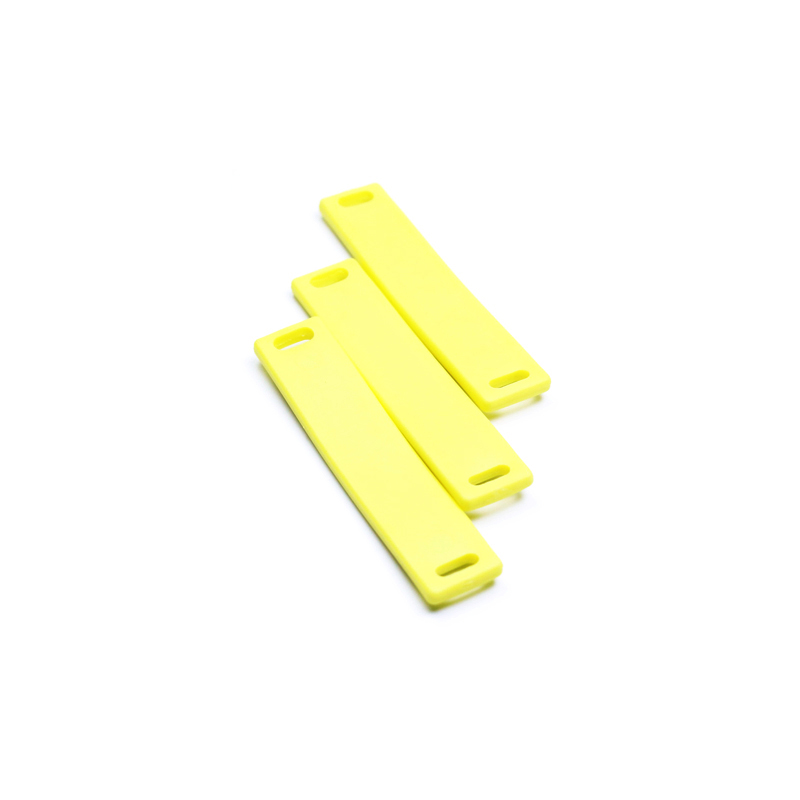

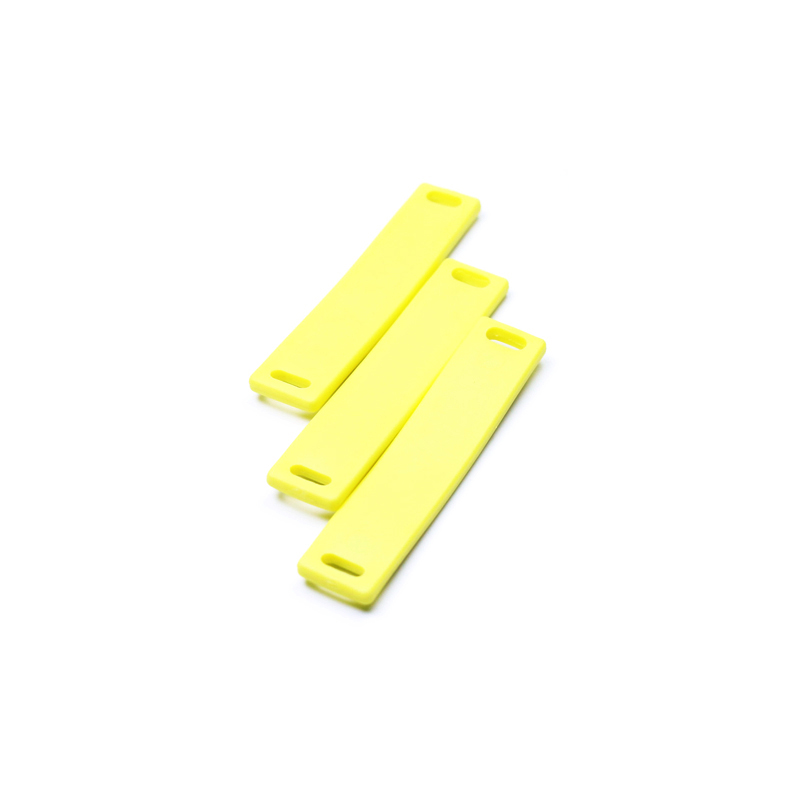

G9858 Flexible Anti-Metal UHF Tag
Features anti-metal properties, can be directly attached to metal surfaces, supports surface printing, and can be used for applications such as machine asset management, power equipment inspection management, warehouse shelf management in both indoor and outdoor environments.
|
Performance Specifications |
|
|
Protocol |
EPC Global and ISO 18000-63 compliant, Gen2V2 compliant |
|
Frequency |
840Mhz ~ 960Mhz |
|
Chip Type |
Impinj Monza R6 |
|
Chip Memory |
EPC 96bits, TID96bits |
|
Write Cycles |
100,000 cycles |
|
Read/Write |
Readable and Writable |
|
Data Retention |
50 years |
|
Read Range |
Fixed Reader: Up to 1.5 m (on metal surface) |
|
Physical Characteristics |
|
|
Dimensions |

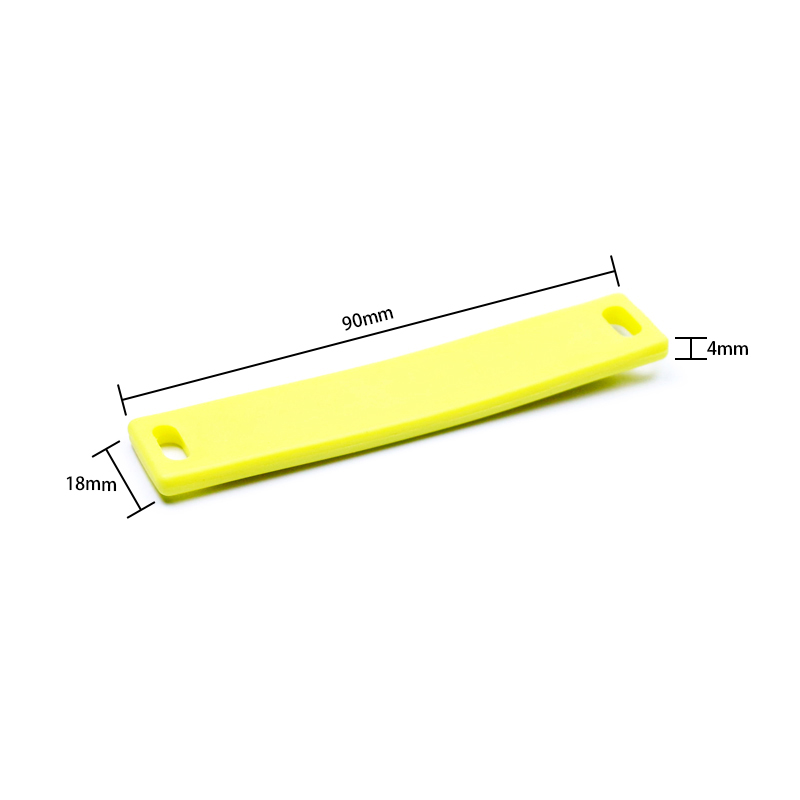

90.0x18.0mm, Hole: 10.0x4.0mm |
|
Thickness |
4.0mm |
|
Operating Temperature |
-40℃~ +100℃ |
|
Storage Temperature |
-40℃~ +100℃ |
|
Weight |
8.0g |
|
Certifications |
Reach, RoHS, CE |
|
Mounting Method |
Cable Ties |
|
IP Rating |
IP68 |
|
Warranty |
1 year |
|
Material |
TPU |
|
Color |
Blue, Red, Yellow, Green, Black, White |
Product Dimensions:
