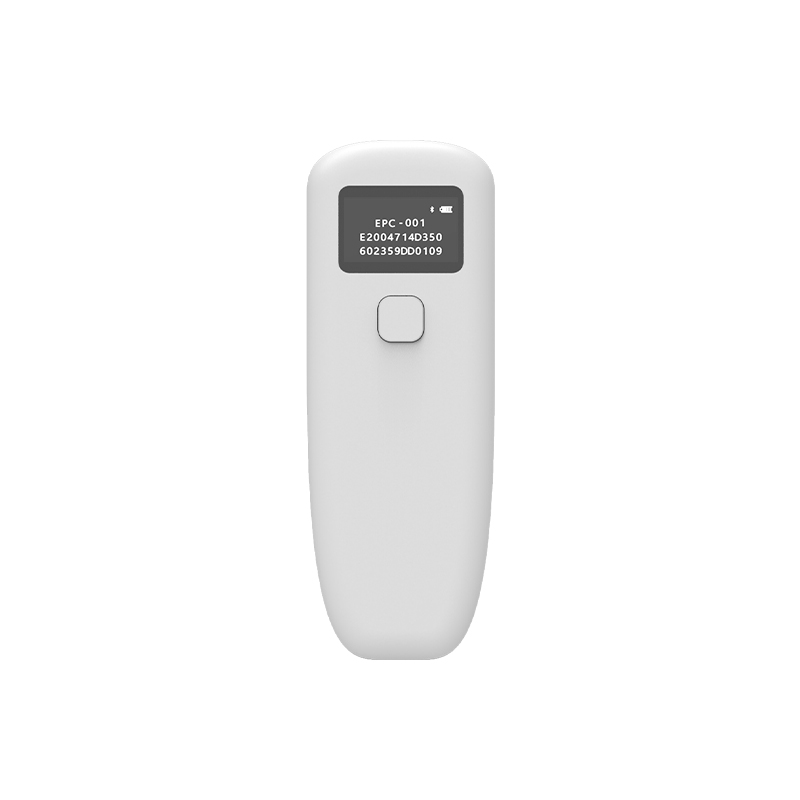

H102 UHF Portable Bluetooth Reader
- Can work continuously for more than 4 hours
- HID mode: data can be received at the cursor, such as notepad, input box, etc.
- Application: jewelry inventory, parts inventory, warehouse management, shelf management, etc.
Product Specifications
|
RFID Technical Parameters |
|
Physical parameters |
||
|
Frequency |
902~928MHz（US） 865~868MHz（EU） |
Battery |
Lithium battery (3.7V-1000mAh) |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Working current |
<=400mA |
|
|
RF Output Power |
0~26dbm (adjustable) |
Standby current |
<=100uA |
|
|
Reading Speed |
>30 tags/second |
Working time |
Continuous operation for more than 4 hours |
|
|

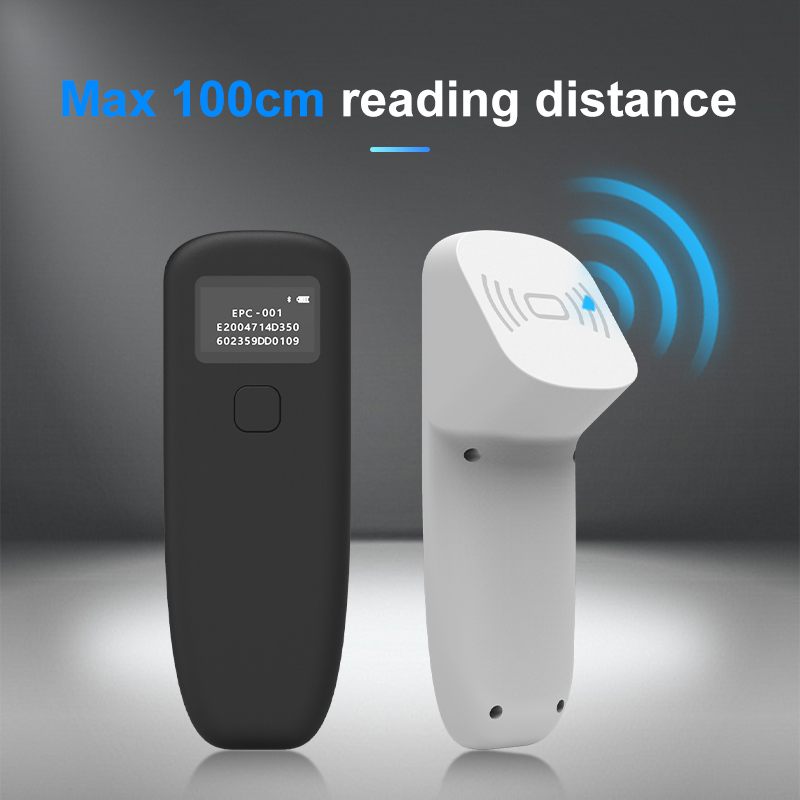

Reading Distance |
0-100cm |
Standby time |
More than 1 year |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Charging time |
1 hour |
|
|
Data Communication |
shell material |
ABS+Silicone |
||
|
Bluetooth protocol |
BLE 4.2 |
Color |
Black/white (optional) |
|
|
Wired communication |
Type-C for charging and serial port online upgrade |

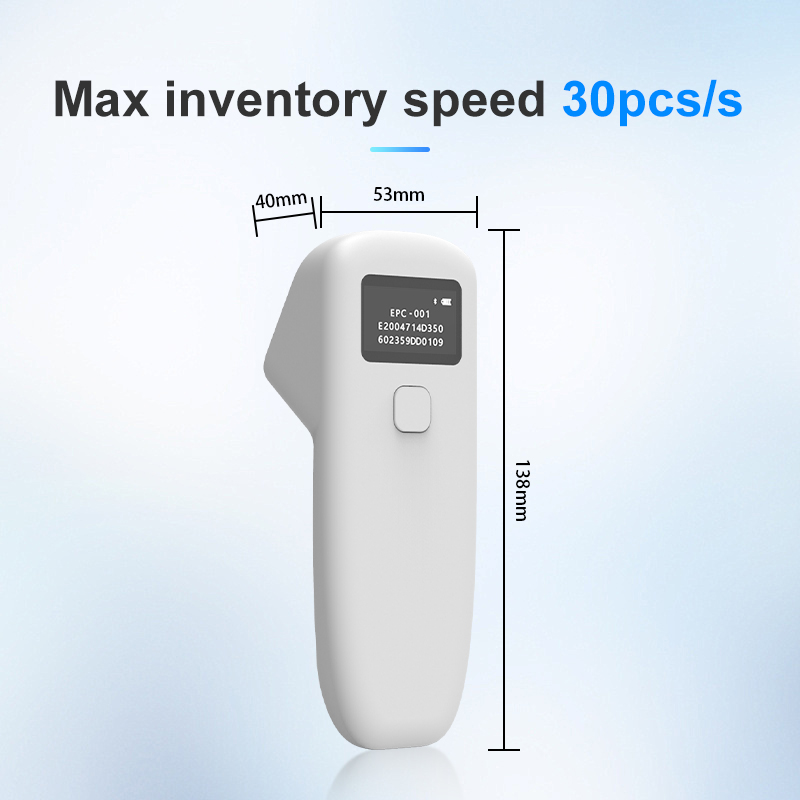

Size |
53 (length)*138 (width)*40 (height) mm |
|
|
Card reading prompt |
Screen display + buzzer |
Weight |
135g |
|
|
Power on/off |
Button power on + card reader |
working environment |
||
|
Development Environment |
Working current |
<=145mA |
||
|

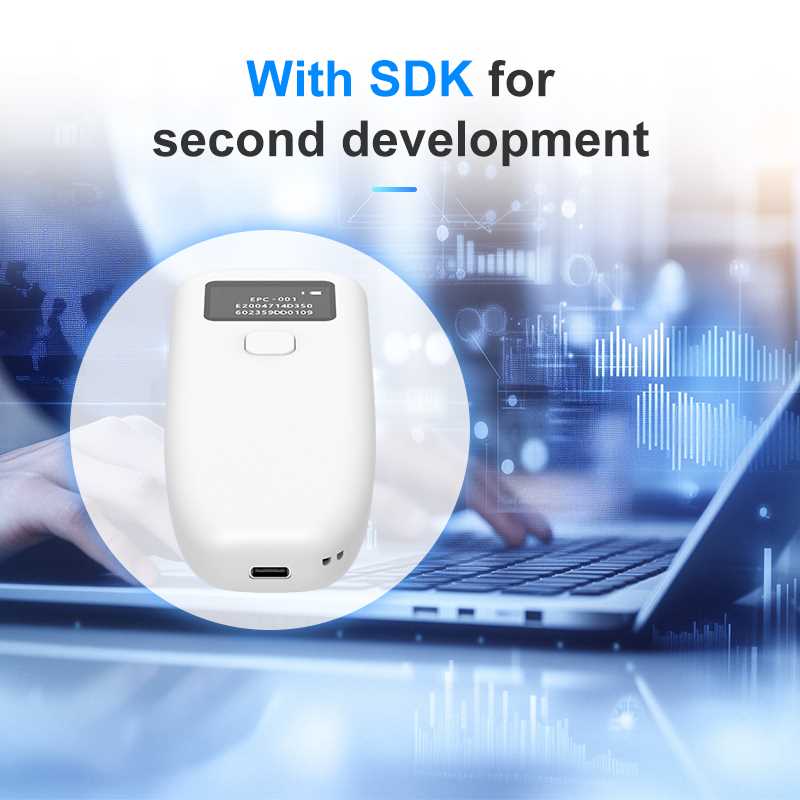

SDK |

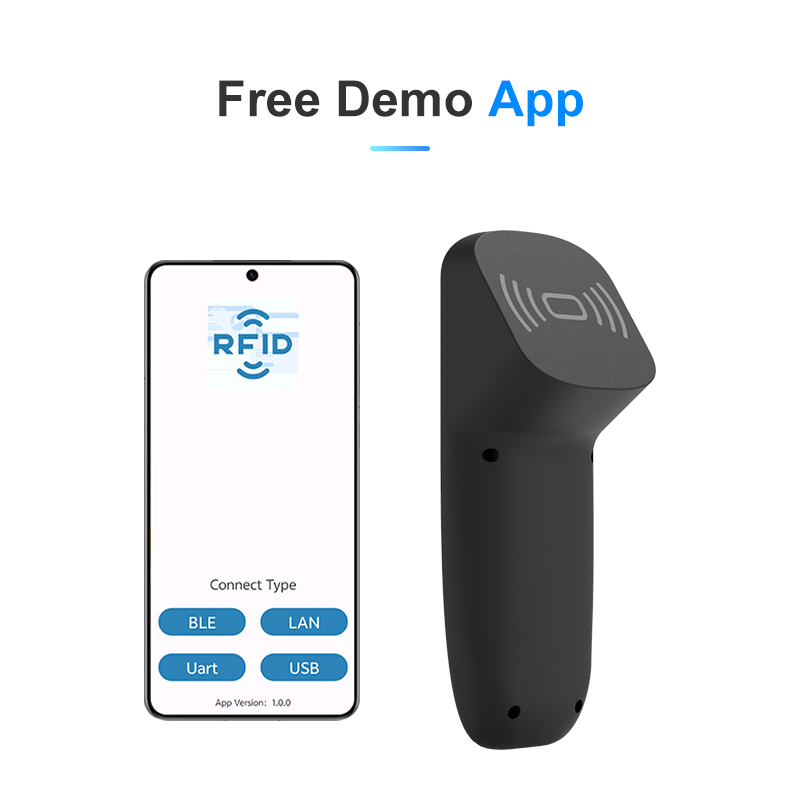

Demo software, API, examples, user manuals |
Standby current |
<=100uA |
|
|
Development language |
Android, C# |
Working time |
Continuous work for more than 6 hours |
|
|
Firmware version |
Support online upgrade |
Standby time |
More than 1 year |
|
|
|
|
Working temperature |
-10℃~50℃ |
|
|
|
|
Storage temperature |
-30℃~70℃ |
|

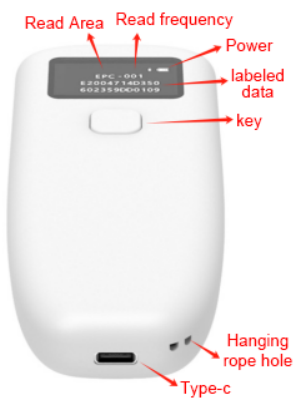

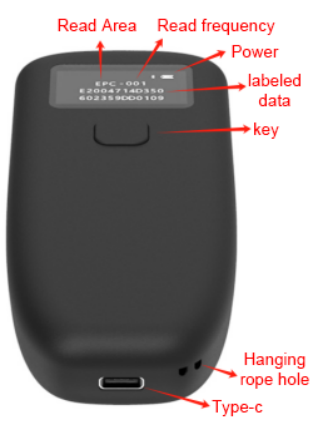

Details display
Type-C：Type-C enables charging and serial port online upgrade
High-definition LCD display：Displays the read area, number of times the tag is read, and the tag number
Multiple card reading methods：(1) After connecting to the software, click the card reading button on the software to read the card continuously. (2) Press the button once and the card reading will automatically stop after five seconds. (3) Press and hold the button to read the card continuously.
Two working modes

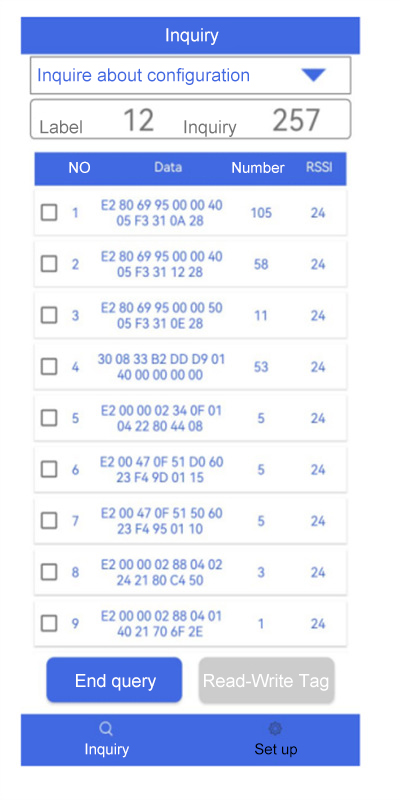

Transparent transmission mode: open the software to search and connect to Bluetooth, you can set parameters, receive tag data, and write tag data

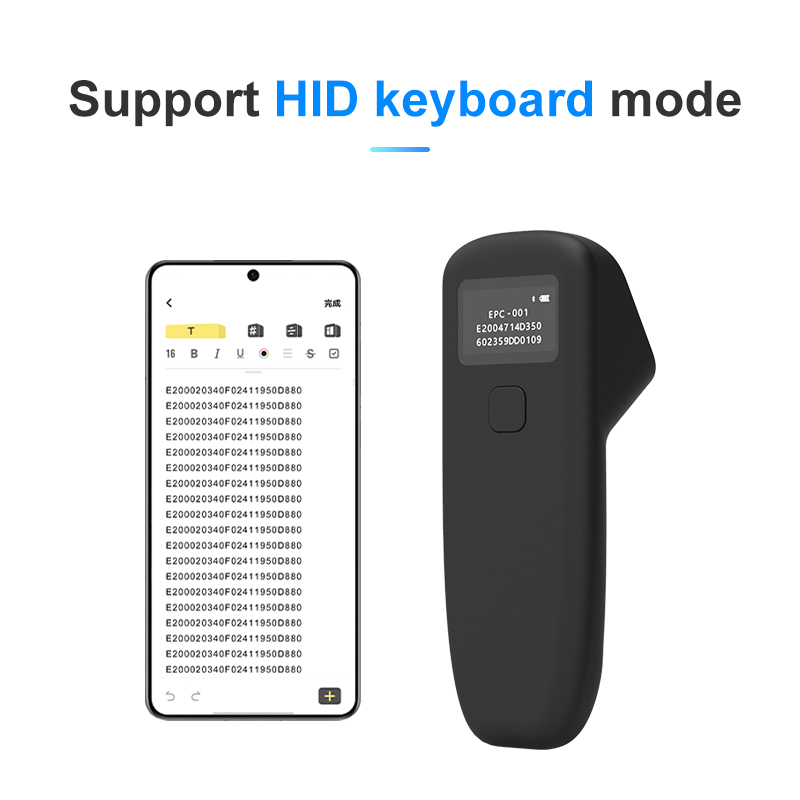

HID mode: the mobile phone directly searches and connects to Bluetooth, and the cursor can receive data, such as notepad and input box
Description: The factory default transparent transmission mode, after setting it to HID mode on the mobile phone software, you need to connect to the computer software to switch to transparent transmission mode, equipped with mobile phone software and computer software
Related Products
|
Image |
|
|
|
|
|
Model |
H100 |
H102 |
H103 |
H104 |
|
Reading distance |
0~50cm (depends on label & application environment) |
0~1 meter (depends on the tag & application environment) |
0~12 meters (depending on the tag & application environment) |
0~50cm (Depends on the label & application environment |
|
1D&2D |
|
|
Optional |
Standard |
|
Power |
0-20dbm (adjustable) |
0-26dbm (adjustable) |
0-33dbm (adjustable) |
0-20dbm (adjustable) |
|
Dimension |
76*37*39mm |
53*138*40mm |
155(H)*78(W)*133(L)mm |
157*85.7*70mm |
