H100-D UHF Bluetooth Portable Reader
- Can work continuously for more than 6 hours
- HID mode: data can be received at the cursor, such as notepad, input box, etc.

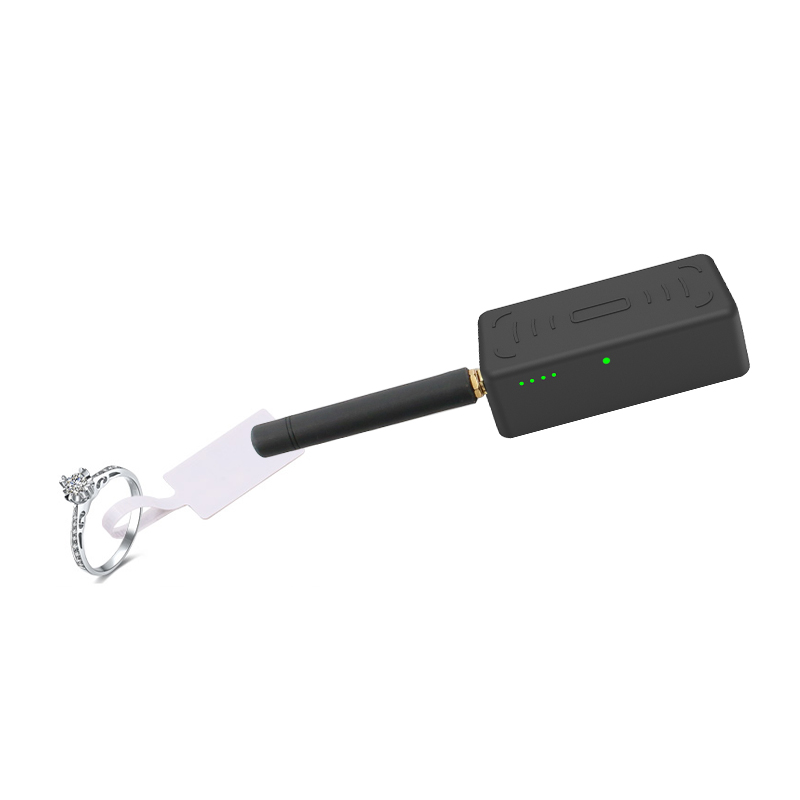

- Application: jewelry inventory, parts inventory, warehouse management, shelf management, etc.
Product Specifications
|
RFID Technical Parameters |
|
Physical parameters |
||
|
Frequency |
902~928MHz（US） 865~868MHz（EU） |
Battery |
Lithium battery (3.7V-1000mAh) |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Charging time |
1 hour |
|
|
RF output power |
0 dbm--20 dbm (adjustable) |
Case material |
ABS+silicone |
|
|
Reading speed |
>30 tags/second |
Dimensions |
76 (length)*37 (width)*39 (height) mm |
|
|
Reading distance |
0-50cm |
Weight |
71g |
|
|
Data Communication |
working environment |
|||
|
Bluetooth protocol |
BLE 5.3 |
Working current |
<=145mA |
|
|
Wired communication |

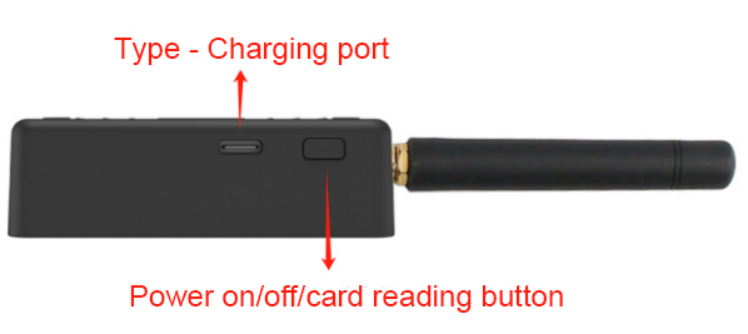

Type-C enables charging and serial port online upgrade |
Standby current |
<=100uA |
|
|

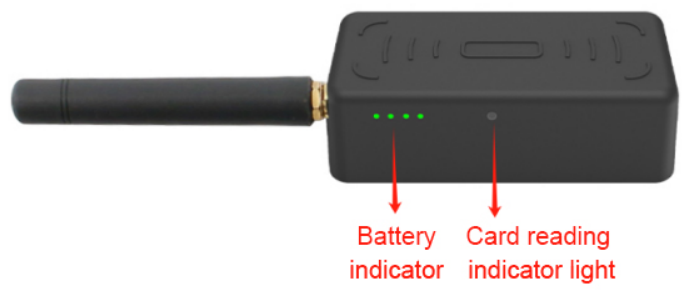

Card reading prompt |
LED light flashes |
Working time |
Continuous work for more than 6 hours |
|
|
Power on/off |
By pressing buttons |
Standby time |
More than 1 year |
|
|
Development Environment |
Working temperature |
-10℃~50℃ |
||
|
SDK |
Demo software, API, examples, user manual |
Storage temperature |
-30℃~70℃ |
|
|
Development language |
Android, C# |
|
|
|
|
Firmware version |
Support online upgrade |
|
|
|
Details display

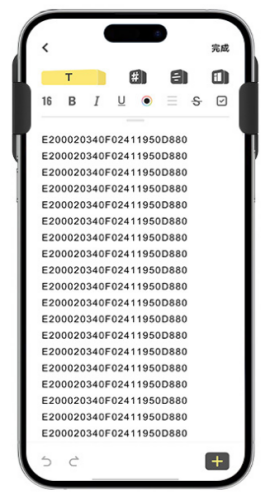

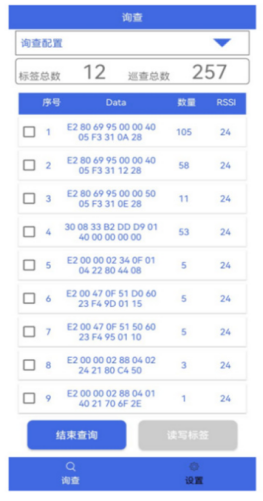

Transparent mode & HID mode
Related Products
|
Image |
|
|
|
|
|
Model |
H100 |
H102 |
H103 |
H104 |
|
Reading distance |
0~50cm (depends on label & application environment) |
0~1 meter (depends on the tag & application environment) |
0~18 meters (depending on the tag & application environment) |
0~50cm (Depends on the label & application environment |
|
1D&2D |
|
|
Optional |
Standard |
|
Power |
0-20dbm (adjustable) |
0-26dbm (adjustable) |
0-33dbm (adjustable) |
0-20dbm (adjustable) |
|
Dimension |
76*37*39mm |
53*138*40mm |
155(H)*78(W)*133(L)mm |
157*85.7*70mm |
