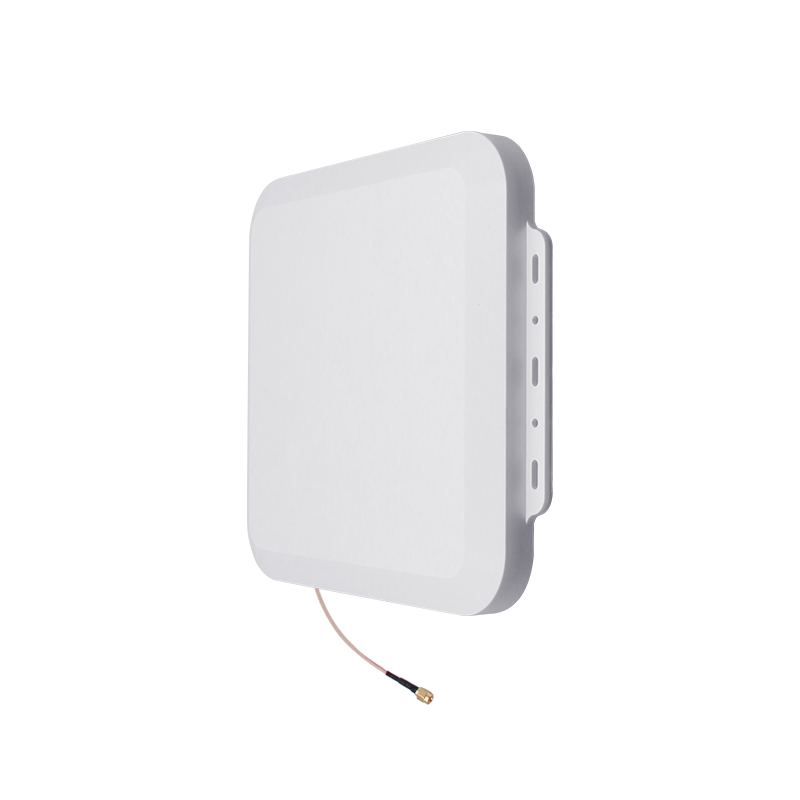

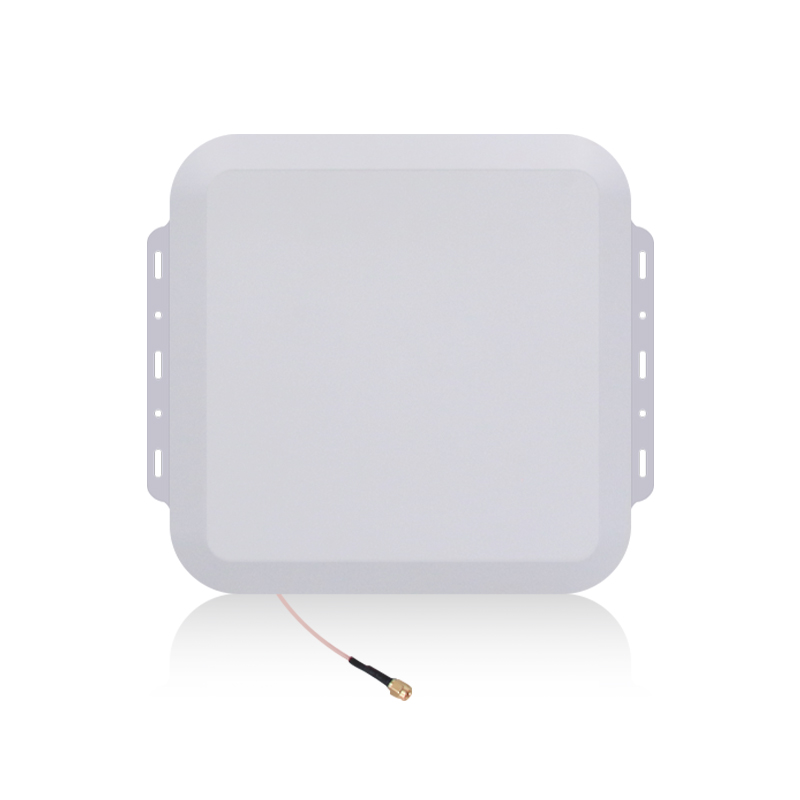

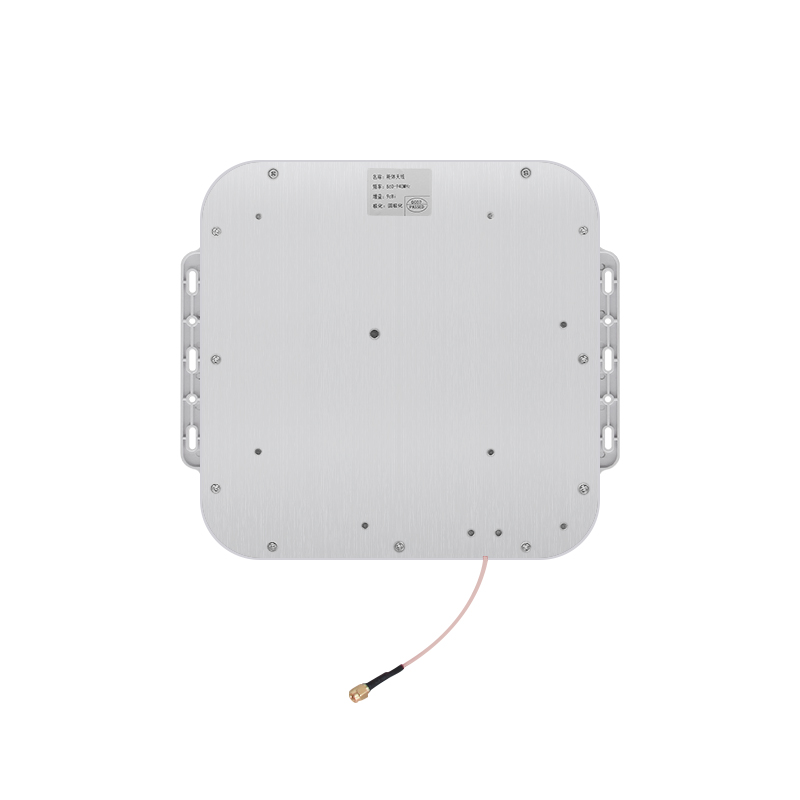

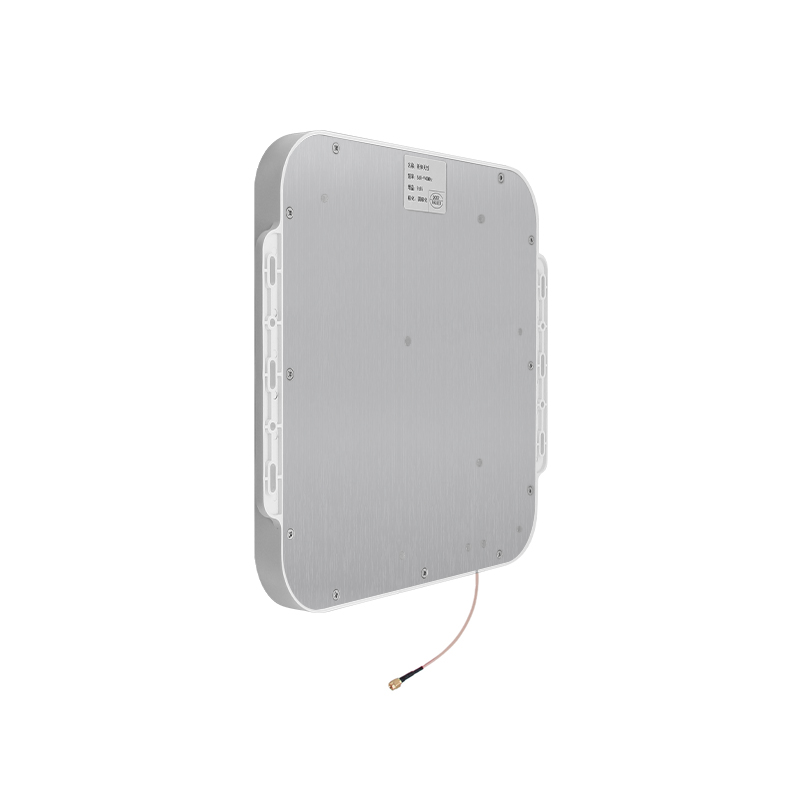

CF-RA9006 UHF 9dBi smart cabinet antenna

- Near field directional identification antenna
- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
- Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.

Product Specifications

RFID Parameters			Technical Parameters
Frequency	868-868MHz（EU） 902~928MHz（US）		Maximum power	50W
Gain	9dBi		Axis ratio	≤3dB
Reading distance reference	0-9m (depending on reader and tag)		Standing wave ratio	≤1.3°
Feeder	Side lead-out		Impedance	50 Ω
Polarization mode	Circular polarization		Lightning protection	DC grounding
Radiation angle	Horizontal: 65° Vertical: 65°		Physical parameters
Environmental parameters			Antenna cover color	White
Operating temperature	-40～55℃		Antenna cover material	ABS

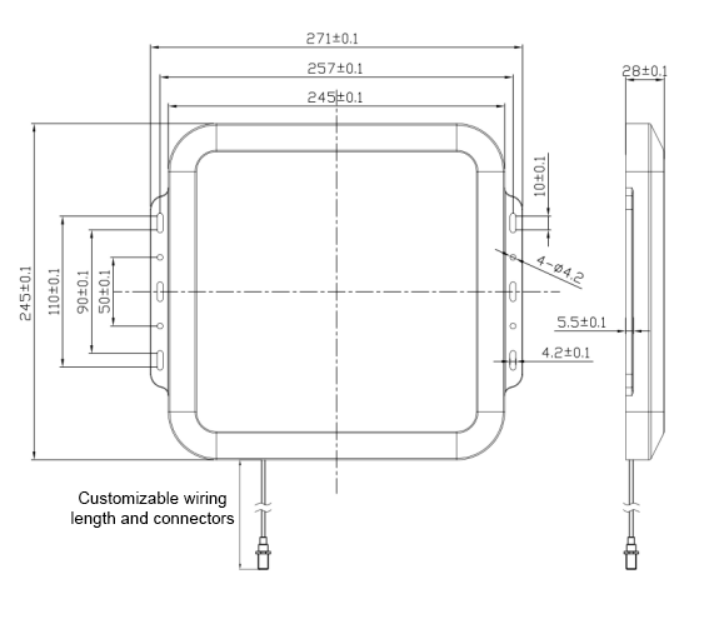

Installation method	Mounting ear installation		Antenna size	24527128mm
Product List			Antenna Net Weight	0.6kg
Standard	Antenna1, 3m feeder1

Radiation Angle

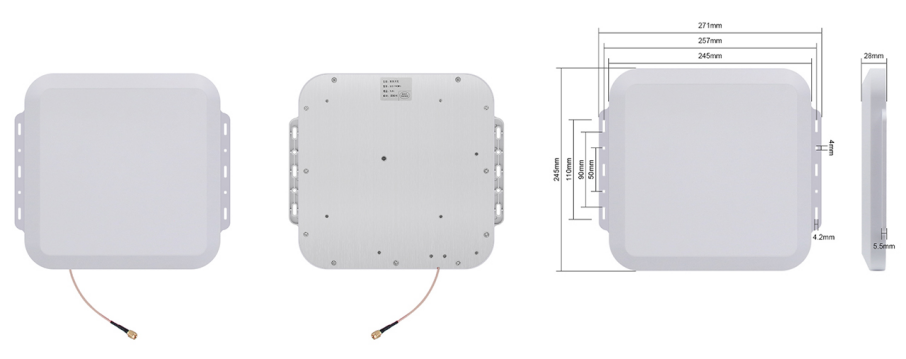

Details display

Related Products

Model	CF-RA6004	CF-RA8007	CF-RA1008
Gain	6dBi	8dBi	10dBi
Polarization	Circular polarization	Circular polarization	Linear polarization/circular polarization
Reading distance reference	0-6 meters (depending on the reader and tag)	0-8 meters (depending on reader and tag)	0-10 meters (depending on reader and tag)
Dimensions	15613020mm	29510510mm	Available in various sizes

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
