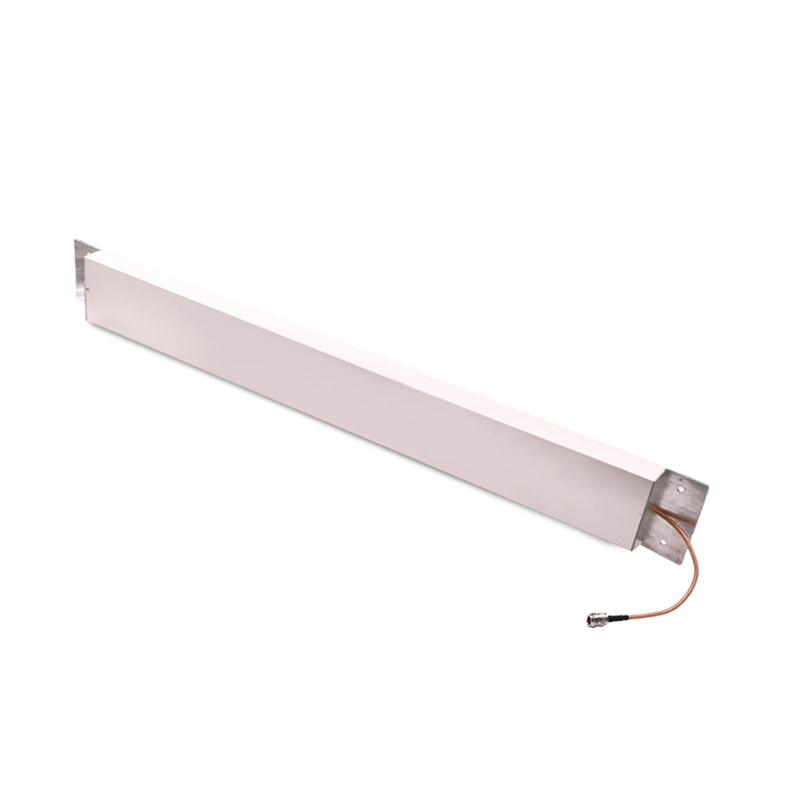

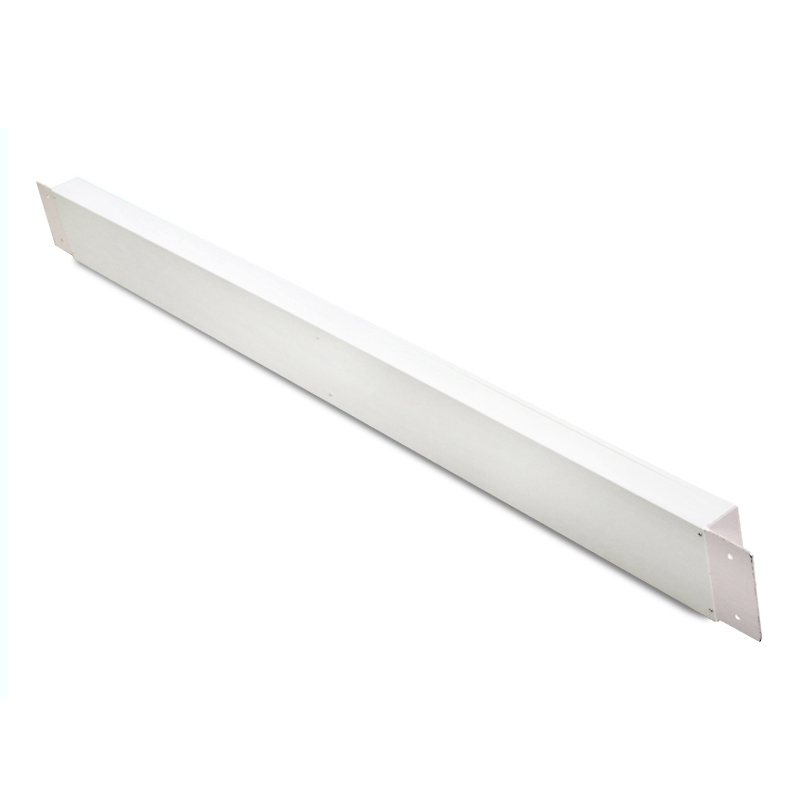

CF-RA1301 UHF 13dBi indoor access control antenna

- Near field directional identification antenna

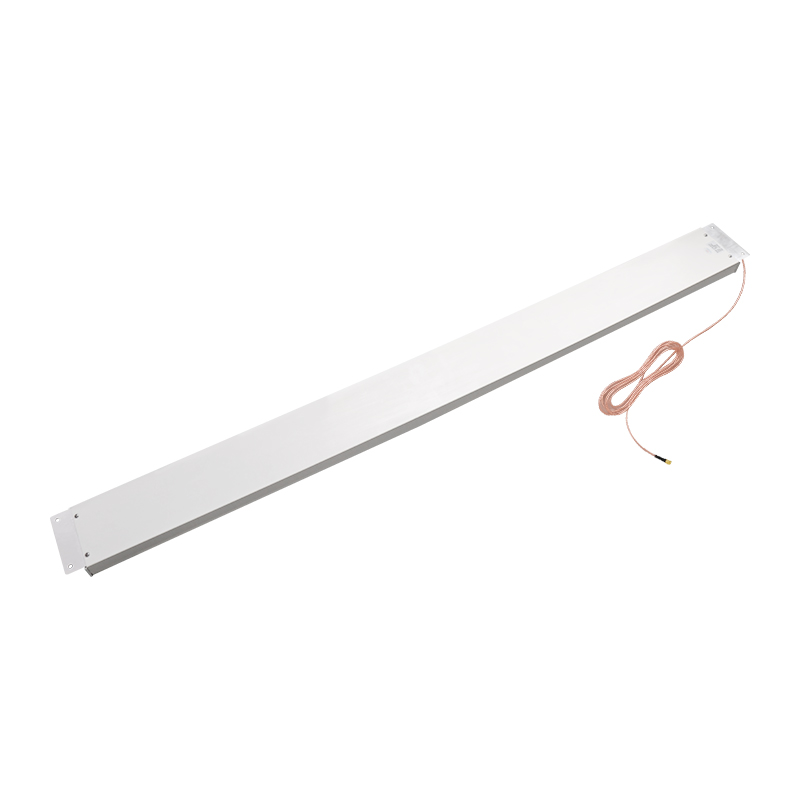

- 3m feeder cable as standard, RG303 brown high temperature resistant feeder cable
- Application: warehouse management, clothing management, personnel management, logistics management, production management, smart cabinet management, etc.

Product Specifications

RFID Parameters			Technical Parameters
Frequency	868-868MHz（EU） 902~928MHz（US）		Bandwidth	100MHz
Gain	13dBi		Maximum power	500W
Reading distance reference	0-13 meters (depending on the reader and tag)		Front-to-back ratio F/B	≥22

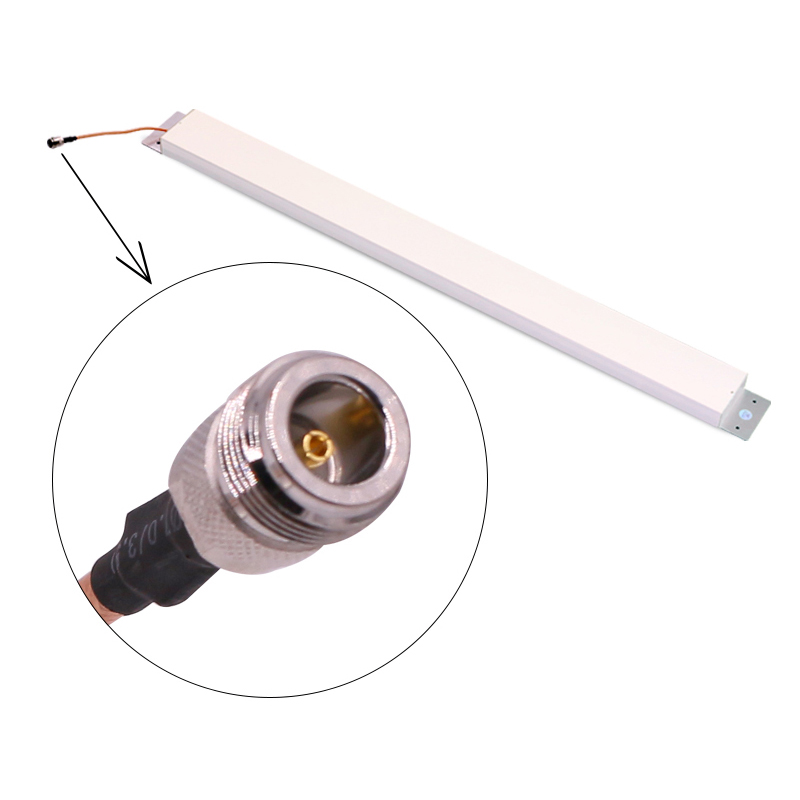

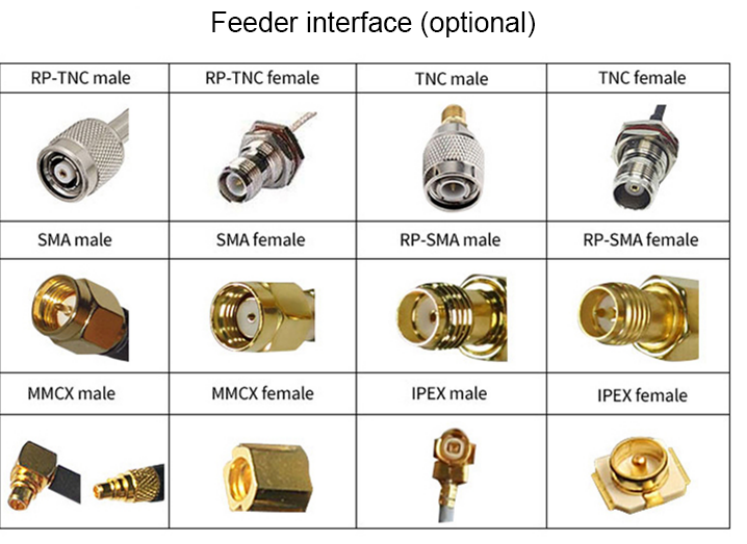

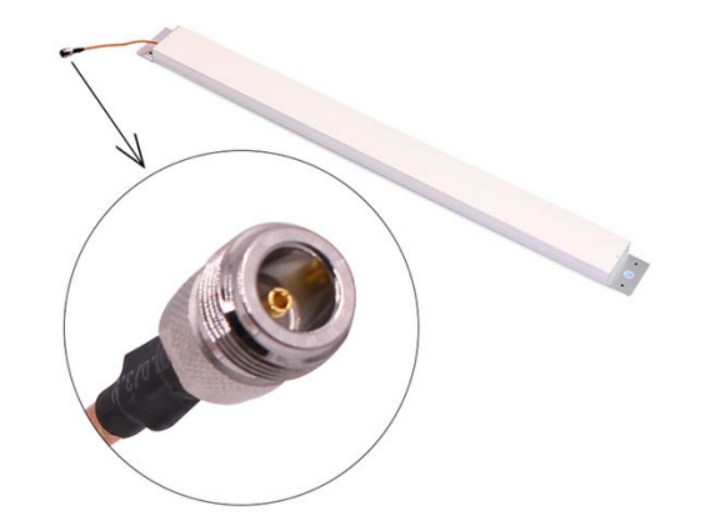

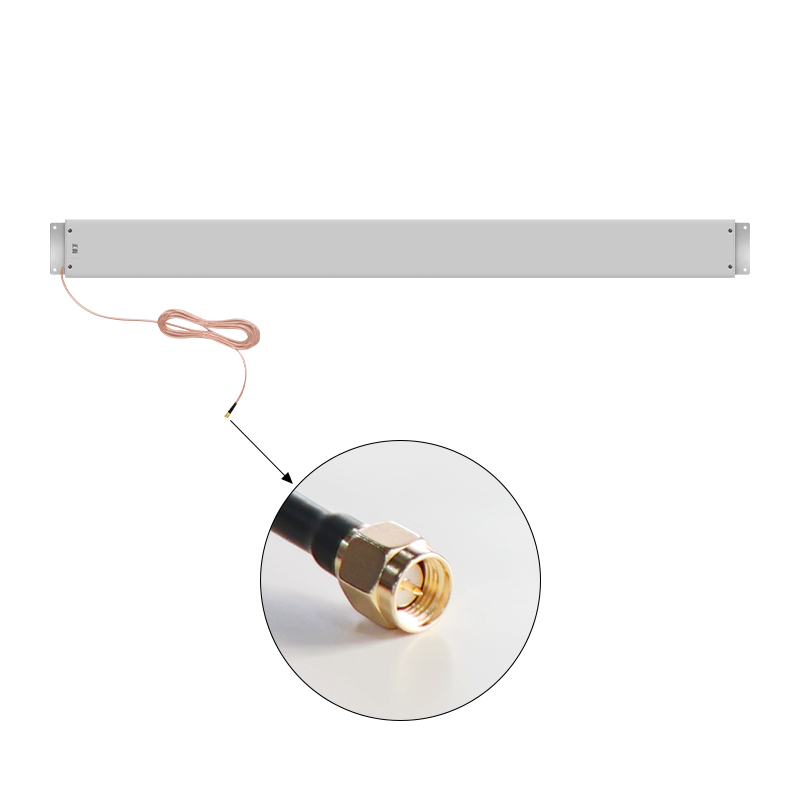

Interface type	Lead out 3 meters feeder cable, SMA male connector (optional)		Standing wave ratio	≤1.3
Polarization mode	Linear polarization		Impedance	50 Ω
Radiation angle	Horizontal: 120° Vertical: 15°		Lightning protection	DC grounding
Environmental parameters			Physical parameters

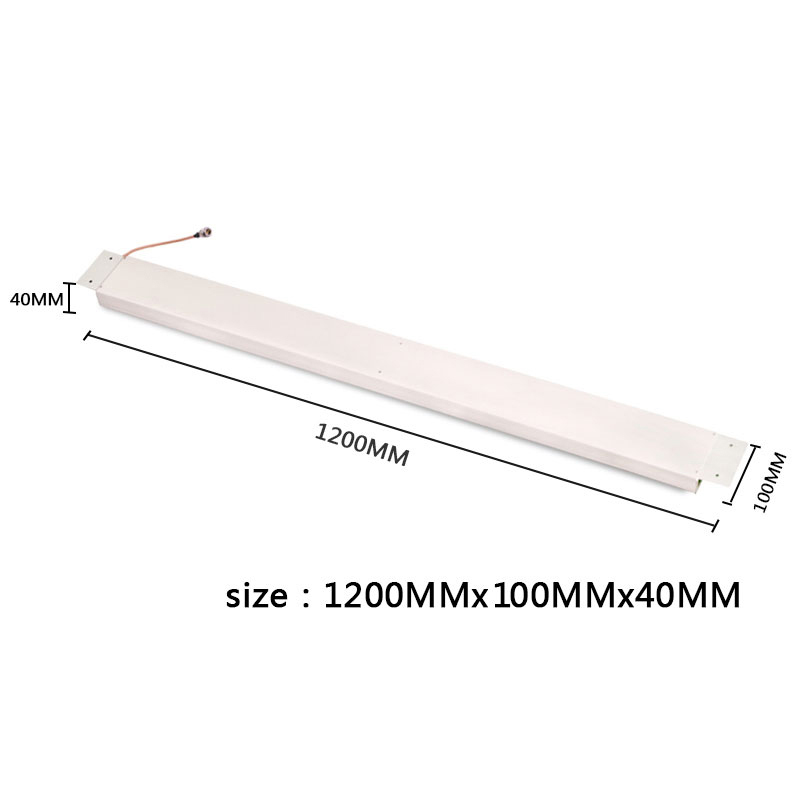

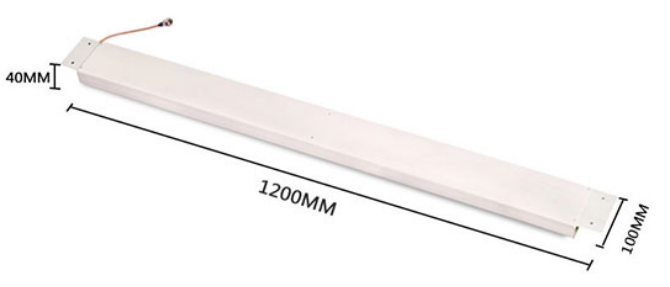

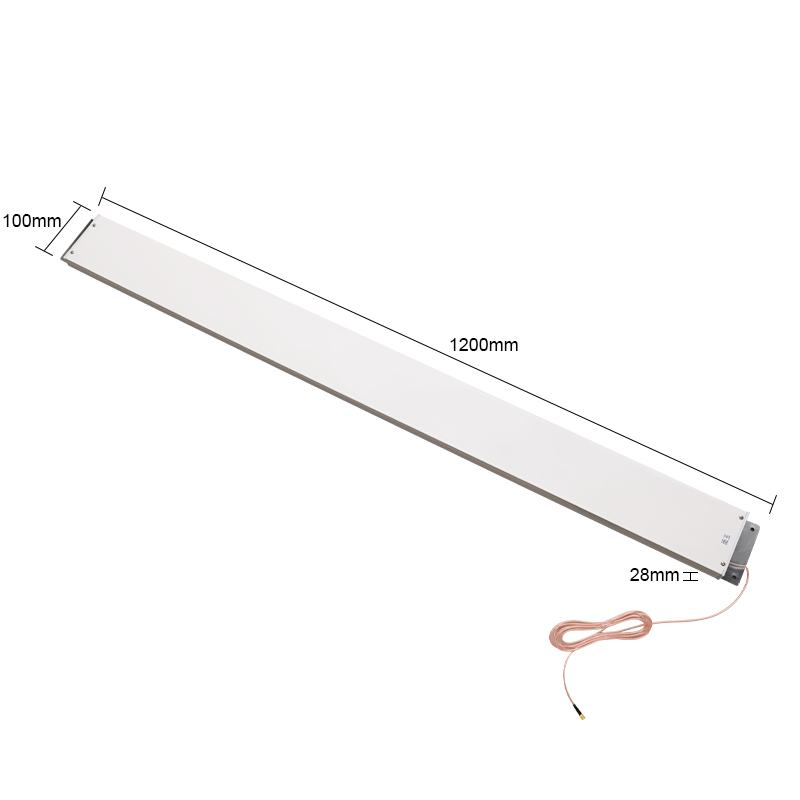

Working temperature	-40～80℃		Antenna size	120010040mm
Pole diameter	￠30～￠60		Antenna net weight	2.5kg
Wind resistance	60 m/s		Reflector material	Aluminum Alloy

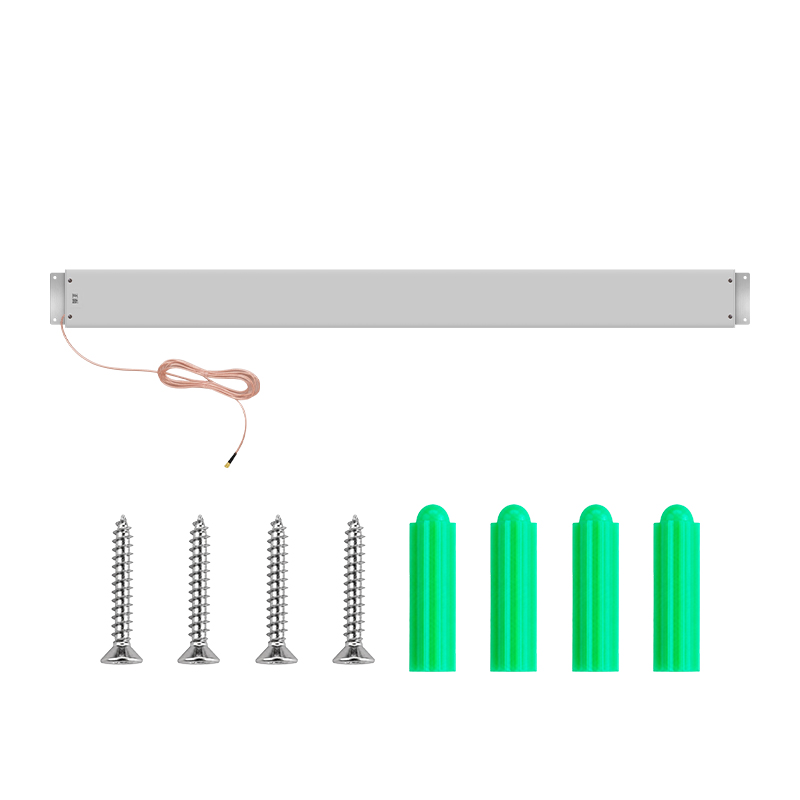

Product List			Antenna cover material	ABS
Standard	Antenna*1

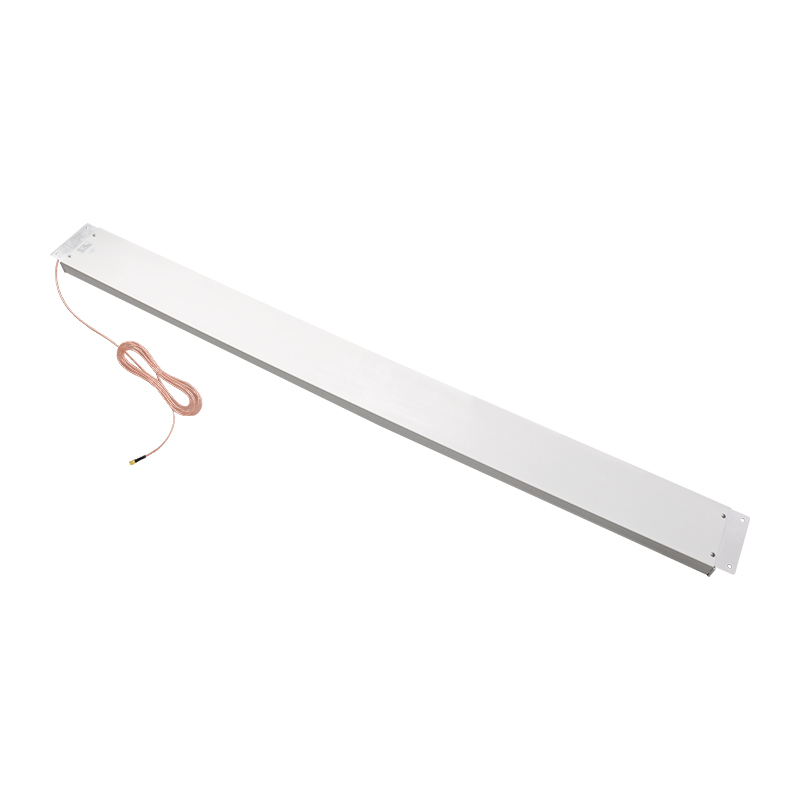

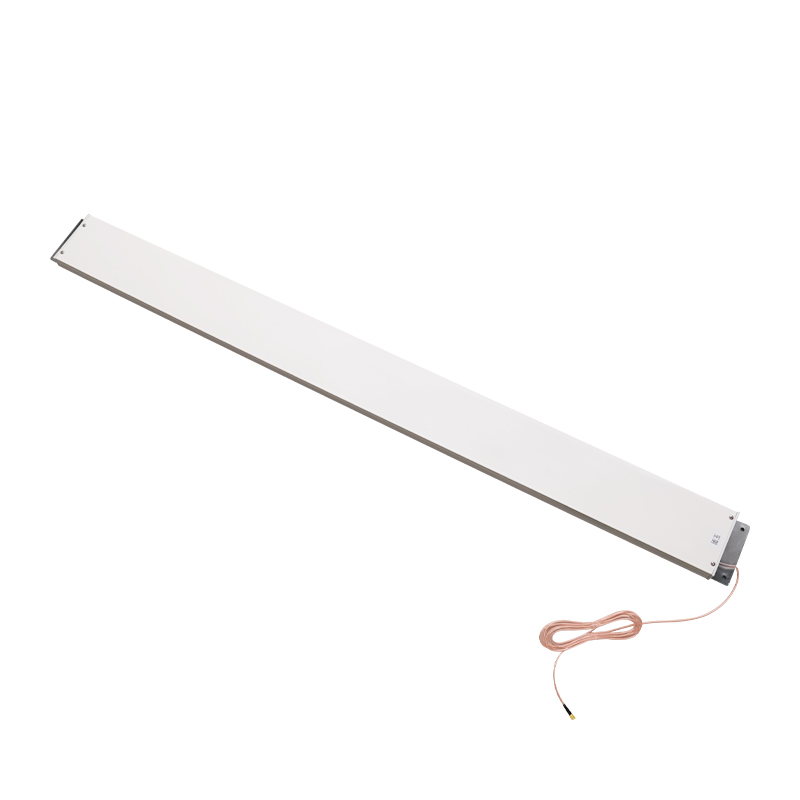

Details display

Related Products

Model	CF-RA5002	CF-RA8008	CF-RA9005	CF-RA1301
Gain	5dBi	8dBi	9dBi	13dBi
Polarization	Circular polarization/Linear polarization	Circular polarization	Linear polarization	Linear polarization
Reading distance reference	0-5 meters (depending on reader and tag)	0-8 meters (depending on reader and tag)	0-9 meters (depending on reader and tag)	0-13 meters (depending on reader and tag)
Dimensions	4609018mm	80018026.2mm	820355mm	120010040mm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
