CF-RA1203 UHF 12dBi indoor access control antenna

- Near field directional identification antenna

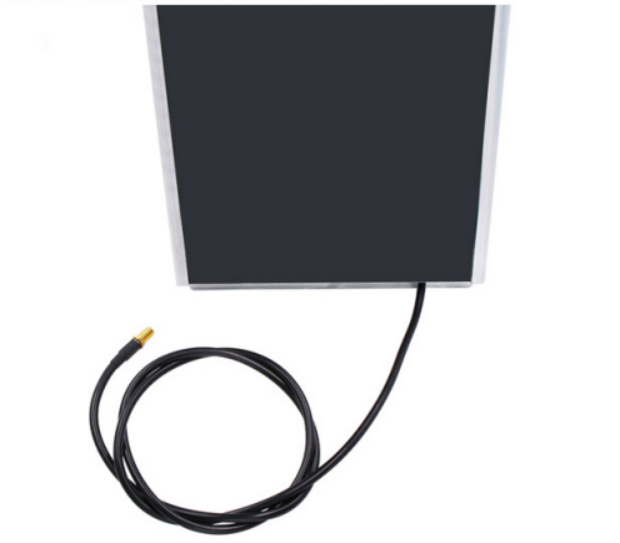

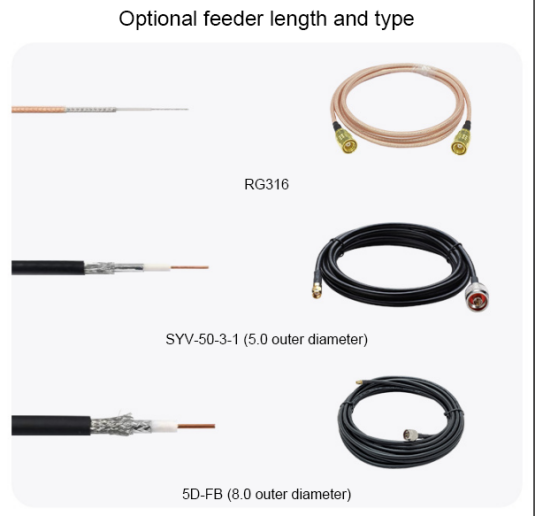

- 3m feeder cable as standard, RG303 brown high temperature resistant feeder cable
- Application: warehouse management, clothing management, personnel management, logistics management, production management, smart cabinet management, etc.

Product Specifications

RFID Parameters				Technical Parameters
Frequency	868-868MHz（EU） 902~928MHz（US）			Maximum power	50W
Gain		12dBi		Front-to-back ratio F/B	≥20
Reading distance reference		0-12m (depending on reader and tag)		Standing wave ratio	≤1.4

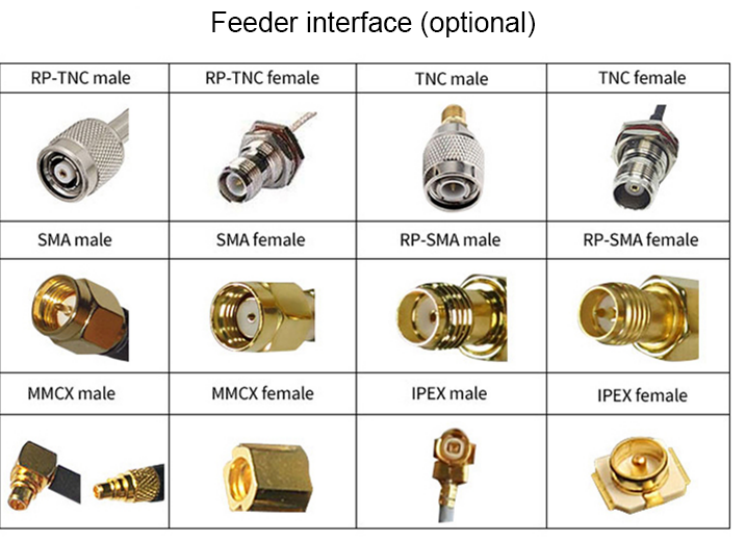

Interface type		3m feeder cable, SMA male connector (optional)		Impedance	50 Ω
Polarization mode		Circular polarization		Lightning protection	DC grounding

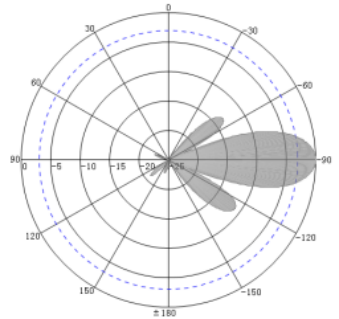

Radiation angle		Horizontal: 70° Vertical: 20°		Physical parameters

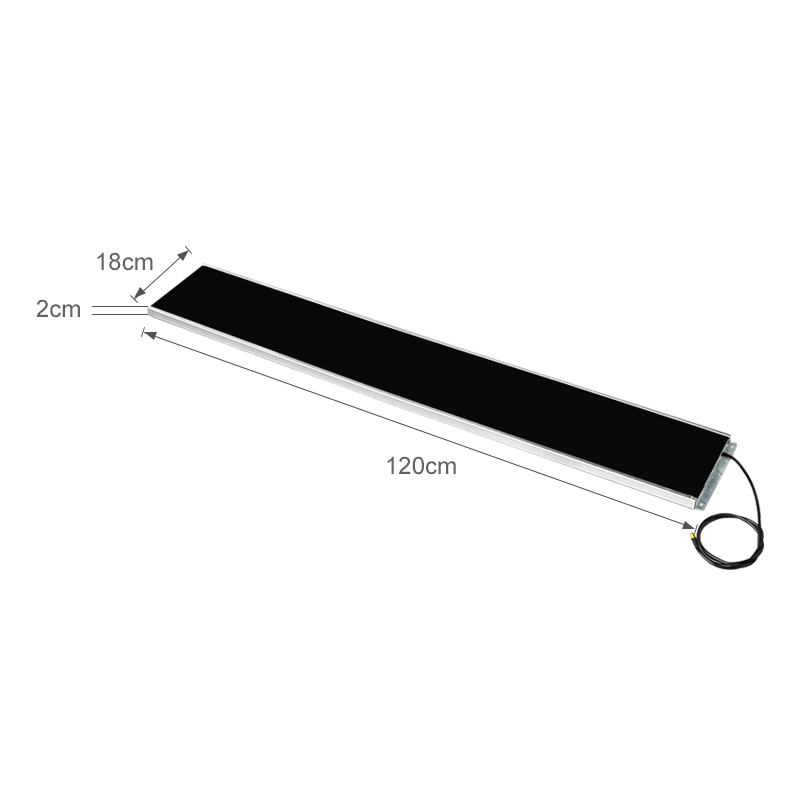

Environmental parameters				Antenna cover material	120018020mm
Working temperature		-40～70℃		Antenna size	3.5kg
Waterproof level		none		Antenna Net Weight	130202.5cm
Product List				Package Size	3.8kg
Standard	Antenna*1			Package weight	Plexiglas

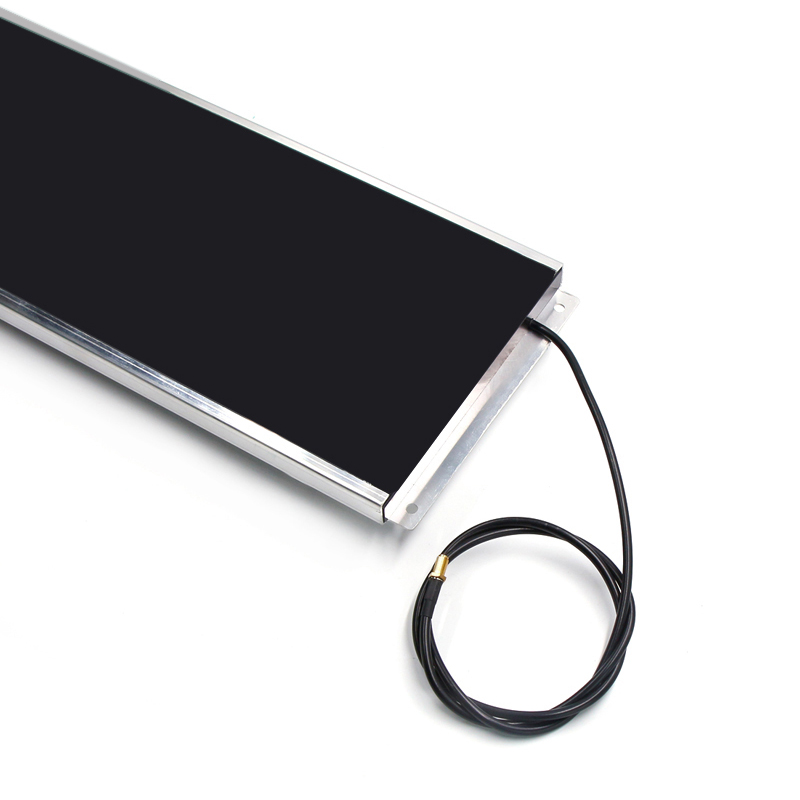

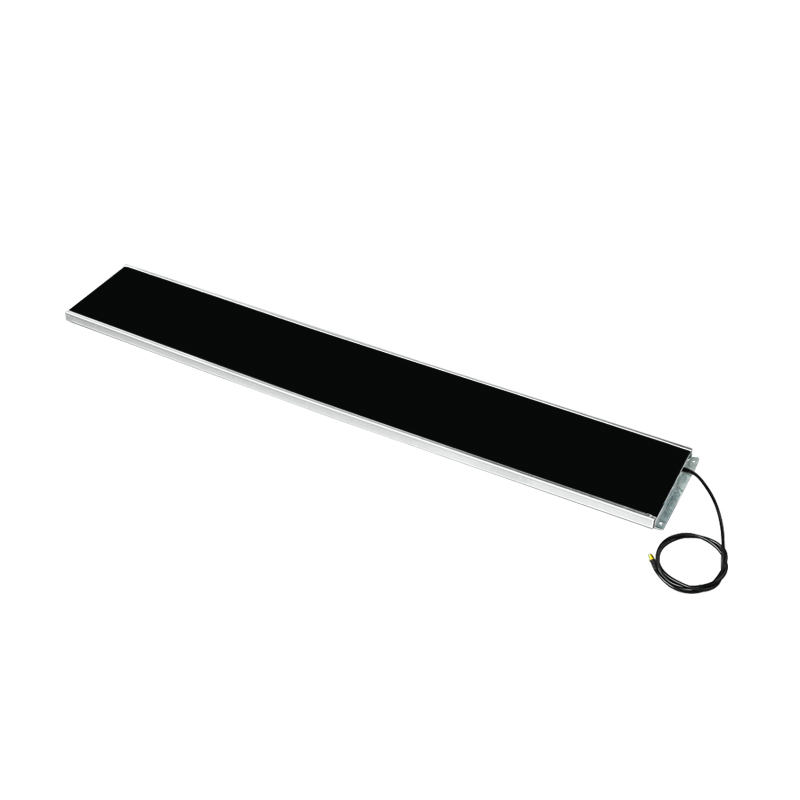

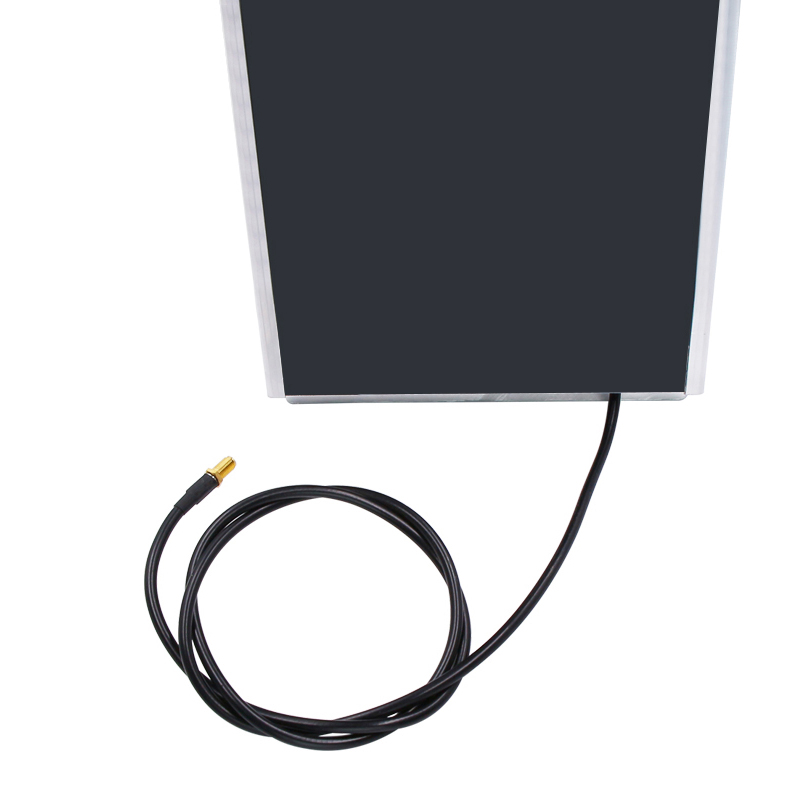

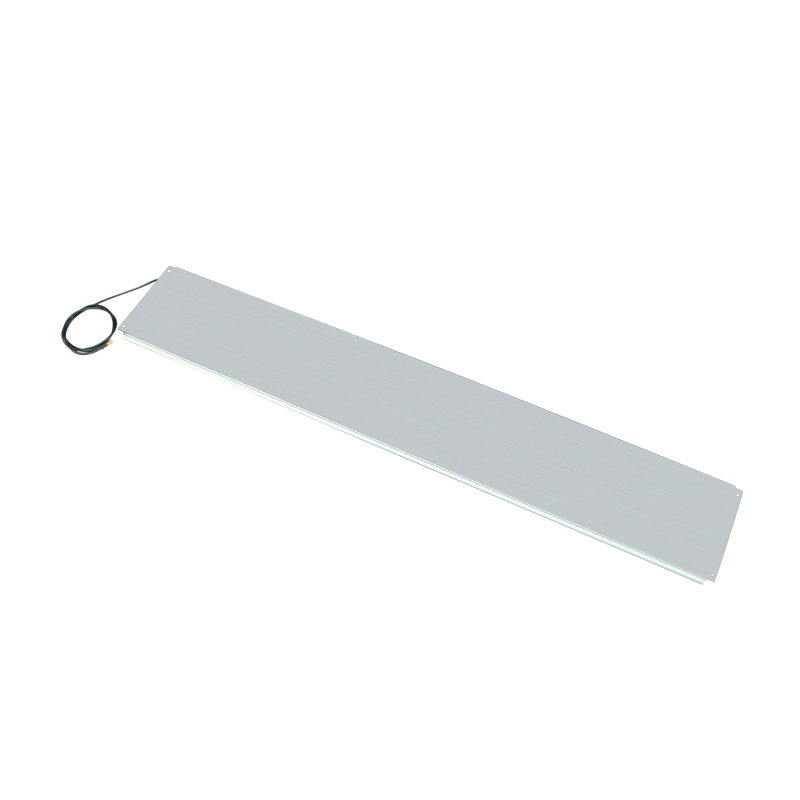

Details display

Related Products

Model	CF-RA5002	CF-RA8008	CF-RA9005	CF-RA1301
Gain	5dBi	8dBi	9dBi	13dBi
Polarization	Circular polarization/Linear polarization	Circular polarization	Linear polarization	Linear polarization
Reading distance reference	0-5 meters (depending on reader and tag)	0-8 meters (depending on reader and tag)	0-9 meters (depending on reader and tag)	0-13 meters (depending on reader and tag)
Dimensions	4609018mm	80018026.2mm	820355mm	120010040mm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
