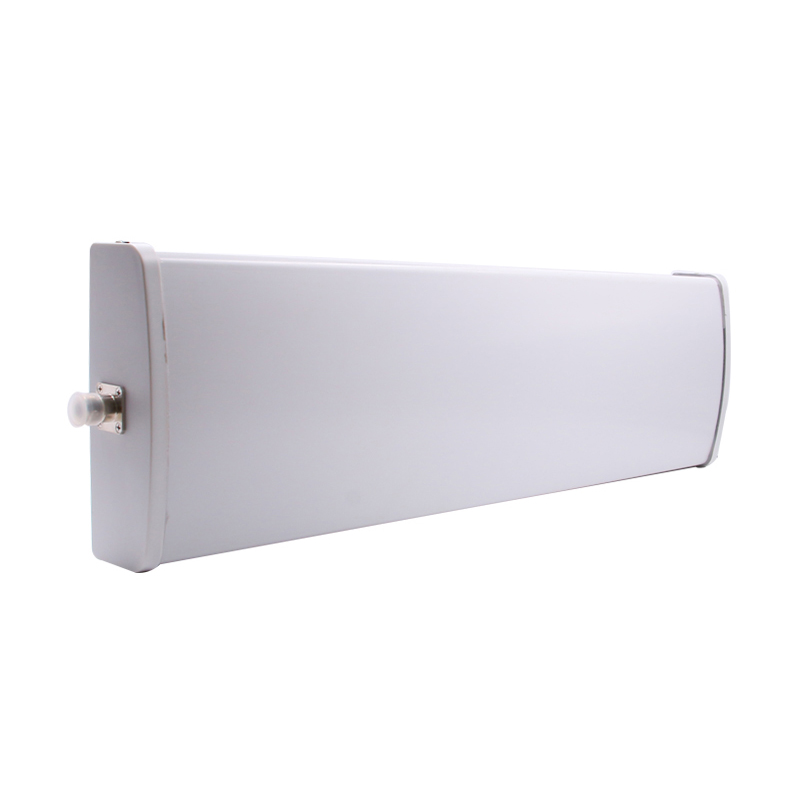

CF-RA1202 UHF 12dbi linear antenna

- IP67 protection level, suitable for outdoor scenes

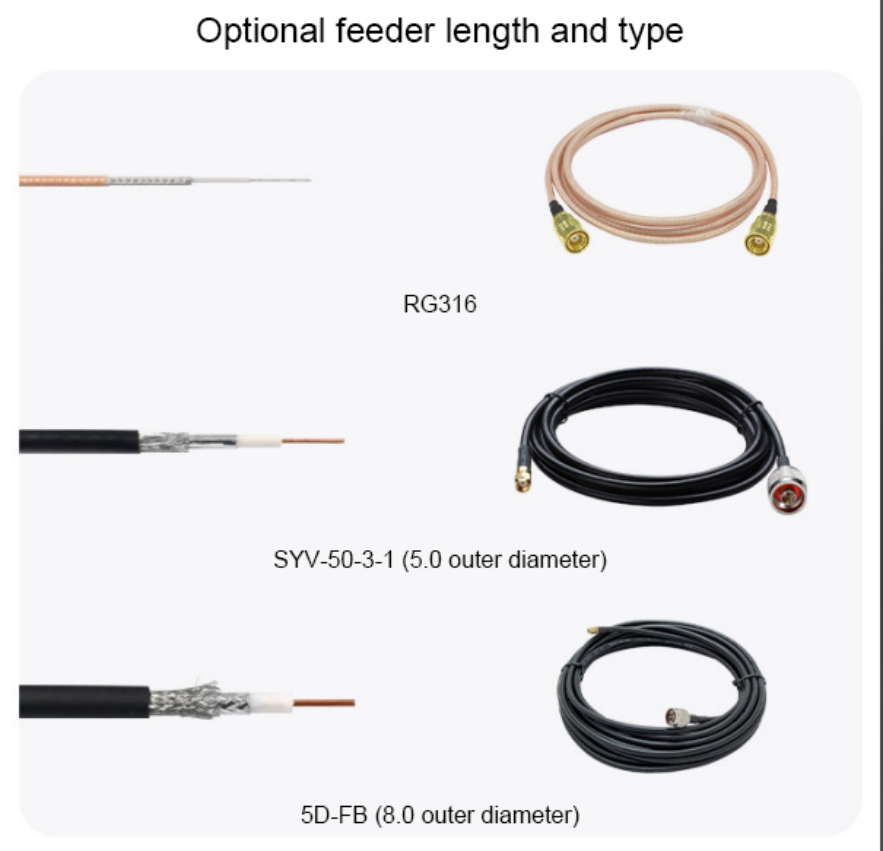

- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
- Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.

RFID Parameters
Frequency	868-868MHz（EU） 902~928MHz（US）
Gain	12dBi
Reading distance	0-12 meters (depending on reader and tag)

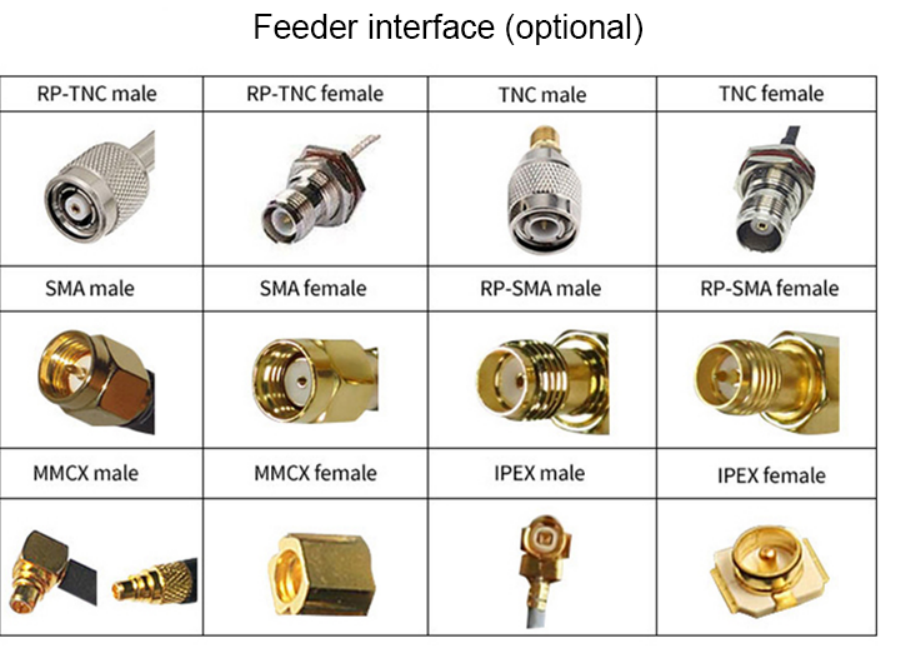

Back connector model	N-type female
Polarization mode	Linear polarization
Radiation angle	Horizontal: 90° Vertical: 32°
Environmental parameters
Protection level	IP67
Operating temperature	-40～80℃
Pole diameter	Φ40-Φ75 Pole
Product List

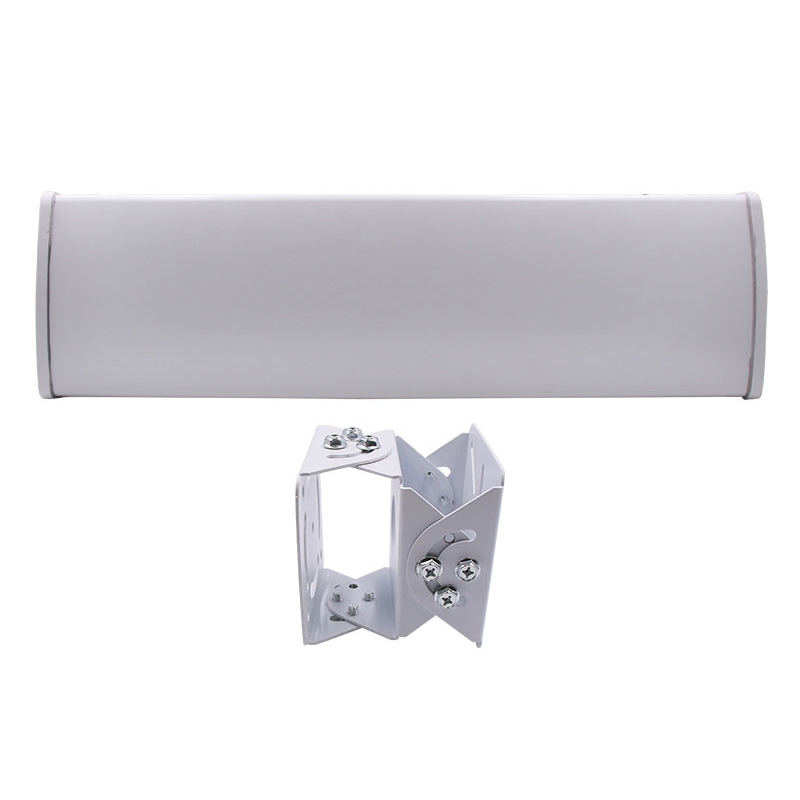

Standard accessories	Antenna1, mounting bracket1, 3m feeder*1

Technical Parameters
Bandwidth	100MHz
Maximum power	300W
Wind resistance	60 m/s
Front-to-back ratio F/B	≧23
Standing wave ratio	≦1.3
Impedance	50 Ω
Lightning protection	DC grounding
Physical parameters
Reflector material	Aluminum Alloy
Antenna cover material	ABS

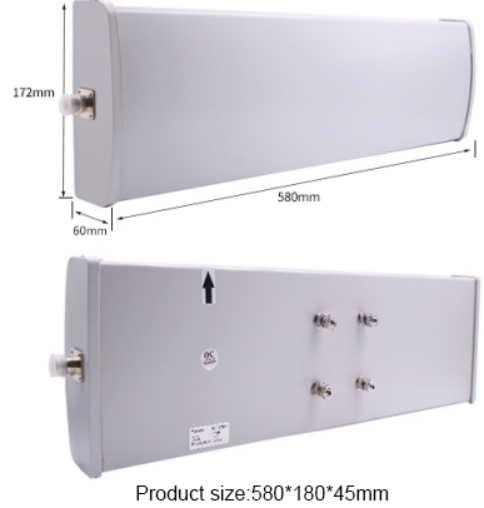

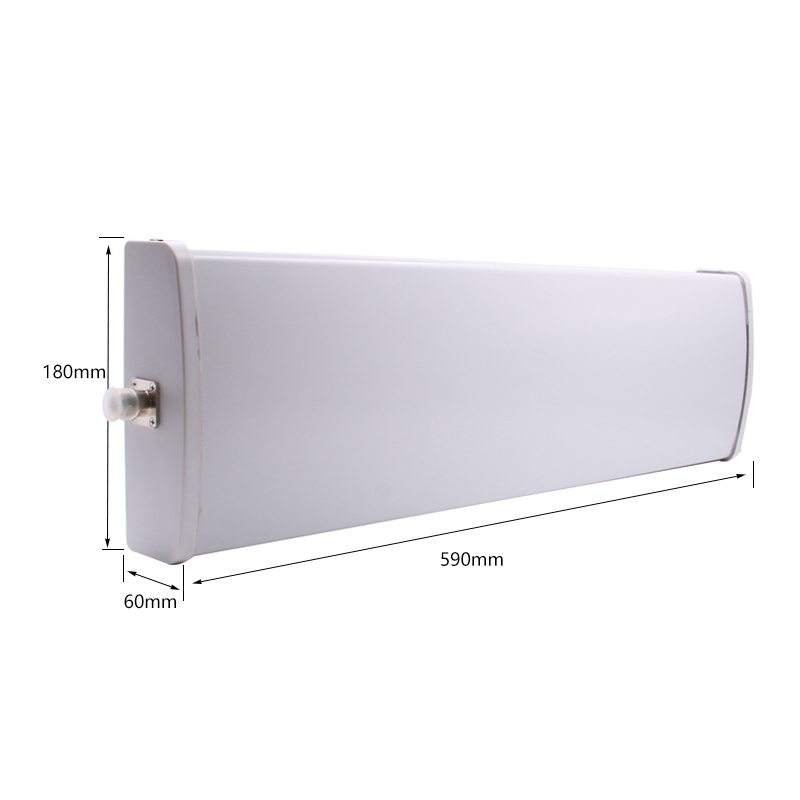

Size	58016045mm
Weight	2.8kg

Radiation angle diagram

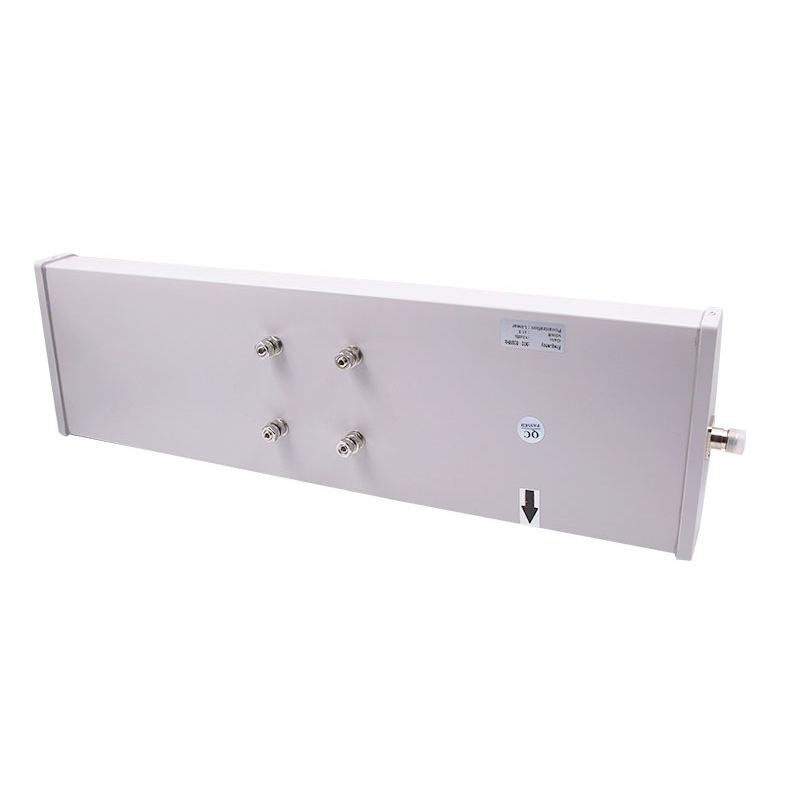

Details display

Related Products

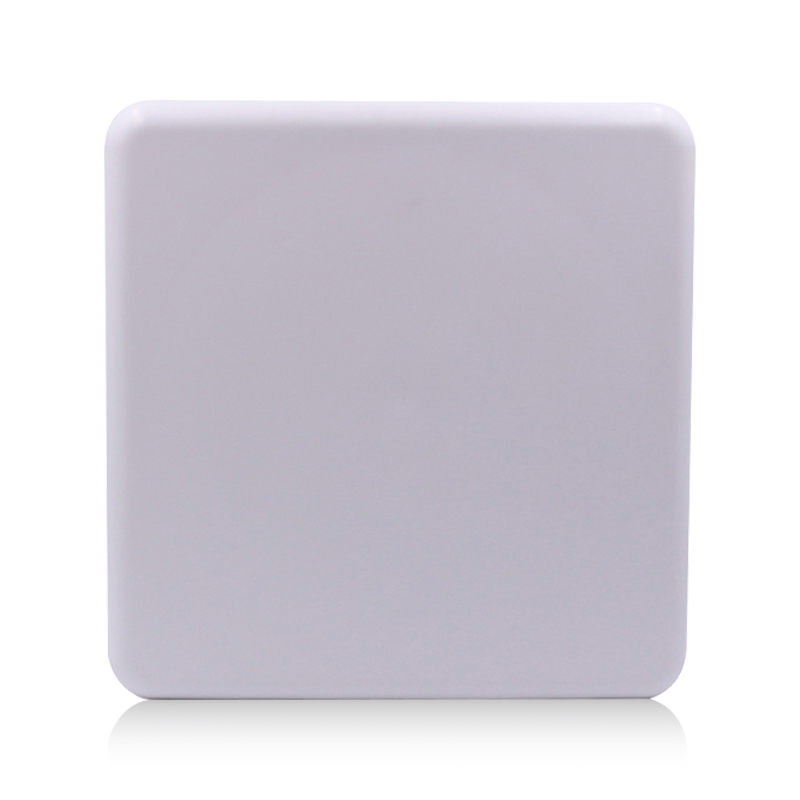

Model	CF-RA5001	CF-RA9002	CF-RA1201
Gain	5.5dBi	9dBi	12dBi
Polarization	Circular Polarization	Circular Polarization	Linear polarization/circular polarization
Reading distance reference	0-6 meters (depending on reader and tag)	0-10 meters (depending on reader and tag)	0-15 meters (depending on reader and tag)
Dimensions	12712720mm	25725733mm	45045040mm
