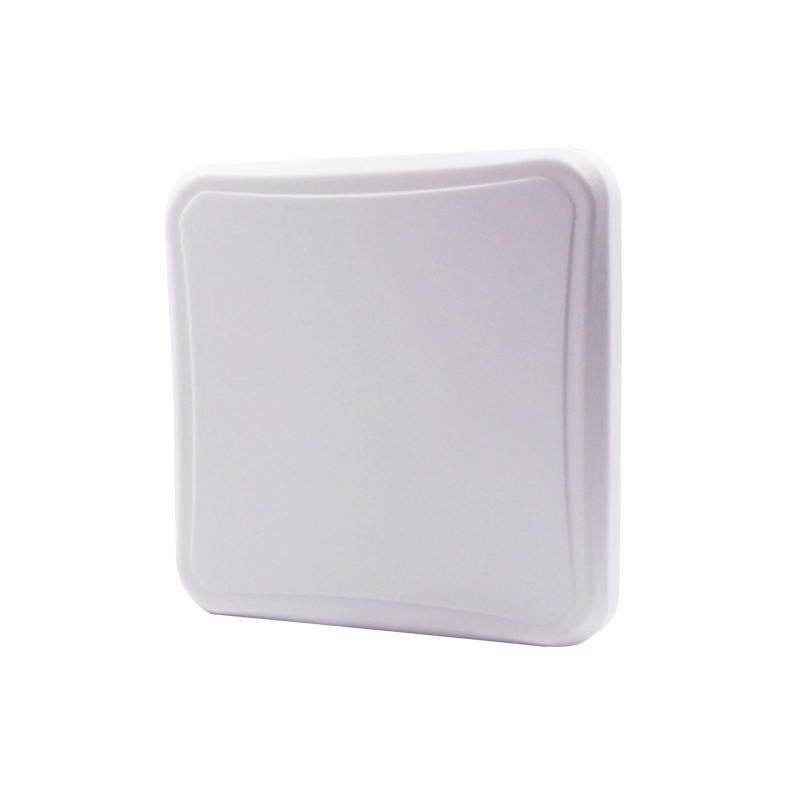

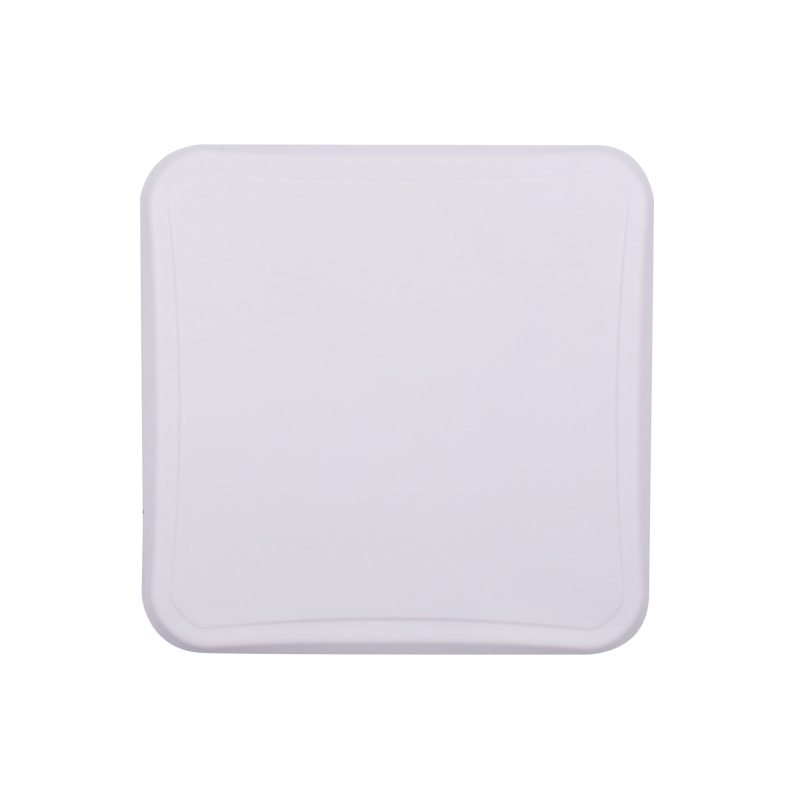

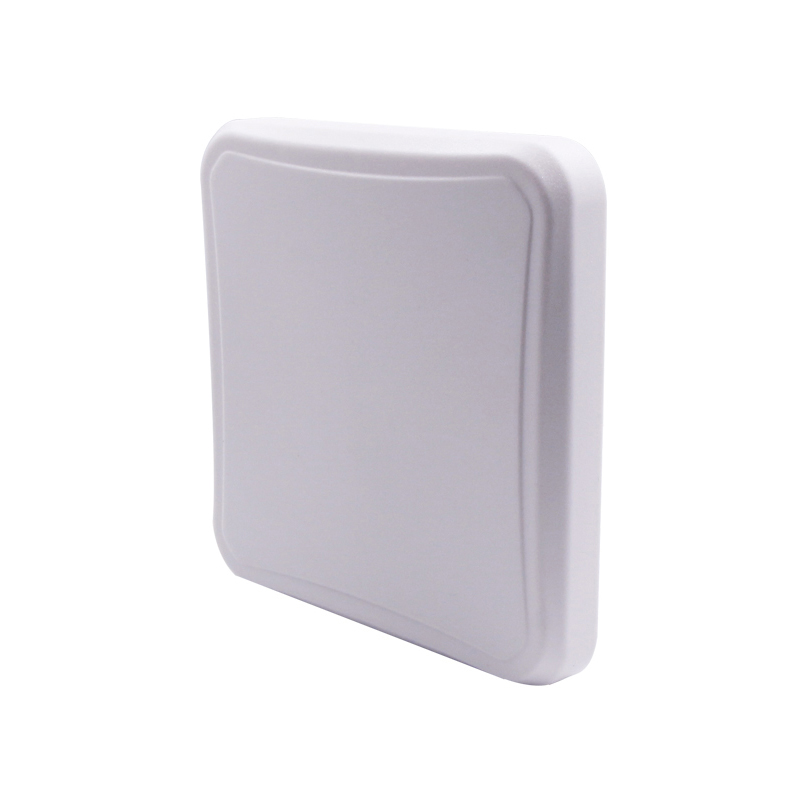

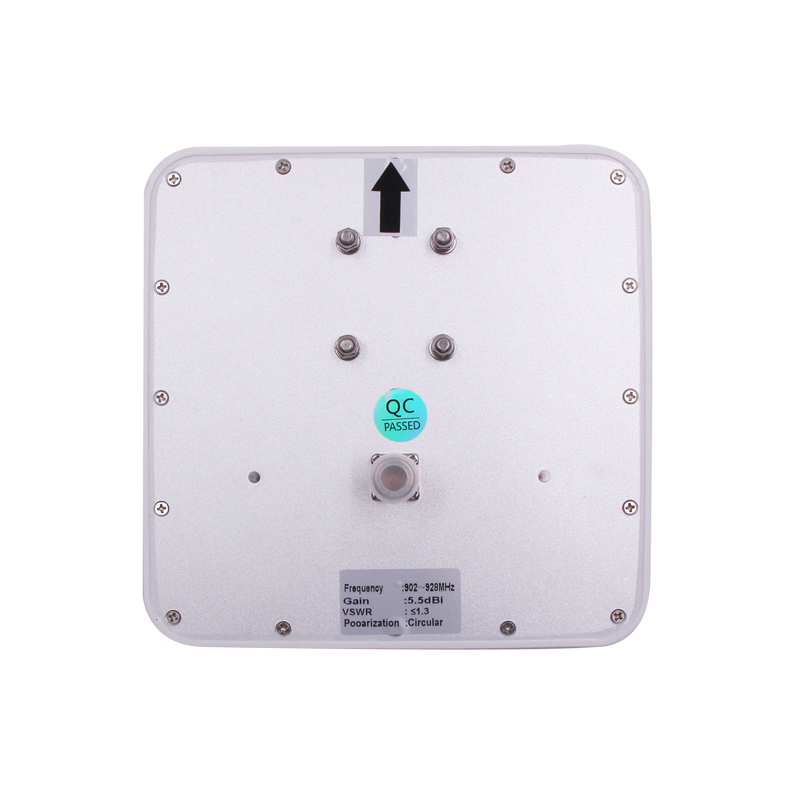

CF-RA5003 UHF 5.5dbi panel antenna
- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
- Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.
Product Specifications
|
RFID Parameters |
|
Technical Parameters |
||
|
Frequency |
865-868MHz（EU） 902~928MHz（US） |
|
Bandwidth |
50W |
|
Gain |
5.5dBi |
|
Maximum power |
100 km/h |
|
Reading distance |
0-6M（depending on the reader and tag)） |
|
Wind resistance |
≧11 |
|

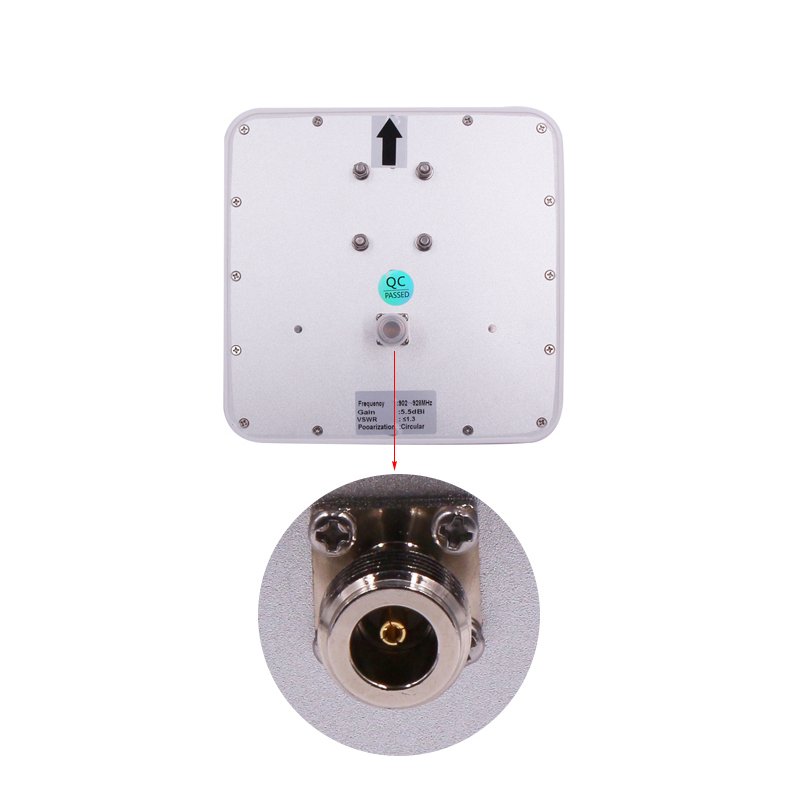

Back connector model |
N-type female connector |
|
Front-to-back ratio F/B |
≦1.4 |
|
Polarization mode |
Circular polarization |
|
Standing wave ratio |
50 Ω |
|
Radiation angle |
Horizontal: 70° Vertical: 65° |
|
Impedance |
DC grounding |
|
Environmental parameters |
|
Physical parameters |
||
|
Protection level |
IP67 |
|
Reflector material |
aluminum |
|
Operating temperature |
-40～70℃ |
|
Antenna cover material |
ABS |
|
Product List |
|
Size |
190*190*35mm |
|
|

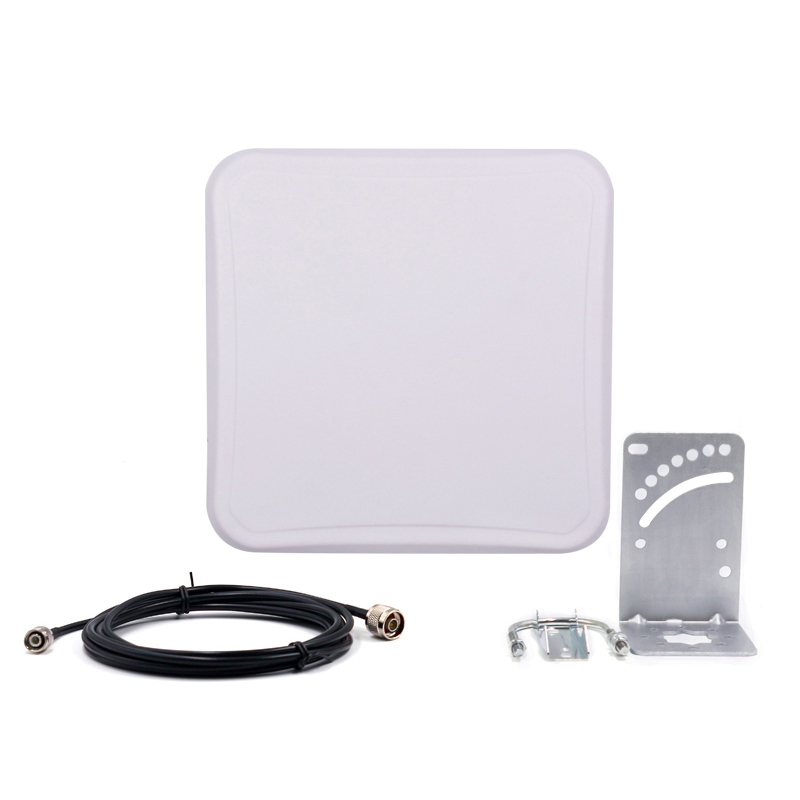

Standard accessories |
Antenna*1, mounting bracket*1, 3m feeder*1 |
|
Weight |
0.95Kg |
Details display
Related Products
|
Image |
|
|
|
|
Model |
CF-RA5001 |
CF-RA9002 |
CF-RA1201 |
|
Gain |
5.5dBi |
9dBi |
12dBi |
|
Polarization |
Circular Polarization |
Circular Polarization |
Linear polarization/circular polarization |
|
Reading distance reference |
0-6 meters (depending on reader and tag) |
0-10 meters (depending on reader and tag) |
0-15 meters (depending on reader and tag) |
|
Dimensions |
127*127*20mm |
257*257*33mm |
450*450*40mm |
