CF-RA7001 UHF 7dbi panel antenna

- IP67 protection level, suitable for outdoor scenes

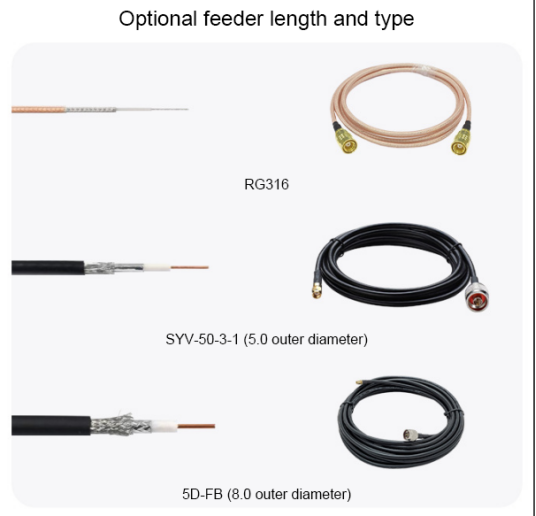

- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
- Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.

Product Specifications

RFID Parameters			Technical Parameters
Frequency	868-868MHz（EU） 902~928MHz（US）		Wind receiving area	≤0.2㎡
Gain	7dBi		Maximum power	100W
Reading distance	0-7M（depending on the reader and tag)）		Wind resistance	60 m/s

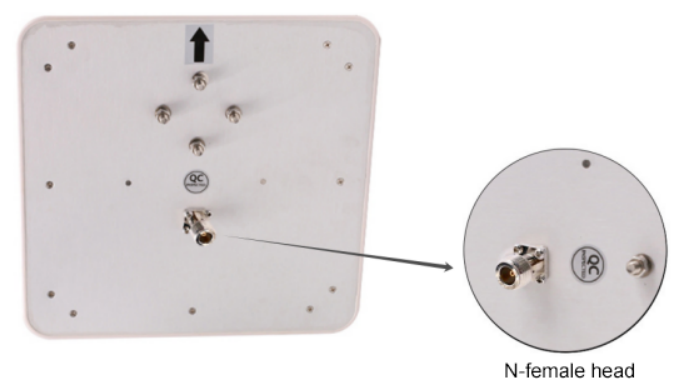

Back connector model	N-type female		Front-to-back ratio F/B	≧20
Polarization mode	Circular polarization		Standing wave ratio	≦1.4
Radiation angle	Horizontal: 65° Vertical: 65°		Impedance	50 Ω
Environmental parameters			Lightning protection	DC grounding
Protection level	IP67		Physical parameters
Operating temperature	-40～70℃		Reflector material	Aluminum Alloy
Pole diameter	Φ40-Φ50 pole		Antenna cover material	UV or ABS
Product List			Size	26026045mm

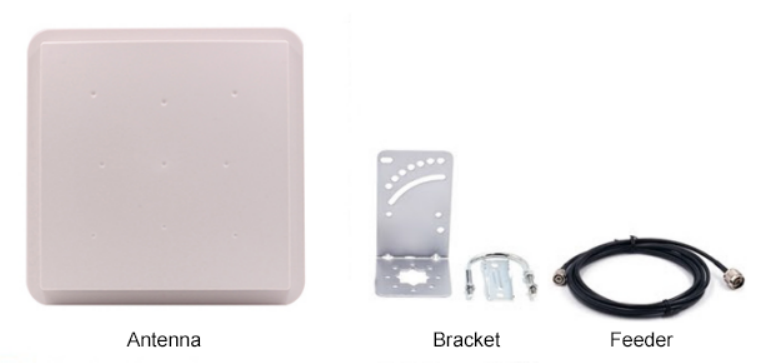

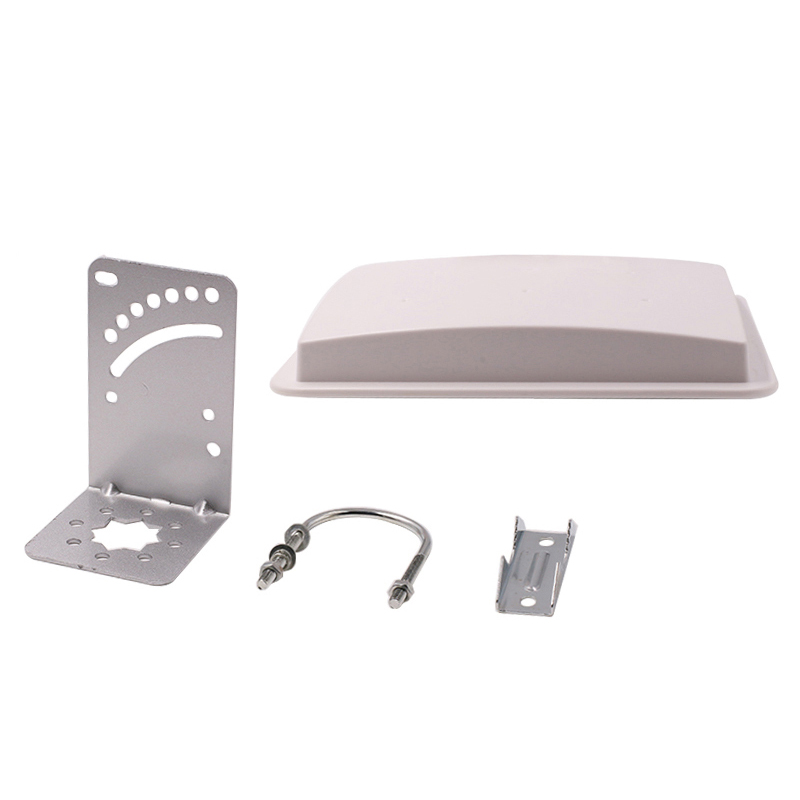

Standard accessories	Antenna1, mounting bracket1, 3m feeder*1		Weight	1.2kg

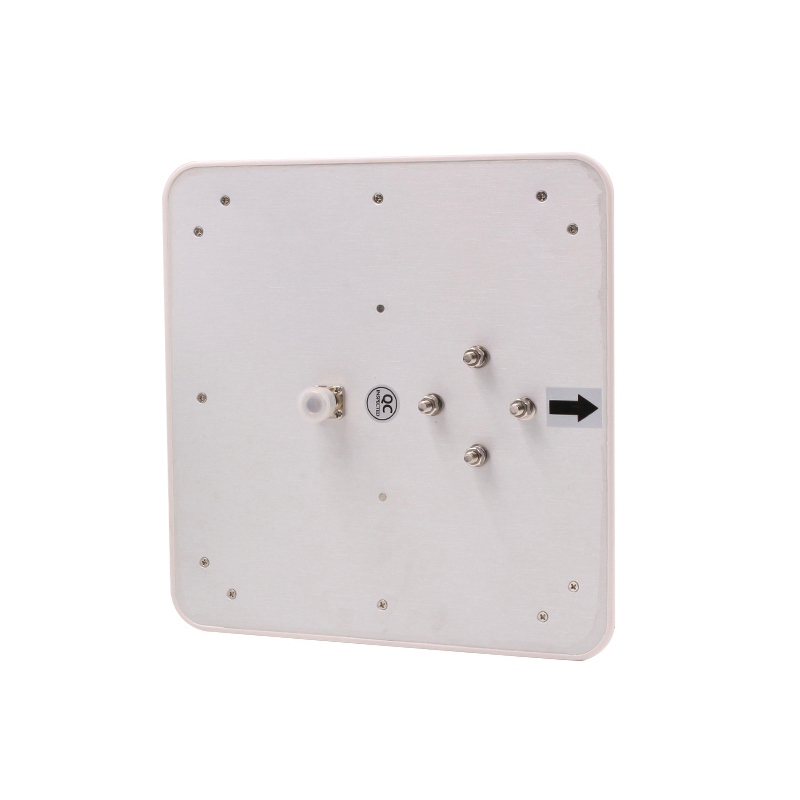

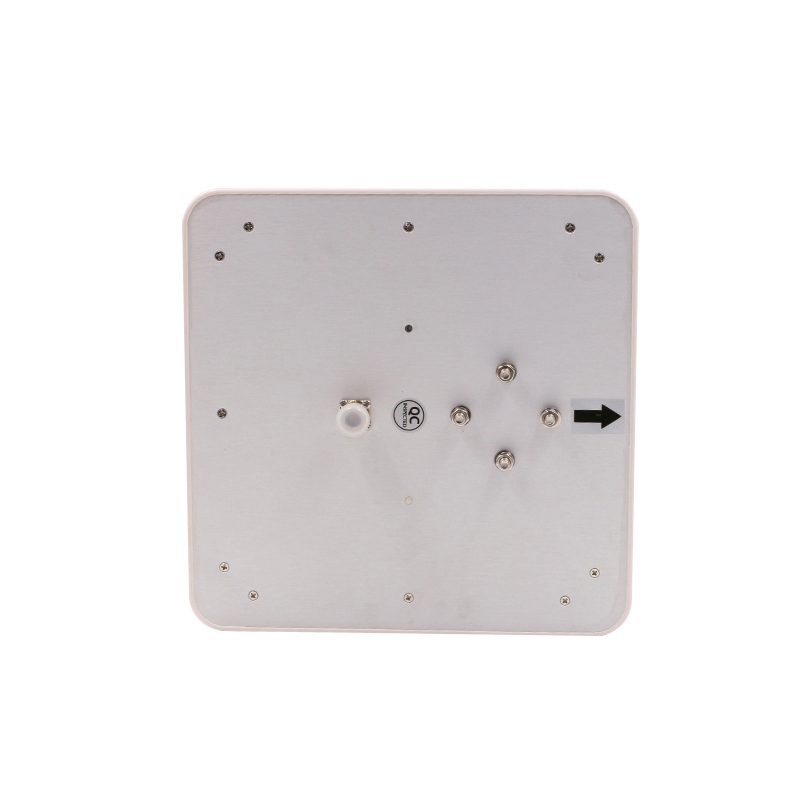

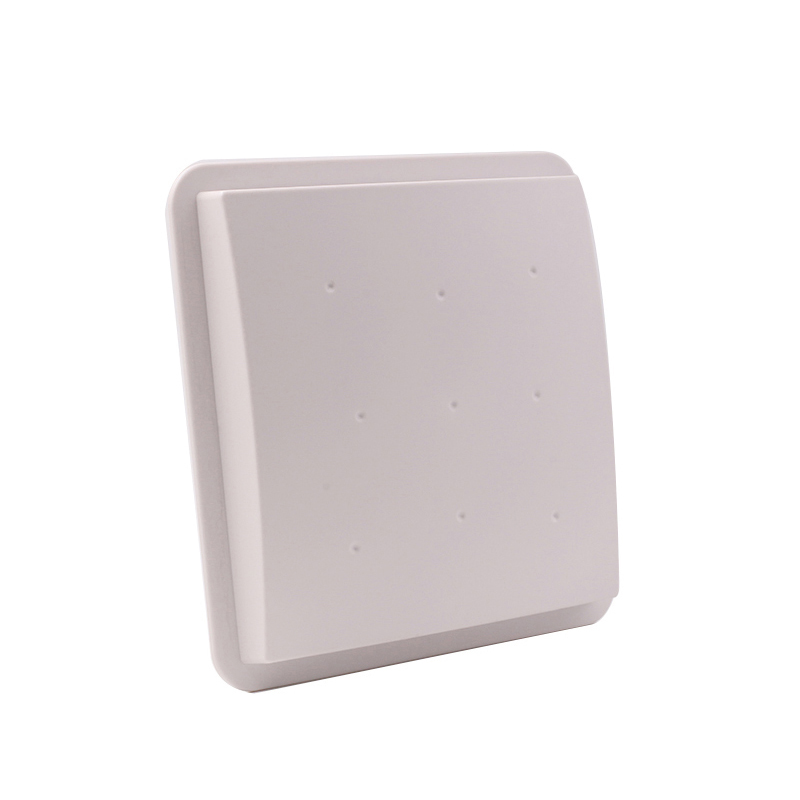

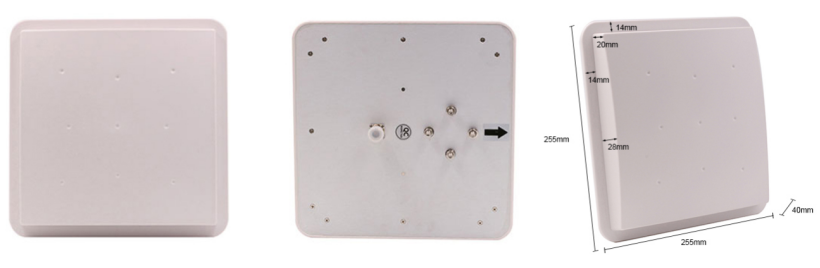

Details display

Related Products

Model	CF-RA5001	CF-RA9002	CF-RA1201
Gain	5.5dBi	9dBi	12dBi
Polarization	Circular Polarization	Circular Polarization	Linear polarization/circular polarization
Reading distance reference	0-6 meters (depending on reader and tag)	0-10 meters (depending on reader and tag)	0-15 meters (depending on reader and tag)
Dimensions	12712720mm	25725733mm	45045040mm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
