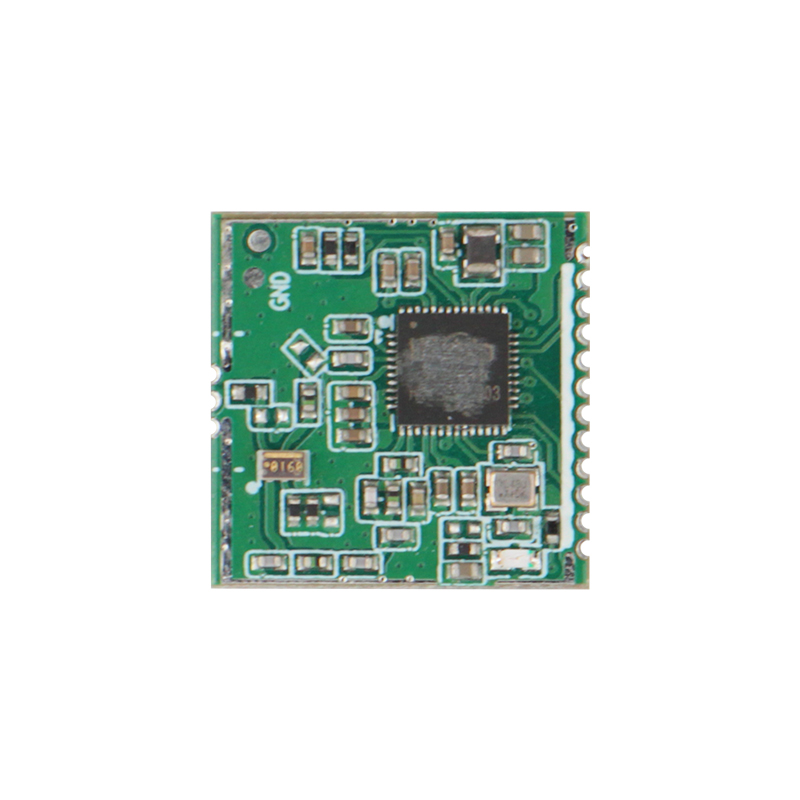

MU601NC UHF RFID Module
-Support secondary program development
-Suitable for smaller tags and close-range recognition scenarios
-Peak counting speed <100 sheets/second
It has broad application prospects in various industries such as logistics, retail, and identity recognition
Product Specifications
|
RFID Parameter |
|
Antenna parameters |
||
|
Frequency |
902~928MHz (US）865~868MHz （EU） |
Antenna port |
1 |
|
|
Protocol |
ISO18000-6C (EPC GEN2) GB/T 29768-2013 |
Antenna impedance |
50Ω |
|
|
RF output power |
0-20dbm |
Environmental parameters |
||
|
Reading speed |
＜100 tags/second |
Operating temperature |
-40℃~70℃ |
|
|
Reading range |
＜50cm |
Storage temperature |
-40℃~85℃ |
|
|
Output power accuracy |
1dB |
Relative humidity |
10%RH~95%RH |
|
|
Output power flatness |
±0.2dB |
Protection level |
IEC IP51 |
|
|
Chip |
UC8688 |
Physical parameters |
||
|
Tag Cache |
100 pcs@96bit EPC |
Operating voltage |
3.3V |
|
|
Tag RSSI |
support |
Standby power consumption |
<20mA |
|
|
Chip temperature detection |
support |
Sleep power consumption |
<2uA |
|
|
Communication interface |
TTL Uart |
Normal operation |
50~150mA@3.3V |
|
|
Maximum baud rate |
Default 115200bps, configurable |

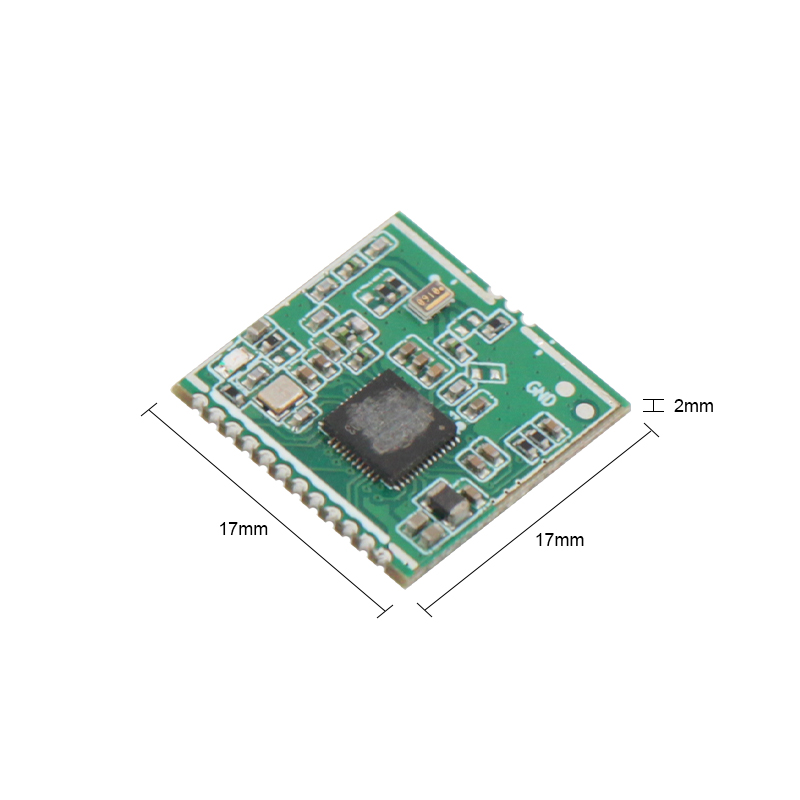

Product size |
17mm x17mm x 2mm |
|

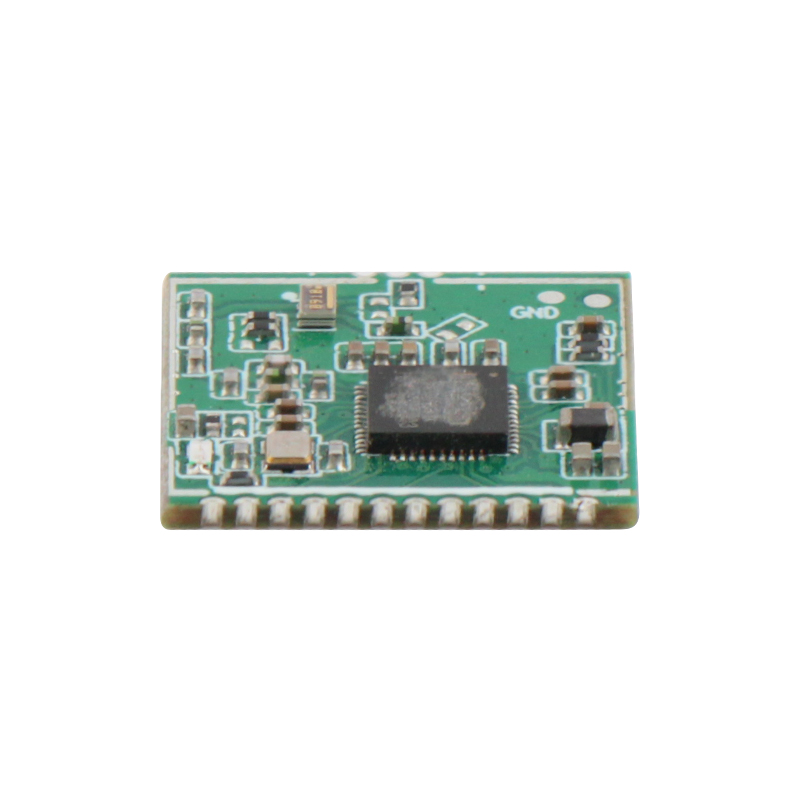

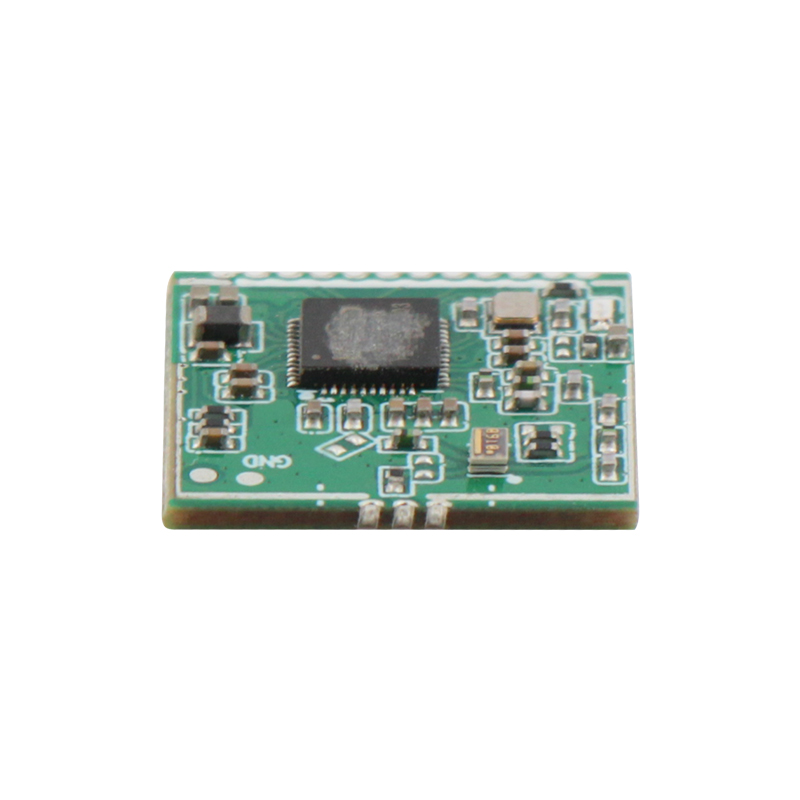

Details display
|

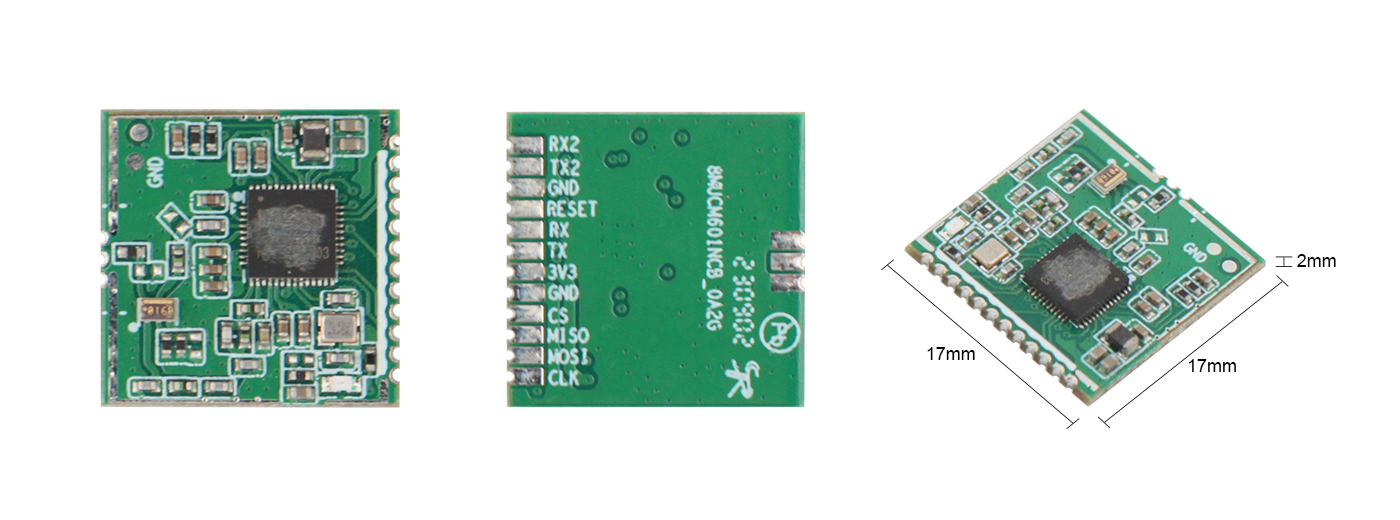

Wiring Definition |
||
|
Bottom pad number |
Definition |
illustrate |
|
1 |
SPI_CLK (GPIO1) |
SPI Clock |
|
2 |
SPI_MOSI (GPIO2) |
SPI master device output slave device input (also used as buzzer output port) |
|
3 |
SPI_MISO (GPIO3) |
SPI master input slave output |
|
4 |
SPI_CS |
SPI chip select |
|
5 |
GND |
Ground |
|
6 |
VCC |
3.3V |
|
7 |
UART_1TX |
Communication serial port, TTL level |
|
8 |
UART_1RX |
|
|
9 |
RESET |
LOW ACTIVE (connected to high level 3.3v when working) |
|
10 |
GND |
Ground |
|
11 |
UART_2TX |
Log printing, for debugging only |
|
12 |
UART_2RX (GPIO4) |
|
|
13 |
GND |
Ground |
|
14 |
ANT |
antenna |
|
15 |
GND |
Ground |

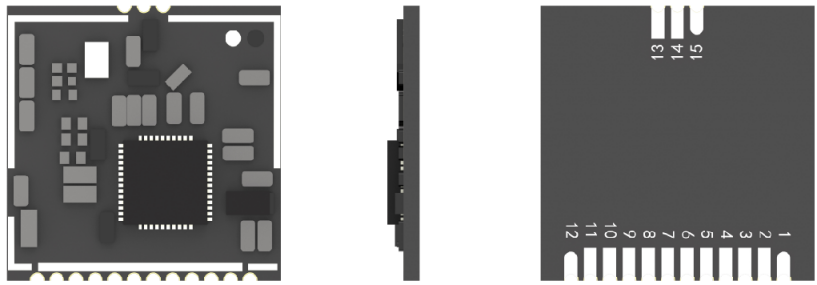

Module specifications (dimensional drawing)
Related Products
|
Image |
|
|
|
|
Model No |
MU912 |
MU914 |
MU918 |
|
Output RF power |
0dbm ~33dbm (Adjustable) |
||
|
Reading Speed |
100 tags/second |
||
|
Reading Range |
0~25 meters (depending on antenna & tag & application environment) |
||
|
Antenna Port |
1*MMCX Female |
4*SMA Female |
8*SMA Female |
