MU606L UHF RFID Module
-Support secondary program development
-Suitable for smaller tags and close-range recognition scenarios
-Peak counting speed <250 sheets/second
-It has broad application prospects in various industries such as logistics, retail, and identity recognitio
Product Specifications
|
RFID Parameter |
|
Antenna parameters |
||
|
Frequency |
902~928MHz (US）865~868MHz （EU） |
Antenna port |
1 |
|
|
Protocol |
ISO18000-6C (EPC GEN2) GB/T 29768-2013 |
Antenna impedance |
50Ω |
|
|
RF output power |
0-26dbm |
Environmental parameters |
||
|
Reading speed |
＜250 tags/second |
Operating temperature |
-40℃~70℃ |
|
|
Reading range |
0~10m |
Storage temperature |
-40℃~85℃ |
|
|
Output power accuracy |
1dB |
Relative humidity |
10%RH~95%RH |
|
|
Output power flatness |
±0.2dB |
Protection level |
IEC IP51 |
|
|
Chip |
UC8688 |
Physical parameters |
||
|
Tag Cache |
100 pcs@96bit EPC |
Operating voltage |
4.5V~5.5V |
|
|
Tag RSSI |
support |
Standby power consumption |
<20mA |
|
|
Chip temperature detection |
support |
Sleep power consumption |
<5uA |
|
|
Communication interface |
TTL Uart |
Normal operation |
142mA~290mA@5V |
|
|
Maximum baud rate |
Default 115200bps, configurable |

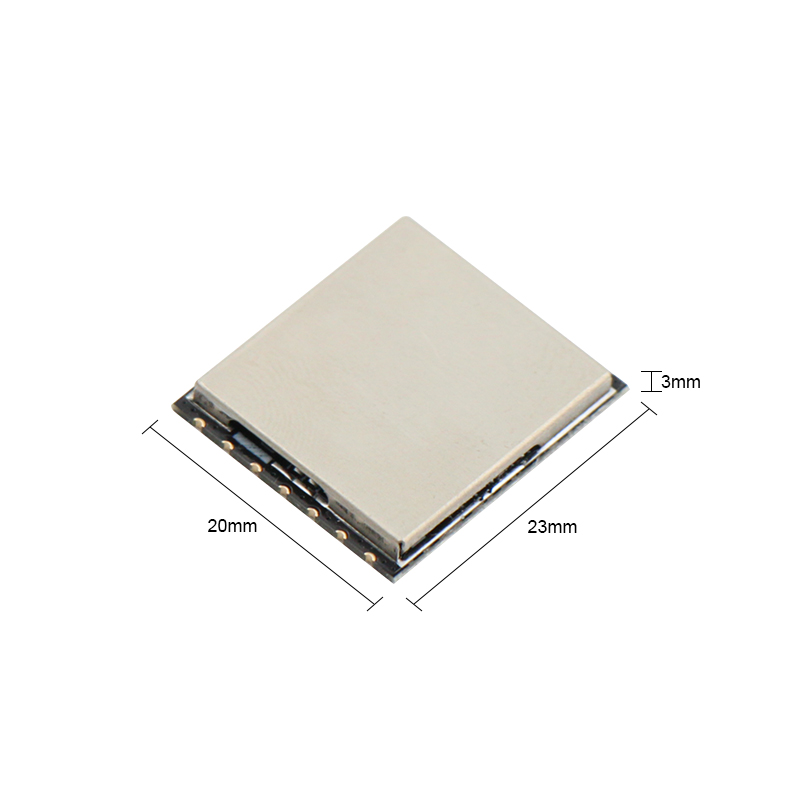

Product size |
23mm x 20mm x 3.0mm |
|

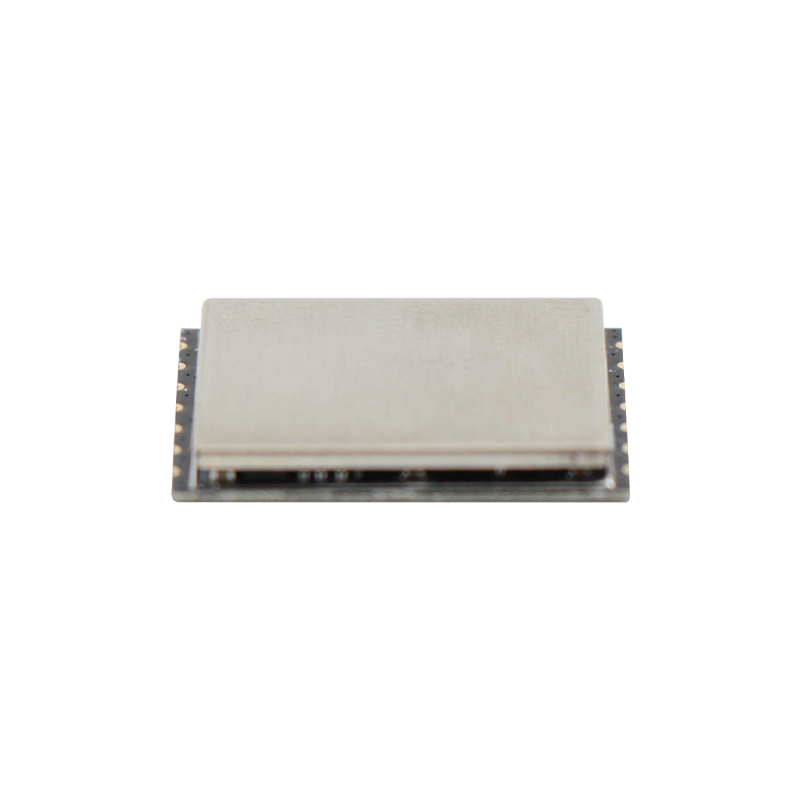

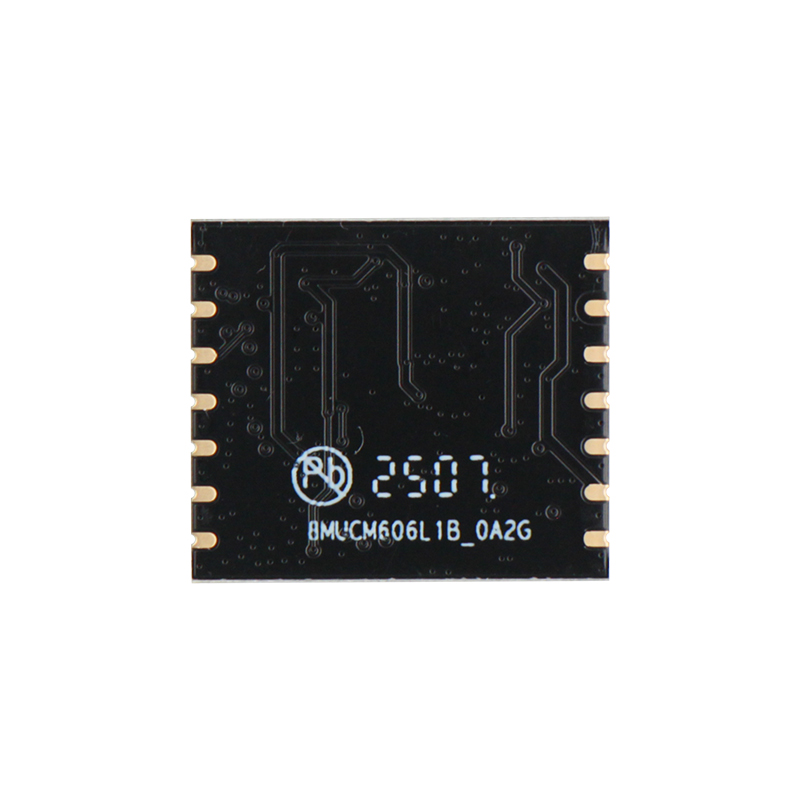

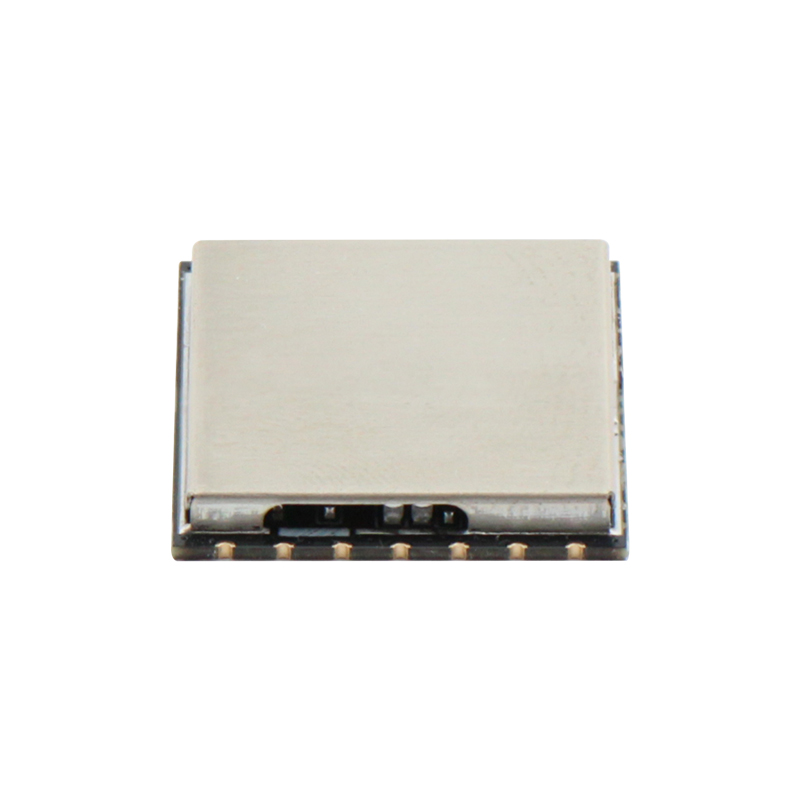

Details display
Module Specifications (Wiring Diagram & Dimensions)
|

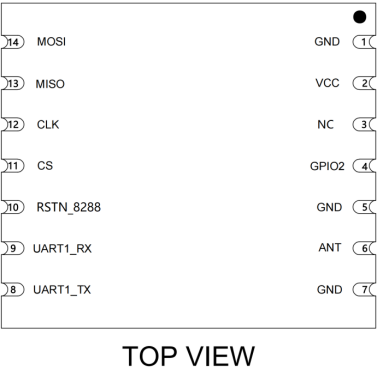

Wiring Definition |
||
|
Bottom pad number |
Definition |
illustrate |
|
1 |
GND |
Ground |
|
2 |
VCC |
4.5~5.5V |
|
3 |
NC |
Can connect to test point |
|
4 |
GPIO2 |
General purpose GPIO |
|
5 |
GND |
Ground |
|
6 |
ANT |
Antenna |
|
7 |
GND |
Ground |
|
8 |
UART1_TX |
Communication serial port, TTL level |
|
9 |
UART1_RX |
Communication serial port, TTL level |
|
10 |
RSTN_8288 |
Reset |
|
11 |
CS |
SPI chip select |
|
12 |
CLK |
SPI Clock |
|
13 |
MISO |
SPI master data output slave data input |
|
14 |
MOSI |
SPI master data input slave data output |

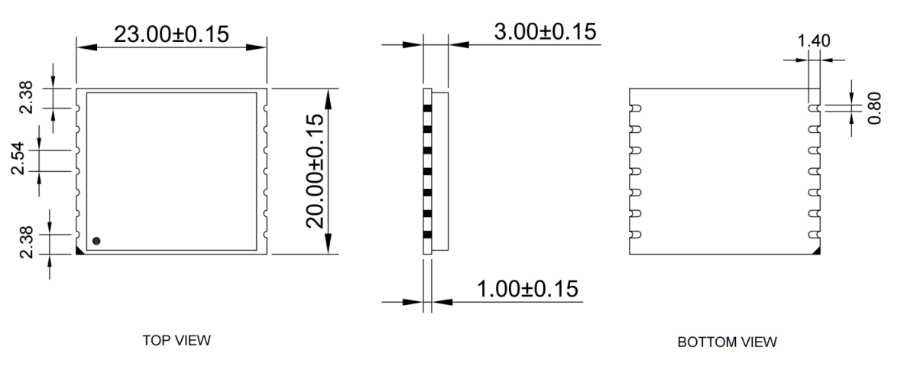

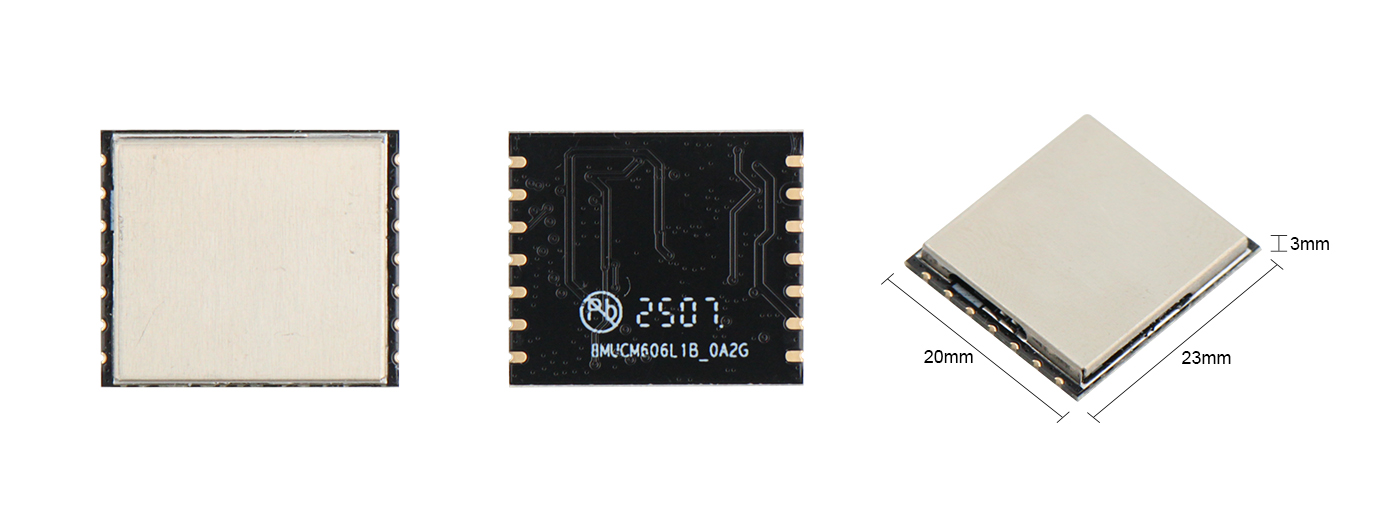

Three-dimensional dimensions

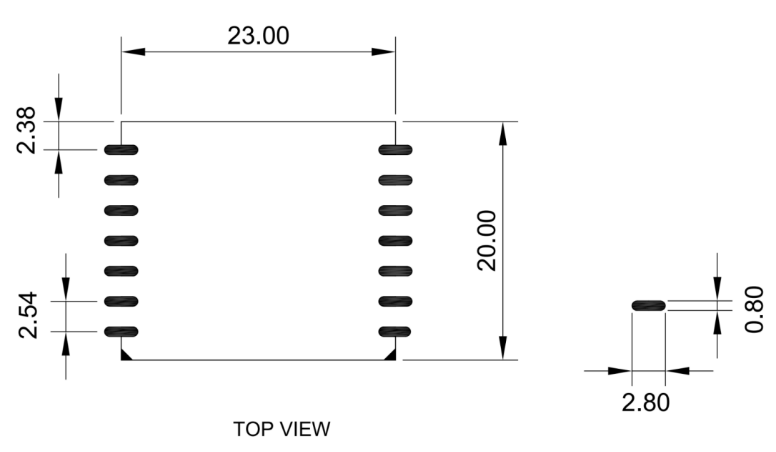

Package size
