CF-E310 UHF Single port module
- Support RSSI to identify tag signal distance
- Low power consumption design, single +3.8V~+5V power supply
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: Handheld device embedding, equipment integration, logistics management, clothing management, smart cabinets, garbage management, etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
902~928MHz (US）865~868MHz （EU） |
Antenna port |

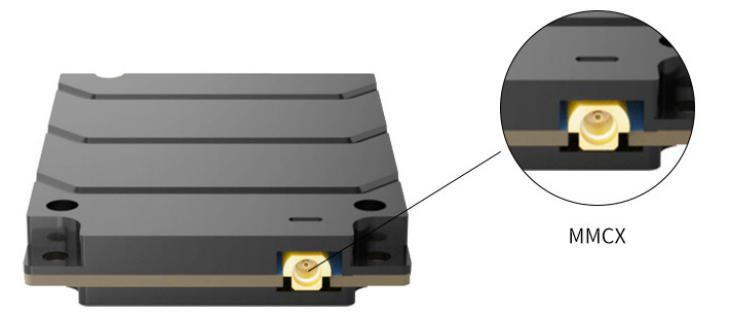

1 MMCX female connector |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Communication interface |
TTL Uart interface, baud rate 115200bps |
|
|
Chip solution |
Impinj E310 |
Transmission mode |
Operates in wide spectrum frequency hopping (FHSS) or fixed frequency transmission mode |
|
|
RF output power |
0-33dbm (adjustable) |
Operating voltage |
3.8--5.5V |
|
|
Read speed |
250 tags/s |
Operating mode power consumption |
<6.9W (typical value) |
|
|
Data cache |
1000 @96bit EPC tag |
Standby mode power consumption |
0.25W |
|
|
Read distance |
>12 meters (external 8dBi antenna, label E41) |
Sleep mode power consumption |
0.05W |
|
|
Working mode |
Active mode Answer mode |
Logic level |
VIL -0.5~0.8V VIH +2~3.3V |
|
|
RSSI |
Support |
Connector |
12pin pin header |
|
|
Environmental parameters |
Development Environment |
|||
|
Cooling method |
External cooling |
SDK |
Demo software, API, examples, user manual |
|
|
Operating temperature |
-20℃~+60℃ |
Development language |
C#, Delphi, Java, Python, VB and other languages |
|
|
Storage temperature |
-40℃~+85℃ |
Firmware version |
Support online upgrade |
|
|
Operating humidity |
<95% (25℃) |
Physical parameters |
||
|
|
Size |
57x36.8x7.3mm |
||
|
|
|
|
Weight |
22.2g |

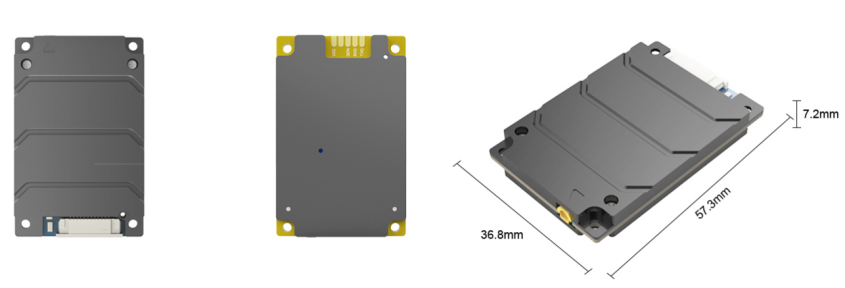

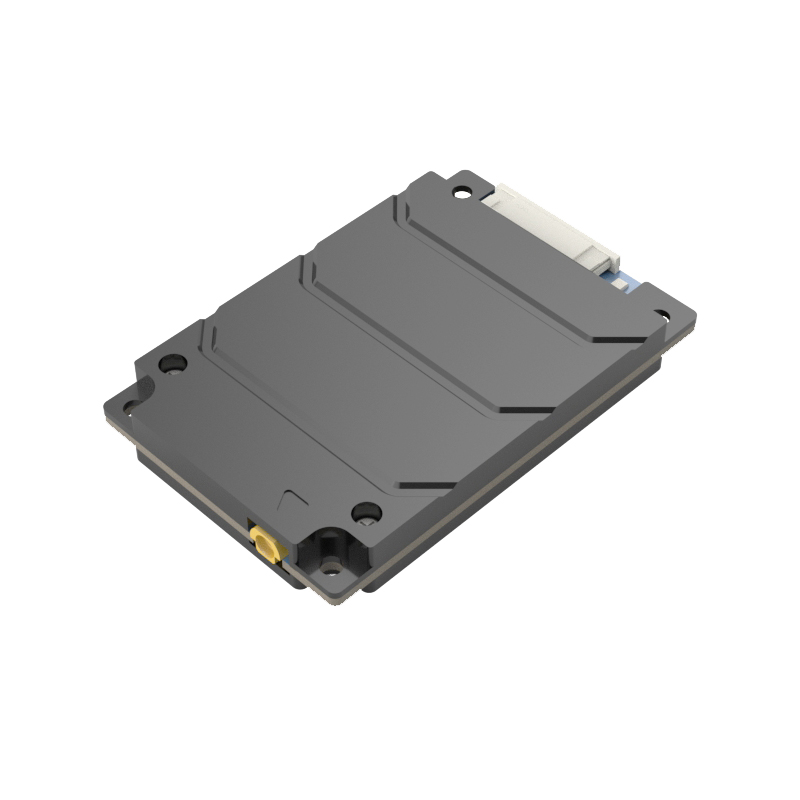

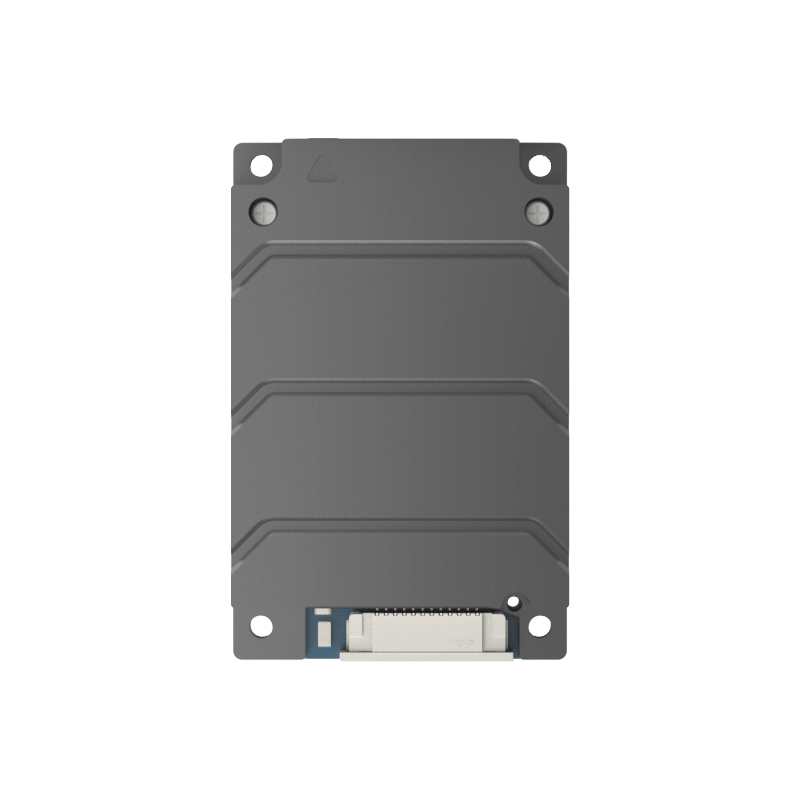

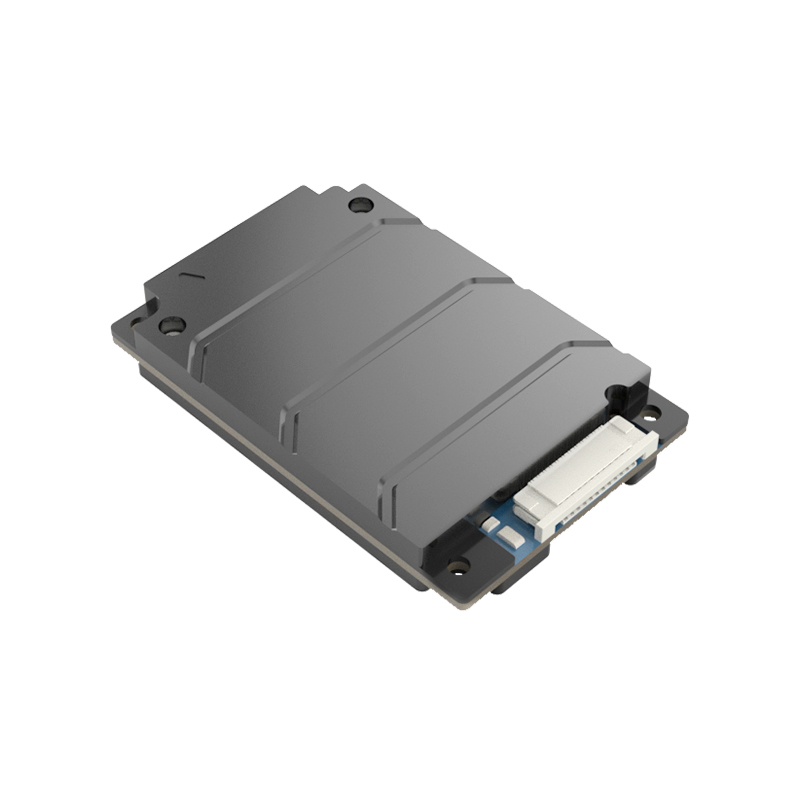

Details display
|

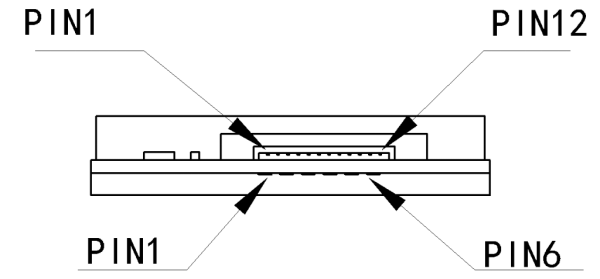

Wiring Definition |
|||
|
Socket number |

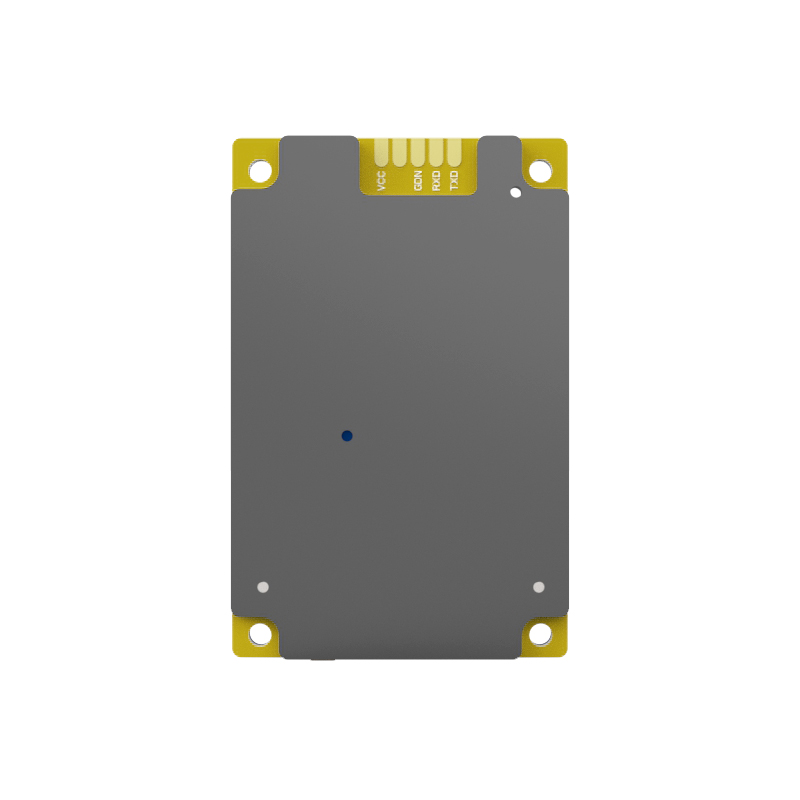

Bottom pad number |
symbol |
describe |
|
1 |
1 |
VCC |
Power supply |
|
2 |
1 |
VCC |
Power supply |
|
3 |
2 |
GND |
Ground |
|
4 |
2 |
GND |
Ground |
|
5 |
3 |
EN |
Enable terminal, high level is valid |
|
6 |
|
Reserved |
(Internal 10k resistor can be selected to pull up to VCC) |
|
7 |
|
Reserved |
Reserved |
|
8 |
4 |
Reserved |
Reserved |
|
9 |
5 |
RXD |
Reserved |
|
10 |
6 |
TXD |
Serial communication data input terminal |
|
11 |
|
Reserved |
Serial communication data output terminal |
|
12 |
|
Reserved |
Reserved |

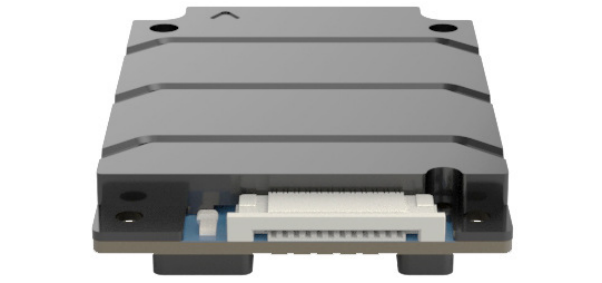

Interface Board
|
|
|
|
Single module |

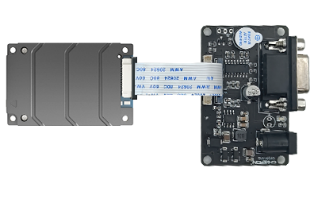

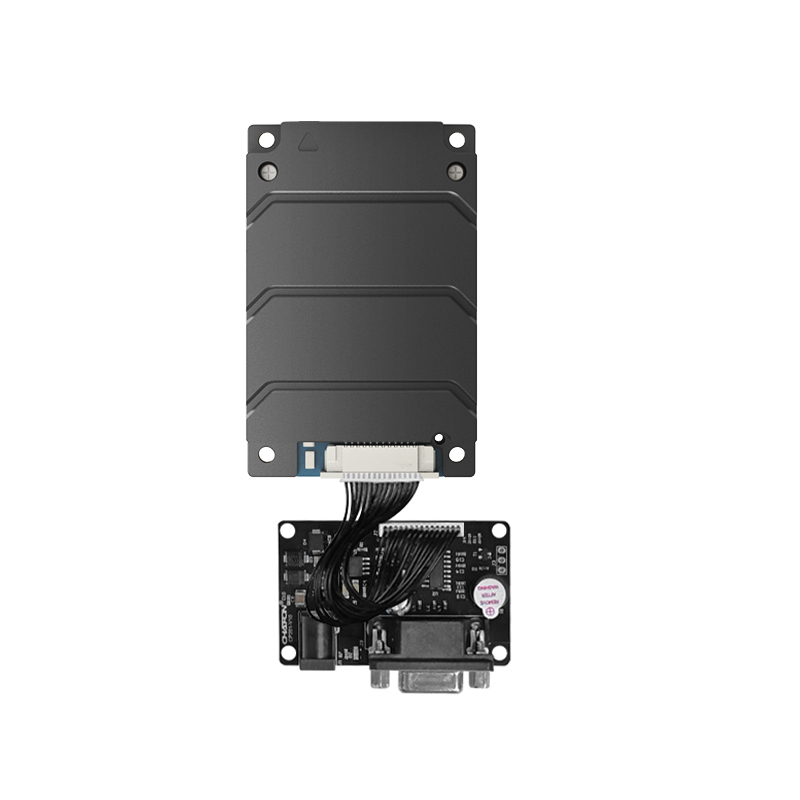

Module + RS232 interface board (optional) |
Related Products
|
Image |
|
|
|
Model |
CF-E310 |
CF-E314 |
|
Chip Solution |
Impinj E310 |
Impinj E310 |
|
Output RF Power |
0dbm ~33dbm (adjustable) |
|
|
Reading Speed |
250pcs/s |
|
|
Reading Distance |
0~12 meters (depending on antenna & tag & application environment) |
|
|
Antenna Port |
1 MMCX female |
4 SMA female |
