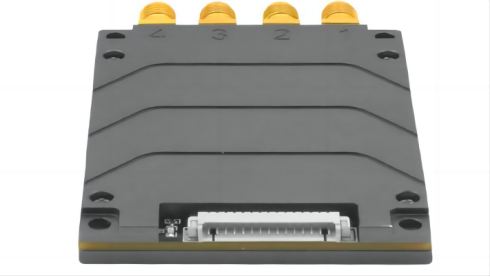

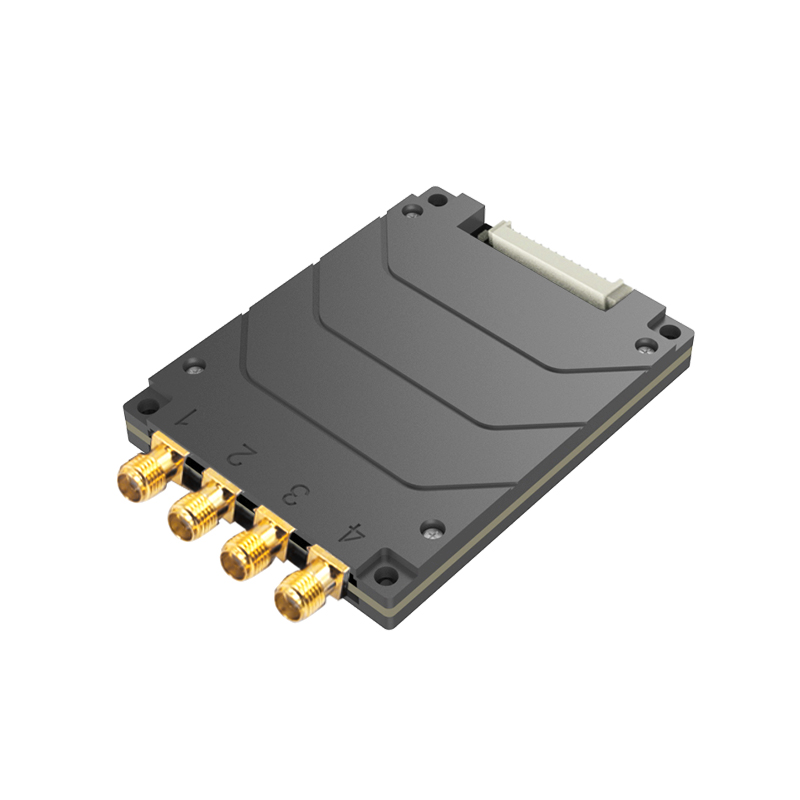

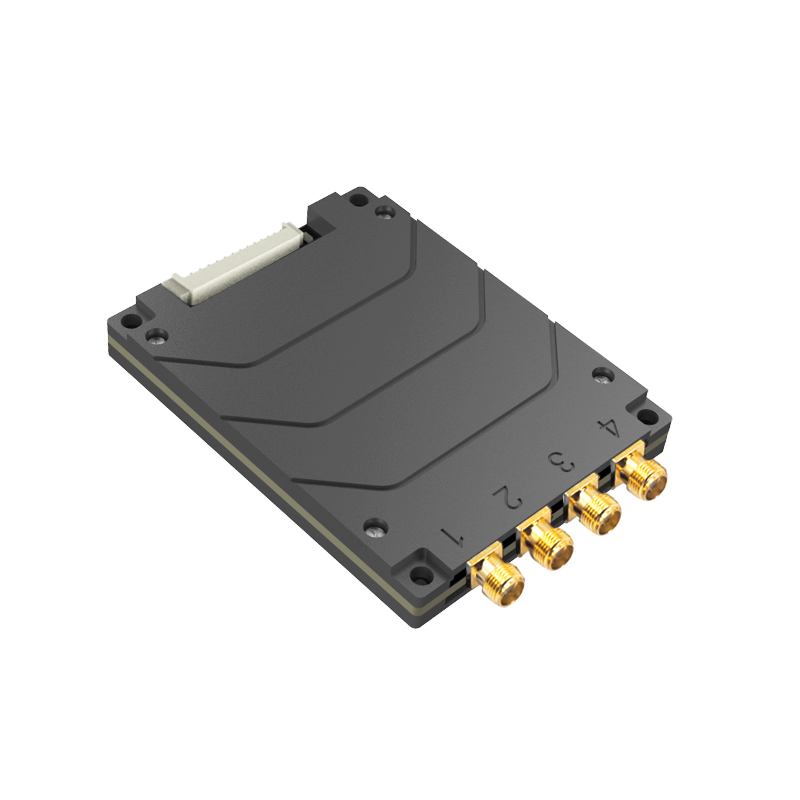

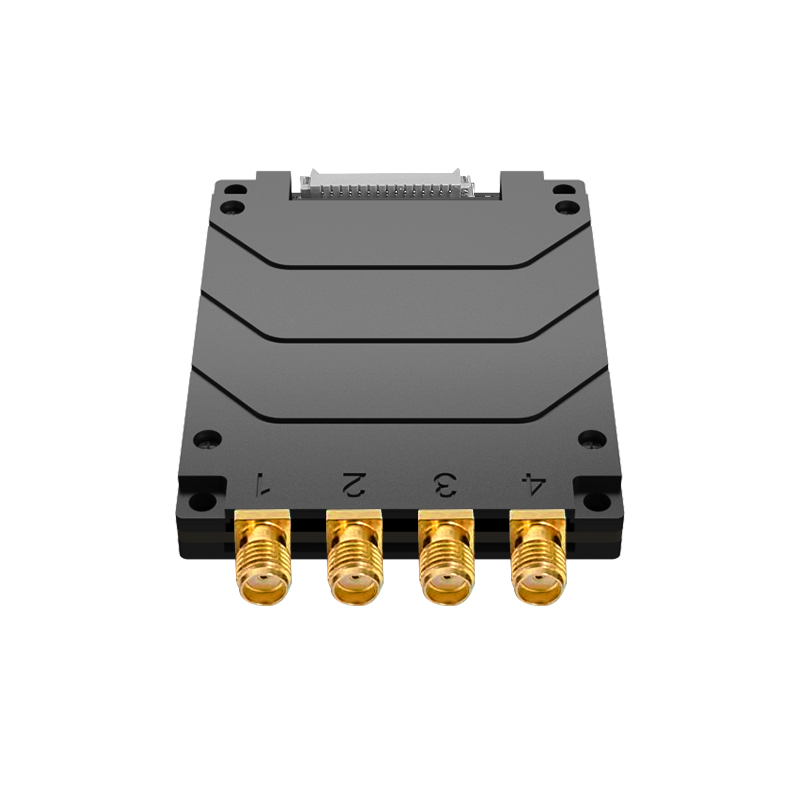

CF-E514 UHF Four-port module
- Support RSSI to identify tag signal distance
- 2 groups of GPI & 2 groups of GPO, can control external devices
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: Handheld device embedding, equipment integration, logistics management, clothing management, smart cabinets, garbage management, etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
902~928MHz (US）865~868MHz （EU） |
Antenna port |
4 SMA female connectors |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Communication interface |
TTL Uart interface, baud rate 115200bps |
|
|
Chip solution |
Impinj E510 |
GPIO interface |
3.3V 2-way input 2-way output |
|
|
RF output power |
0-33dbm (adjustable) |
Operating voltage |
3.8--5.5V |
|
|
Read speed |
700 tags/s |
Operating mode power consumption |
<6.9W (typical value) |
|
|
Data cache |
1000 @96bit EPC tag |
Standby mode power consumption |
0.25W |
|
|
Read distance |
>12 meters (external 8dBi antenna, label E41) |
Sleep mode power consumption |
0.05W |
|
|
Working mode |
Active mode Answer mode |
Logic level |
VIL -0.5~0.8V VIH +2~3.3V |
|
|
RSSI |
Support |
Connector |
15pin pin header, 1.25mm spacing molex 53261-1571 |
|
|
Environmental parameters |
Development Environment |
|||
|
Cooling method |
External cooling |
SDK |
Demo software, API, examples, user manual |
|
|
Operating temperature |
-20℃~+60℃ |
Development language |
C#, Delphi, Java, Python, VB and other languages |
|
|
Storage temperature |
-40℃~+85℃ |
Firmware version |
Support online upgrade |
|
|
Operating humidity |
<95% (25℃) |

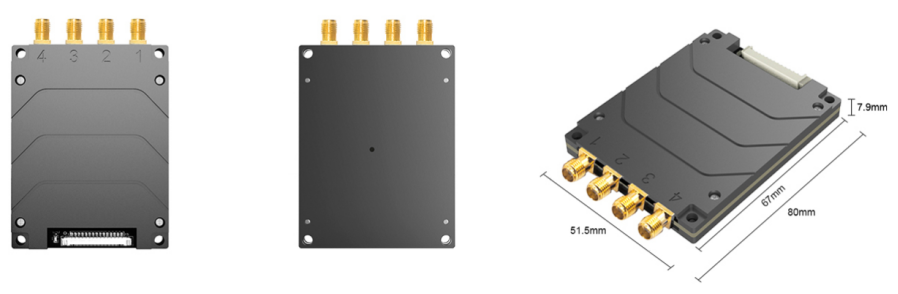

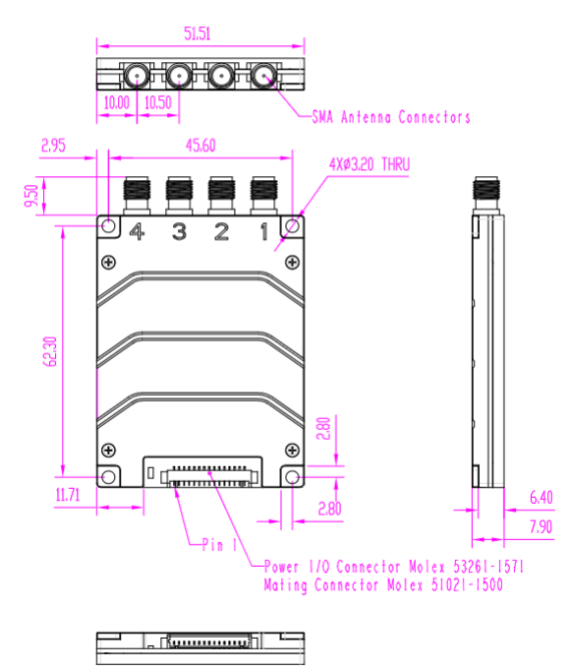

Physical parameters |
||
|
|
Size |
67*51.5*7.9mm |
||
|
|
|
|
Weight |
69g |
Details display
|

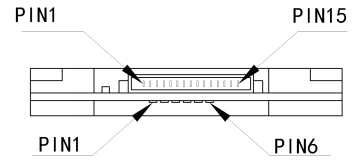

Wiring Definition |
|||
|
Socket number |
Bottom pad number |
symbol |
describe |
|
1 |
1 |
GND GND |
Ground
|
|
2 |
1 |
||
|
3 |
2 |
VCC VCC |
Power supply |
|
4 |
2 |
||
|
5 |
4 |
GPO1 |
Universal output port (3.3VTTL level)
|
|
6 |
|
GPO2 |
|
|
7 |
|
GPI1 |
Universal input port (3.3VTTL level) |
|
8 |
|
BUZZER |
Buzzer output, high level valid Driven, can output current |
|
9 |
5 |
RXD |
Serial communication data input terminal |
|
10 |
6 |
TXD |
Serial communication data output terminal |
|
11 |
|
Reserved |
Reserved |
|
12 |
|
Reserved |
|
|
13 |
|
GPI2 |
Universal input port (3.3VTTL level) |
|
14 |
3 |
EN |
Enable terminal, high level is valid |
|
15 |
|
RS485_CTRL |
(Internal 10k resistor can be selected to pull up to VCC) |
Interface Board
|
|
|
|
Single module |

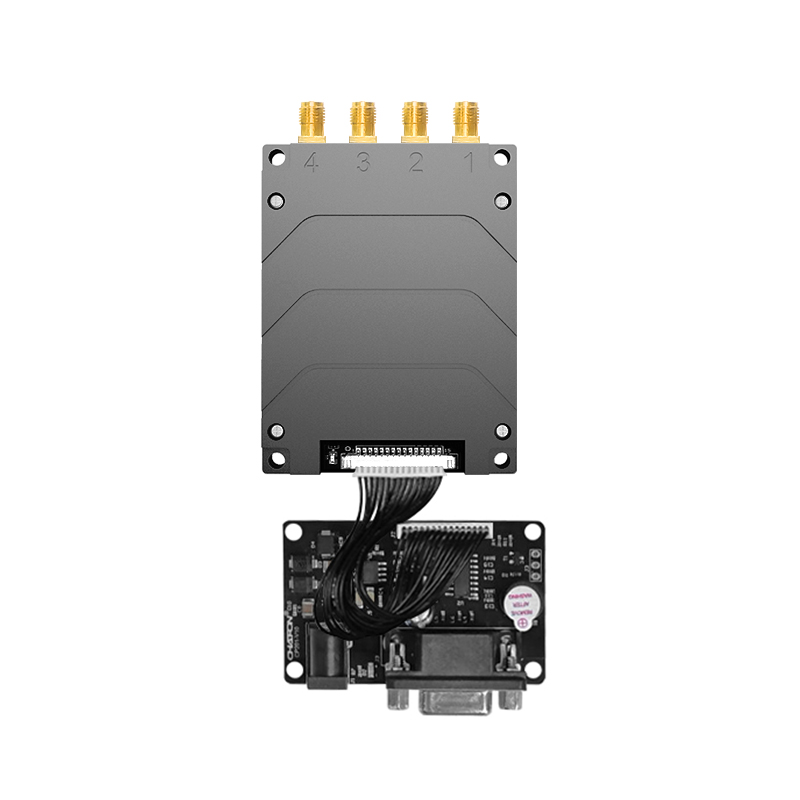

Module + RS232 interface board (optional) |
Related Products
|
Image |
|
|
|
Model |
CF-E510 |
CF-E514 |
|
Chip Solution |
Impinj E510 |
Impinj E510 |
|
Output RF Power |
0dbm ~33dbm (adjustable) |
|
|
Reading Speed |
700pcs/s |
|
|
Reading Distance |
0~12 meters (depending on antenna & tag & application environment) |
|
|
Antenna Port |
1 MMCX female |
4 SMA female |
