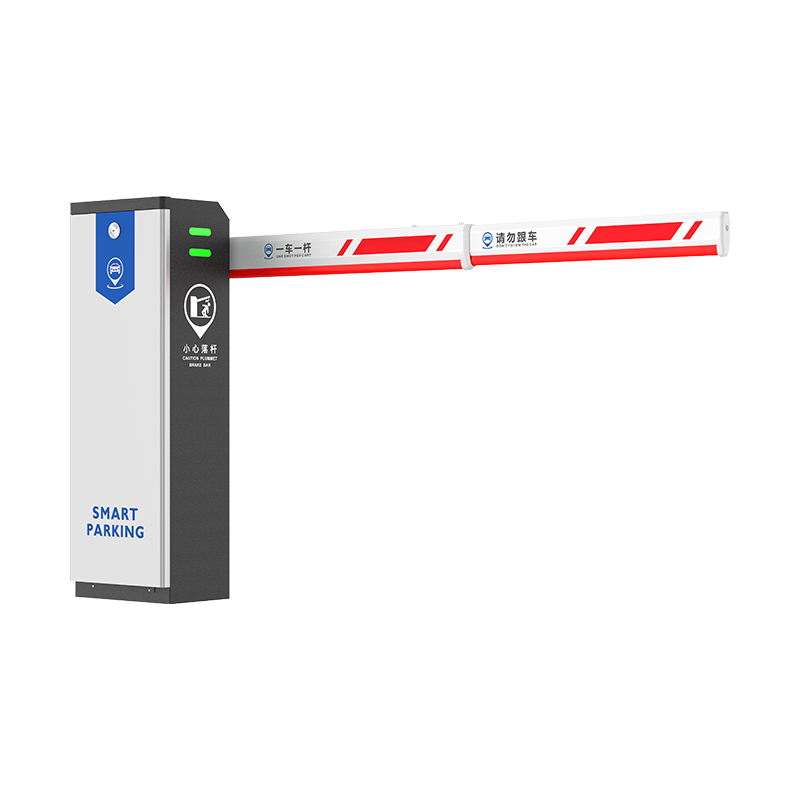

B10 Brushless DC Barrier Gate

-The chassis is durable, waterproof, and can be used in outdoor environments
-Using an integrated movement and full-mold quantitative production, which greatly improves product stability and ensures the operating accuracy of the barrier gate.
-Adopting a precise four-bar linkage mechanism, the gate rod operates quickly and smoothly, effectively reducing the vibration of the gate rod, reducing the load on the motor, and extending the service life of the gate.
-100W DC servo motor, smooth transmis

Product Specifications

Operating Voltage

DC24V

Motor Power

100W

Use ambient temperature

-30℃~80℃

Relative humidity

≤90%

Gate pole length

2 meters (without tape)

Lifting time

Choose the corresponding movement according to the speed and rod length (there are two types: 1.8~3S and 3~6S)

Gate rod center height from the ground

880mm

Remote control distance

≤30M

Protection level

IP54

input interface

Switching signal or high level signal

Remote control frequency

430.5MHz

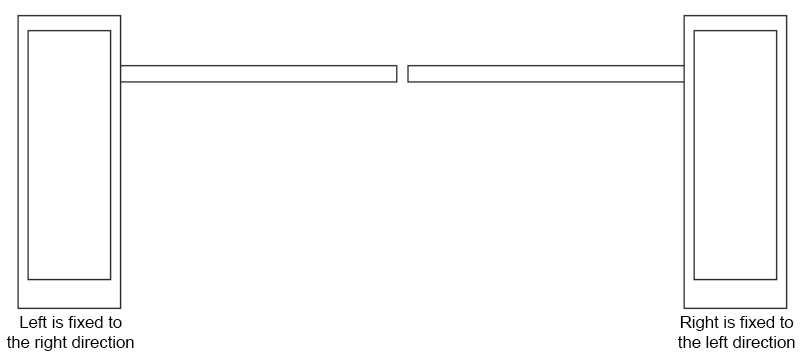

Definition of gate direction

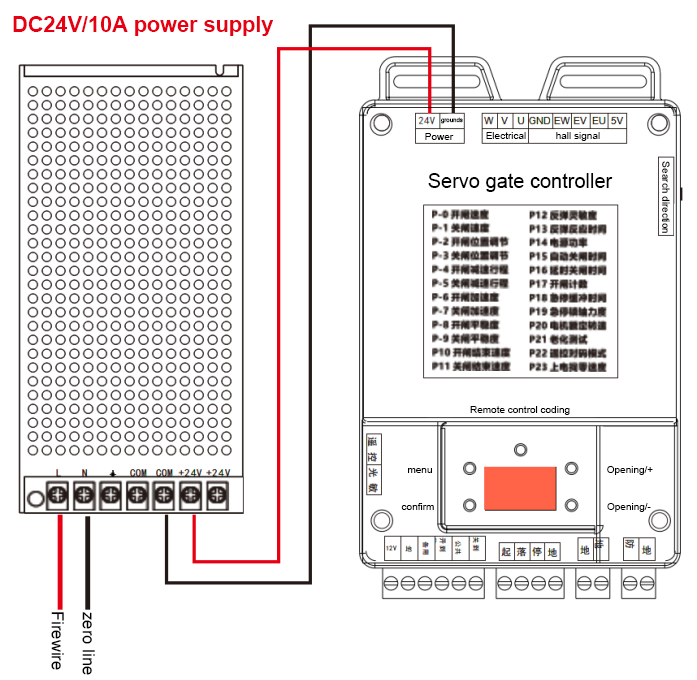

Wiring instructions

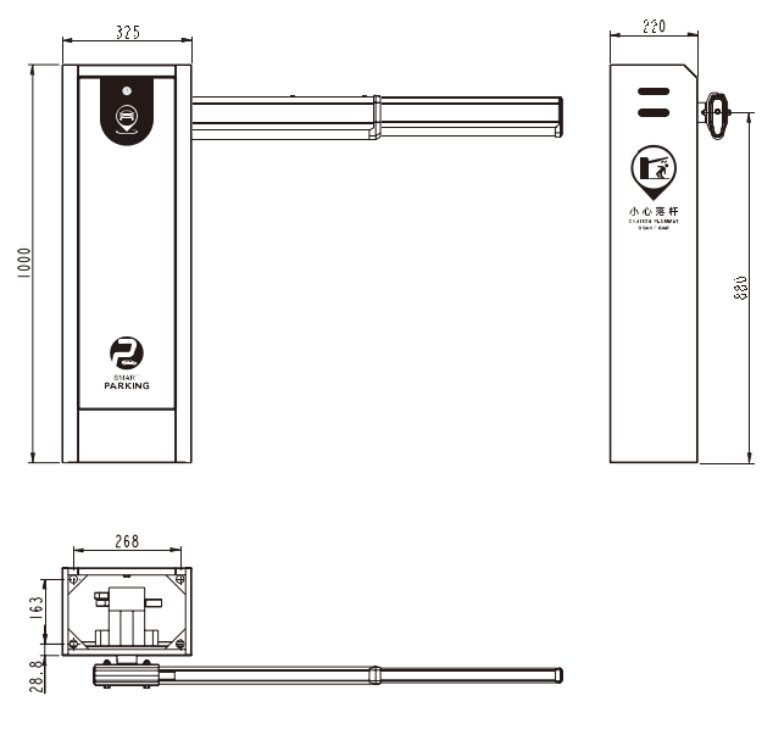

Overall dimensions and base fixing hole dimensions

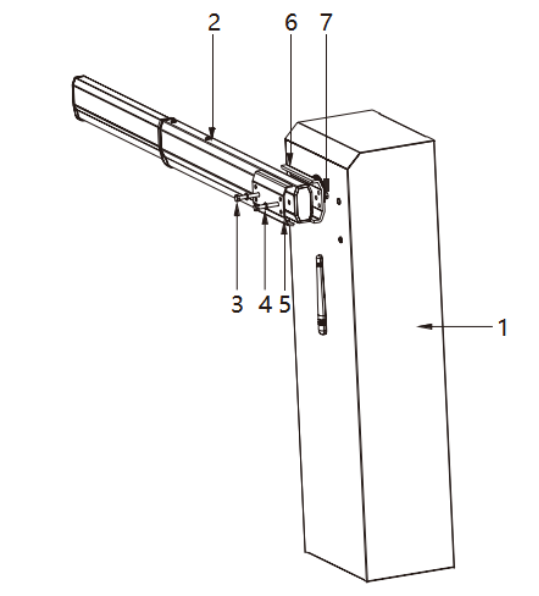

Overall structure of servo barrier gate

Serial number

Name

Dosage

1

Gate host

1

2

gate rod

1

3

External hexagon head bolt M8*65 (stainless steel 304)

2

4

Flat pad Φ8 (stainless steel 304)

2

5

handle cover

1

6

handlebar

1

7

Hexagonal lock nut M8

2
