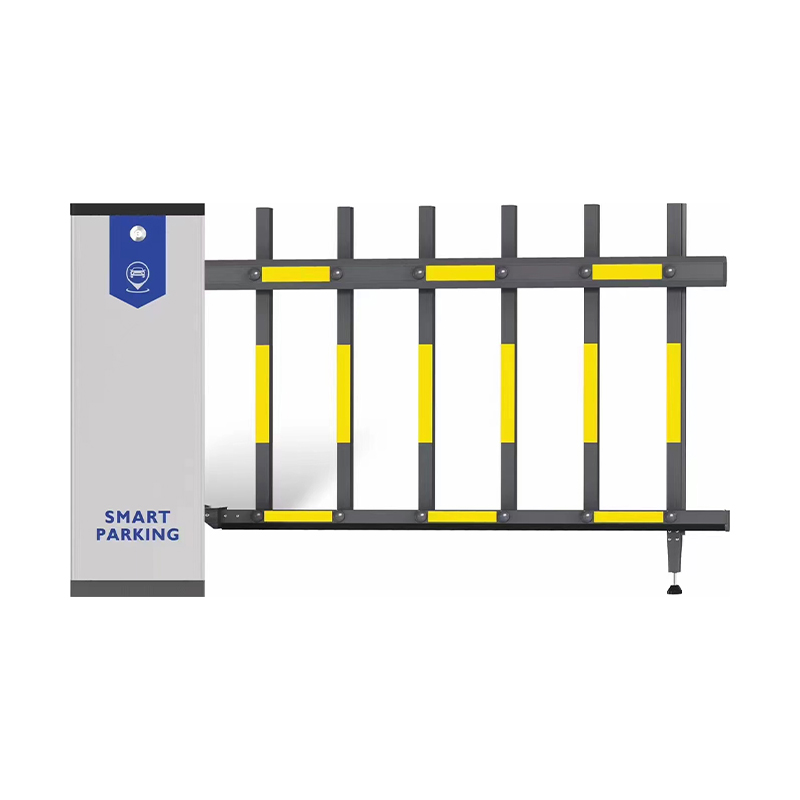

B11 Parking Servo barrier
-Using an integrated movement and full-mold quantitative production, which greatly improves product stability and ensures the operating accuracy of the barrier gate.
-60W DC servo motor, smooth transmission and low noise
-Automatically lift the pole during power outage, convenient and fast
Product technical specifications
|
Operating Voltage |
DC24V |
|
Motor Power |
60W |
|
Use ambient temperature |
-30℃~80℃ |
|
Relative humidity |
≤90% |
|
Gate pole length |
≤6M |
|
Lifting time |
1.8~3S |
|
Gate rod center height from the ground |
890mm |
|
Remote control distance |
≤30M |
|
Protection level |
IP54 |
|
input interface |
Switching signal or high level signal |
|
Remote control frequency |
430.5MHz |

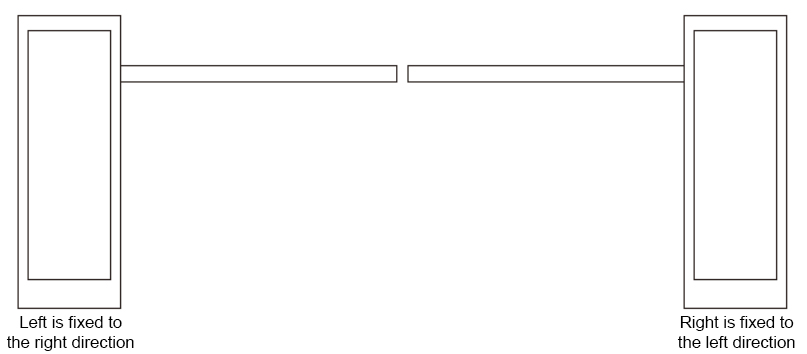

Definition of gate direction

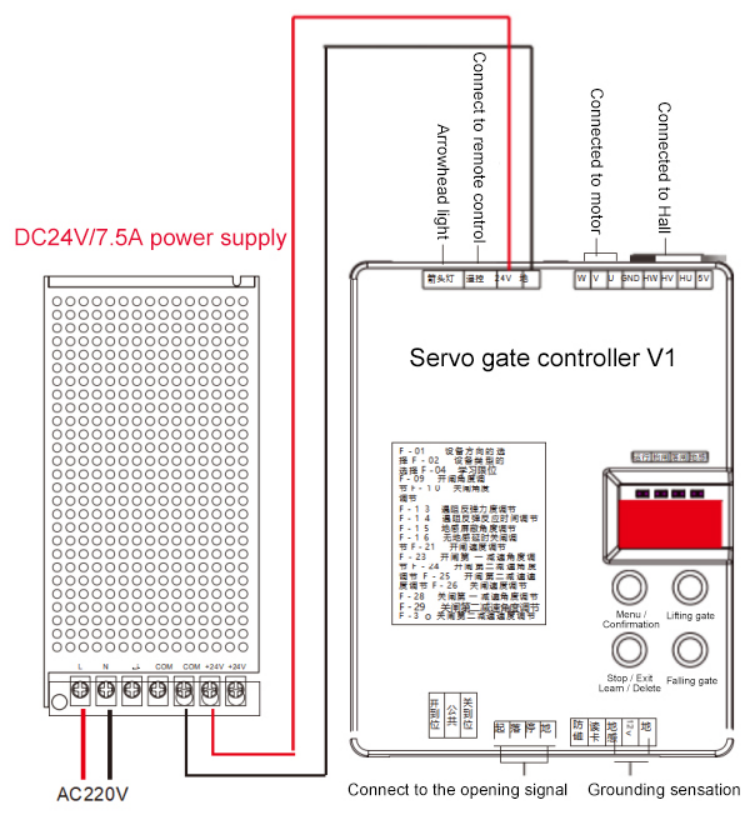

Wiring instructions

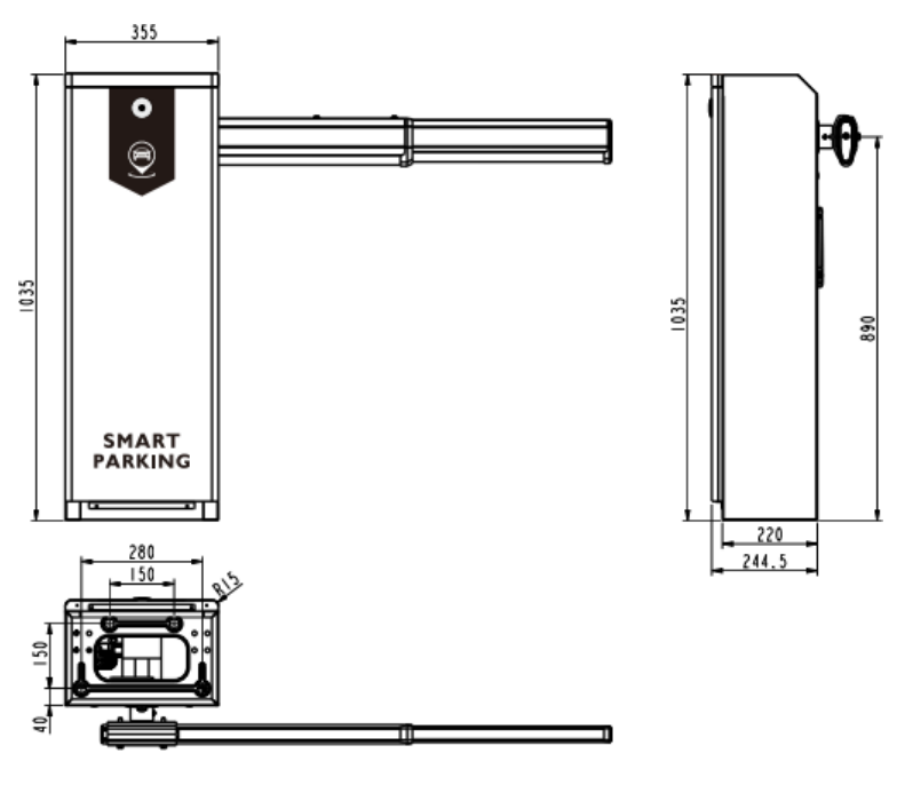

Overall dimensions and base fixing hole dimensions

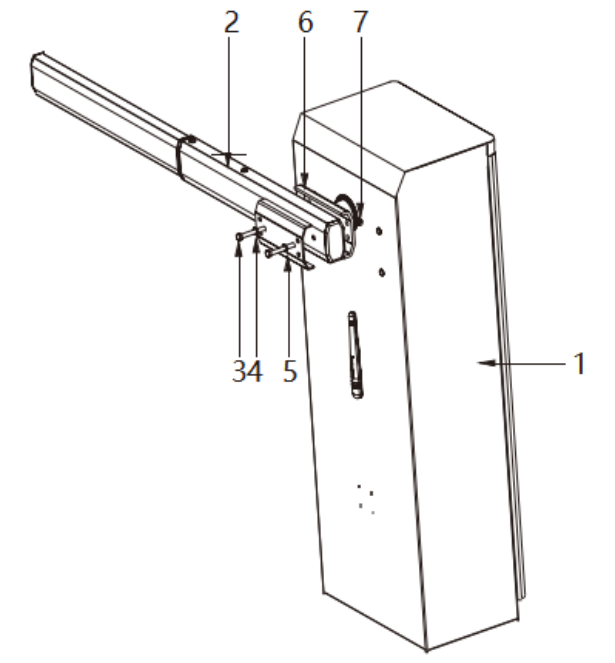

Overall structure of servo barrier gate
|
Serial number |
Name |
Dosage |
|
1 |
Gate host |
1 |
|
2 |
gate lever |
1 |
|
3 |
External hexagon head bolt M8*65 (stainless steel 304) |
2 |
|
4 |
Flat pad Φ8 (stainless steel 304) |
2 |
|
5 |
handle cover |
1 |
|
6 |
handlebar |
1 |
|
7 |
Hexagonal lock nut M8 |
2 |
