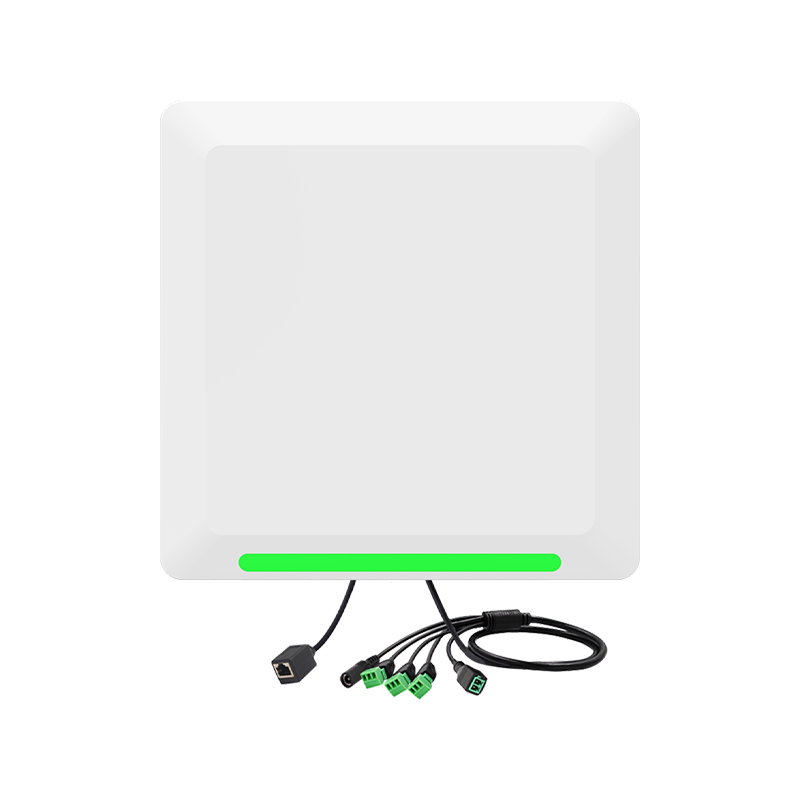

A300 ACCESS Control system integrated reader

0~15m distance

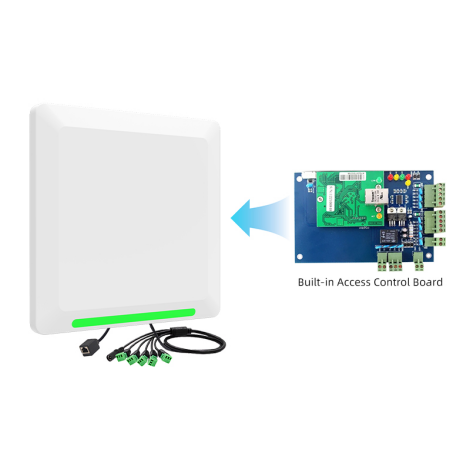

built-in controller
come with full parking software

Product Specifications

RFID Technical Parameters			Data Communication

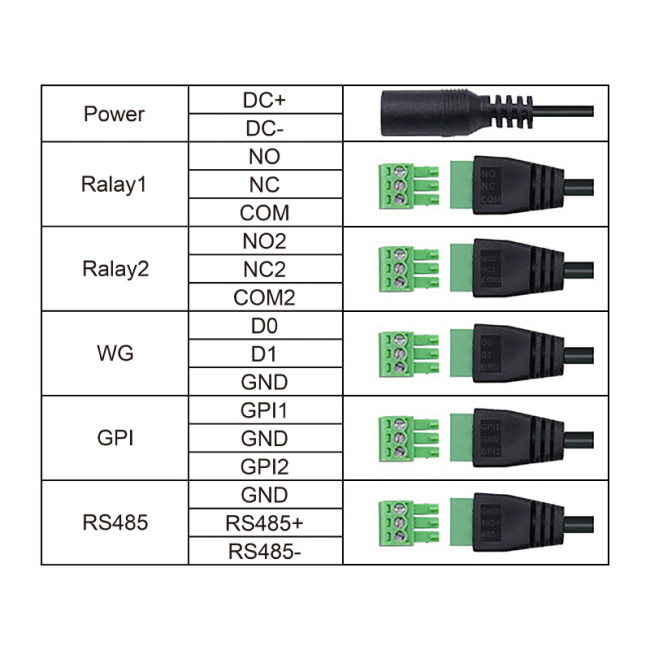

Frequency	902~928MHz（US） 865~868MHz（EU）		Standard interface	TCP/IP, Wiegand, relay, power port, GPI, RS485
Protocol	ISO18000-6C (EPC GEN2)		Power supply	12V 2A
RF output power	0dbm-26dbm (adjustable)		Card reading prompt tone	Buzzer
Built-in antenna	12dBi		Indicator light	Strip light, red light & green light
Polarization mode	Circular polarization		Firmware version	Support online upgrade
Reading distance	0-15 meters		Software Features
Working mode	Active mode Trigger mode Answer mode		language	Chinese/English switch (Other countries can be customized）
Physical parameters			Type of Charge	Monthly rental car, temporary car

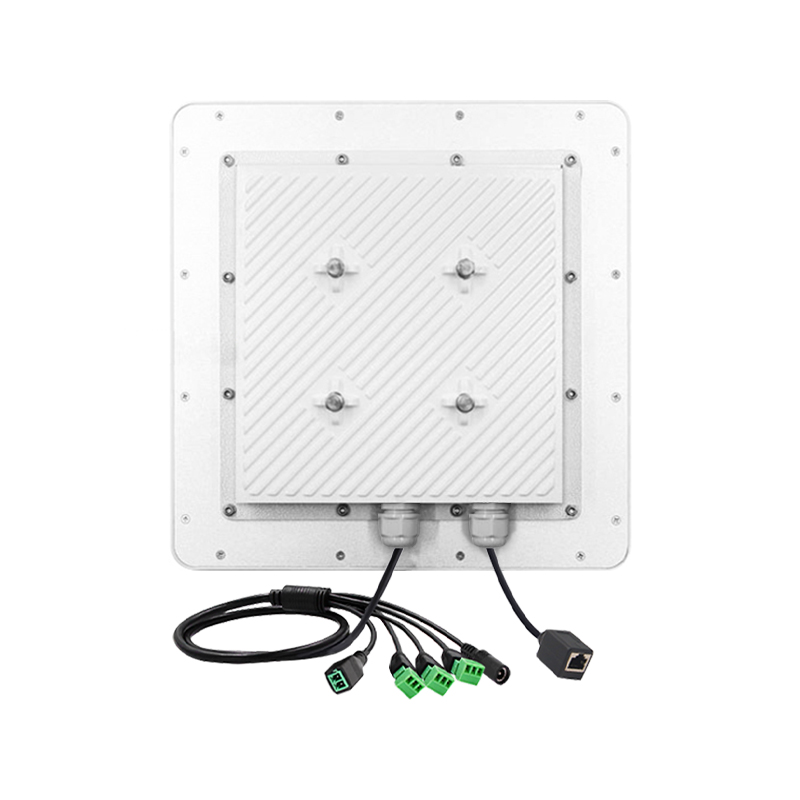

Material	ABS+die-cast aluminum back cover		Whitelist function	100000Pcs@96bit
Color	White		Disconnected data cache	Support
Dimensions	30530575mm		Work Environment
Net Weight	2kg		IP protection level	IP65
Packing Dimensions	423511cm		Operating temperature	-10~+55℃
Packing Weight	3.5kg		Storage temperature	-20~+75℃

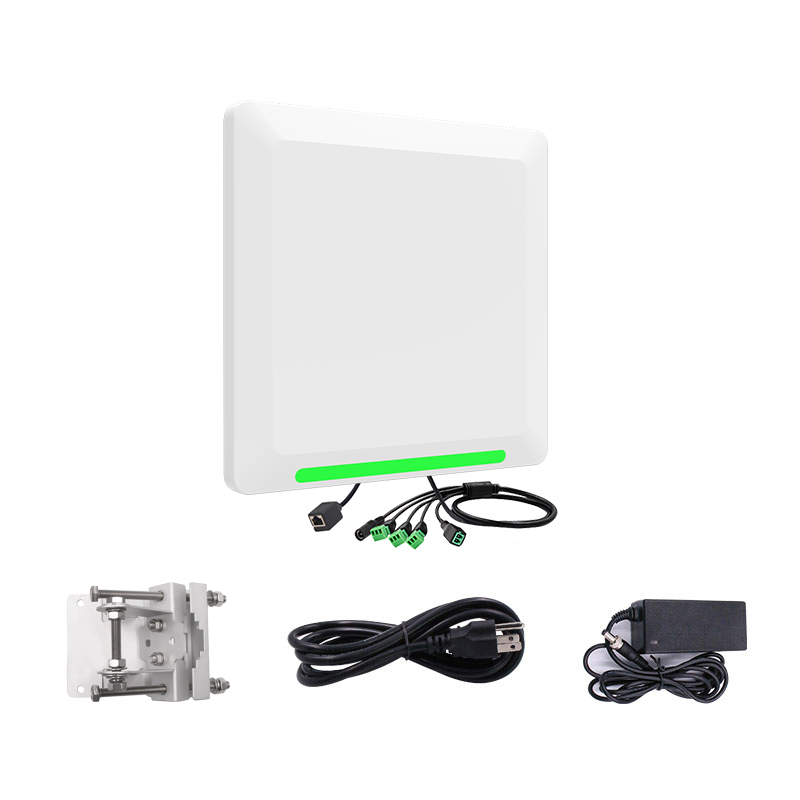

Details display

Basic software functions

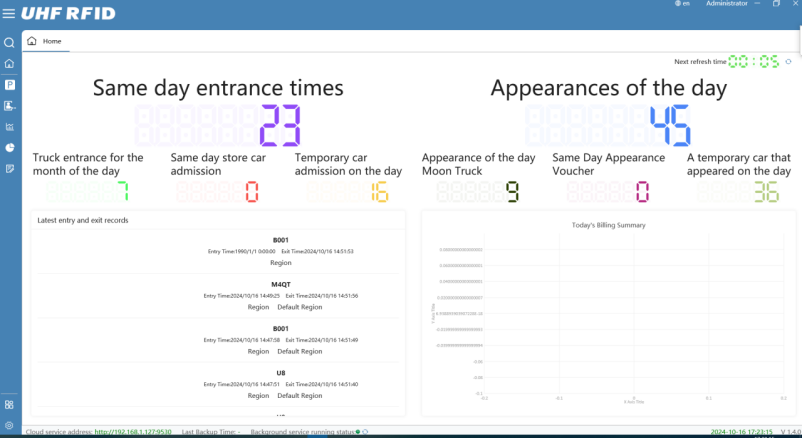

Main Interface

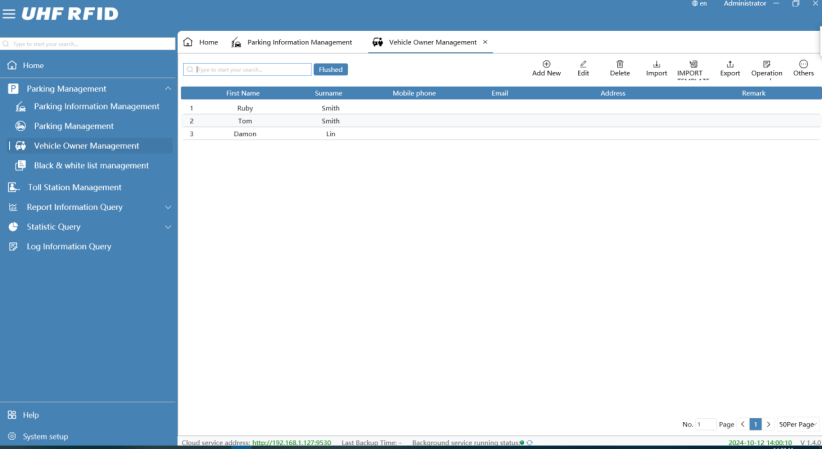

Car owner management

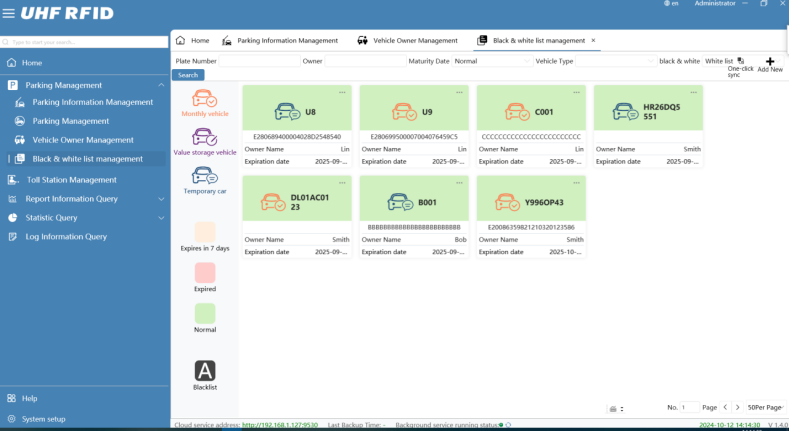

Blacklist and whitelist management

In and out records

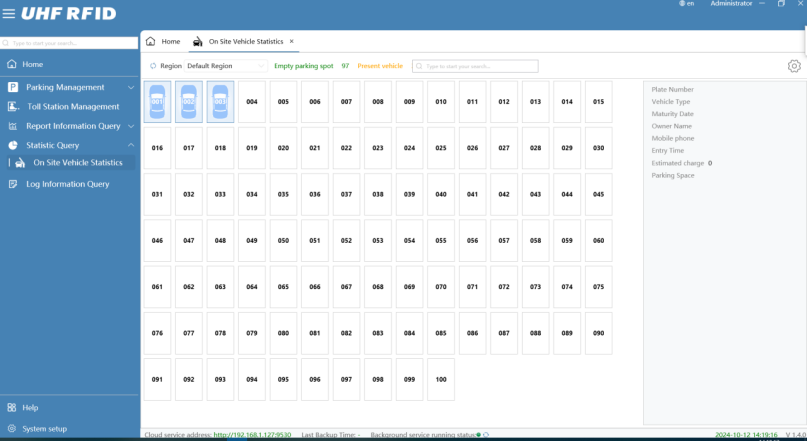

Vehicle statistics on site

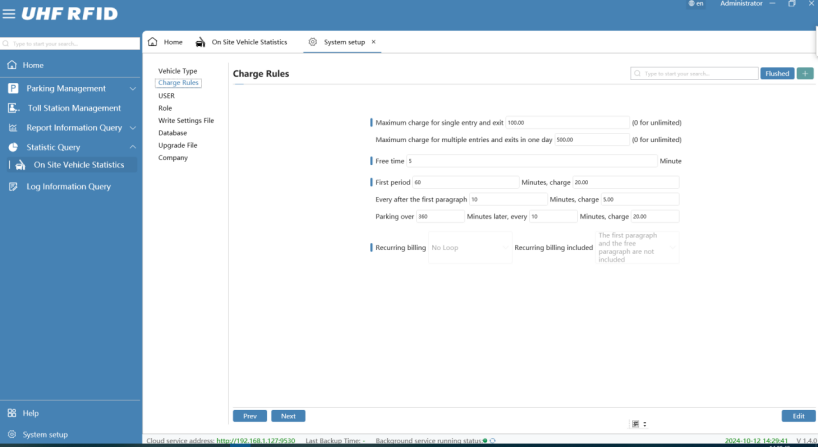

Charging Rules

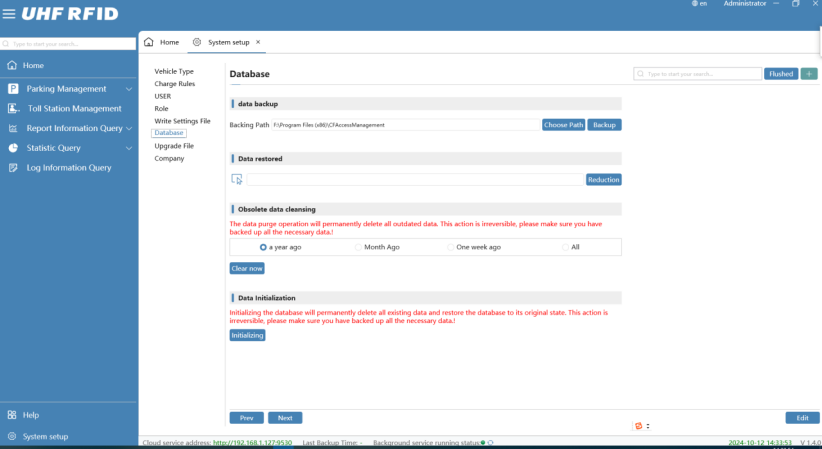

Data backup

Related Products

Model	A100	A200	A300
Output RF Power	0dbm ~26dbm (adjustable)
Reading Range	0~6 meters (depending on the tag & application environment)	0~10 meters (depending on the tag & application environment)	0~15 meters (depending on the tag & application environment)
Gain	6dBi	9dBi	12dBi
Polarization	Circular Polarization	Circular Polarization	Linear polarization

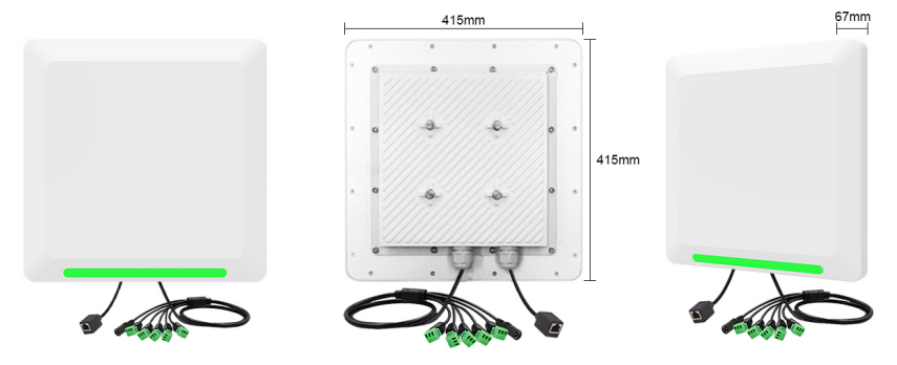

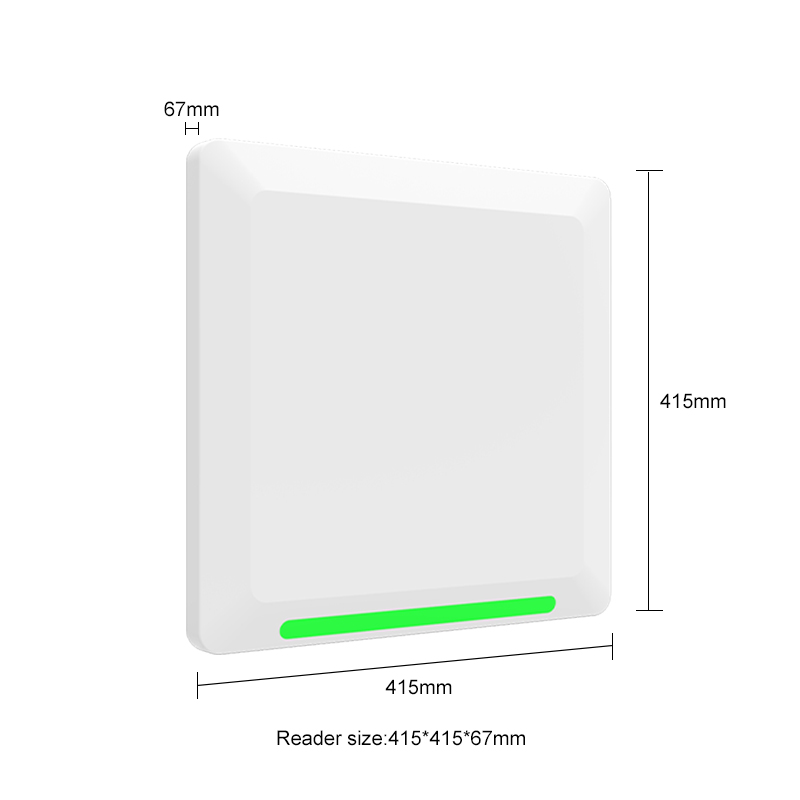

Dimensions	22022056.4mm	30530575mm	41541567mm

Application

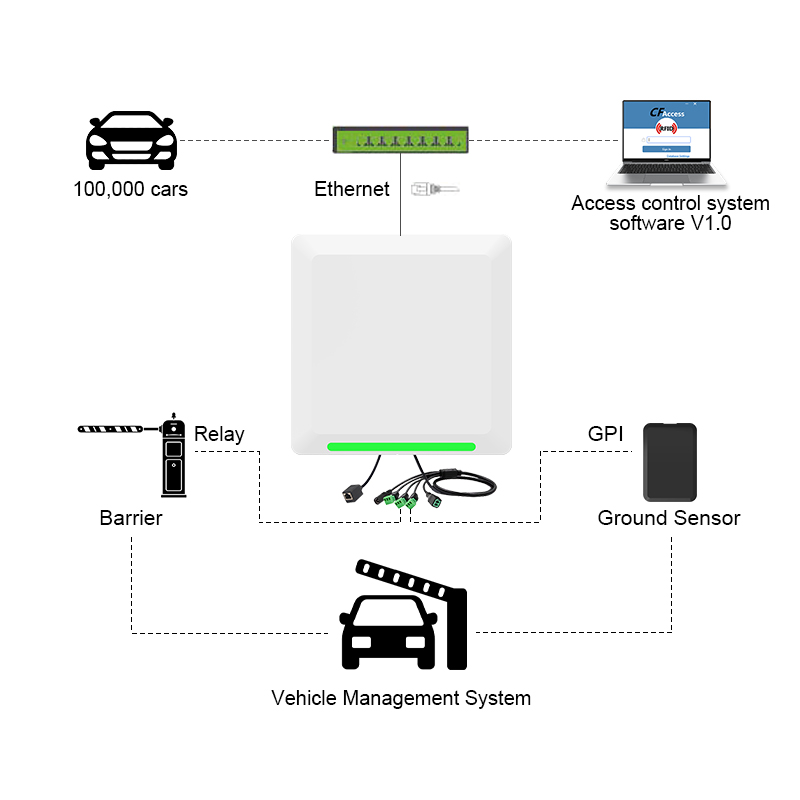

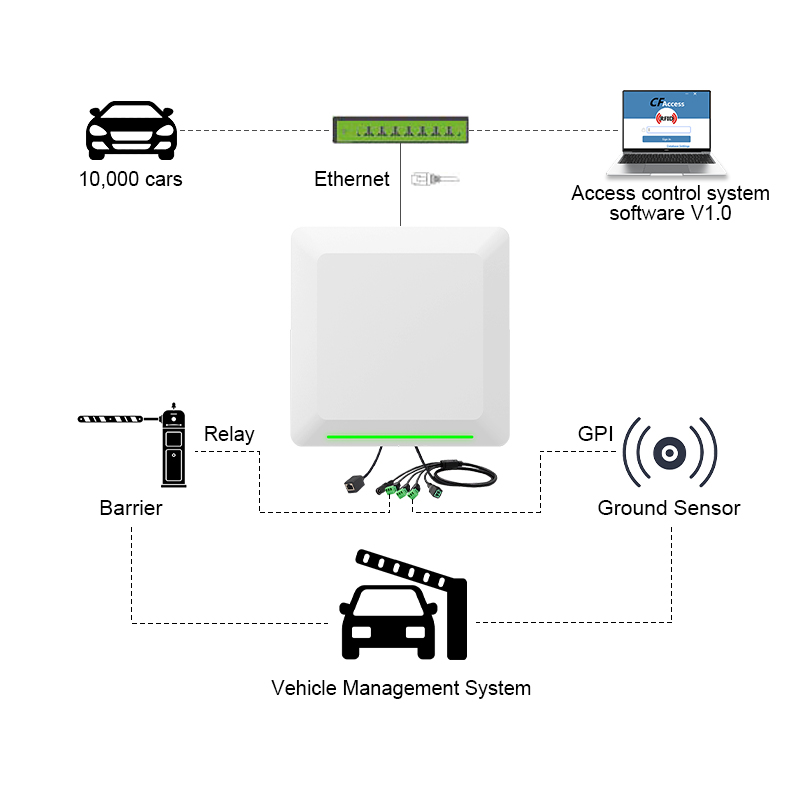

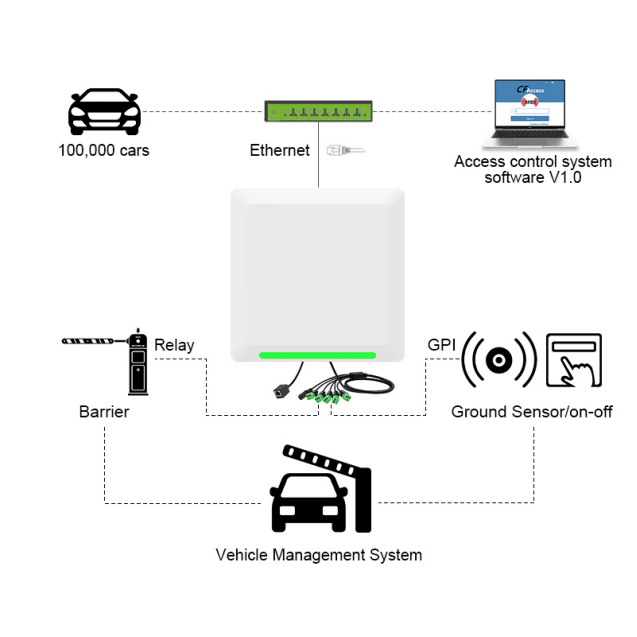

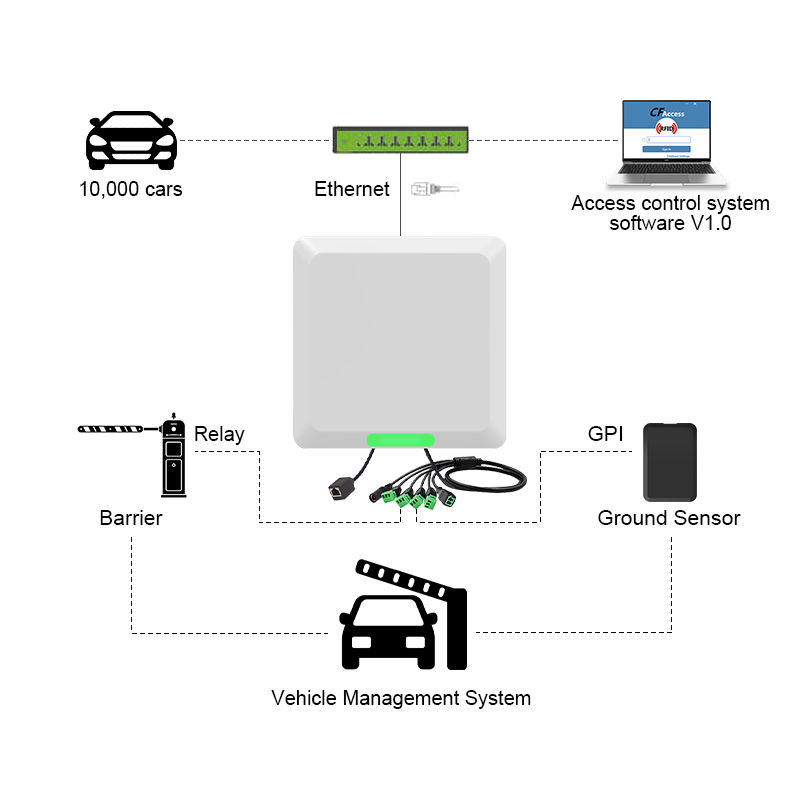

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
