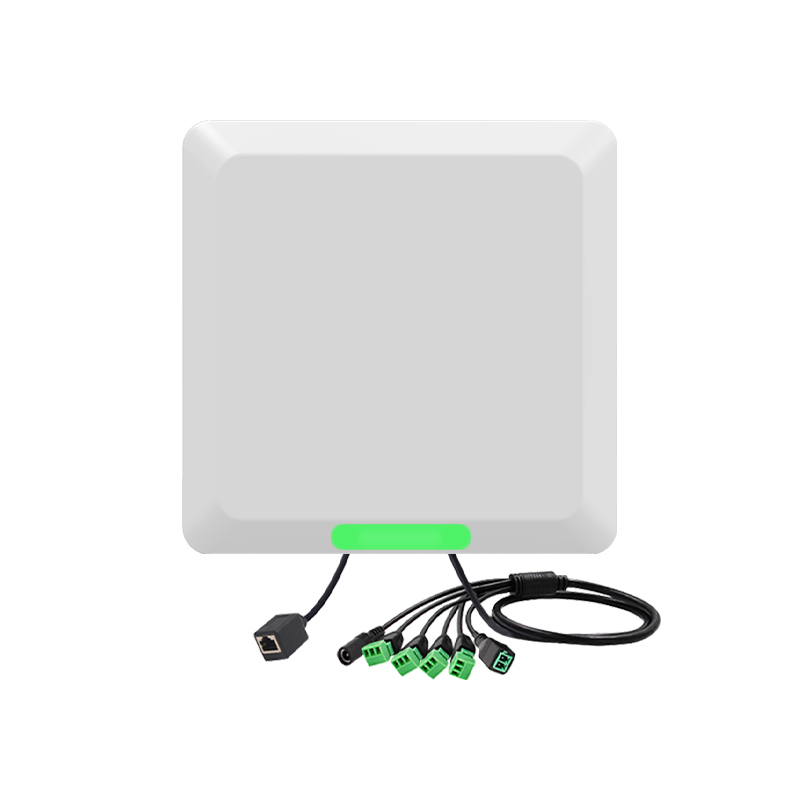

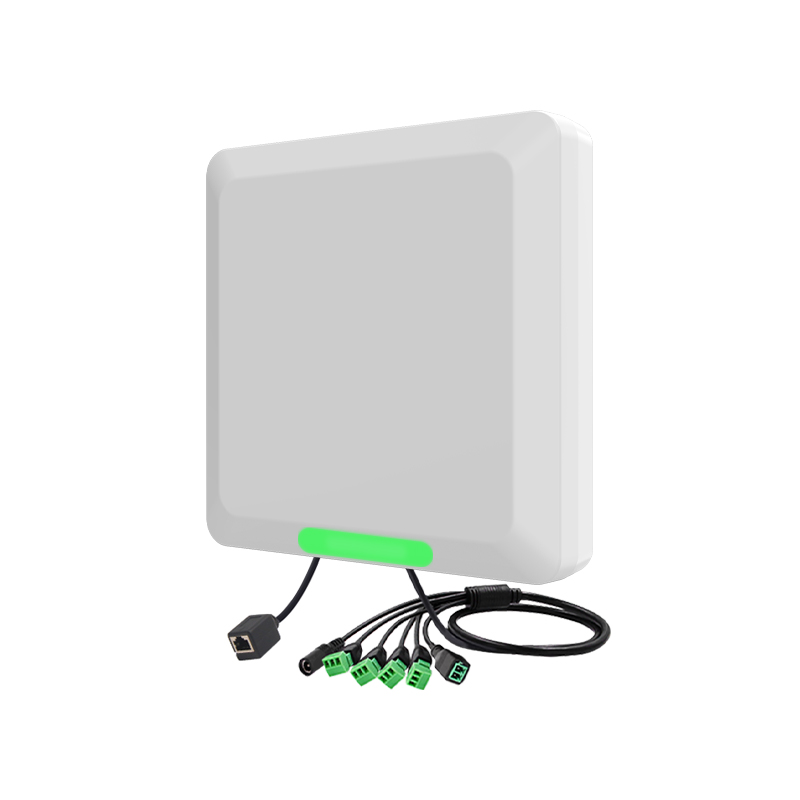

A100 ACCESS Control system integrated reader

0~6m distance

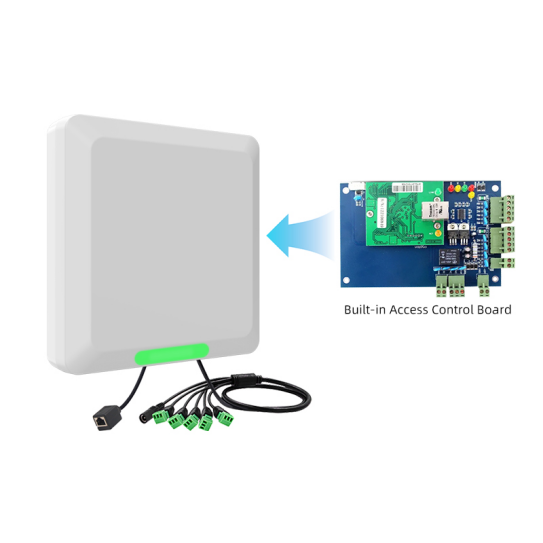

built-in controller
come with full parking software

Product Specifications

RFID Technical Parameters



Data Communication

Frequency

902~928MHz（US）

865~868MHz（EU）

Standard interface

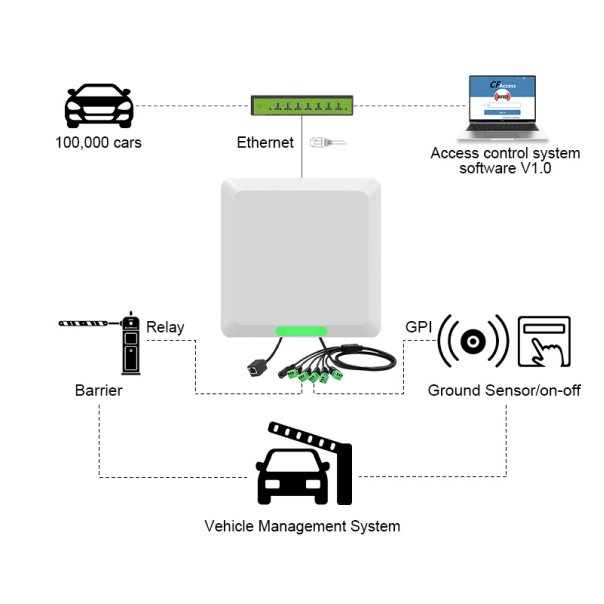

TCP/IP, Wiegand, relay, power port, GPI, RS485

Protocol

ISO18000-6C (EPC GEN2)

Power supply

12V 2A

RF output power

0dbm-26dbm (adjustable)

Card reading prompt tone

Buzzer

Built-in antenna

6dBi

Indicator light

Strip light, red light & green light

Polarization mode

Circular polarization

Firmware version

Support online upgrade

Reading distance

0-6 meters

Software Features

Working mode

Active mode

Trigger mode

Answer mode

language

Chinese/English switch

(Other countries can be customized）

Physical parameters

Type of Charge

Monthly rental car, temporary car

Material

ABS+die-cast aluminum back cover

Whitelist function

100000Pcs@96bit

Color

White

Disconnected data cache

Support

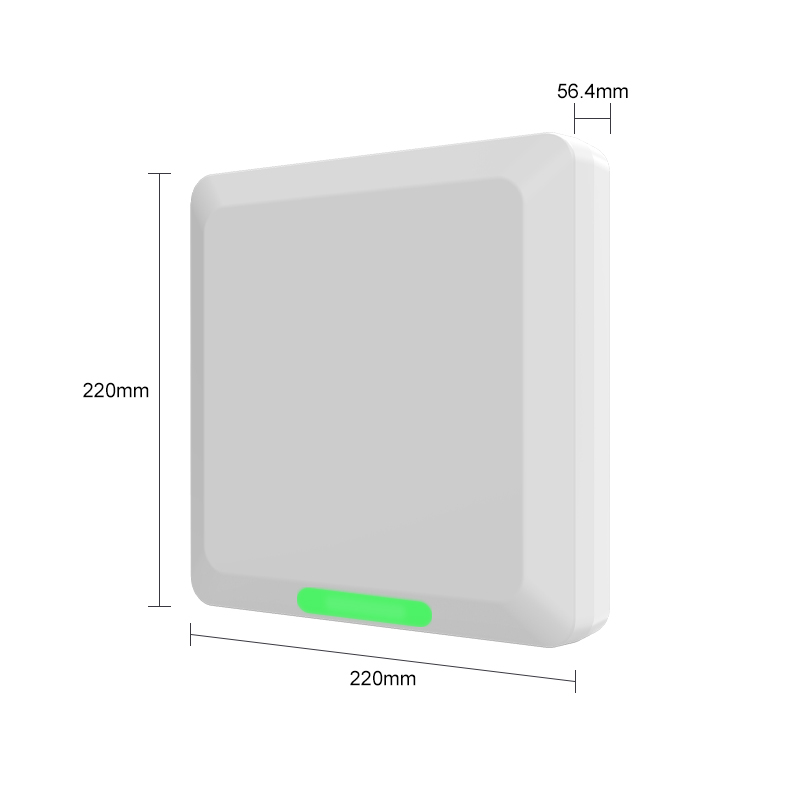

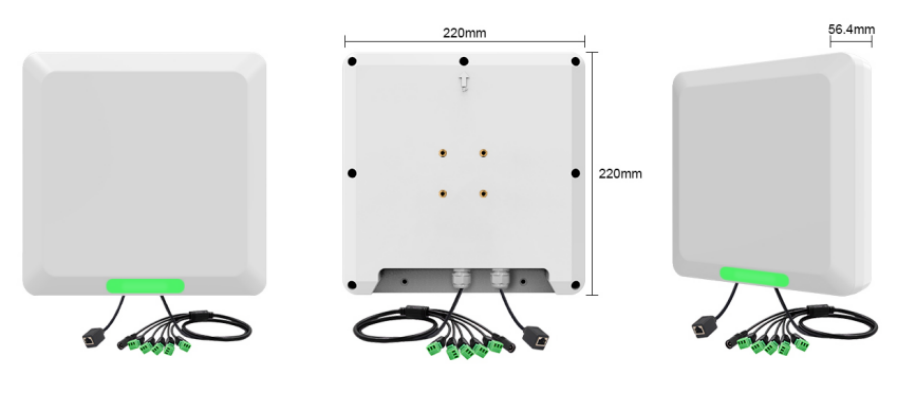

Dimensions

220*220*56.4mm

Work Environment

Net Weight

0.95kg

IP protection level

IP65

Packing Dimensions

32*30*9cm

Operating temperature

-10~+55℃

Packing Weight

1.5kg

Storage temperature

-20~+75℃



Details display

Basic software functions

Main Interface

Car owner management

Blacklist and whitelist management

In and out records

Vehicle statistics on site

Charging Rules

Data backup



Related Products


Model

A100

A200

A300

Output RF Power

0dbm ~26dbm (adjustable)

Reading Range

0~6 meters

(depending on the tag & application environment)

0~10 meters

(depending on the tag & application environment)

0~15 meters

(depending on the tag & application environment)

Gain

6dBi

9dBi

12dBi

Polarization

Circular Polarization

Circular Polarization

Linear polarization

Dimensions

220*220*56.4mm

305*305*75mm

415*415*67mm
