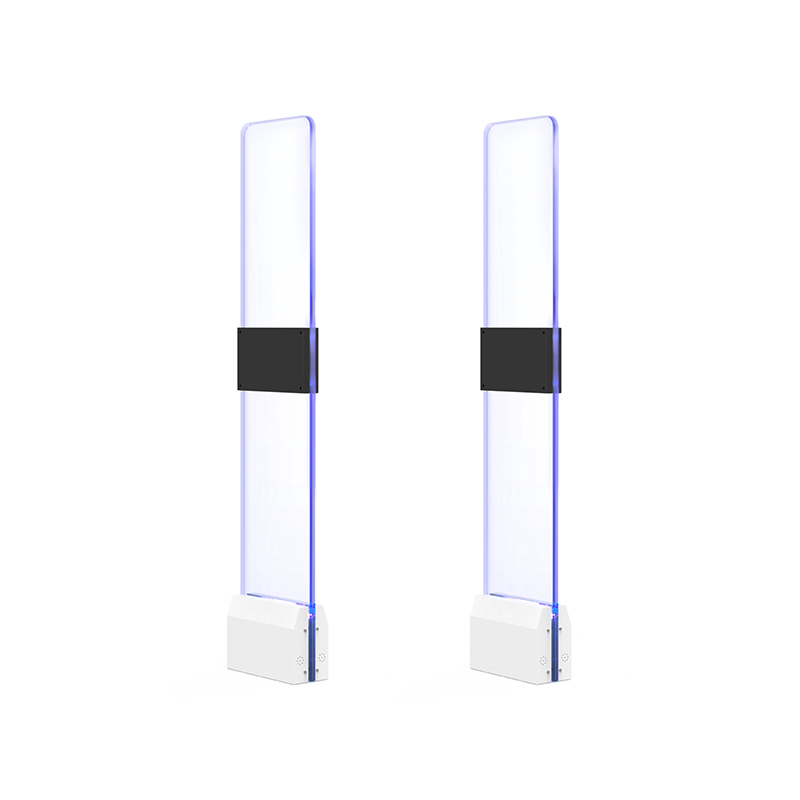

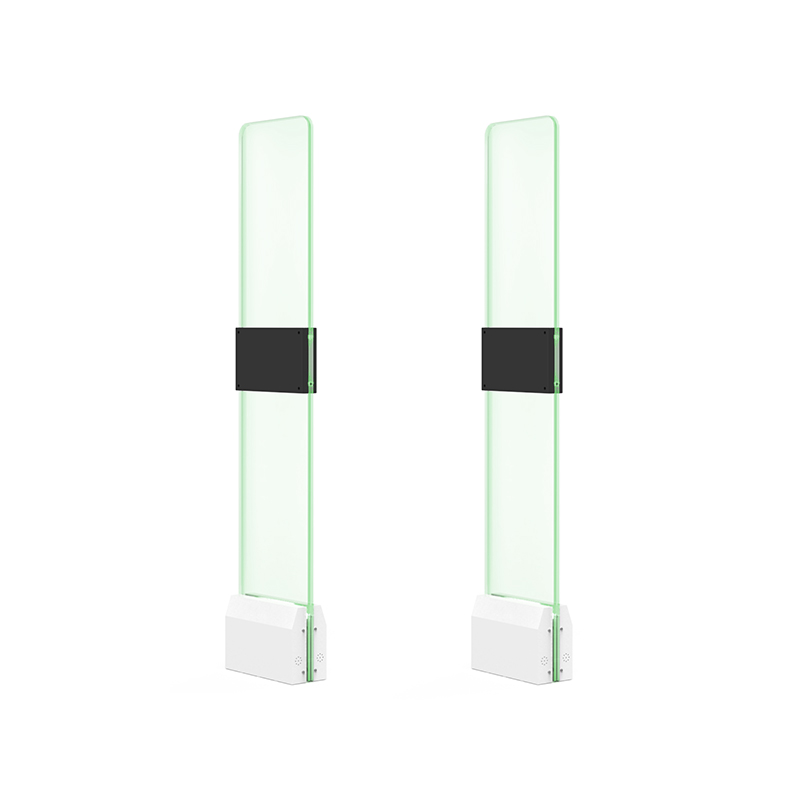

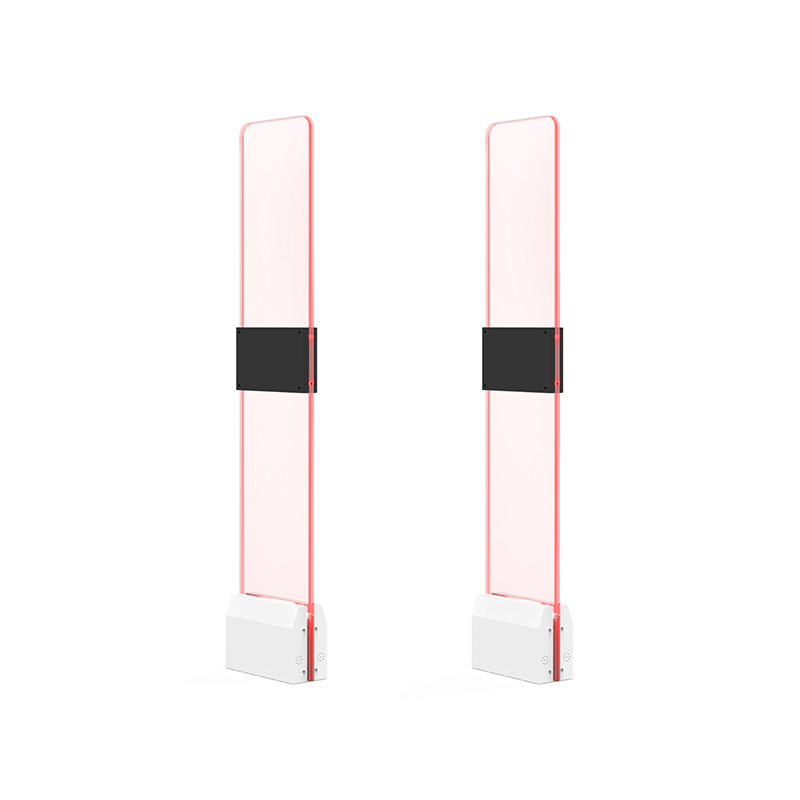

M400 UHF Gate Reader
- Support automatic scanning and connection to ports/networks
- Configure the IP address to monitor and receive data sent by remote devices
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: warehouse management, production control, asset tracking, laundry management, smart cabinets, garbage management, etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
902~928MHz (US） 865~868MHz (EU） |
Standard interface |
RS232/TCP/IP |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Optional interface |
RS232/ POE/ WIFI |
|
|
RF output power |
0~33dbm (adjustable) |
Customizable |
USB / RS485 |
|
|
Built-in antenna |
6dbi narrow beam antenna |
Sound, light and electricity |
Red, green and blue LED light strip, EAS alarm |
|
|
Maximum query speed |
400 tags/second |
Development Environment |
||
|
Reading distance |
1.5-3 meters between two doors |
SDK |
Demo software, API, examples, user manual |
|
|
Anti-theft function |
Match by password/mask |
Firmware version |
Support online upgrade |
|
|
Person detection method |
Millimeter wave radar (optional) |
Development language |
C#, Delphi, Java, Python, VB and other languages |
|
|
RSSI |
Support |
working environment |
||
|
Physical parameters |
Installation method |
Expansion screw |
||
|
Power supply |
220V+10%55HZ |
Operating temperature |
-10-+60℃ |
|
|
Power consumption |
45W |
Storage temperature |
-30-+70℃ |
|
|
Case material |
Acrylic + Aluminum Alloy |
Ambient humidity |
5%~95% |
|
|

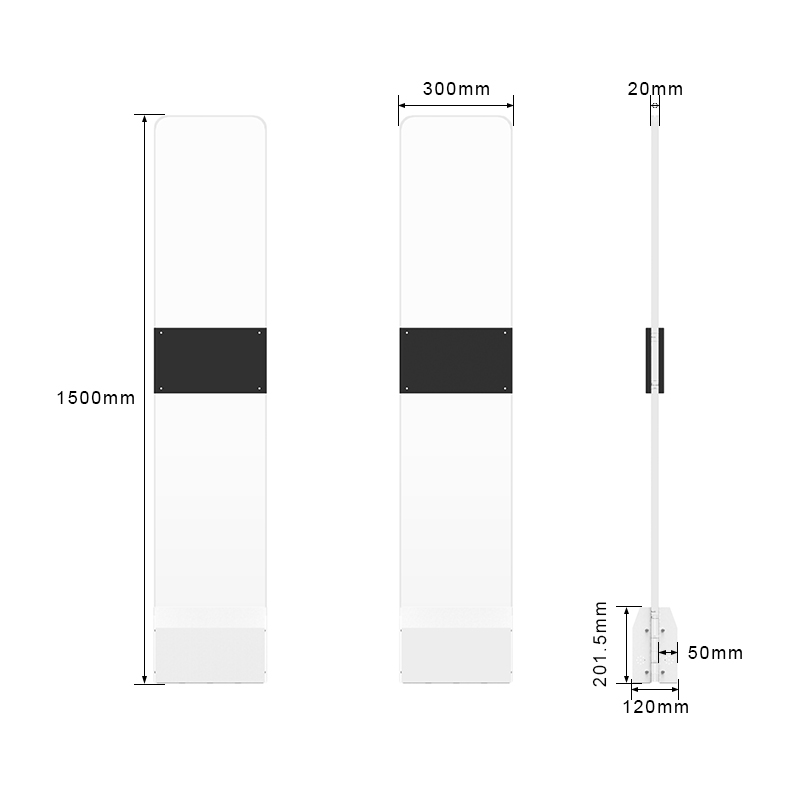

Dimensions |
1500*300*120mm |
|
|
|
Details display
|
Wiring Definition |
|||
|
Pin |
significance |
describe |
Wire color |
|
1 |
+12V |
VCC |
Red/Orange |
|
2 |
GLED |
Green light control signal |
White |
|
3 |
RLED |
Red light control signal |
Black |
|
4 |
BLED |
Blue light control signal |
Blue |
Related Products
|
Image |
|
|
|
|
Model |
M100 |
M200 |
M400 |
|
Output RF Power |
0~33dbm (adjustable) |
||
|
Reading Range |
1.8~2.2 meters (depends on the label & application environment) |
0-6 meters (depending on the tag & application environment) |
1.5-3 meters (depending on the label & application environment) |
|
Dimensions |
1500*365*150mm |
650*330*26mm |
1500*300*120mm |
