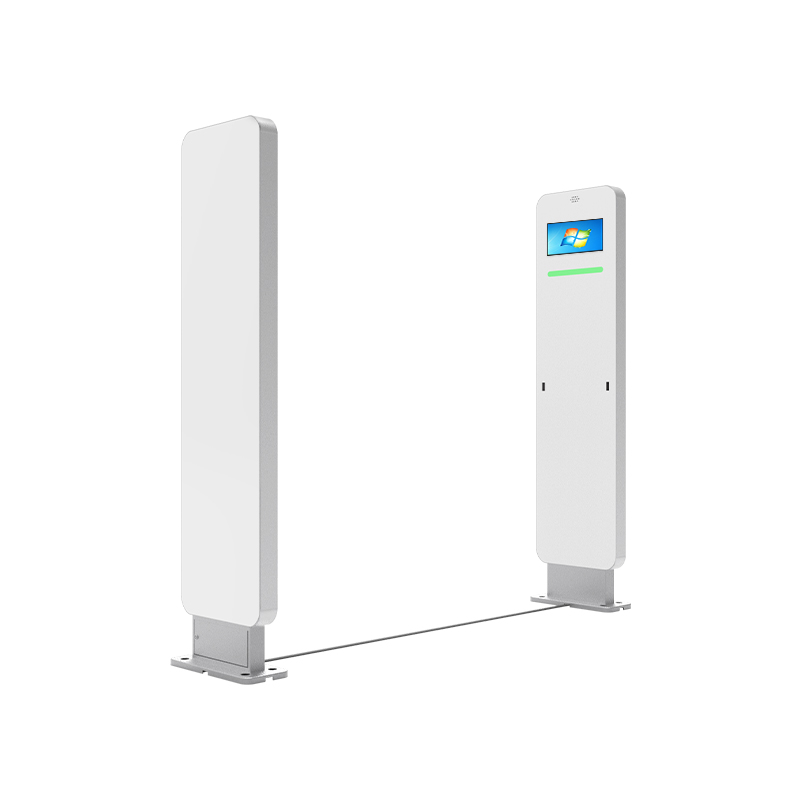

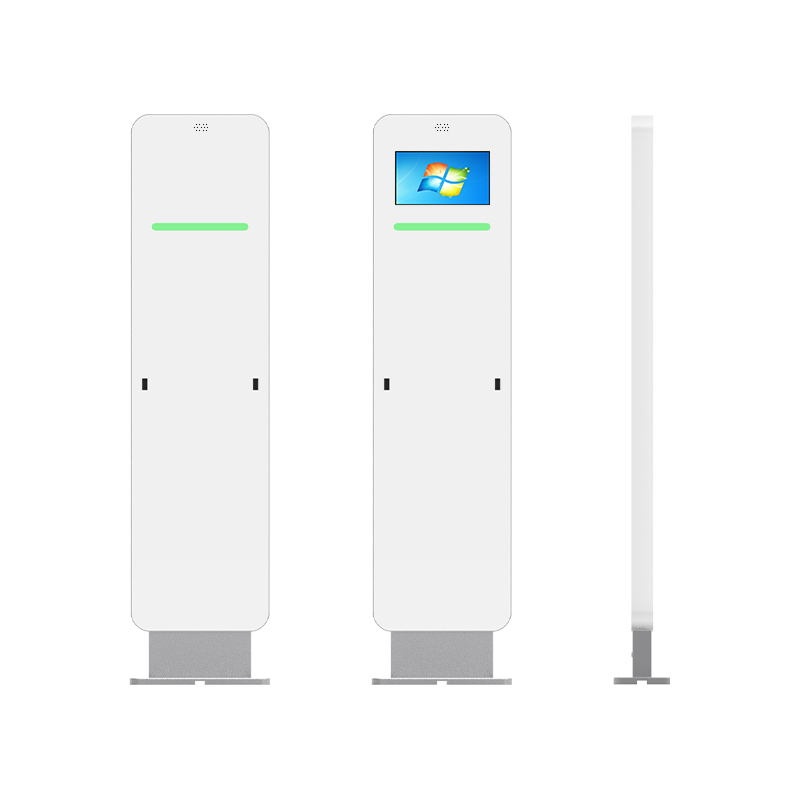

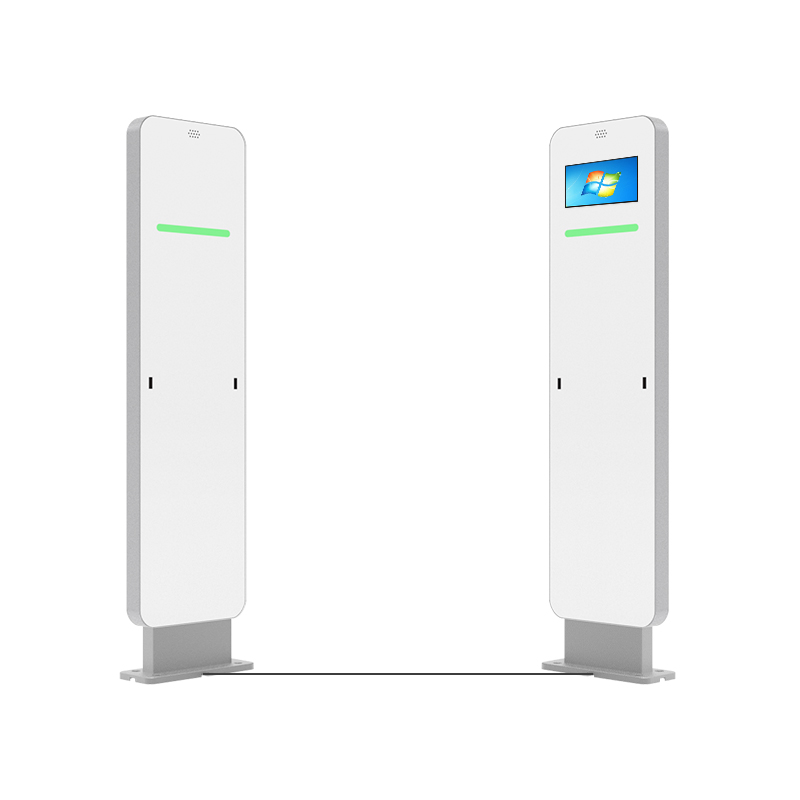

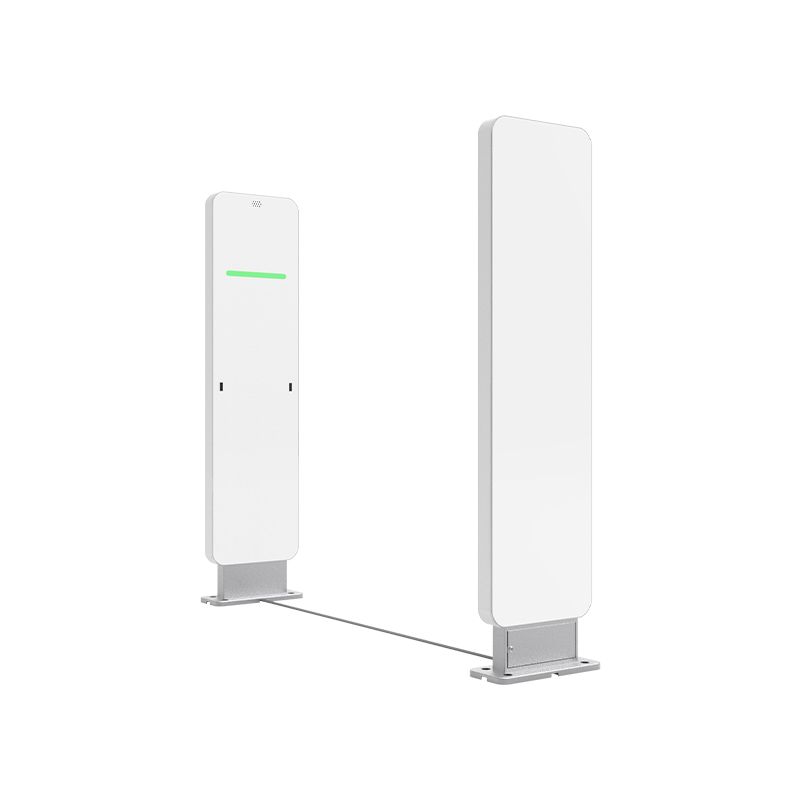

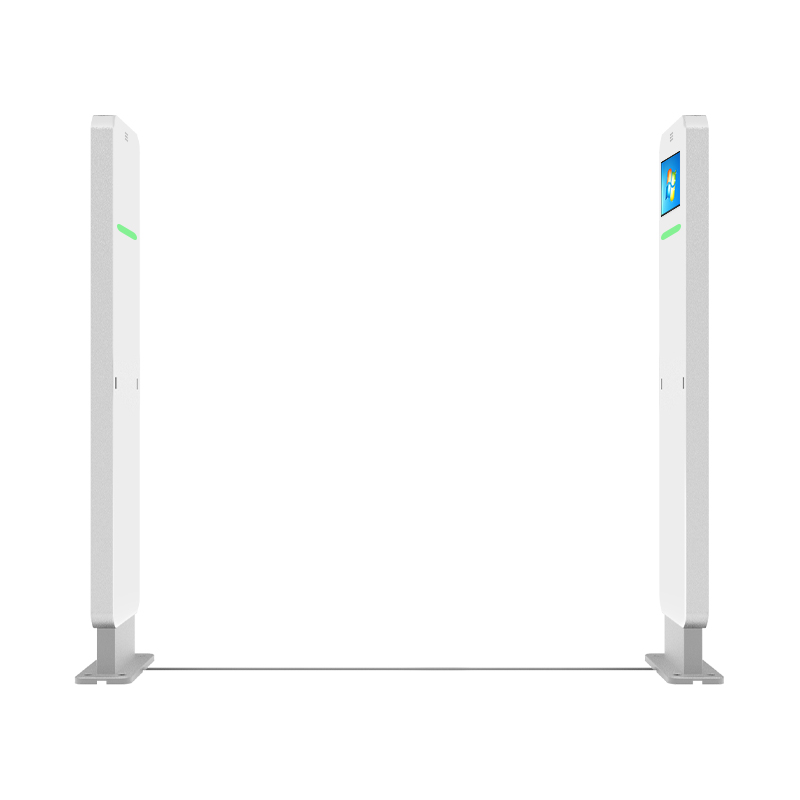

M101 UHF Windows OS Gate Reader
-Support automatic scanning and connection to ports/networks
-Configure the IP address to monitor and receive data sent by remote devices
-Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
-Optional millimeter-wave radar can sense human motion trajectory and determine the direction of entry and exit
-Applications: warehouse management, production control, asset tracking, laundry management, smart cabinets, garbage ma
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
902~928MHz (US） 865~868MHz (EU） |
Operating system |
Windows 10 |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Standard interface |
TCP/IP |
|
|
RF output power |
0~33dbm (adjustable) |
Optional interface |
RS232/ POE/ WIFI |
|
|
Built-in antenna |
4 8dbi circular polarization flat antennas |
Customizable |
USB / RS485 |
|
|
Maximum query speed |
400 tags/second |
Audio, light and electricity |
Red and green LED light strips, built-in buzzer alarm |
|
|
Read distance |
1.8-2.2 meters between two doors |
Development Environment |
||
|
Working mode |
Channel mode + EAS mode |
SDK |
Demo software, API, examples, user manual |
|
|
In and out detection method |
Infrared beaming Millimeter wave radar (optional) |
Firmware version |
Support online upgrade |
|
|
RSSI |
Support |
Development language |
C#, Delphi, Java, Python, VB and other languages |
|
|
Physical parameters |
Working environment |
|||
|
Reader material |
Aluminum alloy + acrylic |
Installation method |
Expansion screw |
|
|

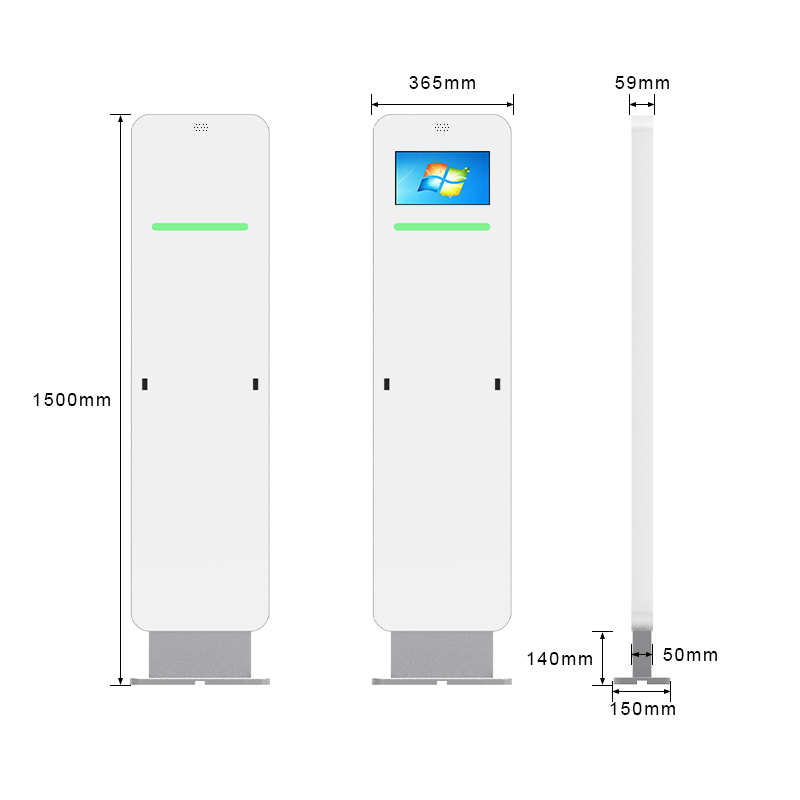

Size |
1500*365*150mm |
Operating temperature |
-10-+60℃ |
|
|
Weight |
40kg |
Storage temperature |
-30-+70℃ |
|
|
Power supply |
220V+10%55HZ |
Ambient humidity |
5%~95% |
|
|
Power consumption |
45W |
|
|
|
Details display
|
Wiring Definition |
||
|
Pin |
significance |
describe |
|
1 |
GND |
DC- |
|
2 |
+12V |
DC+ |
|
3 |
RLED |
Red light control signal |
|
4 |
GLED |
Green light control signal |
