G8401 UHF Library tag

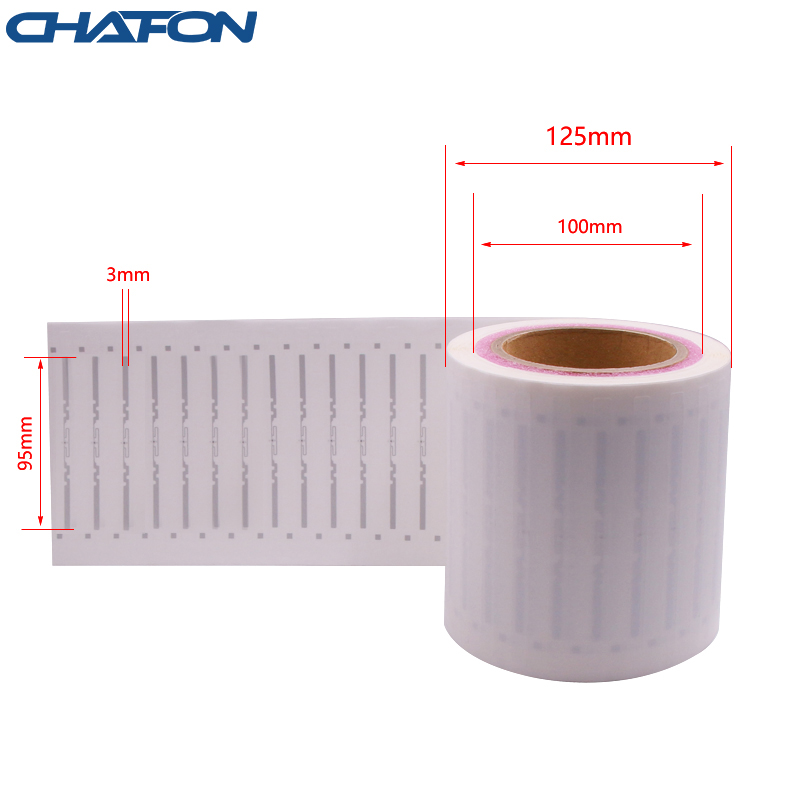

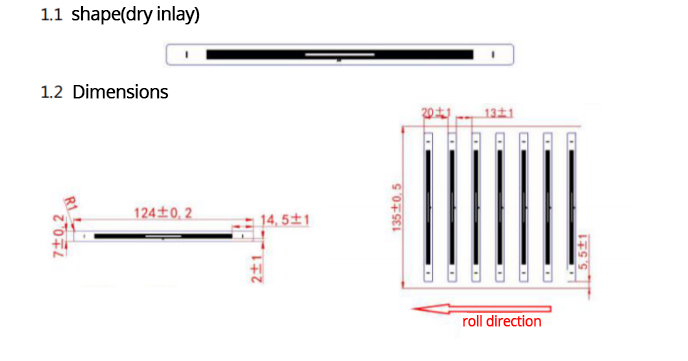

Size:7*124mm
Material:PET
Product name: RFID library label
Product number: G8401
Product parameter
|
Model number |
G8401 |
|
Chip |
Alien H3 |
|
Protocol |
ISO/IEC 18000-6C EPC Class1 Gen2 |
|
Material |
PET |
|
Frequency |
860-960MHz |
|
Work mode |
Passive |
|
Antenna manufacturing method |
Aluminum etching |
|
Chip memory
|
EPC |
96 Bits |
Read&write |
|
TID |
32 Bits |
Read only |
|
|
Unique TID |
64 Bits |
Read only |
|
|
Reserve |
32 Bits access pass word 32 Bits Access 32 Bits kill password 32 Bits Kill |
Read&write |
|
|
Working life |
Write 100,000 time，Data retention 10year |
||
|
Chip anti-static（ESD performance） |
2000V |
||
|
Operating temperature |
10℃ to +40℃ |
||
|
Storage temperature |
-25℃ to +50℃ |
||
|
Operating humidity |
≤80% |
||
|
Shelf life of finished products |
Use anti-static bag sealed packaging, in 23 ℃ + 5 ℃ /50% + / - 10% RH condition 1 year |
||
Note
When handling and using, get away from water and shall not be violently hit, do not bend parts of the chip.
Packing
Reference Packing: Static-free bag
|
SHIPPING |
ROLL |
|
QUANTITY PER ROLL |
2000PCS±100 Pcs/ROLL 4ROLL/1BOX |
