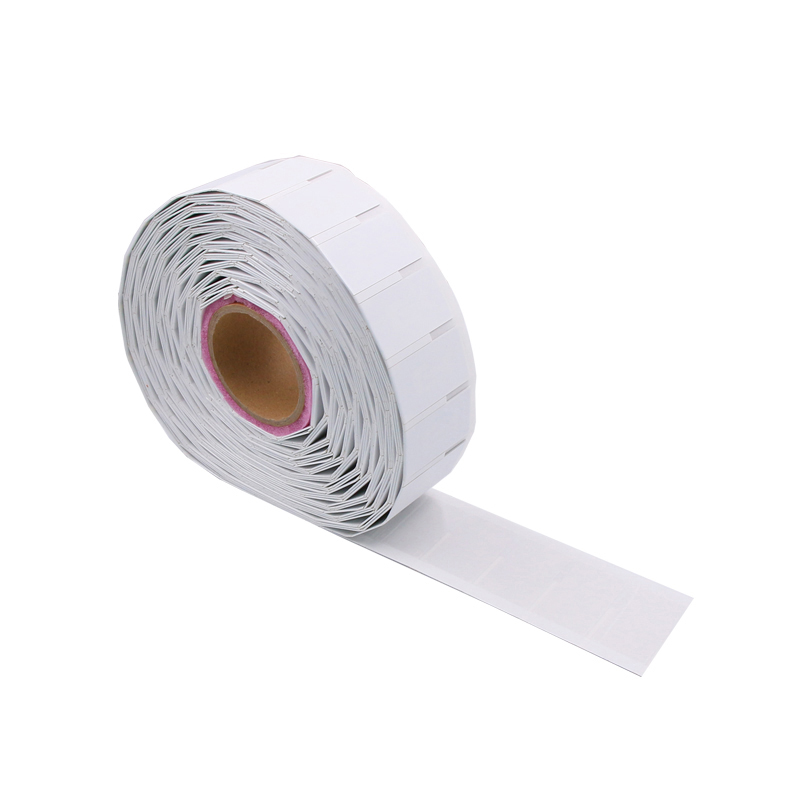

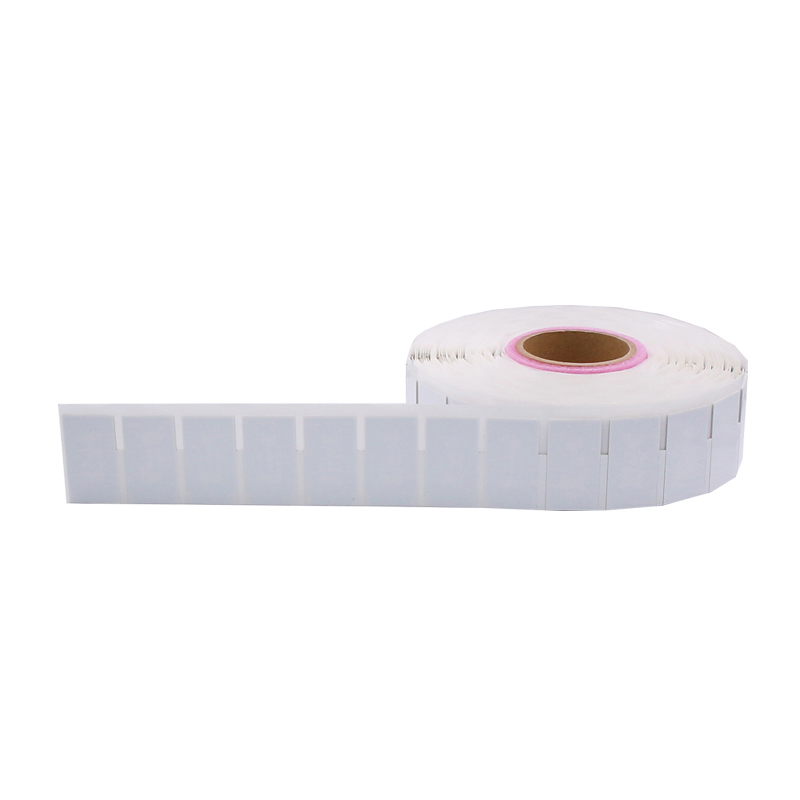

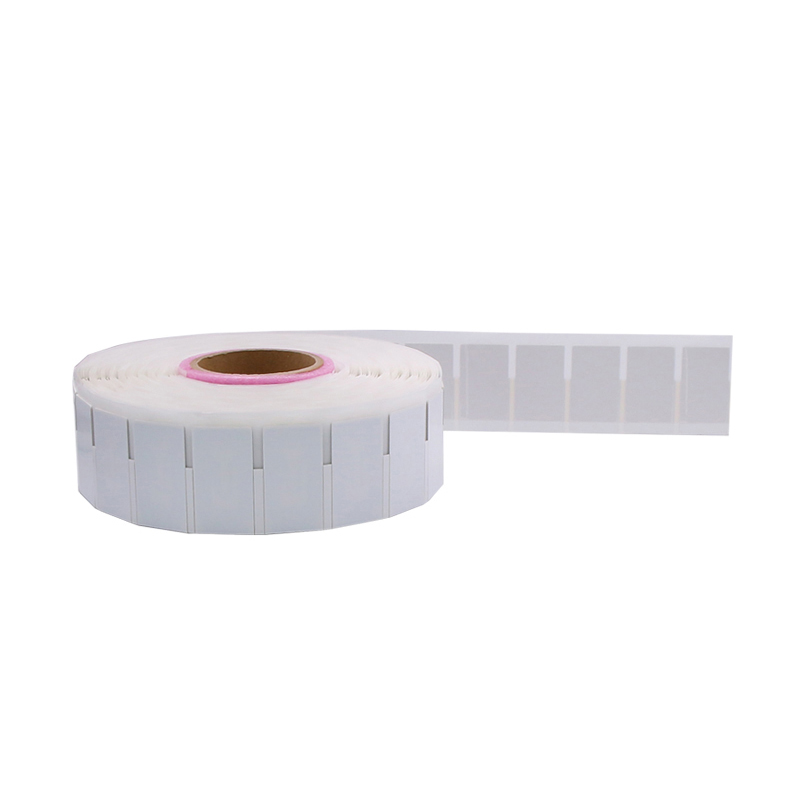

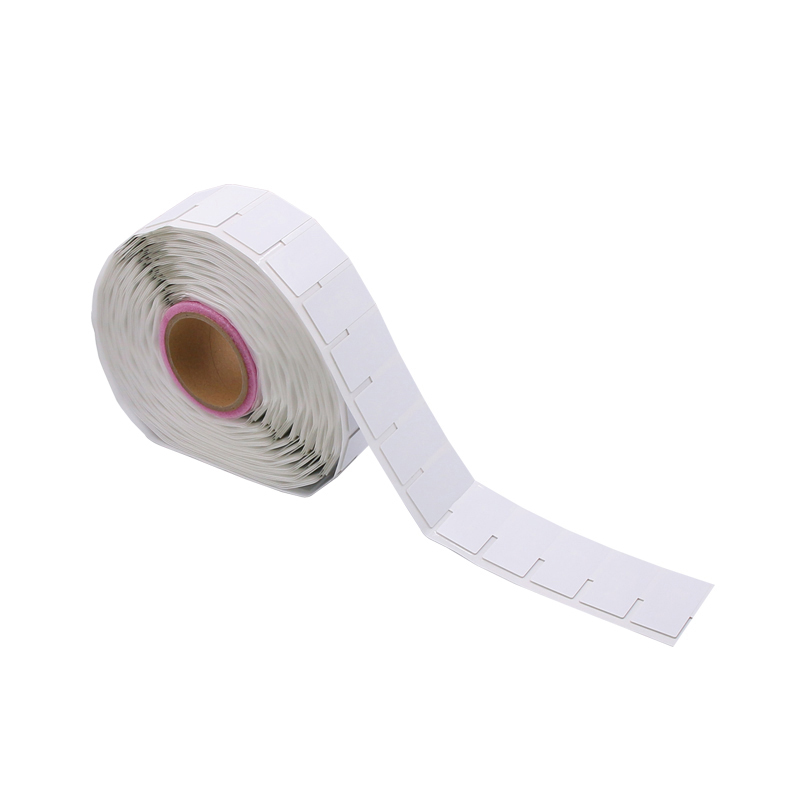

G9802 UHF Flexible Anti-metal Tag
It has metal resistance and can be directly attached to metal surfaces. It can be used for office supplies management, charging cabinet management, tool management, metal equipment management, etc.
|
Performance Specifications |
|
|
Model |
G9802 |
|
Frequency |
865~868MHz（EU） / 902~928MHz（US ） |
|
Protocol |
ISO18000-6C(EPC-Gen2) |
|
Chip Type |
NXP U code 9XE |
|
Memory |
EPC: 96 bits (read and write) TID: 48 bits (read only) Unique TID: 48 bits (read only) |
|
Working Mode |
Read or write |
|
Read Distance |
0~9 meters (depending on the reader type and working environment) |
|
Write Distance |
0~2 meters (depending on the reader type and working environment) |
|
Data Retention |
Can be repeatedly erased and written 100,000 times, data can be saved for 10 years |
|
Physical properties |
|
|

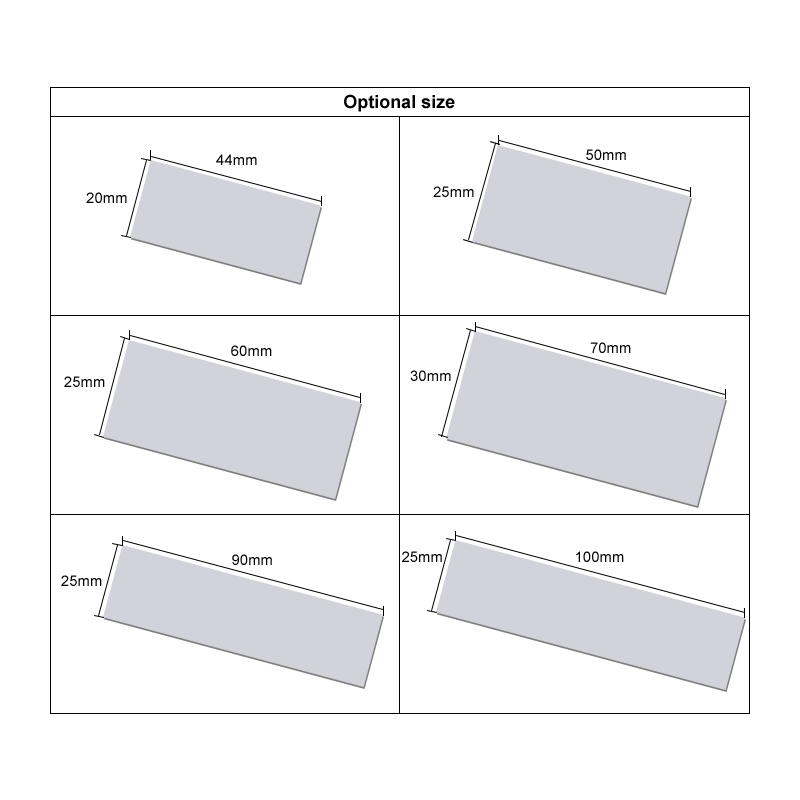

Dimensions |
60*25mm，65*35mm（Optional） |
|
Material |
PET |
|
Operating temperature |
-20℃~+80℃ |
|
Storage temperature |
-10℃~+70℃ |
|
Operating humidity |
≤80% |
|

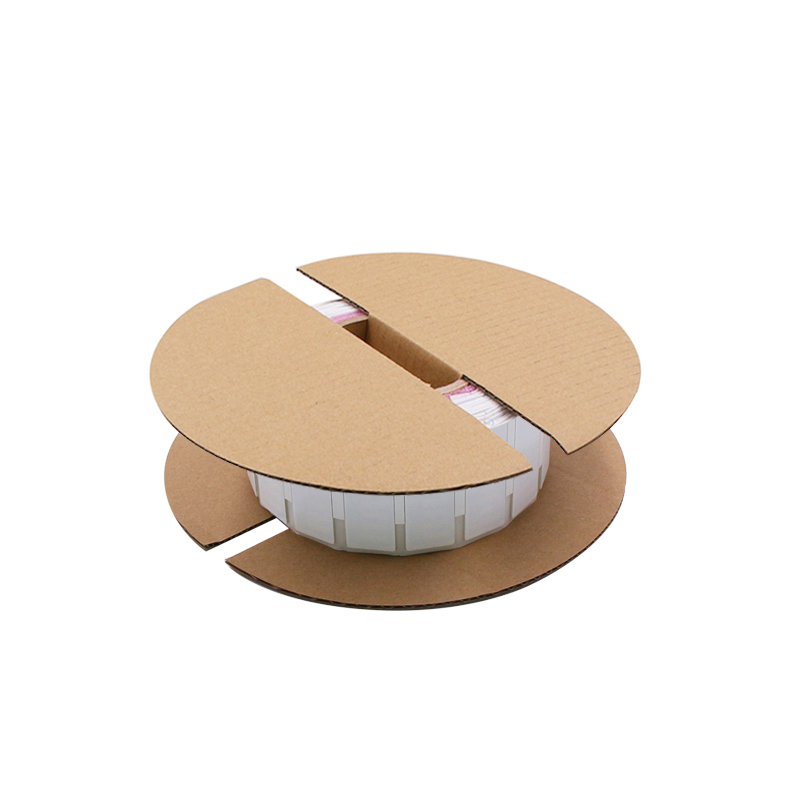

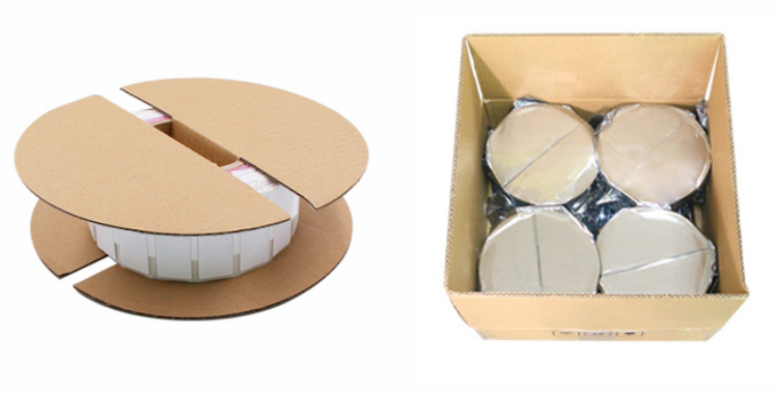

Package |
|
|
|
|
