Home  ꄲ  UHF Antenna  ꄲ  UHF PCB antenna  ꄲ  CF-RA1008 UHF 10dBi Counter Antenna

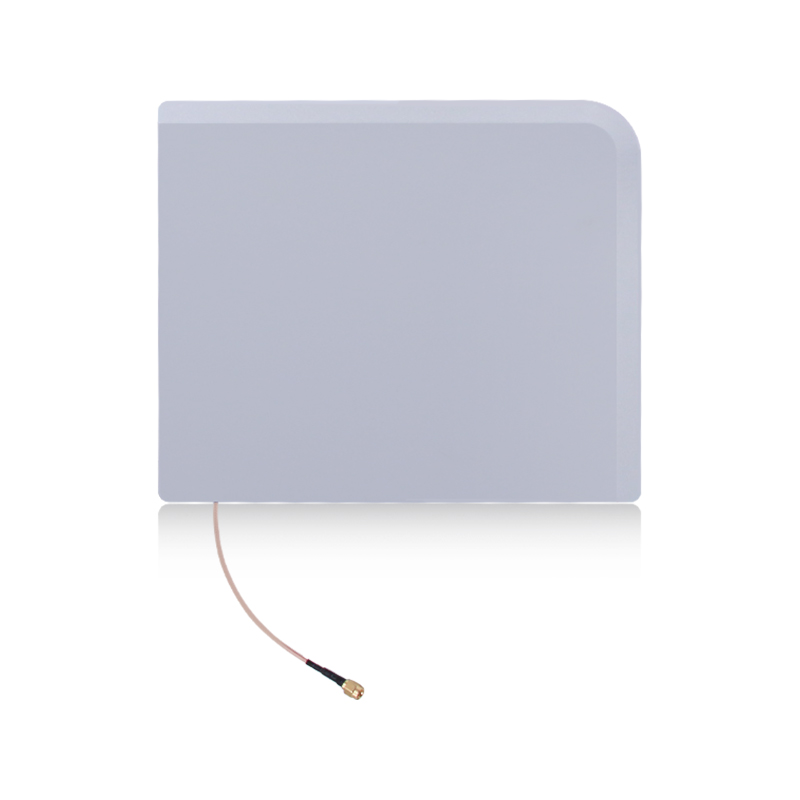

CF-RA1008 UHF 10dBi Counter Antenna

- Retail kiosk near field antenna with multiple sizes
- Standard 1m / 3m cable by RG316 material
- Applications: warehouse management, toolbox, tool trolley, gantry inventory machine, access control, intelligent cabinet management and other scenarios

Specification

Frequency

902~928MHz (US standard) / 865~868MHz (European standard)

Polarization

Circular

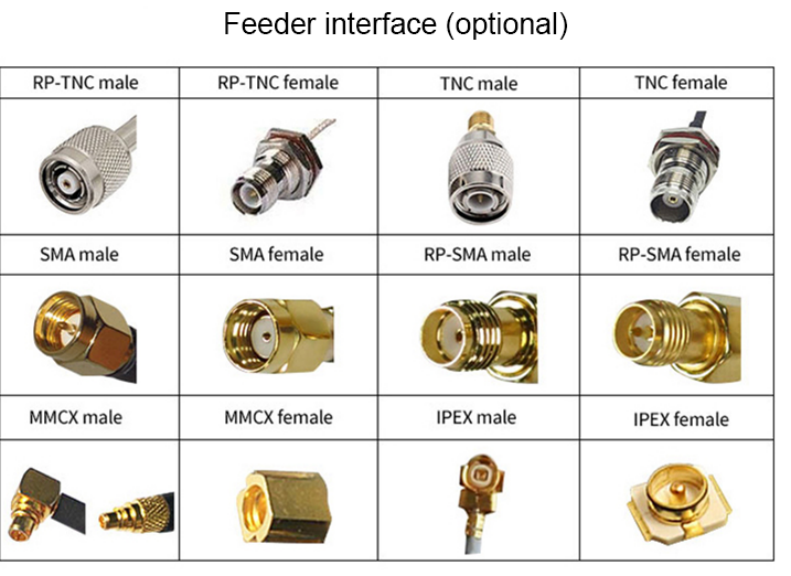

Connector

SMA male

Cable length

Standard 1m / 3m (customizable)

Impedance

50Ω

Lightning protection

DC grounding

Color

Black; 210*170*1.5mm (green)

Waterproof

Don’t have

Working temperature

-20-60℃；320*320*6mm（-40～55℃）

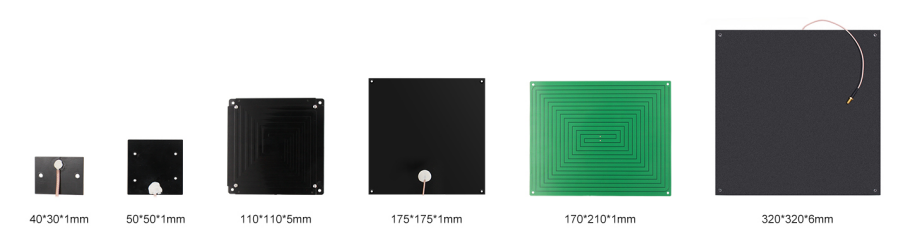

Size (mm)

40*30*1

50*50*1

110*110*5

175*175*1

210*170*1.5

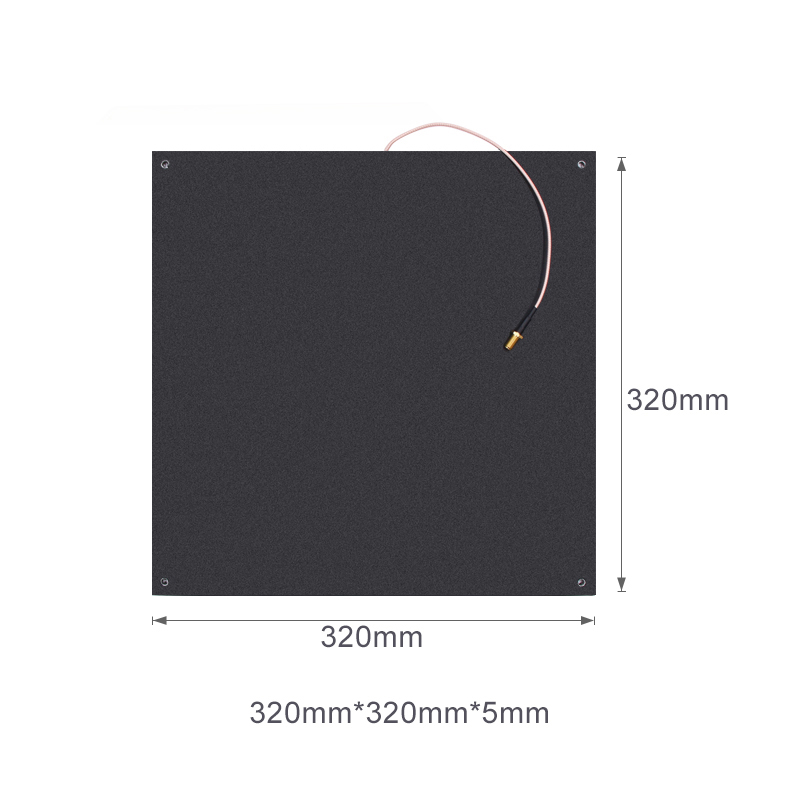

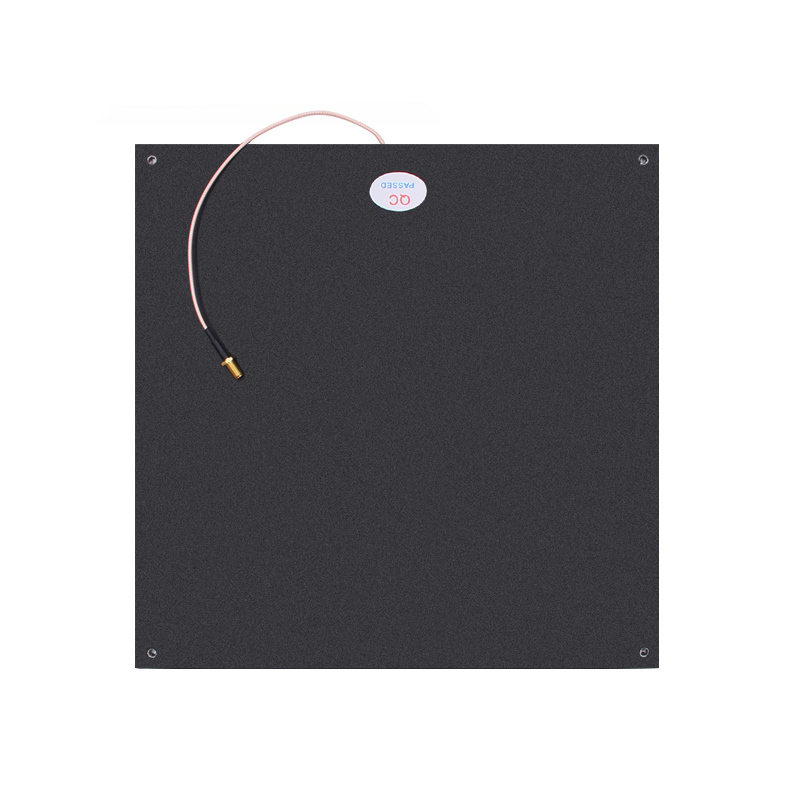

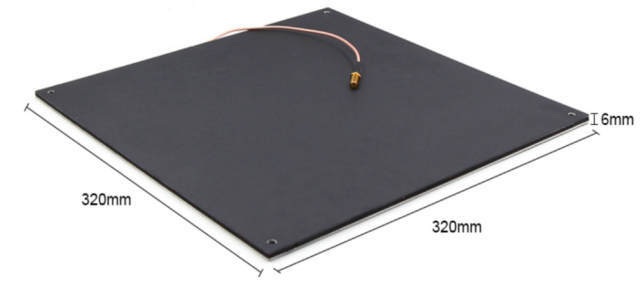

320*320*6

Gain

-15dBi

-19dBi

-5dBi

-3dBi

-6dBi

-10dBi

Maximum input power

100W

100W

100W

100W

100W

50W

Radiation Angle

-

Hor：360°

Ver：84°

Hor：91°

Ver：93°

Hor：80°

Ver：80°

-

Hor：36°

Ver：70°

VSWR

≤1.8

≤1.2

≤1.8

≤1.8

≤1.8

≤1.8

Front-to-back ratio

-

≥6

≥12

-

-

≥20

Material

PCB

PCB

PCB

PCB

PCB

PVC

Net weight

0.1kg

0.1kg

0.2kg

0.3kg

0.4kg

0.4kg

Gross weight

0.12kg

0.2kg

0.3kg

0.4kg

0.5kg

-



Other customizable sizes: 320*240*6mm, 350*230*6mm, 400*200*6mm, 400*320*6mm, 450*350*6m,520*380*6mm, 560*450*6mm, 620*205*6mm

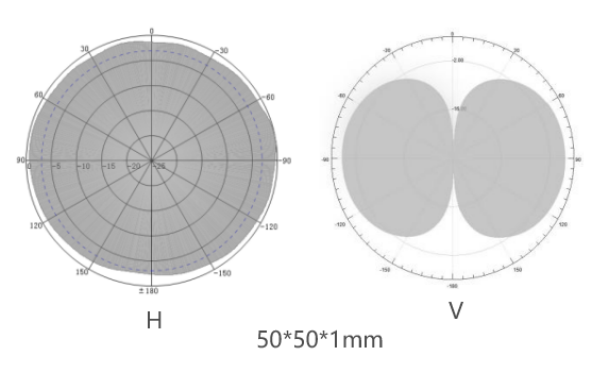

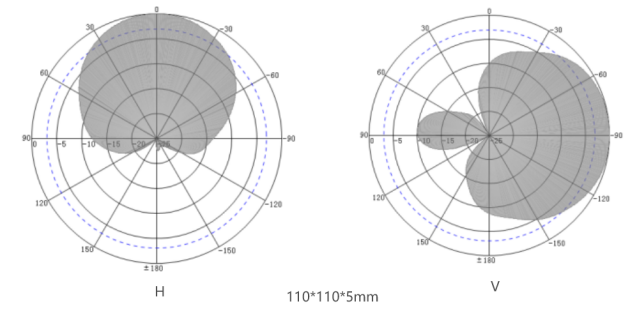

Angle of radiation

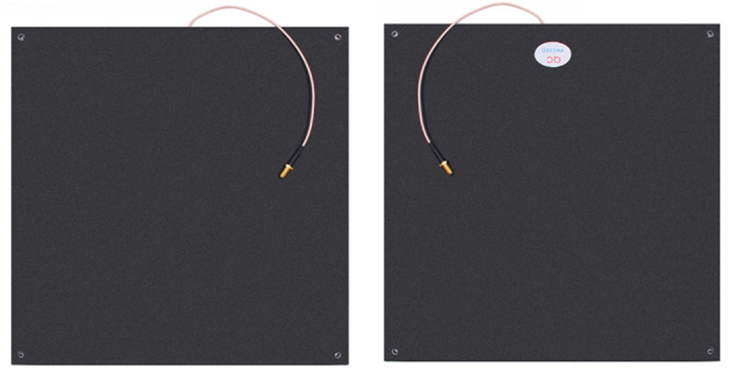

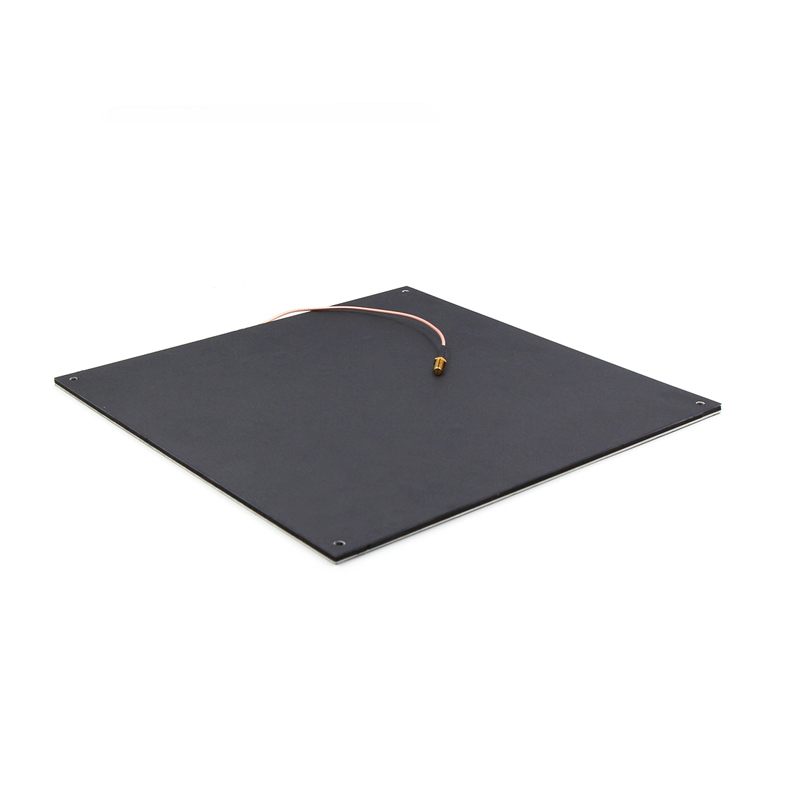

Display

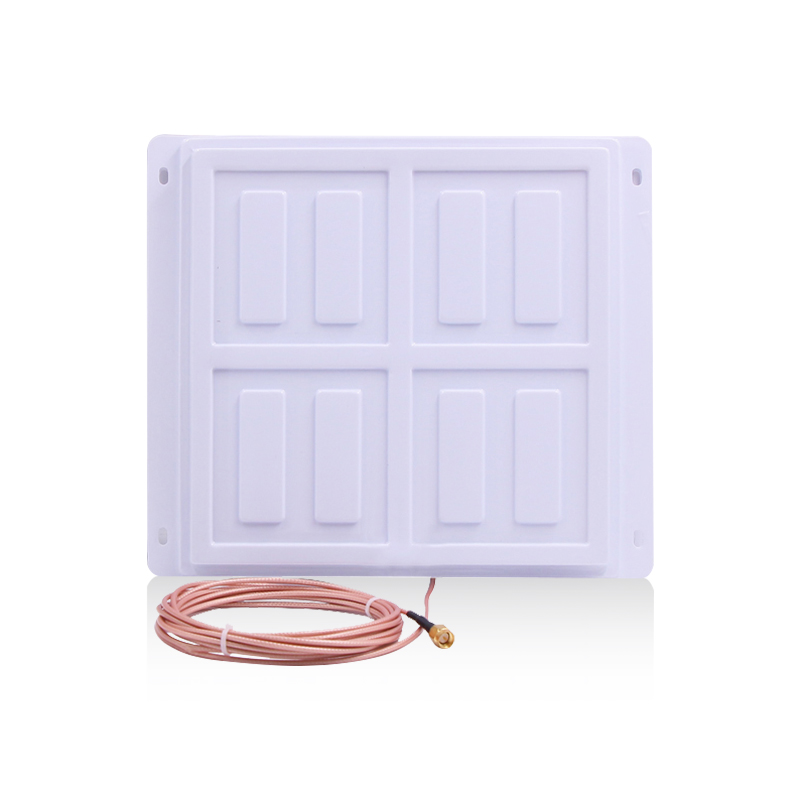

Related products


model

CF-RA6004

CF-RA8007

CF-RA1008

gain

6dBi

8dBi

10dBi

Polarization mode

circular polarization

circular polarization

Linear polarization/circular polarization

Read the reference

0-6 meters

(It depends on the card reader and tag)

0-8 meters

(It depends on the card reader and tag)

0-10 meters

(It depends on the card reader and tag)

size

156*130*20mm

295*105*10mm

Multiple sizes are available
