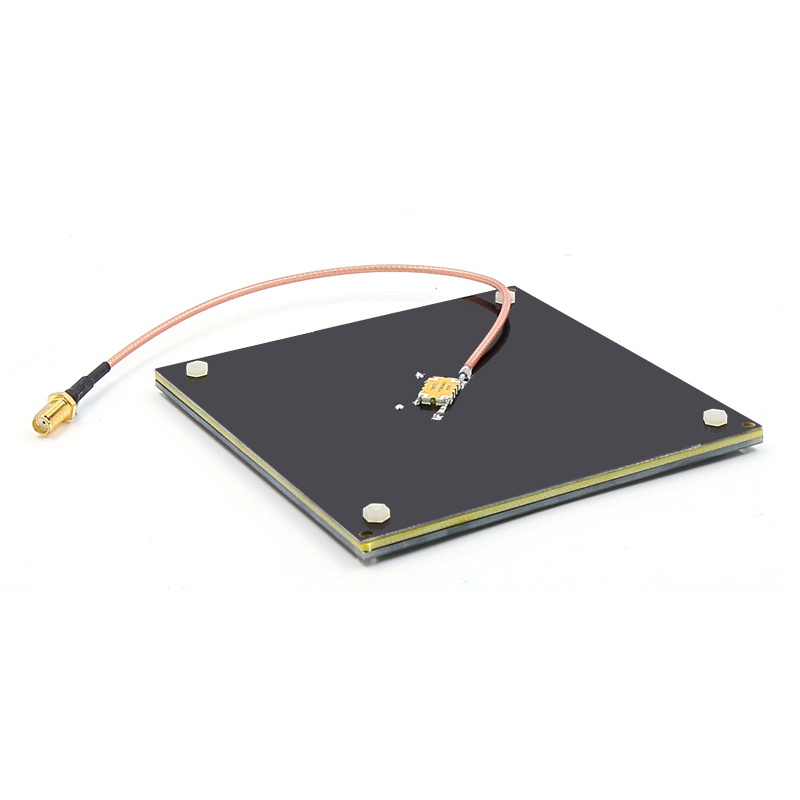

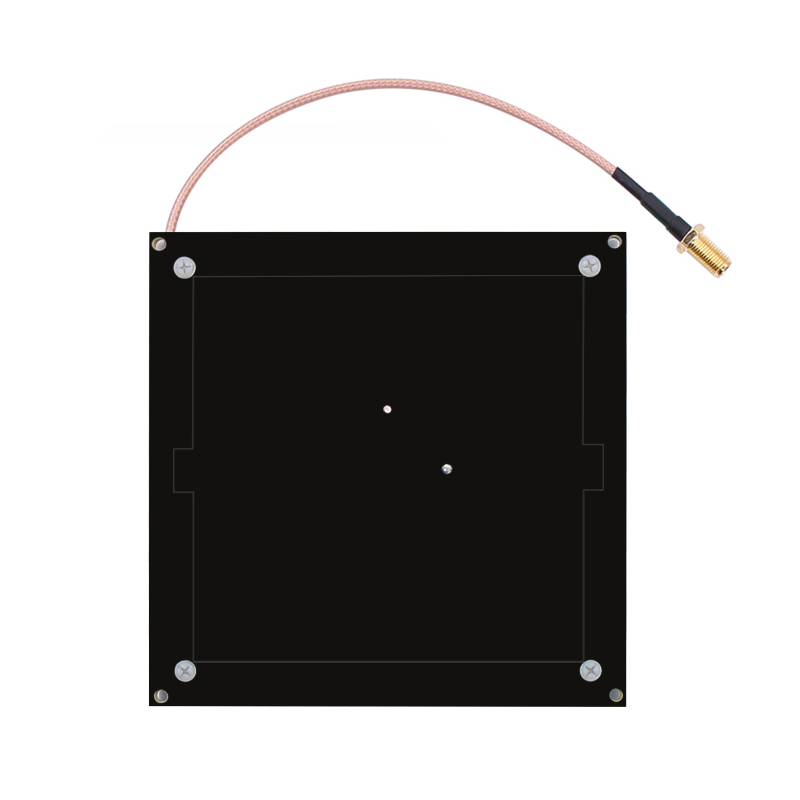

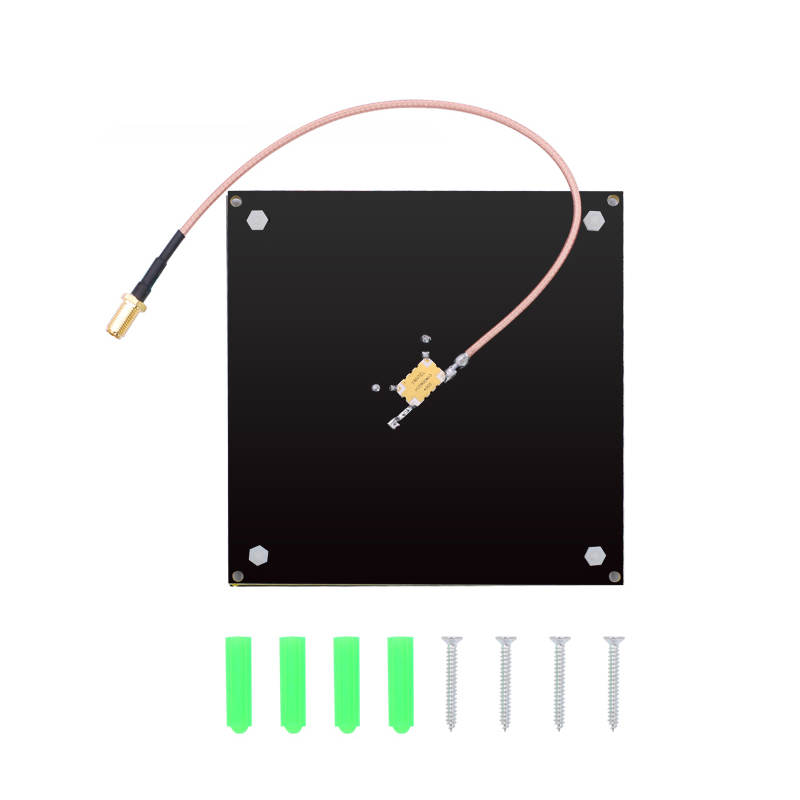

CF-RA5005 UHF 5dBi Counter Antenna

Gain:5dbi
Polarization:circular
Material:PCB

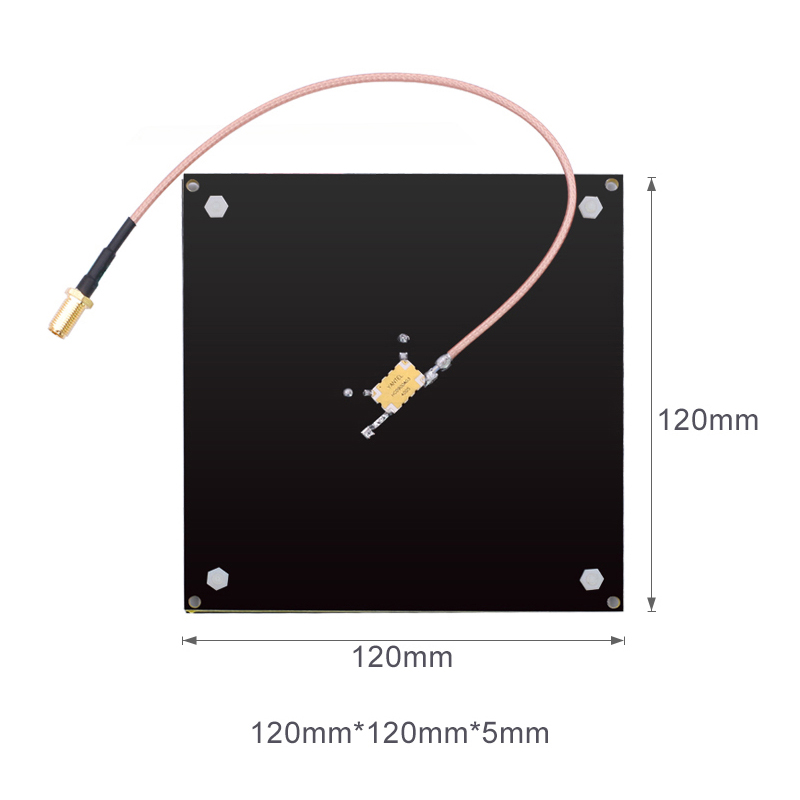

Size:120*120*6.5mm

Product name:UHF 5dBi Counter Antenna

Model number:CF-RA5005

Product technical parameter

Electrical Specifications
Model	CF-RA5005
Freq Range(MHz)	860-960MHz
Polarization	Circular
Gain	5dBi
Horizontal Beam width	Hor.120° Vert:120°
F/B Ratio	≧20
VSWR	≦1.4
Impedance	50Ω
Max Power	100W
Lighnting Protection	DC ground
Mechanical Specifications
Connector	SMA-Female
Connector position	Bottom
Size(mm)	1201208mm
Packing size(mm)	17017035mm
Antenna weight(kg)	0.3kg
Packing weight(kg)	0.6kg
Wind loading area(㎡)	≦0.2
Rated wind velocity(m/s)	60
Reflector material	PCB
Radome color	Black
Operating temperature(℃)	-40-70℃

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
