CF-RA8223 UHF 4.5dBi PCB Helical Antenna
-Integrated wire and body, with lead-out feeder cable
-Applications: Handheld terminal embedding, smart integration, smart retail, freezer management, asset management, file management, and other scenarios.
-Applications: Handheld terminal embedding, smart integration, smart retail, freezer management, asset management, file management, and other scenarios.
Product Specifications
|
RFID Parameters |
|
Technical Parameters |
|||
|
Frequency |
865-868MHz（EU） 902~928MHz（US） |
|
Axial Ratio |
＜1.5 |
|
|
Gain |
4.5dBi |
|
|
E-plane: 120° H-plane: 120° |
|
|
Rear Connector Type |
Lead-out SMA connector (Customizable) |
|
VSWR |
＜1.4 |
|
|
Polarization |
Circular |
|
Input Impedance |
50Ω |
|
|
Material |
PCB |
|
Physical parameters |
||
|
Product List |
|
Antenna Dimensions |
70*70*12mm |
||
|
Accessories |
Antenna*1 |
|
Operating Temperature |
-20ºC—+80ºC |
|
Detailed Display
Radiation Pattern

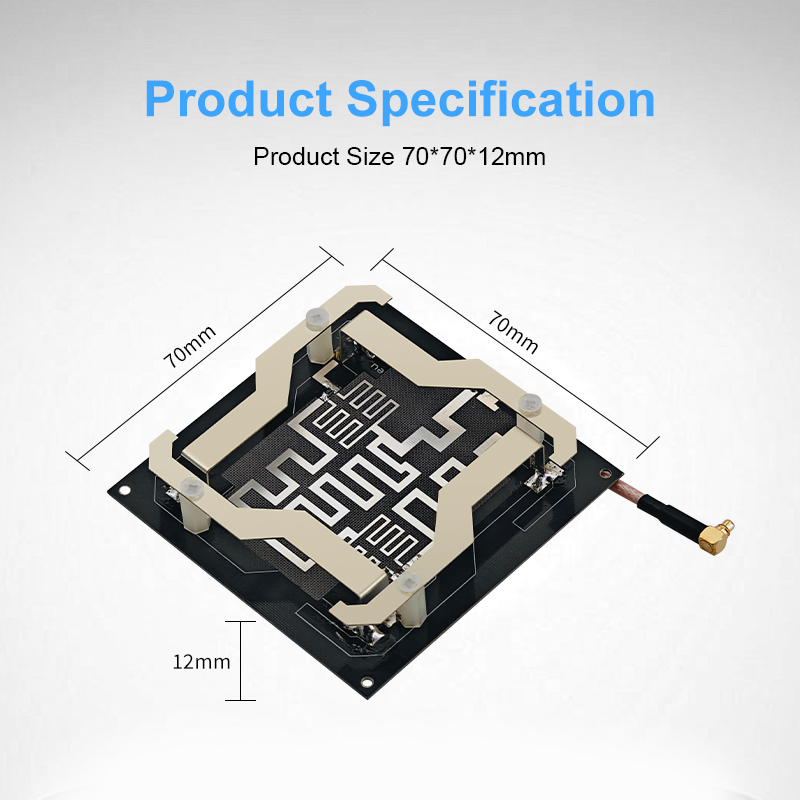

Dimension Diagram
